1. تعارف
Thank you for choosing the Janome HD 718 Sewing Machine. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new sewing machine. Please read these instructions thoroughly before using the machine to ensure optimal performance and longevity.
2. حفاظتي هدايتون
- Always unplug the machine from the electrical outlet immediately after using, before cleaning, or when making any user servicing adjustments.
- سڀني هلڻ وارن حصن کان آ fingersريون پري رکو. سلائي مشين سوئي جي چوڌاري خاص خيال رکڻ جي ضرورت آهي.
- Use the correct needle plate. The wrong plate can cause the needle to break.
- Do not pull or push fabric while stitching. This may deflect the needle, causing it to break.
- Turn the sewing machine off when making any adjustments in the needle area, such as threading the needle, changing the needle, threading the bobbin, or changing the presser foot.
- Never operate the machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
- ڪم نه ڪريو جتي ايروسول (اسپري) مصنوعات استعمال ٿي رهيون آهن يا جتي آڪسيجن جو انتظام ڪيو پيو وڃي.
3. پراڊڪٽ ختمview
The Janome HD 718 is a robust sewing machine designed for various sewing tasks. It features a rotary hook mechanism and offers a range of functions to enhance your sewing experience.
اهم خاصيتون:
- 18 utility and elastic stitches for diverse projects.
- One-step automatic buttonhole for consistent results.
- Stitch locking button for secure seams.
- Automatic bobbin winding for convenience.
- Colored stitch selection and presser foot indicator for ease of use.
- Double presser foot lift for thicker fabrics.
- Adjustable stitch length and width.
- Adjustable thread tension.
مشيني اجزاء:
شڪل 3.1: سامهون view of the Janome HD 718 sewing machine, showing the stitch selection dial, stitch length and width adjustments, and the needle area.
شڪل 3.2: پاسي view of the Janome HD 718 sewing machine, highlighting the power switch and the foot pedal connection port.

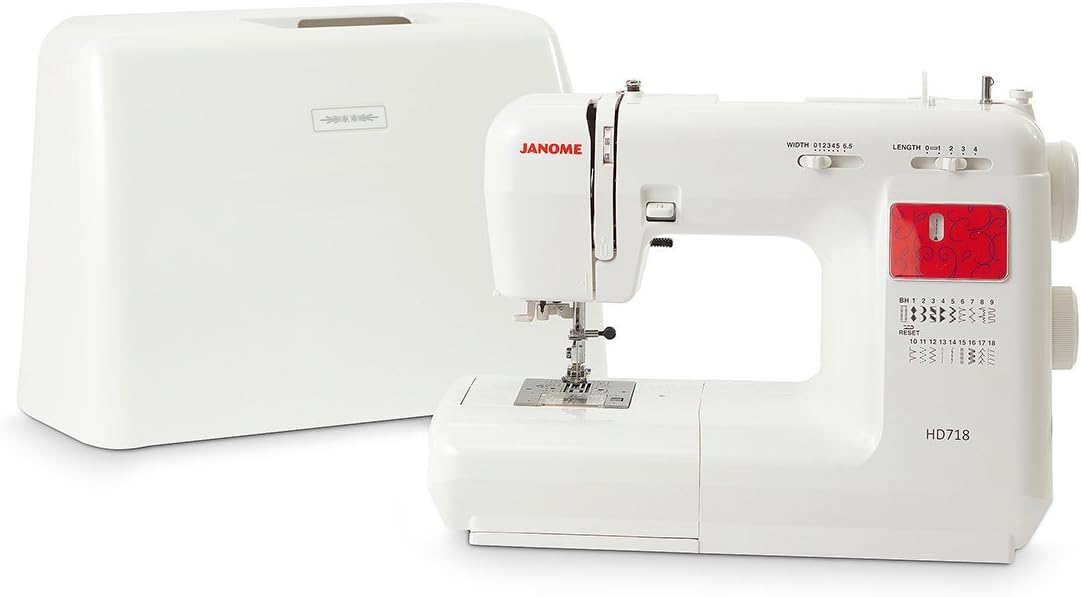

Figure 3.3: The Janome HD 718 sewing machine shown with its protective hard cover, ideal for storage and transport.
Figure 3.4: The hard cover for the Janome HD 718 sewing machine, designed to protect the machine from dust and damage.
4. سيٽ اپ
4.1 کولڻ
Carefully remove the machine from its packaging. Retain all packaging materials for future storage or transport. Ensure all accessories listed in the packing list are present.
4.2 پاور ڪنيڪشن
- مشين کي هڪ مستحڪم، لوڻ واري مٿاڇري تي رکو.
- Connect the foot controller plug into the machine's foot controller socket.
- Insert the power supply plug into the machine's power socket, then into a suitable electrical outlet.
- Turn on the power switch, usually located on the side of the machine (refer to Figure 3.2).
4.3 مشين کي ٿريڊ ڪرڻ
4.3.1 بوبن کي وائنڊنگ ڪرڻ
- اسپول پن تي ڌاڳو جو هڪ اسپول رکو.
- ڌاڳي کي بوبن وائنڊنگ ٽينشن ڊسڪ ذريعي رهنمائي ڪريو.
- خالي بوبن کي بوبن وائنڊر اسپنڊل تي رکو.
- ڌاڳي کي بوبن جي چوڌاري ڪجهه ڀيرا ويڙهو، پوءِ اسپنڊل کي ساڄي پاسي دٻايو.
- وائنڊنگ شروع ڪرڻ لاءِ پير ڪنٽرولر کي دٻايو. جڏهن بوبن ڀرجي ويندو ته مشين پاڻمرادو بند ٿي ويندي.
- ڌاڳو ڪٽيو ۽ بوبن کي هٽايو.
4.3.2 بوبن داخل ڪرڻ
- بوبن ڪَوَر پليٽ کوليو.
- زخم واري بوبن کي بوبن ڪيس ۾ داخل ڪريو، پڪ ڪريو ته ڌاڳو صحيح رخ ۾ کُلي ٿو (عام طور تي گھڙيال جي مخالف طرف).
- Pull the thread through the tension spring and into the thread guide.
- بابن جي ڪپڙا پليٽ کي تبديل ڪريو.
4.3.3 Upper Threading
- دٻائڻ واري پير لفٽر کي اٿاريو.
- ڌاڳي جي اسپول کي اسپول پن تي رکو.
- Follow the numbered threading path indicated on the machine, guiding the thread through all guides and tension discs.
- Bring the thread down through the take-up lever.
- سُئيءَ کي اڳيان کان پٺيءَ تائين ڇڪيو.
- Pull the bobbin thread up through the needle plate hole by turning the handwheel towards you to lower and raise the needle.
4.4 Needle Installation
- پاور سوئچ کي بند ڪريو.
- انجڻ جي ڪل کي خالي ڪريوamp پيچ
- پراڻي سُئي ڪڍي ڇڏيو.
- Insert the new needle with the flat side facing the back of the machine, pushing it up as far as it will go.
- سوئي کي سخت ڪريو clamp محفوظ طور تي ڇڪيو.
5. مشين کي هلائڻ
5.1 سلائي جي چونڊ
The Janome HD 718 offers 18 different stitches. To select a stitch, turn the stitch selection dial (refer to Figure 3.1) to the desired stitch number. The machine also indicates the recommended presser foot for each stitch.
5.2 Adjusting Stitch Length and Width
Use the stitch length and width adjustment dials, located on the top front of the machine (refer to Figure 3.1), to fine-tune your stitches. Adjustments should be made according to the fabric type and desired stitch appearance.
5.3 Thread Tension Adjustment
The thread tension dial controls the balance between the upper and lower threads. Adjust as needed to achieve a balanced stitch where neither thread is pulling through to the opposite side of the fabric.
5.4 One-Step Automatic Buttonhole
To create a buttonhole:
- Attach the automatic buttonhole foot.
- Place the button you are using into the buttonhole foot's holder.
- Select the buttonhole stitch on the stitch selection dial.
- بٽڻ واري ليور کي گھٽايو.
- Begin sewing. The machine will automatically sew the buttonhole to the correct size.
5.5 سلائي جا بنيادي اصول
- ڪپڙي کي پريسر پير جي هيٺان رکو.
- پريشر پير کي هيٺ ڪريو.
- شروعاتي نقطي تي سُئي کي ڪپڙي ۾ هيٺ ڪرڻ لاءِ هٿ واري وهيل کي پنهنجي طرف ڦيرايو.
- Press the foot controller to begin sewing.
- To reverse stitch (backtack), press and hold the reverse lever/button.
- When finished, raise the needle to its highest position, lift the presser foot, and pull the fabric away. Cut the threads using the thread cutter.
6. سار سنڀال
6.1 صفائي
Regular cleaning helps maintain your machine's performance. Always unplug the machine before cleaning.
- لِنٽ هٽائڻ: Use a small brush to remove lint and dust from the bobbin area and under the needle plate.
- ٻاهرين صفائي: ٻاهرين مٿاڇري کي نرم، سڪل ڪپڙي سان صاف ڪريو. سخت ڪيميڪل يا رگڙيندڙ صاف ڪندڙ استعمال نه ڪريو.
6.2 تڪليف طئه ڪرڻ
Here are solutions to common issues:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڇڏيل سَٽَ | غلط سُئي، مڙيل سُئي، غلط ڌاڳو. | سُئي تبديل ڪريو، مشين کي صحيح طرح سان ٻيهر ڌاڳو لڳايو. |
| تار جي ڀڃڪڙي | Incorrect thread tension, poor quality thread, improperly wound bobbin, burr on needle plate. | ٽينشن کي ترتيب ڏيو، معياري ڌاڳو استعمال ڪريو، بوبن کي ٻيهر وائنڊ ڪريو، burrs جي جانچ ڪريو. |
| مشين شروع نه ٿي | Power not connected, foot controller not plugged in, bobbin winder engaged. | Check power and foot controller connections, disengage bobbin winder. |
| اڻ برابر ٽانڪيون | Incorrect thread tension, wrong presser foot, inconsistent fabric feeding. | Adjust tension, use appropriate presser foot, guide fabric gently. |
7. وضاحتون
- برانڊ: جانوم
- ماڊل نمبر: HD 718
- مواد: المونيم
- رنگ: اڇو
- طول و عرض (پيڪيج): 50.2 x 42 x 25.4 سينٽي
- شيء جو وزن: 9.94 ڪلوگرام
- طاقت جو ذريعو: اليڪٽرڪ ڪيبل
- بجلي: ها
- UPC: 711668386916
8. وارنٽي ۽ سپورٽ
Specific warranty information for the Janome HD 718 sewing machine is not provided in the product data. For details regarding warranty coverage, service, or technical support, please contact your retailer or the official Janome customer service in your region. Always retain your proof of purchase for warranty claims.
