COMPUTHERM Q7RF Programmable Wireless Room Thermostat User Manual

1. تعارف

The COMPUTHERM Q7RF wireless room thermostat is designed for precise control of heating and air conditioning systems. This programmable device allows you to set individual temperature schedules for each day of the week, optimizing comfort and energy efficiency in your home or office. Its wireless design offers flexible placement of the thermostat unit, while the receiver unit connects directly to your boiler or air conditioning system, compatible with both 24V and 230V control circuits.

2. پيڪيج مواد

پڪ ڪريو ته سڀئي جزا توهان جي پيڪيج ۾ موجود آهن:

• 4 x COMPUTHERM Q7RF Room Thermostat (Transmitter Unit)
• 4 x COMPUTHERM Q7RF Receiver Unit
• استعمال ڪندڙ جو دستياب (ھي دستاويز)
• چڙهڻ اسڪرو ۽ وال پلگ

3. پراڊڪٽ ختمview

The COMPUTHERM Q7RF system consists of two main components: the thermostat unit (transmitter) and the receiver unit. The thermostat unit measures the room temperature and allows you to set desired temperatures and programs. The receiver unit connects to your heating or cooling system and switches it on or off based on signals from the thermostat unit.

شڪل 1: ختمview of the COMPUTHERM Q7RF 4-piece set, showing multiple thermostat and receiver units.

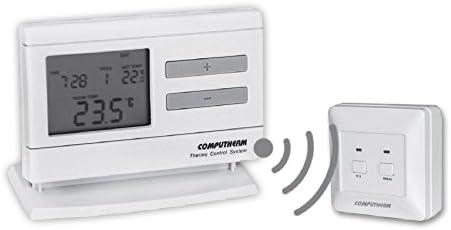

Figure 2: A single COMPUTHERM Q7RF thermostat unit communicating wirelessly with its receiver unit.

3.1 Thermostat Unit (Transmitter)

• LCD ڊسپلي: Shows current temperature, set temperature, time, day, and program status.
• ڪنٽرول بٽڻ: For setting temperature, time, and programming schedules.
• بيٽري جو خانو: بجلي جي فراهمي لاء.

3.2 وصول ڪندڙ يونٽ

• وائرنگ ٽرمينل: For connection to the heating/cooling system.
• حيثيت جا اشارو: LEDs to show power and relay status.
• Manual Override Buttons: For temporary manual control.

4. وضاحتون

5. سيٽ اپ ۽ تنصيب

5.1 Thermostat Unit Placement and Battery Installation

1. جڳھ چونڊيو: Place the thermostat unit in a central area of the room where it can accurately measure the ambient temperature, away from direct sunlight, drafts, or heat sources.
2. بيٽرين کي انسٽال ڪريو. Open the battery compartment on the back of the thermostat unit. Insert the required batteries (typically AA or AAA, refer to the unit's markings) ensuring correct polarity. Close the compartment.
3. پاور آن: The display should light up, indicating the unit is powered.

5.2 Receiver Unit Wiring

WARNING: Electrical installation should only be performed by a qualified electrician. Disconnect power to the heating/cooling system before proceeding.

1. Mount the Receiver: Secure the receiver unit near your boiler or air conditioning system using the provided screws and wall plugs.
2. وائرنگ ٽرمينلز تائين رسائي: Open the cover of the receiver unit to expose the wiring terminals.
3. سسٽم سان ڳنڍيو: Connect the receiver unit to the two-wire room thermostat connection point of your boiler or AC system. Ensure connections are secure and follow the wiring diagram provided with your heating/cooling system and the receiver unit. The COMPUTHERM Q7RF is compatible with both 24V and 230V control circuits.
4. پاور بحال ڪريو: Once wiring is complete and verified, close the receiver unit cover and restore power to your heating/cooling system.

5.3 Pairing the Units (If not pre-paired)

Refer to the specific instructions provided with your Q7RF set for pairing procedures. Typically, this involves pressing a pairing button on the receiver unit and then initiating a pairing sequence on the thermostat unit within a short timeframe. A successful pairing will usually be indicated by an LED on the receiver or a message on the thermostat display.

6. آپريٽنگ هدايتون

6.1 LCD ڊسپلي کي سمجهڻ

The LCD display provides all necessary information about the thermostat's current status and settings.

شڪل 3: تفصيلي view of the COMPUTHERM Q7RF LCD display, illustrating various indicators such as program number, manual modification symbol, weekdays, time, set temperature, actual room temperature, low battery symbol, boiler ON state, and timed control symbol.

• هفتي جا ڏينهن: ھفتي جي موجوده ڏينھن کي ظاھر ڪري ٿو.
• Exact Time / Time Left: Displays the current time or time remaining for a manual modification.
• پروگرام نمبر: Shows the active program segment.
• درجه حرارت مقرر ڪريو: The desired temperature set by the user.
• Actual Room Temperature: The current temperature measured by the thermostat.
• Symbol for Manual Modification: Indicates that the thermostat is currently operating under a temporary manual override.
• Temp. Modified until next manual intervention: Shows the duration of a temporary temperature change.
• Symbol for Low Battery Voltage: Appears when batteries need replacement.
• Symbol for Boiler ON State: Indicates when the heating/cooling system is active.
• Symbol for Timed Control: Indicates that a programmed schedule is active.

6.2 موجوده وقت ۽ ڏينهن مقرر ڪرڻ

1. کي دٻايو ٽائيم بٽڻ
2. استعمال ڪريو + or - ڪلاڪ کي ترتيب ڏيڻ لاءِ بٽڻ، پوءِ دٻايو ٽائيم ٻيهر تصديق ڪرڻ لاء.
3. Repeat for minutes and day of the week.

6.3 دستي درجه حرارت جي ترتيب

1. عام آپريٽنگ موڊ ۾، دٻايو + or - مطلوبہ درجه حرارت کي ترتيب ڏيڻ لاء بٽڻ.
2. The new temperature will be maintained until the next programmed time slot or until manually overridden again.

6.4 Programming Daily/Weekly Schedules

The Q7RF allows for independent programming for each day of the week. You can typically set multiple time periods with different temperatures for each day.

1. کي دٻايو واڌو پروگرامنگ موڊ ۾ داخل ٿيڻ لاءِ بٽڻ.
2. استعمال ڪريو ڏينهن button to select the day you wish to program (e.g., MON, TUE, etc.).
3. استعمال ڪريو ٽائيم ۽ +/- buttons to set the start time for the first program period.
4. استعمال ڪريو سيٽ قائم ڪريو ۽ +/- buttons to set the desired temperature for this period.
5. دٻايو واڌو again to move to the next program period for the same day, or use ڏينهن ايندڙ ڏينهن ڏانهن منتقل ڪرڻ لاء.
6. Repeat until all desired periods and days are programmed.
7. کي دٻايو رن or نڪرڻ button to save and exit programming mode.

7. سار سنڀال

7.1 بيٽري مٽائڻ

When the low battery symbol appears on the LCD display, replace the batteries immediately to ensure continuous operation. Use new, high-quality alkaline batteries of the specified type.

1. Open the battery compartment cover on the back of the thermostat unit.
2. پراڻي بيٽرين کي هٽايو.
3. Insert new batteries, observing correct polarity (+/-).
4. بيٽري جي ڪمري واري ڍڪ کي بند ڪريو.

7.2 صفائي

Clean the thermostat and receiver units with a soft, dry cloth. Do not use abrasive cleaners, solvents, or spray directly onto the units, as this may damage the electronics or finish.

8. مسئلا حل ڪرڻ

9. وارنٽي ۽ سپورٽ

COMPUTHERM products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or contact your retailer. For technical support, please reach out to the COMPUTHERM customer service or your local distributor. Keep your purchase receipt as proof of purchase.
