تعارف
The Paradox PMD2P/86 is a high-performance, supervised analog passive infrared (PIR) detector designed for reliable motion detection in security systems. This device features single optics, providing an 11x11 meter detection range with an 88.5° angle. It incorporates advanced technology for enhanced security and user convenience.
اهم خاصيتون شامل آهن:
- Patented Signal Processing: Utilizes pulse count processing for accurate detection.
- خودڪار گرمي پد معاوضو: Ensures consistent performance across varying environmental temperatures.
- Energy Saving Transmission Block: After two detections within 5 minutes, transmission is blocked for 3 minutes to conserve battery life.
- High Pet Immunity: Designed to ignore pets weighing up to 18 kg, reducing false alarms.
- Tamper and Anti-Deterioration Switches: Provides additional security against unauthorized access or damage.
- بجلي جي فراهمي: Supplied with 3 AA alkaline batteries for immediate use.

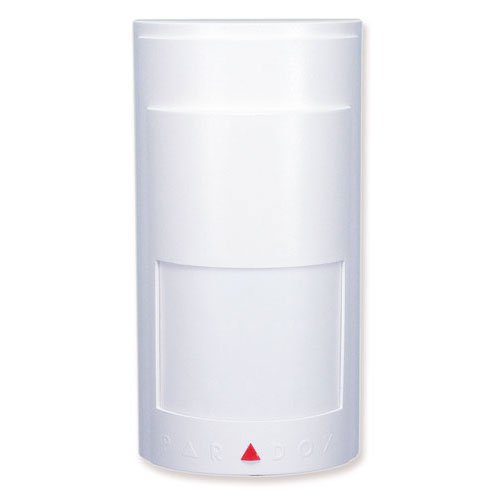

هي تصوير سامهون ڏيکاري ٿي view of the Paradox PMD2P/86 detector, highlighting its compact design and lens.
سيٽ اپ ۽ تنصيب
1. پيڪنگ ۽ بيٽري لڳائڻ
Carefully remove the detector from its packaging. The PMD2P/86 is supplied with 3 AA alkaline batteries. Open the detector casing according to the instructions provided in the full manual (not included here) and insert the batteries, ensuring correct polarity. Close the casinجي محفوظ طور تي.
2. چڙهڻ جو هنڌ
Choose a mounting location that provides optimal coverage of the area to be protected. Consider the following:
- اوچائي: Typically mounted at 2.1 to 2.7 meters (7 to 9 feet) above the floor.
- ڳولڻ جي حد: The detector offers an 11x11 meter range with an 88.5° angle. Position it to cover entry points and valuable areas.
- پالتو جانورن جي مدافعت: For optimal pet immunity (up to 18 kg), ensure the detector is mounted at the recommended height and that pets cannot climb onto objects within the detection zone that would place them at a higher level.
- بچاءُ: Do not aim the detector directly at heat sources, air vents, or windows that receive direct sunlight, as these can cause false alarms.
3. ڊيٽيڪٽر لڳائڻ
Use the provided mounting hardware to securely attach the detector to a wall or corner. Ensure the tamper switch is properly engaged once the detector is mounted to prevent unauthorized removal.
4. سسٽم انٽيگريشن
The PMD2P/86 is a supervised analog detector. Refer to your security system's control panel manual for instructions on how to enroll or integrate new wireless devices. The detector will communicate with the control panel at 868MHz.
آپريٽنگ هدايتون
معلوم ڪرڻ جو اصول
The Paradox PMD2P/86 detects motion by sensing changes in infrared energy (body heat) within its detection zone. When a moving heat source, such as a person, crosses the detection pattern, the detector triggers an alarm signal to the connected security system.
پالتو جانورن جي مدافعتي
The advanced design of the PMD2P/86 provides high immunity to pets weighing up to 18 kg. This means that normal movement of small to medium-sized pets within the protected area should not trigger an alarm. For best performance, ensure pets cannot get too close to the detector or climb onto furniture that would place them in the upper detection zones.
توانائي بچائڻ جو طريقو
To extend battery life, the detector incorporates an energy-saving feature. After two detections occur within a 5-minute period, the detector will enter a transmission block mode for 3 minutes. During this time, it will continue to detect motion but will not transmit further signals to the control panel. This prevents excessive battery drain in high-traffic areas.
نگراني
As a supervised detector, the PMD2P/86 periodically sends a supervisory signal to the control panel. This confirms that the detector is operational and within communication range. If the control panel does not receive a supervisory signal within a set timeframe, it will indicate a trouble condition.
سار سنڀال
بيٽري مٽائڻ
The detector is powered by 3 AA alkaline batteries. When the battery level is low, the detector will send a low battery signal to your security system's control panel. Replace all three batteries promptly with new, high-quality alkaline AA batteries. Always ensure correct polarity during installation.
صفائي
Periodically clean the detector's lens and casing with a soft, dry cloth. Do not use abrasive cleaners, solvents, or spray directly onto the unit, as this can damage the optics or electronic components.
باقاعده جاچ
It is recommended to test the detector's functionality periodically (e.g., once a month) to ensure it is operating correctly. Refer to your security system's manual for instructions on how to perform a walk test or system test.
مشڪلاتون
No Detection / Detector Not Responding
- بيٽري چيڪ ڪريو: پڪ ڪريو ته بيٽريون صحيح طرح سان نصب ٿيل آهن ۽ ختم نه ٿيون ٿين. جيڪڏهن ضروري هجي ته تبديل ڪريو.
- رڪاوٽون: Verify that there are no physical obstructions blocking the detector's field of view.
- چڙهڻ جي اوچائي: Confirm the detector is mounted at the recommended height.
- سگنل جي حد: Ensure the detector is within the wireless communication range of the control panel. Relocate if necessary.
- داخلا: Confirm the detector is properly enrolled with the security system.
غلط الارم
- گرمي جا ذريعا: Check for heat sources (heaters, direct sunlight, air vents) within the detection zone. Relocate the detector or adjust its aim.
- پالتو جانور: Ensure pets are not exceeding the 18 kg immunity limit or climbing onto objects that place them higher in the detection zone.
- مسودا: Strong drafts can sometimes cause false alarms. Seal windows or doors if this is a factor.
- وائبريشن: Excessive vibrations near the detector can sometimes cause issues.
گھٽ بيٽري جو اشارو
If your control panel indicates a low battery for the PMD2P/86, replace all three AA alkaline batteries immediately. Do not mix old and new batteries.
ٽيڪنيڪل وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل | PMD2P/86 |
| ڳولڻ جي قسم | Supervised Analog Passive Infrared (PIR) |
| بصري | Single Optics |
| ڳولڻ جي حد | 11 x 11 meters (35 x 35 feet) |
| ڳولهي زاويه | 88.5° |
| پالتو جانورن جي مدافعتي | 18 ڪلو تائين (40 مب) |
| تعدد | 868 MHz |
| طاقت جو ذريعو | 3 x AA الڪلائن بيٽريون (شامل) |
| Tampاي حفاظت | مخالف ٽيamper and anti-deterioration switches |
| طول و عرض (تقريبن) | 13.2 x 6.8 x 4.8 سينٽي (5.2 x 2.7 x 1.9 انچ) |
| وزن (تقريبن) | 160 گرام (0.35 پائونڊ) |
| ٺاهيندڙ | پيراڊڪس |
وارنٽي ۽ سپورٽ
For specific warranty information, please refer to the documentation provided with your purchase or contact your authorized Paradox dealer or installer. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
If you encounter any issues that cannot be resolved using the troubleshooting guide, or require technical assistance, please contact your security system installer or Paradox customer support. Ensure you have your product model number (PMD2P/86) and purchase details available when seeking support.
