Easytry123 Universal Remote Control Instruction Manual

تعارف

This manual provides essential instructions for the setup, operation, and maintenance of your Easytry123 Universal Remote Control, model Easytry0090. This remote is designed to control various AC/Air Conditioner units from brands such as BONGU, Xinghe, Hohong, Shuaikang, Toyo, Yangzi, Hampton-Bay, Shining, Trane, Yutu, and HOGEN. Please read this manual thoroughly before use to ensure proper functionality and to maximize the lifespan of your device.

اهم نوٽ: This is a replacement remote control. While it is designed to be compatible with many models, some advanced functions of your original unit may not be fully supported. Always verify compatibility with your specific AC unit model number.

پيداوار ختمview

شڪل 1: سامهون View ريموٽ ڪنٽرول جو. This image displays the front of the universal remote control, showing the LCD screen, power button, mode selection, temperature controls, fan speed, and other function buttons like Light, F.Cool, F.Heat, Time On, Time Off, Set, Clock, and Lock.

شڪل 2: پوئتي View with Battery Compartment. This image shows the back of the remote control with the battery cover removed, revealing the empty battery compartment designed for two AAA batteries.

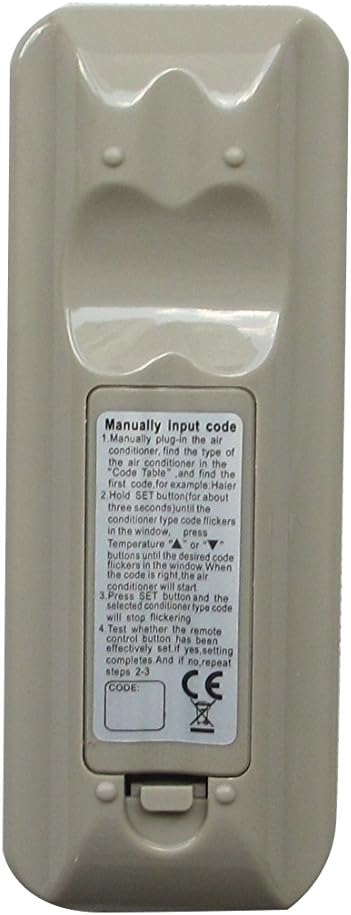

شڪل 3: پوئتي View with Manual Code Input Instructions. This image displays the back of the remote control, featuring a label with detailed instructions for manually inputting the AC unit's code, including steps for finding the code, setting it, and confirming.

سيٽ اپ ڪريو

1. بيٽري لڳائڻ

ريموٽ ڪنٽرول کي ٻه AAA بيٽريون گهرجن (شامل نه آهن). انهن کي انسٽال ڪرڻ لاءِ انهن قدمن تي عمل ڪريو:

1. ريموٽ ڪنٽرول جي پوئين پاسي بيٽري جي ڪمري کي ڳوليو (شڪل 2 ڏسو).
2. ان کي کولڻ لاءِ بيٽري جي ڍڪ کي هيٺئين طرف سلائڊ ڪريو.
3. ٻہ AAA بيٽريون داخل ڪريو، پڪ ڪريو ته مثبت (+) ۽ منفي (-) ٽرمينل ڪمري اندر نشانن سان صحيح طرح سان ترتيب ڏين.
4. بيٽري جي ڍڪ کي واپس جاء تي سلائيڊ ڪريو جيستائين اهو محفوظ طور تي ڪلڪ ڪري.

2. Code Setup for Your AC Unit

This universal remote requires a specific code to operate your air conditioner. The code can be set manually. Refer to the label on the back of the remote (Figure 3) for detailed instructions. A code table is typically provided with the remote or can be found online for compatible AC brands.

Manual Code Input Steps:

1. Manually plug in the air conditioner. Find the type of the air conditioner in the Code Table and find the first code. For example: Haier.
2. رکو سيٽ button for about three seconds until the conditioner type code flickers in the window.
3. کي دٻايو گرمي پد جي مٿي (▲) يا درجه حرارت ھيٺ (▼) buttons until the desired code flickers in the window. When the code is right, the air conditioner will start.
4. کي دٻايو سيٽ button and the selected code for the type code will stop flickering.
5. Test operating the remote control. If it has been effectively set, press OK. If not, repeat steps 2-3.

Note: The code table is crucial for this step. If you do not have one, please contact the seller or search online for "Universal AC Remote Code List" for your specific remote model (K-1028E, as seen on the remote).

آپريٽنگ هدايتون

Once the remote is set up with the correct code, you can use it to control your AC unit. Here are the primary functions:

• آن / آف بٽڻ: AC يونٽ کي آن يا آف ڪرڻ لاءِ دٻايو.
• موڊ بٽڻ: ٿڌي، گرمي، پنکڙي، خشڪ، آٽو جهڙن آپريٽنگ طريقن ذريعي چڪر لڳائي ٿو.
• TEMP Buttons (▲ / ▼): گهربل گرمي پد کي مٿي يا هيٺ ترتيب ڏئي ٿو.
• WIND (Fan Speed) Button: فين جي رفتار کي ترتيب ڏئي ٿو (مثال طور، گهٽ، وچولي، تيز، آٽو).
• M.SWING / A.SWING Buttons: Controls the horizontal and vertical swing of the air deflector.
• روشني وارو بٽڻ: Turns the display light on the AC unit on or off (if supported).
• F.Cool / F.Heat Buttons: Activates Fast Cool or Fast Heat modes (if supported by AC unit).
• TIME ON / TIME OFF Buttons: Sets a timer for the AC unit to turn on or off automatically.
• ڪلاڪ بٽڻ: ريموٽ جي ڊسپلي تي موجوده وقت سيٽ ڪري ٿو.
• لاڪ بٽڻ: Locks the remote's settings to prevent accidental changes.
• سيٽ بٽڻ: Used for code setup and confirming settings.
• OKيڪ بٽڻ: چونڊ يا سيٽنگ جي تصديق ڪري ٿو.

Functionality may vary depending on the specific AC unit model and its compatibility with this universal remote.

سار سنڀال

مناسب سار سنڀال توهان جي ريموٽ ڪنٽرول جي ڊگهي عمر ۽ بهترين ڪارڪردگي کي يقيني بڻائي ٿي.

• صفائي: ريموٽ ڪنٽرول کي نرم، سڪل ڪپڙي سان صاف ڪريو. مائع صاف ڪندڙ يا رگڙيندڙ مواد استعمال نه ڪريو.
• بيٽري مٽائڻ: Replace batteries when the remote's response becomes sluggish or the display dims. Always replace both batteries at the same time with new ones of the same type (AAA).
• اسٽوريج: جيڪڏهن ريموٽ ڊگهي عرصي تائين استعمال نه ٿيندو، ته پوءِ بيٽريون ڪڍي ڇڏيون ته جيئن رسڻ ۽ نقصان کان بچي سگهجي. ٿڌي، سڪل جاءِ تي ذخيرو ڪريو.
• قطرن کان پاسو ڪريو: ريموٽ کي جسماني جھٽڪن ۽ ​​ڦڙن کان بچايو، جيڪي اندروني حصن کي نقصان پهچائي سگهن ٿا.

مشڪلاتون

وضاحتون

• ماڊل: ايزيٽري 0090
• برانڊ: ايزيٽري 123
• رابطي ٽيڪنالاجي: انفراريڊ
• ڪنٽرولر جو قسم: بٽڻ ڪنٽرول
• رنگ: ڀورو
• طاقت جو ذريعو: 2 x AAA بيٽريون (شامل نه آهن)
• مطابقت: Universal for various AC/Air Conditioner brands (BONGU, Xinghe, Hohong, Shuaikang, Toyo, Yangzi, Hampton-Bay, Shining, Trane, Yutu, HOGEN, etc.)
• تاريخ پهرين دستياب: مئي 16، 2018
• ٺاهيندڙ: ايزيٽري 123
• اصليت جو ملڪ: چين

وارنٽي ۽ سپورٽ

This product is a replacement item. Information regarding specific warranty terms is not provided in the product details. For any issues or support inquiries, please contact the seller directly through the platform where the purchase was made.

وڪرو ڪندڙ: ايزيٽري 123

Please note that this remote comes without a manual from the manufacturer, hence this comprehensive guide has been created to assist you.
