1. تعارف
Thank you for choosing the Easytry123 Replacement Remote Control. This manual provides essential information for the proper setup, operation, and maintenance of your new remote control. This remote is designed as a direct replacement for specific Daikin air conditioner models. Please ensure your original remote matches the appearance of this replacement for optimal compatibility.
Important Note: This is a replacement remote. While it replicates the primary functions of the original, some advanced or specific features of your air conditioner unit may require the original manual for full understanding or may not be fully supported by this replacement. Always refer to your air conditioner's original manual for detailed operational instructions of the AC unit itself.
2. پراڊڪٽ ختمview
The Easytry123 replacement remote control is an infrared (IR) device designed for ease of use. It features a clear LCD display and tactile buttons for controlling various functions of your compatible Daikin air conditioner.

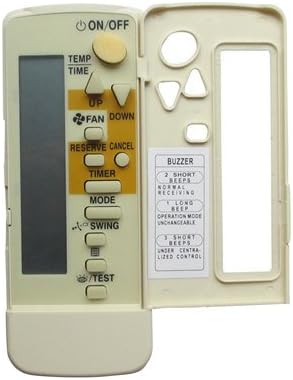

شڪل 2.1: سامهون view of the remote control with the hinged cover open.
This image displays the front of the remote control. The top section features an LCD screen and primary function buttons such as ON/OFF, TEMP, TIME, FAN, RESERVE/CANCEL, TIMER, MODE, SWING, and TEST. A hinged cover on the right side opens to reveal additional control buttons and a label detailing buzzer indications.
شڪل 2.2: زاويه view of the remote control with the hinged cover open.
An angled perspective of the remote control, showing the LCD screen and main buttons on the left, and the open compartment on the right with secondary buttons and a buzzer guide.

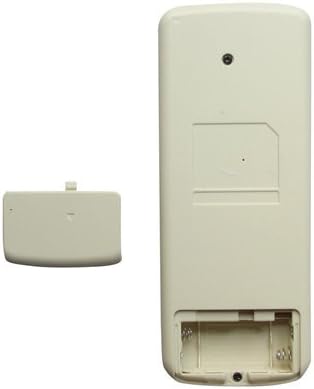

شڪل 2.3: پوئتي view ريموٽ ڪنٽرول جو بيٽري جو ڪمپارٽمينٽ کليل هجي.
پوئتي view of the remote control, illustrating the battery compartment designed for two AAA batteries. The battery cover is shown detached next to the remote.
3. سيٽ اپ
3.1 بيٽري لڳائڻ
Your remote control requires two (2) AAA batteries (not included) for operation. Follow these steps to install the batteries:
- ريموٽ ڪنٽرول جي پٺي تي بيٽري جي خاني کي ڳوليو.
- ٽيب تي دٻايو ۽ ان کي کولڻ لاءِ بيٽري جي ڍڪ کي هيٺئين طرف سلائڊ ڪريو.
- ٻہ AAA بيٽريون داخل ڪريو، پڪ ڪريو ته مثبت (+) ۽ منفي (-) ٽرمينل ڪمري اندر نشانن سان صحيح طرح سان ترتيب ڏين.
- بيٽري جي ڍڪ کي واپس جاء تي سلائيڊ ڪريو جيستائين اهو محفوظ طور تي ڪلڪ ڪري.
نوٽ: جيڪڏهن ريموٽ ڪنٽرول ڊگهي عرصي تائين استعمال نه ڪيو ويندو ته جيئن رسي کي روڪي سگهجي ته بيٽريون هٽايو.
4. آپريٽنگ هدايتون
To operate your air conditioner, point the remote control directly at the indoor unit's receiver. Ensure there are no obstructions between the remote and the unit.
4.1 بنيادي ڪم
- آن/بند: Press this button to turn the air conditioner unit on or off.
- TEMP (مٿي/هيٺ تير): گهربل درجه حرارت جي سيٽنگ کي ترتيب ڏيڻ لاءِ انهن بٽڻن کي استعمال ڪريو.
- FAN (Up/Down Arrows): Controls the fan speed. Press to cycle through available fan speed settings (e.g., Low, Medium, High, Auto).
- طرفن: Selects the operating mode of the air conditioner (e.g., Cool, Heat, Fan, Dry, Auto).
- جھولڻ: Activates or deactivates the automatic swing function of the air deflector.
- ٽائمر: Used to set the on/off timer for the air conditioner. Refer to your AC unit's manual for detailed timer programming.
- RESERVE/CANCEL: Typically used in conjunction with the timer function to confirm or cancel settings.
- ٽيسٽ: This button is usually for service or diagnostic purposes. Avoid pressing it during normal operation unless instructed by a qualified technician.
- وقت (مٿي/هيٺ تير): Adjusts the time displayed on the remote or used for timer settings.
4.2 Buzzer Indications
The remote control provides audible feedback through a buzzer. The indications are as follows:
| بيپس | اشارو |
|---|---|
| 2 مختصر بيپس | Normal Receiving |
| 1 ڊگھي بيپ | Operation Mode Unchangeable |
| 3 مختصر بيپس | Under Centralized Control |
5. سار سنڀال
- صفائي: ريموٽ ڪنٽرول کي نرم، سڪل ڪپڙي سان صاف ڪريو. مائع صاف ڪندڙ يا رگڙيندڙ مواد استعمال نه ڪريو.
- بيٽري مٽائڻ: Replace batteries when the display becomes dim or the remote's range decreases. Always replace both batteries at the same time with new ones of the same type.
- اسٽوريج: If not using the remote for an extended period, remove the batteries to prevent corrosion and store it in a cool, dry place.
- پڌرائي کان بچو: ريموٽ ڪنٽرول کي سڌي سج جي روشني، تيز گرمي پد، يا وڌيڪ نمي جي سامهون نه رکو.
6. مسئلا حل ڪرڻ
جيڪڏهن توهان کي پنهنجي ريموٽ ڪنٽرول سان مسئلا درپيش اچن ٿا، ته مهرباني ڪري هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:
- Remote not responding or unit not receiving commands:
- چيڪ ڪريو ته بيٽريون صحيح پولارٽي سان صحيح طرح سان نصب ٿيل آهن.
- پراڻين بيٽرين کي نئين AAA بيٽرين سان تبديل ڪريو.
- Ensure there is a clear line of sight between the remote control and the air conditioner's indoor unit. Remove any obstructions.
- Verify that the remote control is pointed directly at the air conditioner's receiver.
- Remote display is dim or blank:
- Batteries are low. Replace them with new AAA batteries.
- ڪجھ ڪم ڪم نه ٿا ڪن:
- This is a replacement remote. Not all functions of your specific AC unit may be fully supported or mapped identically. Refer to your original AC unit manual.
- Ensure the remote is compatible with your exact Daikin model number.
7. وضاحتون
- ماڊل نمبر: ايزيٽري 1112
- برانڊ: ايزيٽري 123
- رابطي ٽيڪنالاجي: انفراريڊ (IR)
- ڪنٽرولر جو قسم: بٽڻ ڪنٽرول
- رنگ: ڀورو
- بيٽرين جي ضرورت آهي: 2 x AAA (شامل نه آهي)
- اصليت جو ملڪ: چين
- Compatible Daikin Models: BRC4C82, FXDQ15P7VEB, BRC7E, BRC7F, BRC7C, BRC4C155, BRC4C156, BRC4C158, FHYC125BJV1
8. وارنٽي ۽ سپورٽ
For any questions regarding the operation, compatibility, or potential warranty claims for your Easytry123 Replacement Remote Control, please contact the seller directly through the platform where you purchased the product. They will be able to provide the most accurate and up-to-date support information.
Please have your purchase details and the remote control's model number (Easytry1112) ready when contacting support.
