1. تعارف
This manual provides essential information for the installation, operation, and maintenance of your BRP Can-Am Defender 3-Mode Switch. This switch allows you to select between Work, Normal, and Eco modes, optimizing your vehicle's performance for various conditions. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. حفاظت جي ڄاڻ
Always ensure the vehicle's ignition is off and the battery is disconnected before performing any installation or maintenance. Improper installation can lead to electrical damage or vehicle malfunction. If you are unsure about any step, consult a qualified technician.
3. پراڊڪٽ ختمview
The BRP Can-Am Defender 3-Mode Switch (Part No. 715004445) is designed for seamless integration into compatible Can-Am Defender and Defender MAX models. It provides quick and convenient selection between three distinct operational modes:
- ڪم موڊ: Reduces throttle sensitivity for smoother acceleration and minimizes load impact, ideal for precision tasks or heavy hauling.
- ايڪو موڊ: Optimizes engine parameters for increased fuel economy, suitable for extended rides or when conserving fuel is a priority.
- عام موڊ: Provides standard vehicle performance for general driving conditions.
This switch features an in-dash plug-and-play mount for straightforward installation.

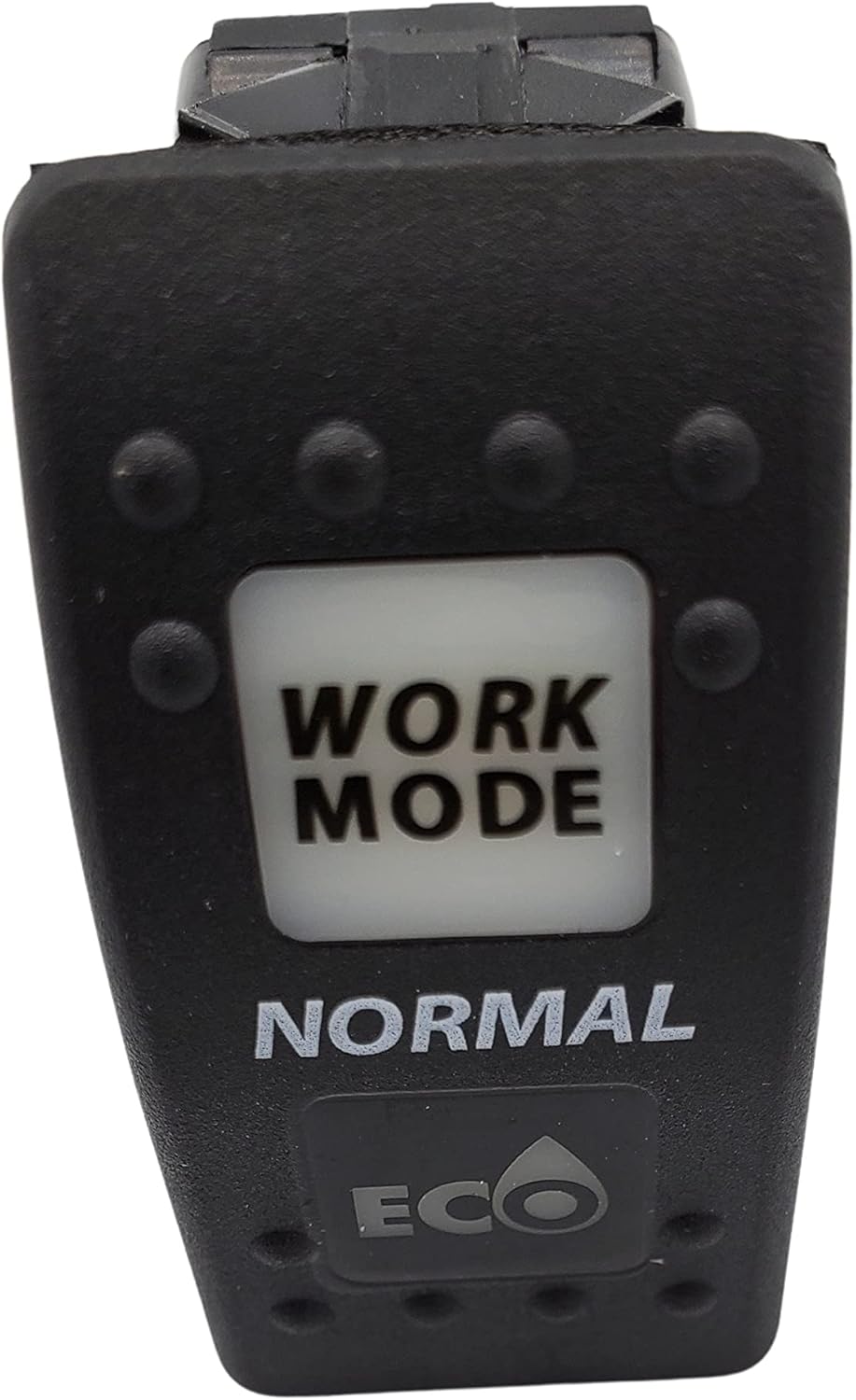

شڪل 1: سامهون view of the BRP Can-Am 3-Mode Switch. The switch face clearly displays the 'WORK MODE', 'NORMAL', and 'ECO' selections.
4. سيٽ اپ ۽ تنصيب
- گاڏي جي تياري: Ensure your Can-Am Defender or Defender MAX vehicle is turned off and the ignition key is removed. Disconnect the negative terminal of the vehicle's battery to prevent accidental electrical shorts.
- Locate Installation Slot: Identify an available in-dash switch slot in your vehicle. This switch is designed for a standard in-dash mount.
- ڪنيڪٽر جي سڃاڻپ ڪريو: Locate the correct wiring harness connector under the dashboard. The switch is plug-and-play, meaning it will connect directly to a dedicated harness. When connected correctly, the switch may illuminate.
- ڪنيڪٽ سوئچ: Carefully align the pins on the back of the 3-mode switch with the corresponding slots in the vehicle's wiring harness connector. Push firmly until the connection is secure.
- ماؤنٽ سوئچ: Insert the switch into the chosen in-dash slot. Ensure it clicks into place securely.
- بيٽري ٻيهر ڳنڍيو: گاڏي جي بيٽري جي منفي ٽرمينل کي ٻيهر ڳنڍيو.
- ٽيسٽ ڪارڪردگي: Turn on the vehicle's ignition and test the switch by cycling through the Work, Normal, and Eco modes. Observe if the vehicle's behavior changes as expected for each mode.
مطابقت: This switch is compatible with Can-Am Defender and Defender MAX models. It is standard on 2020 models and can be an upgrade for earlier compatible models.
شڪل 2: پوئتي view of the BRP Can-Am 3-Mode Switch, illustrating the electrical connectors for plug-and-play installation.
Figure 3: The BRP Can-Am 3-Mode Switch shown installed in a vehicle's dashboard, demonstrating its integrated appearance.
5. آپريٽنگ هدايتون
To operate the 3-Mode Switch, simply press the desired mode button on the switch face. The selected mode will typically be indicated by illumination or a clear label on the switch.
- ڪم موڊ: Select this mode for tasks requiring precise throttle control, such as towing, plowing, or navigating challenging terrain at low speeds. The reduced throttle sensitivity helps prevent sudden movements.
- عام موڊ: This is the default mode for everyday driving and general use. It provides a balanced performance suitable for most situations.
- ايڪو موڊ: Choose Eco Mode when fuel efficiency is a priority. This mode adjusts engine mapping to reduce fuel consumption, ideal for long-distance travel or light-duty operations.
You can switch between modes while the vehicle is running. Observe your vehicle's response to confirm the mode change.
6. سار سنڀال
The BRP Can-Am 3-Mode Switch is designed for durability and requires minimal maintenance. To ensure optimal performance and longevity:
- صفائي: Keep the switch face and surrounding dashboard area clean. Use a soft, damp cloth to wipe away dust and debris. Avoid harsh chemicals or abrasive cleaners.
- ڪنيڪشن چيڪ: Periodically inspect the electrical connections behind the dash to ensure they remain secure and free from corrosion.
- ماحولياتي تحفظ: While the switch has an IP65 rating for protection against dust and low-pressure water jets, avoid prolonged exposure to extreme moisture or direct high-pressure washing.
7. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Switch does not function / No mode change |
|
|
| Switch illuminates but modes do not change |
|
|
| Received incorrect part |
|
|
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | بي آر پي |
| ماڊل نمبر | 715004445 |
| آپريشن جا طريقا | Work, Normal, Eco |
| موجوده درجه بندي | 20 Amps |
| آپريٽنگ جلدtage | 12 وولٽ |
| رابطي جو قسم | عام طور تي کليل |
| ڪنيڪٽر جو قسم | پلگ ان |
| سرڪٽ جو قسم | 3-رستو |
| عمل ڪندڙ جو قسم | دٻايو بٽڻ |
| رابطي جو مواد | ڌاتو |
| بين الاقوامي تحفظ جي درجه بندي | IP65 |
| پوزيشن جو تعداد | 3 |
| پيداوار جي ماپ (L x W x H) | 9 x 6 x 4 انچ |
| شيءِ جو وزن | 0.01 اونس |
| يو پي سي | 787421017397 |
9. وارنٽي ڄاڻ
Specific warranty details for this BRP product are not provided in the available information. Please refer to the official BRP website or contact your authorized BRP dealer for comprehensive warranty terms and conditions.
10. ڪسٽمر سپورٽ
For further assistance, technical support, or inquiries regarding your BRP Can-Am Defender 3-Mode Switch, please contact your authorized BRP dealer or visit the official BRP customer support channels. Ensure you have your product model number (715004445) and vehicle information ready when seeking support.
