ipega PG-9028 Wireless Gamepad User Manual

1. تعارف

خريد ڪرڻ لاءِ مهربانيasing the ipega PG-9028 Wireless Gamepad. This high-performance Bluetooth 5.0 controller is designed to enhance your gaming experience across multiple platforms, including Android smartphones, tablets, PS3 consoles, and Nintendo Switch. Please read this manual carefully to ensure proper use and optimal performance of your device.

Figure 1.1: ipega PG-9028 Wireless Gamepad with a smartphone securely mounted in the integrated holder.

2. مصنوعات جون خاصيتون

• وسيع مطابقت: Supports Android 6.0 and higher systems, PS3, N-Switch, and Windows PCs.
• بلوٽوت 5.0 ڪنيڪشن: Provides stable and low-latency wireless connection.
• Direct Play Function: No need for complex activation or downloading redundant game platforms for supported Android devices.
• پروگرام لائق بٽڻ: Features four custom buttons (S1, S2, S3, S4) on the back and side for enhanced efficiency and personalized control.
• ٻٽي موٽر وائبريشن: Offers immersive haptic feedback for a more realistic gaming experience.
• Key TURBO Combo Function: Allows for one-click combo attacks and continuous firing, simplifying complex in-game actions.
• Cool Color Backlit Buttons: LED-illuminated action buttons (A/B/X/Y) for improved visibility and aesthetic appeal, especially in low-light conditions.
• انٽيگريٽيڊ فون هولڊر: Securely holds smartphones for mobile gaming.
• Ergonomic ڊيزائن: وڌايل گيمنگ سيشن لاءِ آرامده گرفت.

شڪل 2.1: ختمview of the ipega PG-9028 Gamepad's core features, including support for Android and Windows systems, and Bluetooth 5.0 wireless technology.

3. پيڪيج مواد

مھرباني ڪري پيڪيج جي مواد کي انباڪس ڪرڻ وقت چيڪ ڪريو. جيڪڏھن ڪا به شيءِ غائب يا خراب آھي، پنھنجي پرچون ڪندڙ سان رابطو ڪريو.

• 1 x ipega PG-9028 Wireless Gamepad
• 1 x USB قسم-سي چارجنگ ڪيبل
• 1 x استعمال ڪندڙ دستياب (هي دستاويز)
• 1 x Replacement D-pad cap (if included with your model)

Figure 3.1: The ipega PG-9028 Wireless Gamepad and its retail packaging.

4. سيٽ اپ

4.1 گيم پيڊ کي چارج ڪرڻ

Before first use, fully charge the gamepad. Connect the supplied USB Type-C cable to the charging port on the gamepad and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The LED indicator will show charging status and turn off or change color when fully charged.

4.2 ڊوائيسز سان جوڙڻ

The PG-9028 supports various connection modes. Select the appropriate mode based on your device:

• Android V3 Direct Play Mode (A + HOME):

  کي دٻايو ۽ رکو هڪ بٽڻ ۽ جي هوم بٽڻ simultaneously until the indicator light flashes rapidly. On your Android device, search for Bluetooth devices and select "PG-9028" to pair. This mode is ideal for direct play on Android 6.0 and higher without additional mapping.

• Android Standard Game Mode (X + HOME):

  کي دٻايو ۽ رکو ايڪس بٽڻ ۽ جي هوم بٽڻ simultaneously until the indicator light flashes. Pair with "PG-9028" on your Android device. This mode is for standard Android games that support gamepad input.

• PS3 ڪنيڪشن:

  Connect the gamepad to the PS3 console using the USB cable. Once connected, press the هوم بٽڻ. The gamepad will automatically pair and function as a PS3 controller.
• N-Switch Connection:

  On your Nintendo Switch, go to "Controllers" -> "Change Grip/Order". Press and hold the آر بٽڻ ۽ جي هوم بٽڻ simultaneously on the gamepad until the indicator light flashes. The Switch will detect and pair with the controller.

• PC (Windows) Connection:

  Connect the gamepad to your PC using the USB cable. The gamepad will be recognized as a standard XInput or DInput device. For wireless connection, ensure your PC has Bluetooth 5.0. Press and hold the ايڪس بٽڻ ۽ جي هوم بٽڻ simultaneously until the indicator light flashes, then pair via PC Bluetooth settings.

Once successfully paired, the indicator light will remain solid.

5. آپريٽنگ هدايتون

5.1 بٽڻ جي ترتيب ۽ ڪم

Familiarize yourself with the gamepad's buttons and their primary functions:

Figure 5.1: Comprehensive diagram illustrating all buttons and their respective labels on the ipega PG-9028 Wireless Gamepad.

• Left Analog Stick (L3): Movement, camera control. Press down for L3 button.
• Right Analog Stick (R3): Camera control, aiming. Press down for R3 button.
• ڊي پيڊ: Directional input (Up, Down, Left, Right).
• ايڪشن بٽڻ (A/B/X/Y): Primary game actions. Backlit for visibility.
• هوم بٽڻ: Power on/off, return to home screen, mode switching.
• چونڊيو بٽڻ: Game-specific functions, often used for menus.
• START بٽڻ: Game-specific functions, often used for pausing or starting.
• L1/R1 (ڪلهي جا بٽڻ): Quick actions, often for shooting or item use.
• L2/R2 (Trigger Buttons): Analog input for acceleration, braking, or precise actions.
• S1/S2/S3/S4 (Programmable Buttons): Custom mapping for complex actions.
• تربو بٽڻ: Activates/deactivates Turbo function.
• صاف بٽڻ: Clears Turbo settings.
• قسم-سي پورٽ: چارجنگ ۽ وائرڊ ڪنيڪشن لاءِ.

5.2 Programmable Buttons (S1-S4)

The PG-9028 features four customizable buttons (S1, S2, S3, S4) located on the back and side of the gamepad. These can be programmed to replicate single or multiple key presses, significantly improving efficiency in competitive gaming.

Figure 5.2: Location of the four programmable buttons (S1, S2, S3, S4) on the ipega PG-9028 gamepad, designed for custom key mapping.

Refer to the specific game or application settings for mapping these buttons, as the programming method may vary. Generally, you will enter a mapping mode on the gamepad (often by holding a combination of buttons) and then assign the desired input to S1-S4.

5.3 TURBO فنڪشن

The TURBO function allows you to set any action button (A/B/X/Y, L1/R1, L2/R2, etc.) to automatically repeat its input when held down, making rapid actions easier.

Figure 5.3: Visual guide for setting and clearing the TURBO function on the ipega PG-9028 gamepad, simplifying rapid button presses.

• Setting TURBO: Press and hold the desired action button (e.g., A) and then lightly press the TURBO بٽڻ simultaneously. The action button will now have the TURBO function enabled.
• Clearing TURBO: To turn off the TURBO function for a specific button, press and hold the action button and then lightly press the TURBO بٽڻ again. To clear all TURBO settings, press the CLEAR بٽڻ.

Note: If the product is disconnected, previously set TURBO functions may be cleared and need to be reset upon reconnection.

5.4 Dual Motor Vibration

The gamepad features dual asymmetrical vibration motors that provide haptic feedback, enhancing immersion by simulating in-game impacts, explosions, and other events.

Figure 5.4: Visual representation of the dual motor vibration function in the ipega PG-9028 gamepad, providing realistic haptic feedback during gameplay.

Vibration intensity and availability depend on the game and platform. Ensure the game supports vibration feedback for this feature to function.

5.5 Backlit Buttons

The A/B/X/Y action buttons are equipped with colorful LED backlighting, improving visibility in dark environments and adding to the gaming atmosphere.

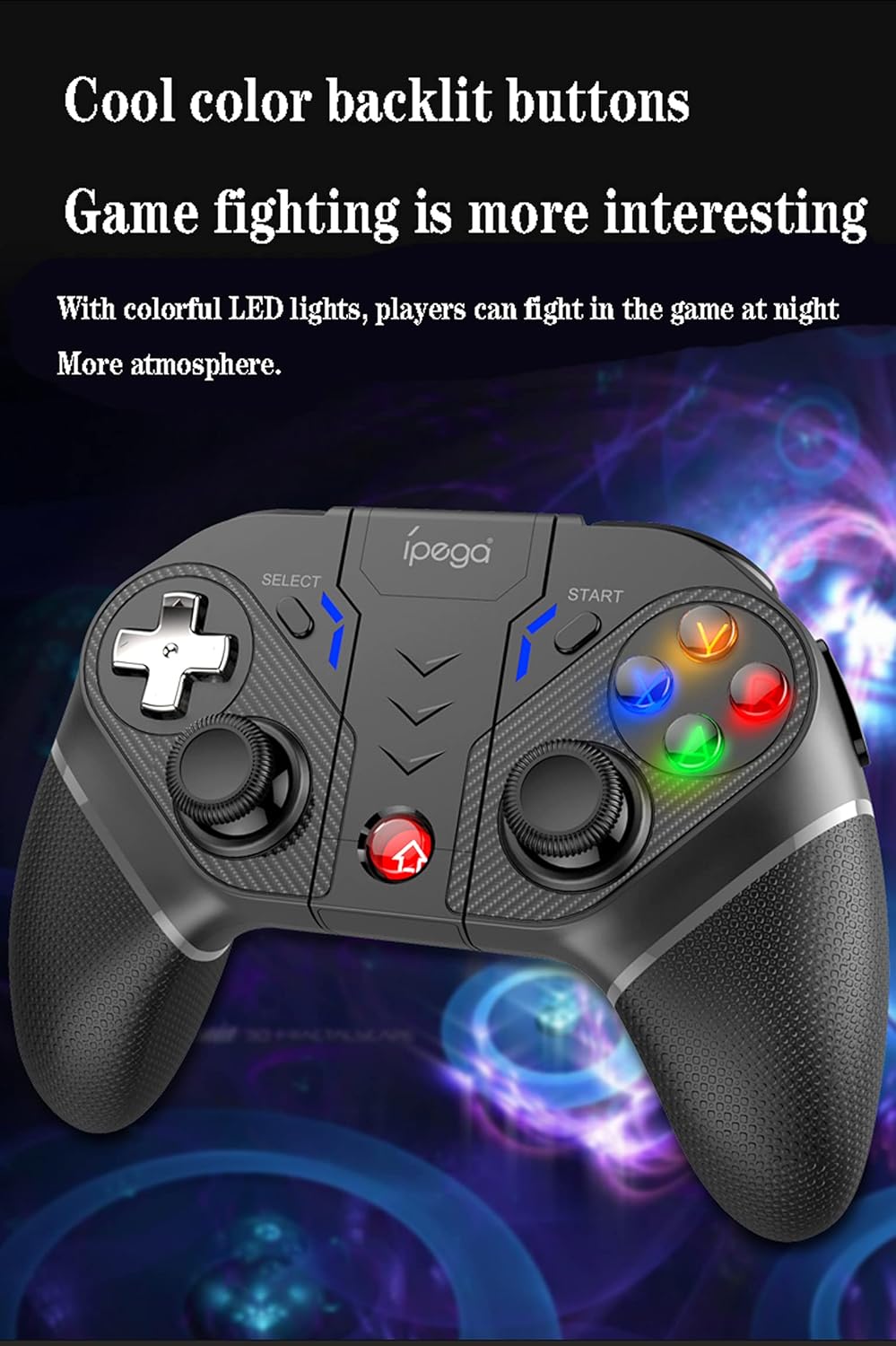

Figure 5.5: The ipega PG-9028 gamepad featuring cool color backlit buttons, enhancing visibility and aesthetic appeal during gameplay.

The backlighting is typically active when the gamepad is powered on. There may not be an option to turn off the lights independently on some models.

6. سار سنڀال

• صفائي: Use a soft, dry cloth to clean the gamepad. Do not use harsh chemicals or abrasive materials.
• اسٽوريج: گيم پيڊ کي سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري ٿڌي، سڪل جاءِ تي رکو.
• بيٽري جي سنڀال: To prolong battery life, avoid fully discharging the gamepad frequently. Charge it regularly, even if not in use for extended periods.
• قطرن کان پاسو ڪريو: گيم پيڊ کي ڦاٽن ۽ اثرن کان بچايو، جيڪي اندروني حصن کي نقصان پهچائي سگهن ٿا.

7. مسئلا حل ڪرڻ

8. وضاحتون

• ماڊل: پي جي-9028
• رابطي: Bluetooth 5.0, Wired (USB Type-C)
• مطابقت: Android 6.0+ Smartphones/Tablets, PS3, N-Switch, Windows PC
• بيٽري: بلٽ ۾ ريچارج قابل ليتيم بيٽري
• چارج پورٽ: USB قسم-سي
• خاصيتون: Dual Vibration Motors, Programmable Buttons, TURBO Function, Backlit Buttons, Integrated Phone Holder
• طول و عرض: تقريبن 7 x 5.5 x 3 انچ (17.8 x 14 x 7.6 سينٽي)
• وزن: تقريبن 10.4 آونس (295 گرام)

9. وارنٽي ۽ سپورٽ

This ipega product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official ipega webتفصيلي وارنٽي شرطن ۽ ضابطن لاءِ سائيٽ.

For technical support, troubleshooting assistance, or inquiries about replacement parts, please contact ipega customer service through their official website or the contact information provided with your purchase. Keep your purchase receipt as proof of purchase for warranty claims.
