1. تعارف
The Roland GO:PIANO 88 is a full-size 88-key digital piano designed for portability and ease of use. It offers a premium piano playing experience with onboard Bluetooth speakers, making it suitable for various environments. This manual provides essential information for setting up, operating, and maintaining your instrument.
شڪل 1: سامهون view of the Roland GO:PIANO 88-Key Digital Portable Piano Keyboard.
2. دٻي ۾ ڇا آهي
پيڪنگ کولڻ وقت، مھرباني ڪري پڪ ڪريو ته ھيٺ ڏنل سڀ شيون موجود آھن:
- Roland GO:PIANO 88-Key Digital Portable Piano Keyboard
- پيڊل کي برقرار رکڻ
- پاور اڊاپٽر
- ميوزڪ آرام
- Batteries (for optional wireless operation)
3. سيٽ اپ
Follow these steps to set up your Roland GO:PIANO 88:
- پاور ڪنيڪشن: Connect the power adaptor to the DC 12V input on the rear panel of the keyboard and plug it into a wall outlet. Alternatively, for portable use, insert the specified batteries into the battery compartment.
- پائيدار کي برقرار رکڻ: Connect the included sustain pedal to the dedicated sustain pedal jack on the rear panel.
- هيڊفون: For private practice, connect 3.5mm headphones to the headphone jack on the rear panel.
- بلوٽيون ٺاھڻ: To connect to a smartphone or tablet for audio streaming or MIDI functionality, activate Bluetooth on your device and follow the pairing instructions in your device's manual. The GO:PIANO 88 supports Bluetooth audio and MIDI.
Figure 2: Rear panel connections for power, sustain pedal, and headphones.
4. آپريٽنگ هدايتون
The Roland GO:PIANO 88 offers various features to enhance your playing and learning experience.
4.1 Basic Playing
Press the power button to turn on the instrument. The default sound is a grand piano. Adjust the master volume knob to your desired listening level.
Figure 3: User playing the Roland GO:PIANO 88.
4.2 آواز جي چونڊ
The GO:PIANO 88 includes various instrument sounds. Use the dedicated buttons or function keys to select between different piano tones, electric pianos, organs, and other sounds.
4.3 ميٽرونوم
Activate the built-in metronome to assist with timing and rhythm practice. Adjust the tempo as needed using the dedicated controls.
4.4 منتقل ڪرڻ
The transpose function allows you to shift the pitch of the entire keyboard up or down in semitone steps, which is useful for playing in different keys without changing your fingering.
4.5 رڪارڊنگ
The instrument features recording capabilities to capture your performances. Refer to the detailed instructions in the full user manual for specific recording procedures.
4.6 Online Lessons Integration
The Roland GO:PIANO 88 supports advanced music lessons via Bluetooth MIDI with your smartphone or tablet. Many online piano lesson platforms are compatible, offering step-by-step lessons and tutorial videos.
Figure 4: Roland GO:PIANO 88 integrating with online piano lessons via a tablet.
4.7 پيداوار ختمview وڊيو
وڊيو 1: هڪ سرڪاري اوورview of the Roland GO:PIANO 88, demonstrating its features and portability.
5. سار سنڀال
To ensure the longevity and optimal performance of your Roland GO:PIANO 88, follow these maintenance guidelines:
- صفائي: Wipe the surface of the instrument with a soft, dry cloth. Avoid using abrasive cleaners, waxes, or solvents.
- اسٽوريج: When not in use, store the piano in a dry, dust-free environment. Avoid extreme temperatures or direct sunlight.
- سنڀالڻ: Handle the instrument with care. Avoid dropping it or subjecting it to strong impacts.
6. مسئلا حل ڪرڻ
If you encounter any issues with your Roland GO:PIANO 88, consider the following basic troubleshooting steps:
- طاقت ناهي: Ensure the power adaptor is securely connected to both the instrument and a working power outlet. If using batteries, check if they are correctly inserted and have sufficient charge.
- آواز ناهي: Check the master volume level. Ensure headphones are not plugged in if you intend to use the built-in speakers. Verify that the correct instrument sound is selected.
- بلوٽوٿ ڪنيڪشن جا مسئلا: Ensure Bluetooth is enabled on both the piano and your external device. Try restarting both devices and re-attempting the pairing process.
For more complex issues, please refer to the comprehensive troubleshooting section in the full user manual or contact Roland customer support.
7. وضاحتون
Below are the key specifications for the Roland GO:PIANO 88:
- چاٻين جو تعداد: 88 (Full-size)
- پوليفوني: 128 آواز
- رابطي: Bluetooth (Audio and MIDI), 3.5mm Audio Jack, Micro USB 2.0 Type B
- طاقت جو ذريعو: Battery Powered (optional) or AC Adaptor
- بلٽ ان اسپيڪرز: ها
- طول و عرض (W x D x H): 55" x 15" x 7" (139.7 سينٽي ميٽر x 38.1 سينٽي ميٽر x 17.8 سينٽي ميٽر)
- شيء جو وزن: 15.4 پائونڊ (تقريبن 7 ڪلوگرام)
- جسماني مواد: پلاسٽڪ

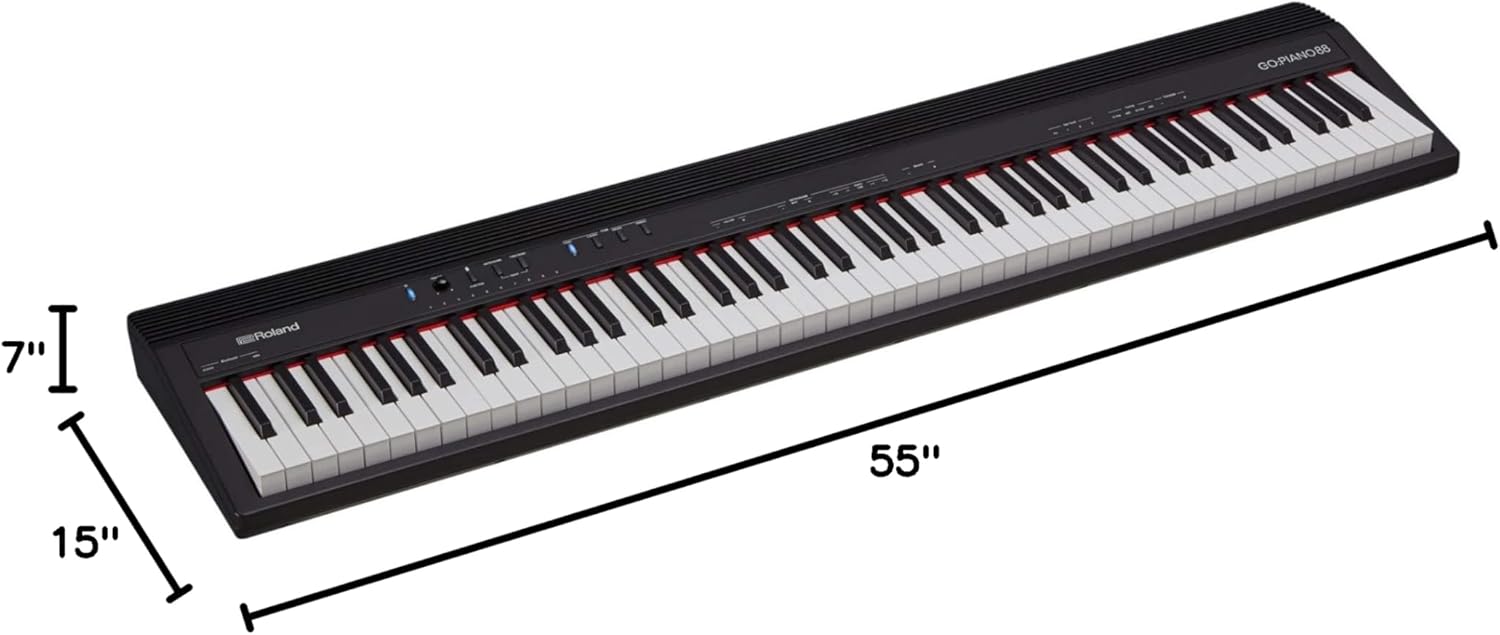

Figure 5: Dimensions of the Roland GO:PIANO 88.
8. وارنٽي ۽ سپورٽ
The Roland GO:PIANO 88 comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, service, or additional inquiries, visit the official Roland webسائيٽ يا انهن جي ڪسٽمر سروس کاتي سان رابطو ڪريو.
