This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Genie SilentMax 1000 Garage Door Opener. The SilentMax 1000 is designed for quiet and reliable operation, featuring a 140V DC motor and a durable belt drive system. Please read this manual thoroughly before beginning installation or operation to ensure proper function and safety.
اهم حفاظتي ڄاڻ: Always follow all safety warnings and instructions provided in this manual and on the product itself. Failure to do so may result in serious injury or property damage.
سيٽ اپ ۽ تنصيب
The Genie SilentMax 1000 is designed for straightforward installation. It includes a premium reinforced low-profile C-channel rail system for easier assembly.
شامل اجزاء
توهان جي پيڪيج ۾ هيٺيون شيون شامل آهن:
- 140V DC belt drive garage door opener head unit
- Two 3-button pre-programmed remotes
- وائرليس ڪيبل ڪي پيڊ
- Multi-function wall console (control panel) with light button and vacation lock
- Safe-T-Beam system (safety sensors)
- انسٽاليشن لاء هارڊويئر
- Batteries for accessories
- Detailed installation instructions and owner's manual (this document)

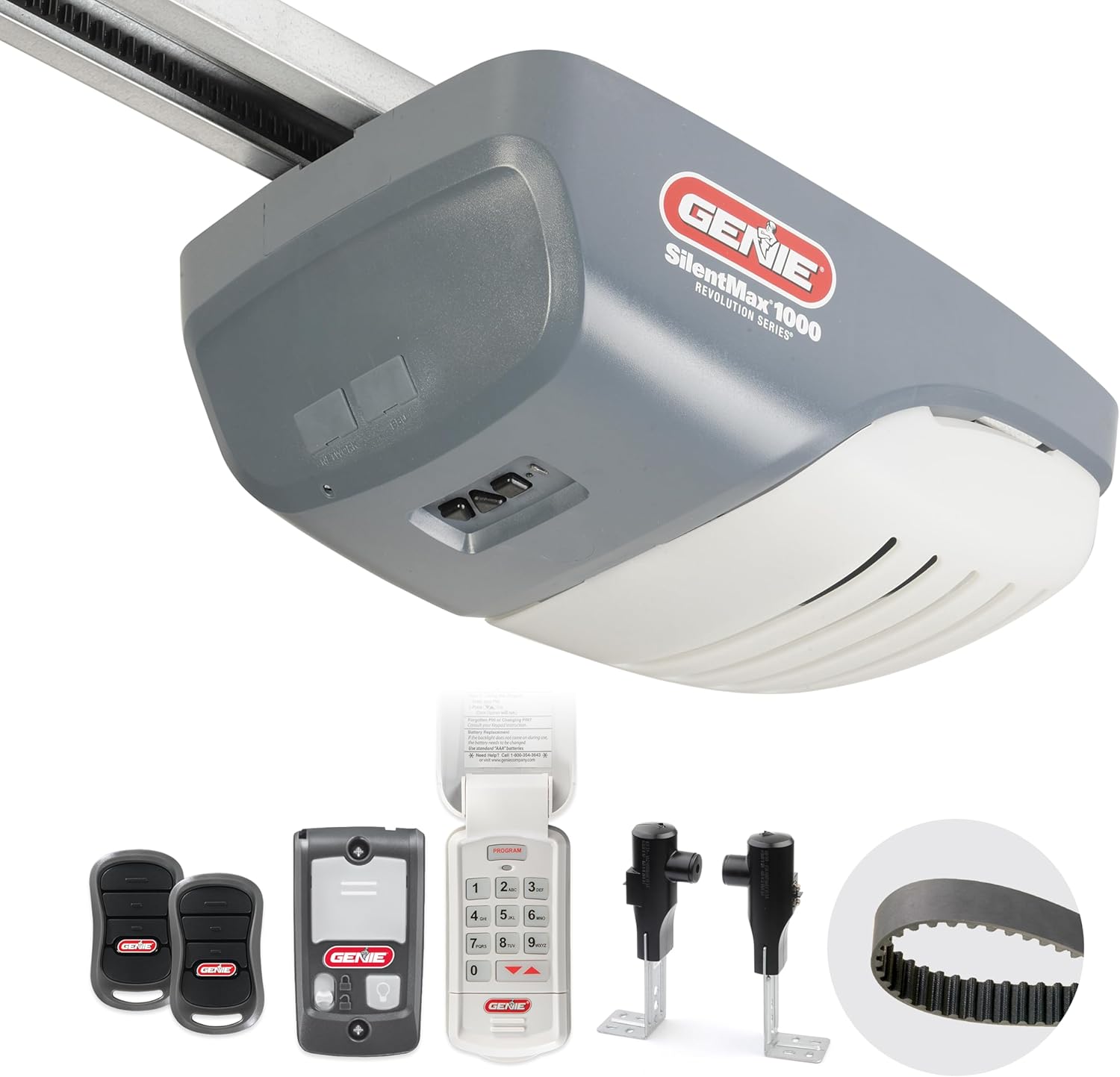

Image: Genie SilentMax 1000 opener head unit with two remotes, a wireless keypad, Safe-T-Beam sensors, and a section of the belt drive.
تصوير: هڪ ويجهو تصوير view of the included accessories: two pre-programmed remotes, a multi-function wall console, a wireless keypad, and the Safe-T-Beam system.
دروازو مطابقت
This opener is suitable for residential sectional garage doors or one-piece doors.
- Maximum door weight: 750 lbs
- Maximum door height: 7 feet (an extension kit, sold separately, is required for 8-foot high garage doors)
Unsupported Door Configurations: High lift doors, vertical lift doors, and doors larger than 8 feet in height are not compatible.
Image: A diagram illustrating various garage door styles and their compatibility with the SilentMax 1000, indicating supported residential sectional or one-piece doors up to 750 lbs and 7 ft high, and listing unsupported types.
تنصيب جا مرحلا ختمview
Refer to the detailed installation instructions included in your package for step-by-step guidance. Key steps typically include:
- Assemble the C-channel rail system.
- Mount the opener head unit to the ceiling.
- Attach the rail to the opener and the garage door header bracket.
- Install the Safe-T-Beam sensors.
- Wire the wall console.
- پاور سپلائي کي ڳنڍيو.
- Perform initial programming and limit setting.

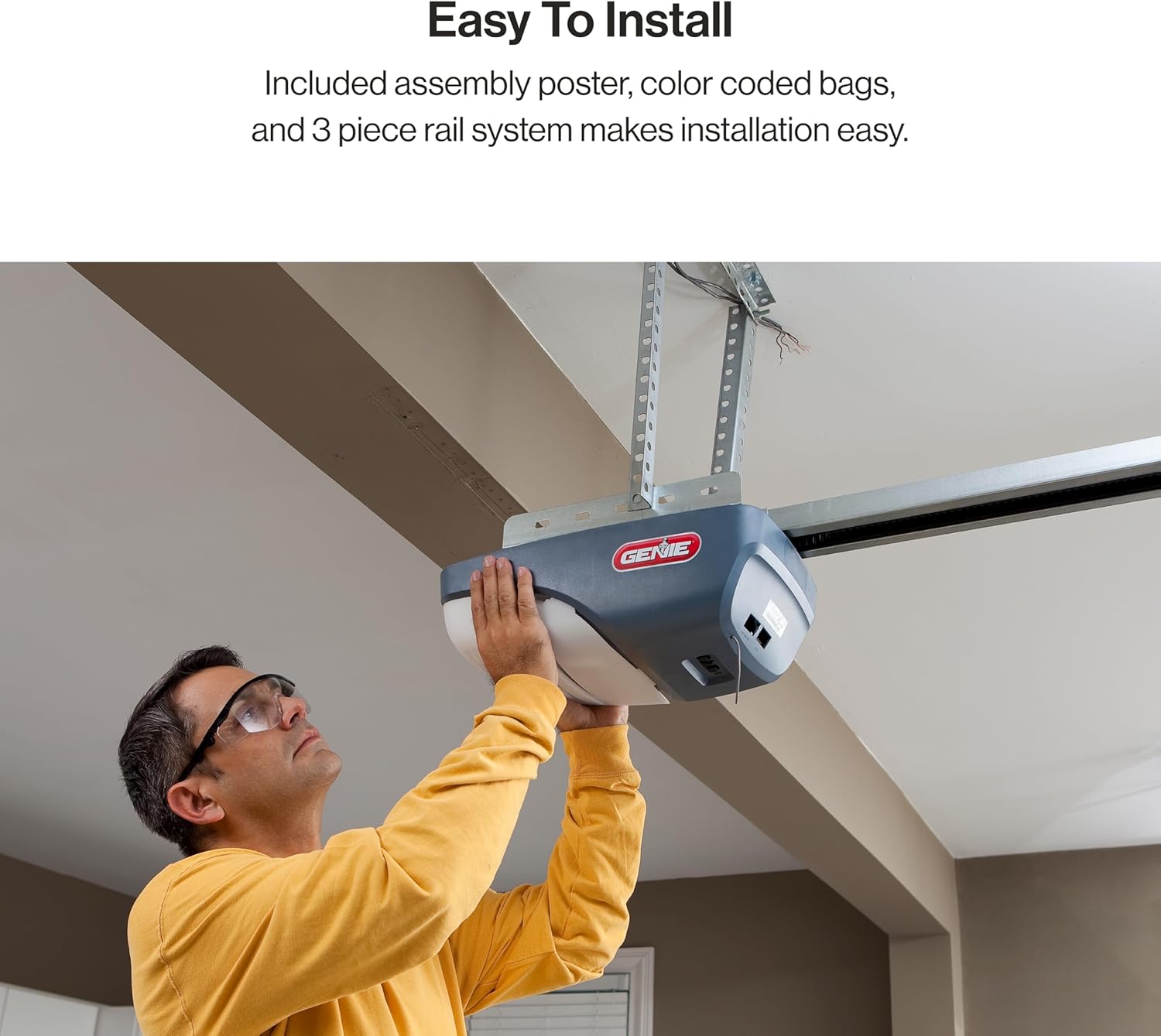

Image: A person installing the Genie SilentMax 1000 garage door opener head unit onto the ceiling brackets, demonstrating a step in the installation process.
آپريٽنگ هدايتون
Your Genie SilentMax 1000 garage door opener can be operated using the included remotes, wireless keypad, or the multi-function wall console.
ريموٽ ڪنٽرول آپريشن
The two 3-button remotes are pre-programmed for convenience. Press any button on the remote to open or close the garage door.
Image: A person's hand pressing a button on a Genie garage door opener remote control, mounted on a car's sun visor, illustrating remote operation.
Wireless Keypad Operation
To operate the door using the wireless keypad, enter your personalized access code followed by the "Program" or "Enter" button (refer to keypad instructions for specific button).
Image: A person's hand pressing buttons on a Genie wireless keypad mounted outside a garage door, demonstrating entry of an access code.
Multi-Function Wall Console
The wall console provides convenient control from inside your garage.
- Press the large button to open or close the door.
- Use the light button to control the opener's lights independently.
- Activate the vacation lock feature to disable all remote and keypad access for enhanced security when away.
Intellicode Security Technology
The SilentMax 1000 features Intellicode Security technology, which automatically changes the access code on each door activation. This prevents unauthorized access by making it virtually impossible for others to duplicate your code.
حفاظتي خاصيتون
Your Genie SilentMax 1000 is equipped with several safety features to protect users and property.
Safe-T-Beam System
The Safe-T-Beam system utilizes an invisible infrared beam across the garage door opening. If an object breaks this beam while the door is closing, the door will automatically reverse to prevent accidents. The beams also feature diagnostic technology to alert you if a malfunction occurs.
Image: A pair of Genie Safe-T-Beam sensors mounted on either side of a garage door opening, illustrating their placement for safety detection.
Automatic Reverse and Force Sensing
In addition to the Safe-T-Beam system, the opener is designed to automatically reverse if it encounters an obstruction during closing, even if the Safe-T-Beam is not activated. It also features force sensing to ensure the door operates within safe parameters.
سار سنڀال
Regular maintenance helps ensure the longevity and safe operation of your garage door opener.
- مهيني جو معائنو: Check the garage door balance. The door should stay open at any point when manually lifted. If it doesn't, contact a garage door professional for adjustment.
- لوڻ: Lubricate moving parts of the garage door (rollers, hinges, and springs) annually with a garage door lubricant. Do not lubricate the opener's belt drive.
- Safety Reversal Test: Perform the safety reversal test monthly. With the door fully open, place a 1.5-inch object (like a 2x4 board) flat on the floor in the path of the door. Close the door. The door must reverse when it contacts the object. If it does not, adjust the closing force or contact a service technician.
- Safe-T-Beam Test: Test the Safe-T-Beam system monthly. With the door open, press the remote to close the door. Wave your hand or an object through the beam path. The door should stop and reverse. If it does not, check for obstructions or misalignment of the sensors.
- صاف سينسر: Keep the Safe-T-Beam sensor lenses clean and free from obstructions.
مشڪلاتون
This section addresses common issues you might encounter with your garage door opener.
عام مسئلا ۽ حل
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Opener does not operate from any control. | No power to opener. | Check power outlet, circuit breaker, or fuse. Ensure opener is plugged in. |
| Door closes but immediately reverses. | Safe-T-Beam obstructed or misaligned; closing force too high. | Check and clear any obstructions from the Safe-T-Beam path. Ensure sensors are aligned (LEDs should be steady). Adjust closing force if necessary (refer to main manual). |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي. | Dead battery; remote out of range; remote not programmed. | Replace remote battery. Move closer to the opener. Reprogram the remote (refer to programming section in main manual). |
| Door opens but does not close. | Safe-T-Beam obstruction or misalignment. | Check and clear any obstructions from the Safe-T-Beam path. Ensure sensors are aligned (LEDs should be steady). |
| Opener lights do not turn on. | Bulbs burned out or loose. | Replace bulbs (up to 100W incandescent or equivalent LED). Ensure bulbs are securely tightened. |
For more detailed troubleshooting steps, please consult the full owner's manual provided with your product or visit the Genie support webسائيٽ.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | SilentMax 1000 Model 3042-TKH |
| موٽر جو قسم | 140V ڊي سي موٽر |
| ڊرائيو جو قسم | بيلٽ ڊرائيو |
| هارس پاور | 0.75 HPc |
| جلدtage | 120 وولٽ |
| شيءِ جو وزن | 32.8 پائونڊ |
| پيداوار جي ماپ | 11.5 x 9.5 x 40 انچ |
| Door Height Coverage | Lifts 7-foot high garage doors (8-foot with extension kit sold separately) |
| چڙهڻ جو قسم | Door Mount, Wall Mount |
| سرٽيفڪيشن | UL لسٽ |
| شامل بيٽريون | 4 CR2 batteries (for accessories) |
| سراسري بيٽري جي زندگي | 2 سال |
وارنٽي ڄاڻ
The Genie SilentMax 1000 Garage Door Opener comes with the following limited warranties:
- Motor & Gearbox: محدود لائفائم وارنٽي
- بيلٽ: 15 سال
- حصا: 5 سال
- لوازمات: 1 سال
Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty documentation included with your product.
ڪسٽمر سپورٽ
For technical assistance, replacement parts, or further inquiries, please contact Genie customer support.
- ٺاهيندڙ: جني
- Webسائيٽ: www.geniecompany.com
- فون: Refer to the official Genie website or product packaging for current contact numbers.
Genie customer service is based in the U.S.A.
