Link2Home 60 ft. Cord Reel Extension Cord (Model EM-EL-600E) Instruction Manual

Your guide to safe and efficient power management.

1. تعارف

Thank you for choosing the Link2Home 60 ft. Cord Reel Extension Cord. This product is designed for convenient and safe power distribution in various settings, including home, garage, and outdoor environments. It features a durable 14AWG SJTW cable, four grounded outlets, and a built-in circuit breaker for enhanced safety. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.

Link2Home 60 ft. Cord Reel Extension Cord

Figure 1: Link2Home 60 ft. Cord Reel Extension Cord, showcasing its compact design and multiple outlets.

2. حفاظتي هدايتون

Always prioritize safety when using electrical equipment. Failure to follow these instructions may result in electric shock, fire, or serious injury.

  • سرڪٽ خراب ڪندڙ: The cord reel is equipped with a built-in circuit breaker with overload protection. If the rated current or voltage is exceeded, the circuit breaker will automatically trip to protect connected devices from damage. If this occurs, disconnect devices, reset the breaker, and reduce the load.
  • مناسب استعمال: وڌ ۾ وڌ وات کان وڌيڪ نه ڪريوtage of 1560 Watts or amperage capacity of 13 Amps.
  • ڪيبل جي حالت: Regularly inspect the cord for any signs of damage, cuts, or fraying. Do not use if the cable is damaged.
  • ماحولياتي حالتون: The 14AWG SJTW cable is designed for heavy-duty, high-visibility outdoor use. However, avoid submerging the cord reel in water or using it in extremely wet conditions.
  • Unwinding: Always fully unwind the cord when using it to prevent overheating, especially when drawing high power.
  • ٻار ۽ پالتو جانور: Keep the cord reel and connected devices out of reach of children and pets.

3. مصنوعات جون خاصيتون

  • ڇڪتاڻ کان پاڪ تار جو انتظام: The extension cord easily winds into the reel with a heavy-duty easy-grip handle, keeping cords neat and tidy for next use.
  • تعمير ٿيل سرڪٽ برڪر: Automatically trips when rated current or voltage is exceeded to protect devices.
  • Heavy-Duty Power: Features four (4) grounded 120V outlets and a durable 60 ft. 14AWG SJTW cable.
  • ڪمپيڪٽ ۽ کڻڻ ۾ آسان: Unique four-handle design enables easy transport and compact storage.
  • High Visibility Cable: The orange cable color enhances visibility, reducing trip hazards.
  • Cord Locking System: Ensures the cord remains securely in place during use and storage.
  • پائيدار ڌاتو فريم: Provides stability and protection for the cord reel.
Link2Home Cord Reel with SJTW Cable details

Figure 2: Close-up of the SJTW cable, highlighting its weather-resistant, thermoplastic insulation and hard service cord properties.

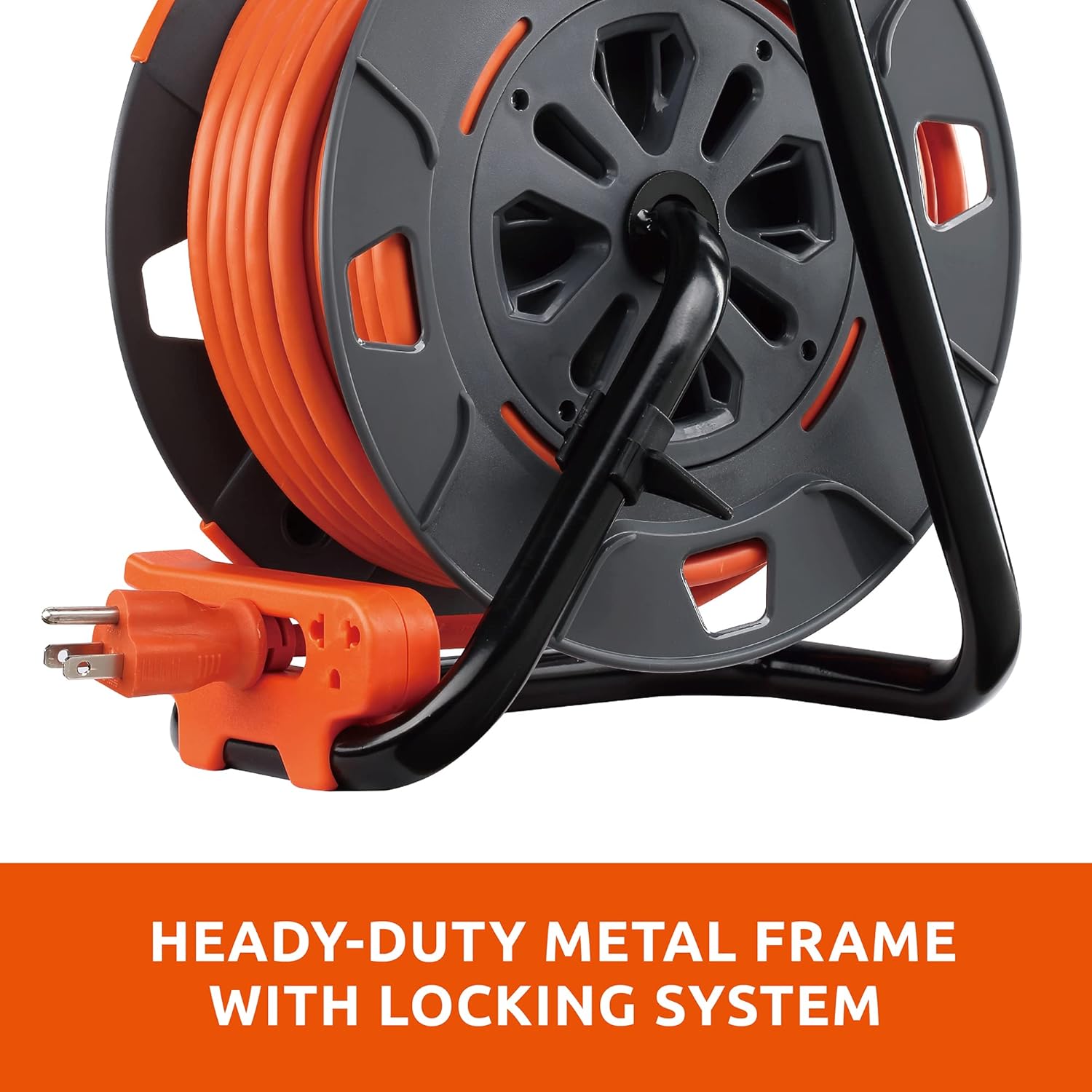

Link2Home Cord Reel Heavy-Duty Metal Frame

Figure 3: The robust metal frame provides stability and durability for the cord reel.

Link2Home Cord Reel Portable Design

Figure 4: The compact and portable design with an anti-slip handle for easy transport.

Link2Home Cord Reel Cable Management

Figure 5: The cable management system with an anti-twist cable guide and easy rewind mechanism.

4. سيٽ اپ

  1. پيڪ ڪريو: Carefully remove the cord reel from its packaging.
  2. پوزيشن: Place the cord reel on a stable, flat surface. Ensure the area is clear of obstructions and potential hazards.
  3. آرام ڪرڻ: Grasp the end of the extension cord (the male plug) and pull it away from the reel. Fully unwind the necessary length of cord for your application. For safety, it is recommended to fully unwind the cord when using high-power tools to prevent heat buildup.
  4. پاور سان ڳنڍيو: Plug the male end of the cord into a suitable 120V grounded electrical outlet.

5. آپريٽنگ هدايتون

  1. پاور آن: Once the cord reel is plugged into a power source, press the 'POWER' switch located on the face of the reel to the 'ON' position. A power light indicator will illuminate.
  2. ڪنيڪٽ ڊوائيسز: Plug your electrical tools or appliances into any of the four grounded outlets on the cord reel.
  3. Monitor Overload: The cord reel has an 'OVERLOAD' indicator light. If this light illuminates and power is cut, it indicates the circuit breaker has tripped due to an overload. Disconnect some devices, then reset the circuit breaker by pressing the 'SAFETY' button.
  4. بجلي بند: When finished, switch the 'POWER' button to the 'OFF' position before disconnecting devices or unplugging the reel from the wall.
  5. پوئتي موٽڻ: Use the hand crank to smoothly rewind the extension cord back onto the reel. Ensure the cord is guided properly to prevent tangles. Secure the male plug into the integrated cord locking system for compact storage.

وڊيو 1: سرڪاري پراڊڪٽ ختمview demonstrating the Link2Home Cord Reel's features and ease of use.

Link2Home Cord Reel in use with a sander

Figure 6: The cord reel providing power to a sander for woodworking tasks.

Link2Home Cord Reel in use with a planer

Figure 7: The cord reel supplying power to a planer for outdoor projects.

6. سار سنڀال

  • صفائي: Wipe the cord reel and cable with a dry cloth to remove dust and debris. Do not use liquid cleaners directly on electrical components.
  • اسٽوريج: Store the cord reel in a dry, cool place away from direct sunlight and extreme temperatures. Ensure the cord is fully rewound and secured before storage.
  • چڪاس: Periodically check the cord, plug, and outlets for any signs of wear, damage, or loose connections.

7. مسئلا حل ڪرڻ

  • آئوٽليٽس کي بجلي ناهي:
    • Ensure the cord reel is securely plugged into a working wall outlet.
    • Check if the 'POWER' switch is in the 'ON' position.
    • Verify if the circuit breaker has tripped (overload light on). If so, reduce the load and press the 'SAFETY' button to reset.
  • Cord Not Rewinding Smoothly:
    • Ensure the cord is not tangled or obstructed.
    • Gently guide the cord while turning the hand crank.

8. وضاحتون

تفصيلقدر
برانڊلنڪ 2 هوم
ماڊل نمبرEM-EL-600E
ڪنڊ ڊگھائي60 فوٽ
وائر گيج14 AWG
ڪيبل جو قسمSJTW
آئوٽليٽ جو تعداد4 گرائونڊ ٿيل 120V آئوٽليٽ
جلدtage120 وولٽ
واتtage1250 واٽ
Ampايج جي صلاحيت13 Amps
وڌ ۾ وڌ طاقت1560 واٽ
موادڌاتو
رنگGrey / Orange
شيون طول و عرض (L x W x H)6.5 x 9.6 x 12.5 انچ
شيءِ جو وزن8.58 پائونڊ
انسٽاليشن جو قسمٽيبل ٽاپ
آپريشن موڊدستوري
يو پي سي818445020893
سرٽيفڪيشنCSA تصديق ٿيل

9. وارنٽي ۽ سپورٽ

The Link2Home 60 ft. Cord Reel Extension Cord comes with a 3 سال وارنٽي. For any questions regarding shipping, usage, or warranty claims, please contact Link2Home customer service.

Link2Home Customer Service and 3-Year Warranty Information

Figure 8: Link2Home offers 24/7 customer service and a 3-year limited warranty.

وڌيڪ مدد لاء، دورو ڪريو جي Link2Home Store on Amazon.
