تعارف

Thank you for choosing the Jamo IW 610 SW In-Wall Subwoofer. This manual provides essential information for the proper installation, operation, and maintenance of your new subwoofer. Please read this manual thoroughly before beginning installation to ensure optimal performance and safety.

The Jamo IW 610 SW is a high-performance 10-inch in-wall subwoofer designed to deliver dynamic, balanced, and distortion-free low frequencies. Its robust MDF enclosure ensures accurate and powerful bass while minimizing sound transfer to adjacent rooms. For enhanced acoustic performance, consider pairing it with the JDA-500 500W DSP amplifier, which offers specific EQ and limiter presets for this model.

حفاظت جي ڄاڻ

هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:

• انسٽاليشن ۽ استعمال ڪرڻ کان پهريان سڀ هدايتون پڙهو.
• مستقبل جي حوالي لاءِ هي دستياب رکو.
• سب ووفر کي وڌيڪ نمي يا انتهائي گرمي پد جي سامهون نه آڻيو.
• Ensure all wiring is correctly connected and insulated to prevent electrical hazards.
• Installation should be performed by qualified personnel if you are unsure about electrical wiring or structural integrity.
• Disconnect power to all audio components before making any connections.

دٻي ۾ ڇا آهي

پيڪنگ ڪرڻ تي، پڪ ڪريو ته سڀئي جزا موجود آهن:

• Jamo IW 610 SW In-Wall Subwoofer
• مقناطيسي گريل
• هدايت نامو (هي دستاويز)

سيٽ اپ ۽ تنصيب

1. Planning the Installation Location

Choose a suitable location within a wall that can structurally support the subwoofer's weight and dimensions. Ensure there are no electrical wires, plumbing, or other obstructions behind the wall where you plan to install the unit. The subwoofer is designed for indoor use only.

Figure 1: Subwoofer dimensions (4"D x 18"W x 22"H) for planning the installation cutout.

2. Wall Cutout and Mounting

Carefully mark the cutout area on the wall using the provided template (if included, or refer to the exact dimensions for a precise fit). Use a drywall saw or similar tool to make the cutout. Ensure the cutout is clean and precise.

شڪل 2: سامهون view of the Jamo IW 610 SW, illustrating the woofer and mounting frame.

3. وائرنگ ڪنيڪشن

Before making any connections, ensure your amplifier or receiver is turned off and unplugged. Run high-quality speaker wire from your amplifier's subwoofer output (or LFE output) to the Jamo IW 610 SW. The subwoofer features single binding posts for connection.

شڪل 3: پوئتي view of the subwoofer showing the single binding posts for speaker wire connection.

Connect the positive (+) terminal from your amplifier to the red (+) terminal on the subwoofer, and the negative (-) terminal from your amplifier to the black (-) terminal on the subwoofer. Ensure a secure connection and no stray wire strands that could cause a short circuit.

4. سب ووفر کي محفوظ ڪرڻ

Once wired, carefully insert the subwoofer into the wall cutout. The mounting clamps (typically screw-activated) will swing out and clamp onto the drywall from behind as you tighten the screws on the front baffle. Tighten these screws evenly until the subwoofer is snug and flush with the wall surface. Do not overtighten.

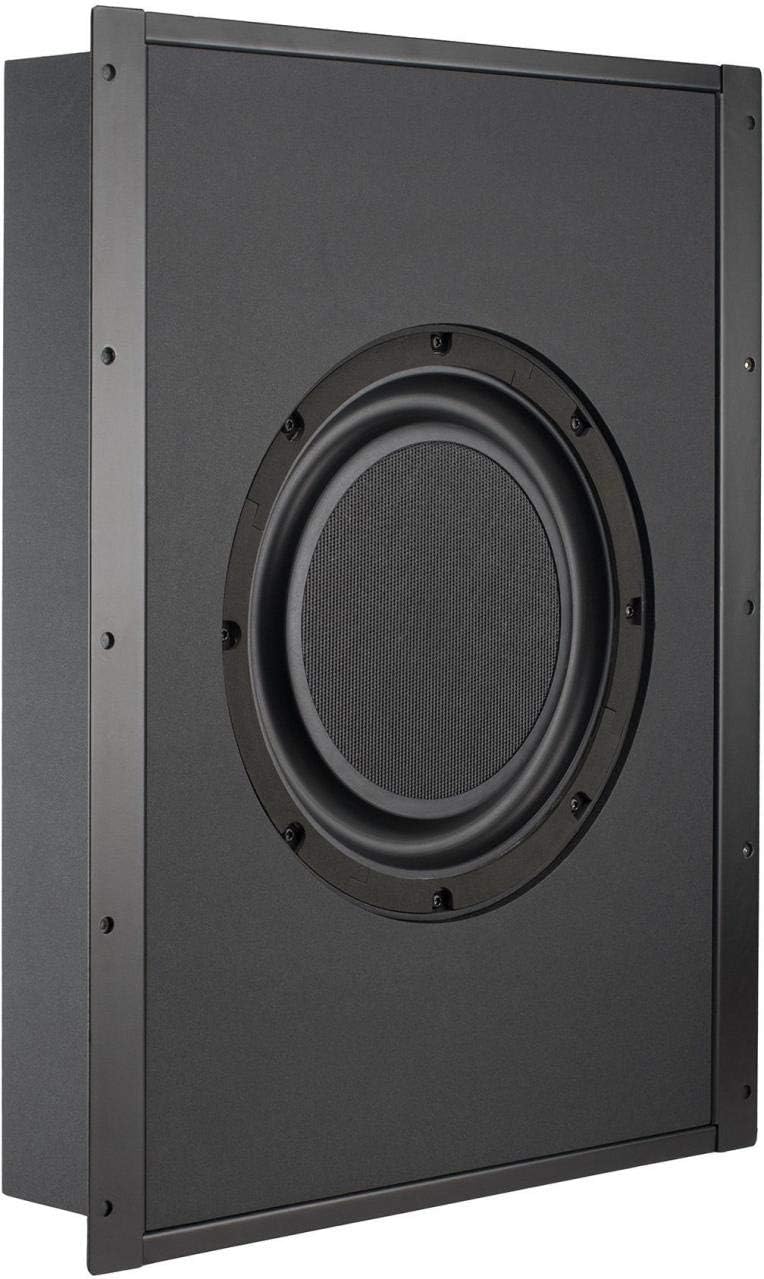

Figure 4: Subwoofer with the magnetic grille partially attached, demonstrating the flush-mount design.

5. گرل کي ڳنڍڻ

The Jamo IW 610 SW comes with a paintable magnetic grille. Once the subwoofer is securely mounted, simply align the grille with the subwoofer frame; the magnets will hold it firmly in place.

شڪل 5: سامهون view of the Jamo IW 610 SW with the magnetic grille fully attached, providing a clean, discreet appearance.

آپريٽنگ هدايتون

After successful installation, connect your amplifier or receiver to a power source and turn it on. Adjust the subwoofer level and crossover frequency settings on your amplifier or AV receiver to blend seamlessly with your main speakers. Refer to your amplifier's manual for specific instructions on these settings.

For optimal performance, Jamo recommends using the JDA-500 500W DSP ampجاندار. هي amplifier includes specific EQ and limiter presets designed to maximize the acoustic output and performance of the IW 610 SW. Consult the JDA-500 amplifier's manual for details on applying these presets.

سار سنڀال

The Jamo IW 610 SW requires minimal maintenance:

• صفائي: Use a soft, dry cloth to wipe the grille and frame. Do not use harsh chemicals or abrasive cleaners.
• گريل: The magnetic grille can be removed for cleaning or painting. Ensure it is reattached securely.
• چڪاس: Periodically check the mounting screws to ensure they remain snug.

مشڪلاتون

If you experience issues with your Jamo IW 610 SW, refer to the following common problems and solutions:

• آواز ناهي:
  • Check all cable connections between the subwoofer and amplifier. Ensure they are secure and correctly polarized (+ to + and - to -).
  • تصديق ڪريو ته amplifier is powered on and the volume is not muted or set too low.
  • Confirm that the subwoofer output on your amplifier/receiver is enabled and configured correctly.
• مسخ ٿيل آواز:
  • توهان جي تي حجم جي سطح کي گھٽايو ampوصول ڪندڙ يا وصول ڪندڙ.
  • ڍلو ڪنيڪشن يا خراب اسپيڪر تار جي جانچ ڪريو.
  • Ensure the subwoofer is not overdriven. Adjust gain settings on your ampوierيڪ زنده
• ڪمزور بيس:
  • Increase the subwoofer level on your ampوصول ڪندڙ / وصول ڪندڙ.
  • Adjust the crossover frequency setting on your amplifier/receiver. A lower crossover might be needed if your main speakers produce good bass, or higher if they are small.
  • Consider room acoustics. Subwoofer placement can significantly impact bass response.

If problems persist, consult a qualified audio technician.

وضاحتون

وارنٽي ۽ سپورٽ

The Jamo IW 610 SW In-Wall Subwoofer comes with a Limited Warranty. Please refer to the warranty card included with your product or visit the official Jamo website for detailed terms and conditions regarding warranty coverage and claims.

For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Jamo customer support through their official webسائيٽ يا توهان جي خريداري دستاويزن سان مهيا ڪيل رابطي جي معلومات.
