1. تعارف
The Eyoyo EF07RB Underwater Fishing Camera is a portable video fish finder designed to enhance your fishing experience. It features a 7-inch color LCD monitor, a 1000TVL waterproof camera with infrared lights, and DVR recording capabilities. This manual provides detailed instructions for setting up, operating, and maintaining your device.
2. پيڪيج مواد
Carefully unpack your Eyoyo EF07RB and ensure all items listed below are present:
- 7 انچ TFT رنگين مانيٽر
- Underwater Camera with 15m Cable
- 4500mAh Battery Box / Control Box
- پاور اڊاپٽر
- فلوٽ
- ڇانوَ
- ڌاتو ڪلپس (ڪيبل انتظام لاءِ)
- Plastic Rings (for camera positioning)
- 8GB ايس ڊي ڪارڊ (اڳ ۾ نصب ٿيل يا الڳ الڳ شامل)
- استعمال ڪندڙ دستي
- کڻڻ وارو ڪيس
Image: All components of the Eyoyo EF07RB Underwater Fishing Camera system, neatly arranged within its protective carrying case.
3. سيٽ اپ
3.1 شروعاتي چارجنگ
Before first use, fully charge the 4500mAh battery using the provided power adapter. The charging indicator on the battery box will change once charging is complete.
3.2 ڳنڍڻ وارا جزا
Follow these steps to connect the camera, monitor, and battery box:
- Connect the camera's video output cable (yellow RCA connector) to the monitor's video input.
- Connect the camera's power cable to the designated power output on the battery box.
- Connect the monitor's power input to the designated power output on the battery box.
- پڪ ڪريو ته سڀئي ڪنيڪشن محفوظ آهن.
Image: Visual guide for connecting the monitor, camera, and battery box. The battery box provides power to both the monitor and the camera, with separate connectors for each.
3.3 IR Lights Control
The camera features 12 infrared (IR) lights for enhanced visibility in low-light or dark water conditions. To activate or deactivate the IR lights, connect or disconnect the dedicated IR light control cable from the battery box. When connected, the IR lights will turn on, providing night vision. When disconnected, they will turn off.
Video: This video demonstrates the connection process for the Eyoyo EF07R underwater fishing camera, including how to connect the monitor, camera, and battery, and how to control the infrared lights for night vision.
3.4 SD Card Insertion (for DVR Function)
The 7-inch monitor has a built-in DVR function. To record video, insert the provided 8GB SD card into the designated slot on the side of the monitor. Ensure the card is inserted correctly until it clicks into place. The monitor supports up to 32GB SD cards.

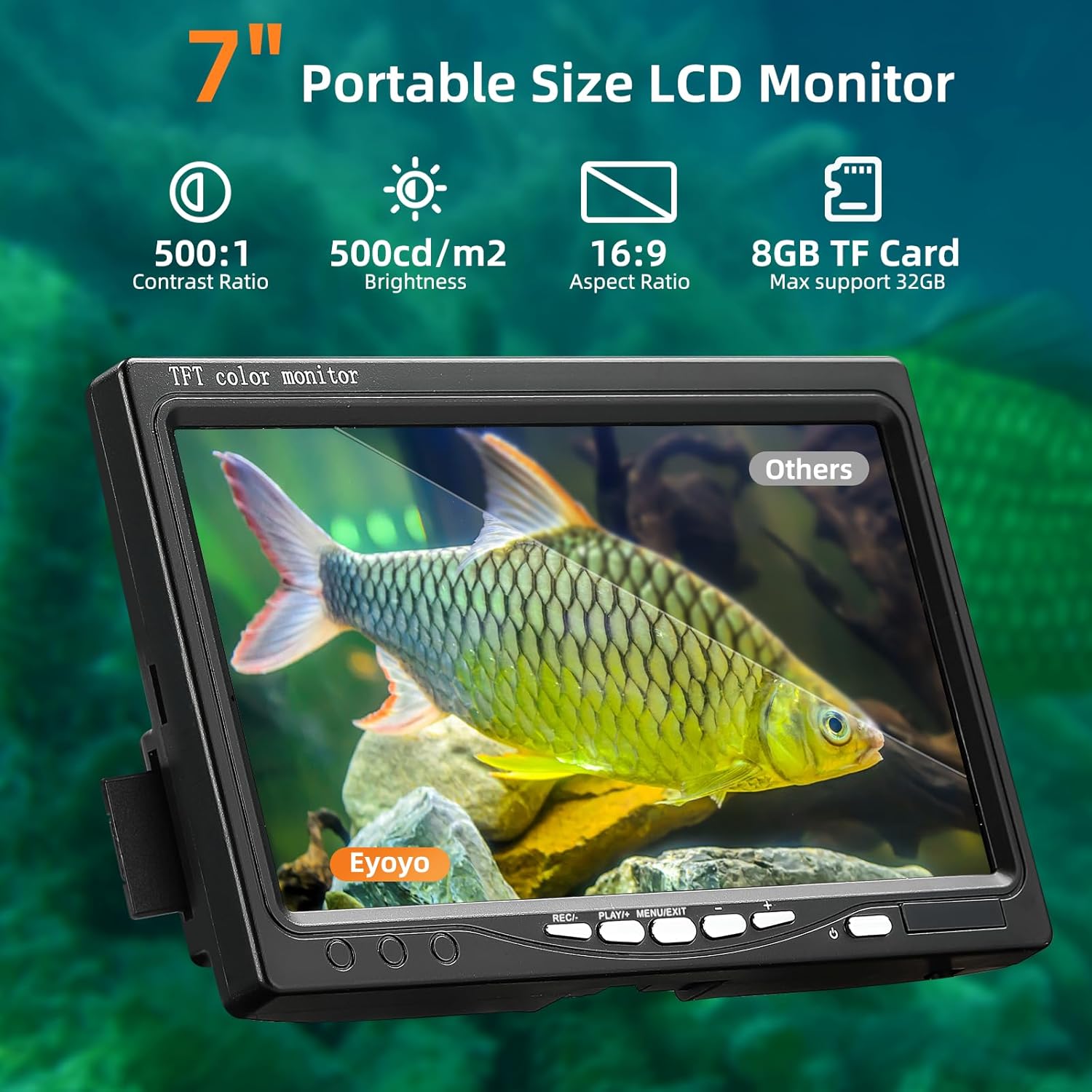

Image: The 7-inch portable LCD monitor, highlighting its display capabilities and compact design. This monitor is where the SD card is inserted for DVR functionality.
4. آپريٽنگ هدايتون
4.1 پاور آن/آف
Press and hold the power button on the monitor to turn the device on or off. The monitor will display the live feed from the underwater camera.
4.2 ڪئميرا لڳائڻ
The camera is designed for various fishing environments, including ice fishing, lake fishing, and boat fishing. Use the provided float and plastic rings to adjust the camera's depth and orientation. The 15-meter cable allows for significant depth exploration.
Image: The robust 15-meter waterproof cable, demonstrating its durability and load capacity, essential for deploying the camera in various water conditions.
Image: The Eyoyo camera system being used in diverse fishing applications, such as ice fishing, night fishing, and from docks or kayaks, showcasing its wide range of uses.
4.3 Recording Video (DVR Function)
To start recording, press the 'REC' button on the monitor. A recording indicator will appear on the screen. Press 'REC' again to stop recording. Recorded files are saved to the SD card.
4.4 پلے بیک
جي طرف view recorded videos, navigate to the playback menu using the monitor's controls. Select the desired file پلے بیک لاءِ.
4.5 مانيٽر سيٽنگون ترتيب ڏيڻ
Use the 'MENU' button to access the monitor's settings. Options may include brightness, contrast, color, and time/date settings. Adjust these to optimize your viewتجربو.
تصوير: هڪ تفصيلي view of the camera head, highlighting the 12 infrared lights and 1000TVL lens. The image also illustrates the improved visibility provided by the IR lights in dark underwater environments compared to well-lit conditions.
5. سار سنڀال
5.1 صفائي
After each use, especially in saltwater, rinse the camera and cable with fresh water. Wipe the monitor screen with a soft, dry cloth. Ensure all components are dry before storage.
5.2 بيٽري جي سنڀال
To prolong battery life, avoid fully discharging the battery frequently. Store the device with a partial charge (around 50%) if not used for extended periods. Recharge the battery at least once every three months.
5.3 اسٽوريج
Store the camera system in its original carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
6. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| No image on monitor / Blue screen | Loose cable connection, camera or monitor not powered, damaged cable. | Check all cable connections. Ensure battery is charged and connected. Inspect cables for damage. |
| خراب تصوير جو معيار | Dirty camera lens, murky water, incorrect monitor settings. | Clean the camera lens. Adjust monitor brightness/contrast. Use IR lights in dark conditions. |
| DVR رڪارڊ نه ٿي رهيو آهي | SD card full, SD card not inserted correctly, faulty SD card. | Check SD card capacity and delete old files. Reinsert SD card. Try a different compatible SD card. |
| مختصر بيٽري جي زندگي | Battery not fully charged, old battery, extreme cold. | Ensure battery is fully charged. Battery performance may decrease in very cold temperatures. Consider replacing an old battery. |
7. وضاحتون
- مانيٽر سائيز: 7 انچ رنگين LCD
- ڪئميرا قرارداد: 1000 ٽي وي
- انفراريڊ لائيٽون: 12 پي سي
- پنروڪ درجه بندي: IP68
- ڪيبل ڊگھائي: 15 ميٽر (49 فوٽ)
- بيٽري: 4500mAh Lithium Polymer (up to 8 hours continuous use)
- ڊي وي آر فنڪشن: ها
- SD ڪارڊ سپورٽ: 8GB included, supports up to 32GB
- آپريٽنگ گرمي پد: -20 ° C کان 60 ° C (-4 ° F کان 140 ° F)
- اسٽوريج جي درجه حرارت: -30 ° C کان 80 ° C (-22 ° F کان 176 ° F)
- شيء جو وزن: تقريبن 4.09 پائونڊ
- ماڊل نمبر: EF07RB
تصوير: هڪ ڪٽ وي view of the 1000TVL IP68 waterproof underwater camera, illustrating its internal components including the 12 infrared lamps and 92-degree viewing angle lens.
8. وارنٽي ۽ سپورٽ
Eyoyo products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official Eyoyo webسائيٽ. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
