1. تعارف
This manual provides comprehensive instructions for the operation and maintenance of your Fetcus Universal Remote Control, designed for various Hitachi Air Conditioner models. Please read this manual thoroughly before using the remote control to ensure proper function and longevity.
This remote control is a direct replacement or compatible alternative for original Hitachi air conditioner remote models including RAS-D10EX, RAR-5E1, RAS-10XH1, RAR-5E2, RAR-5E3, RAR-5E4, RAR-5E5, RAR-5E6, and RAS-D14EX2.
2. مصنوعات جون خاصيتون
- يونيورسل مطابقت: Designed to work with a wide range of Hitachi air conditioner models.
- انفراريڊ ڪنيڪشن: Utilizes standard infrared signals for reliable communication with your AC unit.
- Dedicated AC Functions: Includes specific buttons for common air conditioner operations such as power, mode selection, temperature adjustment, fan speed, and more.
- ڪمپيڪٽ ڊيزائن: ايرگونومڪ ۽ سنڀالڻ ۾ آسان.
- No App Support: Operates independently without the need for a smartphone application.
- تعدد: Operates at 433 MHz for signal transmission.
3. سيٽ اپ
3.1 بيٽري لڳائڻ
The remote control requires appropriate batteries for operation. Follow these steps to install or replace batteries:
- ريموٽ ڪنٽرول جي پٺي تي بيٽري جي خاني کي ڳوليو.
- Slide the battery compartment cover downwards or press the latch to open it.
- Insert new batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Typically, two AAA batteries are required, though specific battery type should be confirmed by checking the compartment markings.
- بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي محفوظ طور تي بند ڪريو جيستائين اهو جاءِ تي ڪلڪ نه ڪري.
شڪل 3.1: ريڙهه view of the Fetcus remote control with the battery compartment open, revealing the two battery slots and a label with battery safety warnings. This image illustrates the correct orientation for battery insertion.
اهم: جيڪڏهن ريموٽ ڪنٽرول ڊگهي عرصي تائين استعمال نه ڪيو ويندو ته جيئن رسي ۽ نقصان کي روڪي سگهجي ته بيٽريون هٽايو.
4. آپريٽنگ هدايتون
Familiarize yourself with the buttons on your remote control. The remote features a main display and various control buttons for your air conditioner.

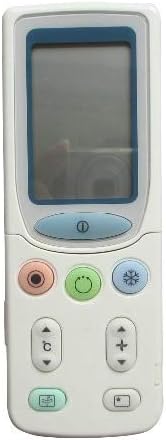

شڪل 4.1: سامهون view of the Fetcus remote control, highlighting the LCD screen and the primary control buttons for power, mode, and temperature adjustment.

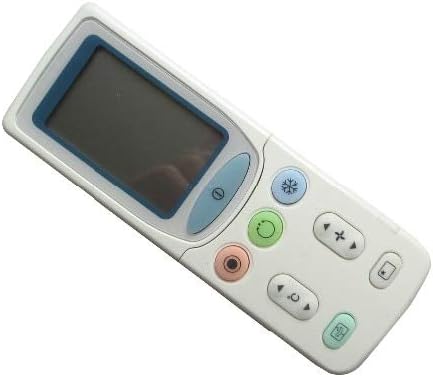

شڪل 4.2: زاويه view of the Fetcus remote control, showing the main display and primary function buttons including power, mode, and fan speed controls.
4.1 بنيادي ڪم
- پاور بٽڻ (①): ايئر ڪنڊيشنر کي آن يا آف ڪرڻ لاءِ دٻايو.
- موڊ بٽڻ (↻): Press repeatedly to cycle through operating modes: Auto, Cool, Dry, Fan, Heat (if applicable to your AC unit).
- گرمي پد جي ترتيب ڏيڻ جا بٽڻ (+ / -): گهربل درجه حرارت جي سيٽنگ کي وڌائڻ يا گهٽائڻ لاءِ دٻايو.
- فين اسپيڊ بٽڻ (❄): Press to adjust the fan speed (e.g., Auto, Low, Medium, High).
4.2 Advanced Functions (Under Sliding Cover)
Some advanced functions are accessible by sliding down the cover on the remote control. This reveals additional buttons for more specific controls.
شڪل 4.3: زاويه view of the Fetcus remote control with the sliding cover open, exposing additional advanced function buttons beneath the main display.
- Swing/Louver Control: Adjusts the direction of the airflow (vertical or horizontal swing).
- Timer/Sleep Mode: Sets a timer for the AC unit to turn on or off, or activates a sleep-friendly operating mode.
- C/F Switch (℃): Celsius ۽ Fahrenheit جي وچ ۾ درجه حرارت ڊسپلي کي ٽوگل ڪري ٿو.
- ري سيٽ بٽڻ: Used to reset the remote control settings or clear certain functions. Consult your AC unit's manual for specific reset procedures if needed.
- ٻيا مخصوص بٽڻ: Depending on your specific Hitachi AC model, other buttons may control functions like Quiet mode, Turbo mode, or Health functions. Refer to your AC unit's original manual for detailed explanations of these specific icons.
5. سار سنڀال
- صفائي: ريموٽ ڪنٽرول کي نرم، سڪل ڪپڙي سان صاف ڪريو. مائع صاف ڪندڙ يا رگڙيندڙ مواد استعمال نه ڪريو، ڇاڪاڻ ته اهي مٿاڇري يا اندروني حصن کي نقصان پهچائي سگهن ٿا.
- بيٽري مٽائڻ: Replace batteries when the remote's range decreases or the display becomes dim. Always replace all batteries at the same time with new ones of the same type.
- اسٽوريج: ريموٽ ڪنٽرول کي ٿڌي، سڪل جاءِ تي محفوظ ڪريو سڌو سج جي روشني ۽ انتهائي گرمي پد کان پري.
6. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ريموٽ جواب نه ڏئي رهيو آهي. | مئل يا غلط طور تي نصب ٿيل بيٽريون. | Replace batteries, ensuring correct polarity (+/-). |
| ريموٽ رينج خراب آهي. | Weak batteries; Obstruction between remote and AC unit. | Replace batteries. Ensure a clear line of sight to the AC unit's infrared receiver. |
| AC unit not responding to specific functions. | Remote not fully compatible with all AC unit features; AC unit does not support the function. | Verify the function exists on your specific AC model. This remote is a universal replacement and may not support all obscure functions of every original remote. |
| ڊسپلي مدھم يا خالي آهي. | گھٽ بيٽري طاقت. | بيٽرين کي تبديل ڪريو. |
7. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | گنجي جا نشان |
| ماڊل نمبر (اندروني) | CLS-D41D8CD98F00B204E9800998ECF8427E |
| مطابقت رکندڙ ڊوائيسز | Air Conditioner (Hitachi RAS-D10EX, RAR-5E1, RAS-10XH1, RAR-5E2, RAR-5E3, RAR-5E4, RAR-5E5, RAR-5E6, RAS-D14EX2) |
| رابطي ٽيڪنالاجي | انفراريڊ |
| تعدد | 433 MHz |
| سپورٽ ٿيل ڊوائيسز جو وڌ ۾ وڌ تعداد | 1 |
| مواد | Other (Durable Plastic) |
| بيٽري جي وضاحت | Lithium (Typically uses AAA batteries, please check compartment) |
| خاص خاصيتون | Universal, Wireless |
| شيون پيڪيج مقدار | 1 |
| تاريخ پهرين دستياب | مئي 8، 2019 |
8. وارنٽي ۽ سپورٽ
This Fetcus Remote Control comes with a 90 ڏينهن وارنٽي خريداري جي تاريخ کان. هي وارنٽي پيداوار جي خرابين کي ڍڪيندي آهي ۽ يقيني بڻائي ٿي ته پيداوار عام استعمال جي تحت ارادي مطابق ڪم ڪري ٿي.
For warranty claims or technical support, please contact your retailer or the manufacturer with your purchase details. Please retain your proof of purchase for warranty validation.
