ڪلواس ايئر ڪنڊيشنر ريموٽ ڪنٽرول لاءِ استعمال ڪندڙ دستياب

1. پراڊڪٽ ختمview

This manual provides detailed instructions for the operation and maintenance of your Calvas Air Conditioner Remote Control. This remote is designed to be compatible with various Mitsubishi air conditioner models, ensuring convenient control over your cooling and heating settings.

شڪل 1: سامهون view of the Calvas Air Conditioner Remote Control. It features a clear LCD display at the top, an orange ON/OFF button, two triangular temperature adjustment buttons (up and down), and a MODE button below them. The remote is white with a light blue accent around the display.

2. سيٽ اپ

2.1 بيٽري لڳائڻ

To begin using your remote control, you must first install the batteries. This remote requires standard batteries (typically AAA, though the product specifications mention Lithium, please verify the battery type indicated in the battery compartment).

1. ريموٽ ڪنٽرول جي پٺي تي بيٽري جي خاني کي ڳوليو.
2. بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي هيٺئين طرف يا تير سان ڏيکاريل طرف سلائڊ ڪريو ته جيئن ان کي کوليو وڃي.
3. Insert the batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Incorrect insertion can prevent the remote from functioning.
4. بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي واپس جاءِ تي سلائڊ ڪندي تبديل ڪريو جيستائين اهو محفوظ طور تي ڪلڪ نه ڪري.

After battery installation, the LCD display on the remote should illuminate, indicating it is ready for use.

3. آپريٽنگ هدايتون

Familiarize yourself with the buttons on your remote control to effectively manage your air conditioner's functions.

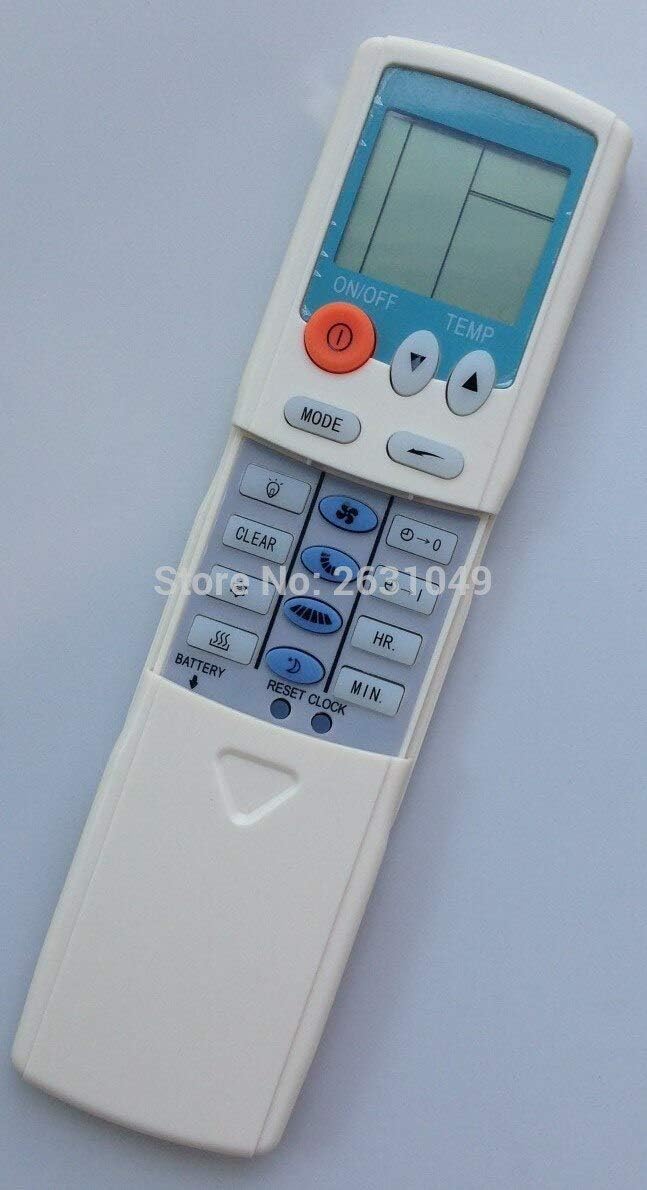

شڪل 2: تفصيلي view of the remote control with the lower panel extended, revealing additional function buttons. These include buttons for fan speed, timer settings, and possibly a reset clock function.

3.1 بنيادي ڪم

• آن / آف بٽڻ (●): Press this orange button to turn the air conditioner unit on or off.
• درجه بندي جي ترتيب واري بٽڻ (▲ TEMP ▼): Use the up (▲) and down (▼) triangular buttons to increase or decrease the desired temperature setting.
• موڊ بٽڻ: Press this button to cycle through the available operating modes, such as Cool, Heat, Fan, Dry, and Auto. The current mode will be displayed on the LCD screen.

3.2 ترقي يافته ڪم (سلائيڊنگ ڪَوَر هيٺ)

Some models of this remote control feature a sliding cover at the bottom that reveals additional function buttons. Slide the cover down to access these controls.

• فين اسپيڊ بٽڻ: Typically represented by fan icons, these buttons allow you to adjust the fan speed (e.g., Low, Medium, High, Auto).
• Timer Buttons (HR., MIN.): Used to set the ON/OFF timer for the air conditioner. Refer to your air conditioner's main manual for specific timer programming instructions.
• صاف ڪريو بٽڻ: May be used to clear certain settings or timer programs.
• ڪلاڪ بٽڻ کي ري سيٽ ڪريو: Used to reset the internal clock of the remote, if applicable.
• بيٽري جو اشارو: Some remotes may have a low battery indicator or a button to check battery status.

شڪل 3: پاسي view of the remote control, providing a clearer perspective of the button arrangement and the sliding cover mechanism.

4. سار سنڀال

4.1 ريموٽ صاف ڪرڻ

To ensure the longevity and proper functioning of your remote control, keep it clean and free from dust and debris.

• Wipe the surface of the remote with a soft, dry cloth.
• ضد واري مٽي لاء، روشني سان ڊيampڪپڙي کي پاڻي يا نرم، غير رگڙيندڙ ڪلينر سان صاف ڪريو. ريموٽ تي سڌو سنئون ڪلينر اسپري نه ڪريو.
• سخت ڪيميڪلز، محلولن، يا رگڙيندڙ صفائي واري مواد استعمال ڪرڻ کان پاسو ڪريو، ڇاڪاڻ ته اهي ريموٽ جي ختم يا اندروني حصن کي نقصان پهچائي سگهن ٿا.

4.2 بيٽري مٽائڻ

Replace batteries when the display becomes dim or the remote's range decreases. Always replace all batteries at the same time with new ones of the same type.

• سيڪشن 2.1 ۾ بيان ڪيل بيٽري جي انسٽاليشن جي مرحلن تي عمل ڪريو.
• مقامي ضابطن جي مطابق ذميواري سان استعمال ٿيل بيٽرين کي ختم ڪريو.

5. مسئلا حل ڪرڻ

If you experience issues with your remote control, try the following troubleshooting steps before seeking further assistance.

6. وضاحتون
