This document provides instructions for the Easytry123 Replacement Remote Control, model RAV325, designed for various Yamaha AV receivers. This remote is a replacement unit and may not offer all functions identical to your original remote. Please verify button layout for compatibility.
تصوير: سامهون view of the Easytry123 RAV325 replacement remote control. It features a black body with various control buttons for audio/video functions, including power, input selection, volume, and navigation.
مطابقت رکندڙ ماڊل
This replacement remote control is compatible with a range of Yamaha AV receiver models. While the specific model of this remote is RAV325, it is designed to replace and function with the following Yamaha remote models:
- RAV250
- WC552800
- HTR-5740
- HTR-5750
- RX-V450
- DSPAX450
- HTR-5740B
- HTR-5740S
- HTR-5750S
- RAV272
- RAV273
- RAV353
- RAV352
- RAV323
- RAV361
- RAV362
- RAV358
- RAV359
- RAV363 (or other compatible part numbers)
Before use, compare the button layout of this remote with your original remote to ensure all desired functions are present.
سيٽ اپ ڪريو
بيٽري لڳائڻ
The remote control requires two (2) AA batteries (not included). Follow these steps to install the batteries:
- ريموٽ ڪنٽرول جي پٺيءَ تي بيٽري جي دٻي جي احاطي کي ڳولھيو.
- ڪمپارٽمينٽ کولڻ لاءِ ليچ کي دٻايو ۽ ڍڪ کي هيٺان سلائڊ ڪريو.
- ٻہ AA بيٽريون داخل ڪريو، پڪ ڪريو ته مثبت (+) ۽ منفي (-) ٽرمينل صحيح طرح سان ڪمري اندر نشانن سان ترتيب ڏين.
- بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي واپس جاءِ تي سلائڊ ڪريو جيستائين اهو محفوظ طور تي ڪلڪ نه ڪري.

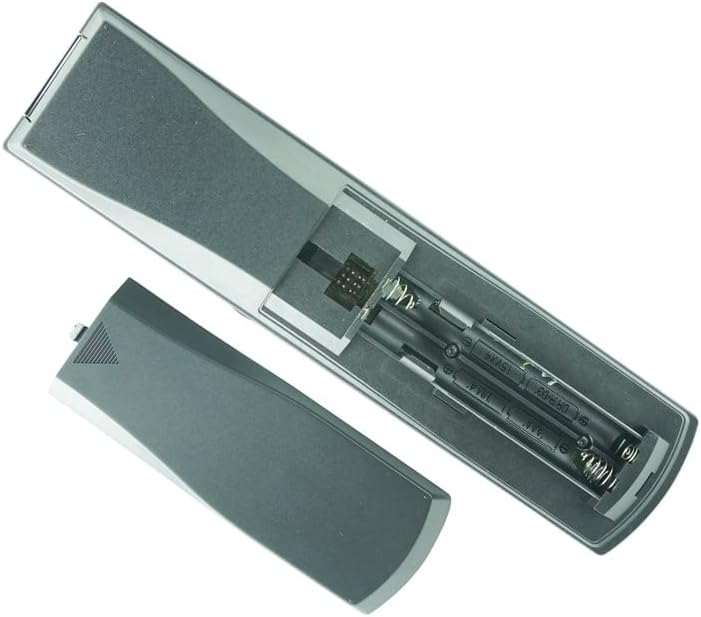

Image: Back of the remote control with the battery cover removed, revealing the battery slots. Two AA batteries are shown correctly inserted.
نوٽ:
- پراڻي ۽ نئين بيٽرين کي گڏ نه ڪريو.
- الڪائن، معياري (ڪاربن-زنڪ)، يا ريچارج لائق (نڪل-ڪيڊيميم) بيٽرين کي نه ملايو.
- جيڪڏهن ريموٽ ڪنٽرول گهڻي عرصي تائين استعمال نه ٿيندو ته بيٽريون هٽايو.
آپريٽنگ هدايتون
This remote control is designed to function immediately upon battery installation for compatible Yamaha AV receivers. No programming is typically required for basic functions.
بنيادي ڪم
- طاقت: کي دٻايو پاور button to turn the AV receiver on or off.
- ان پٽ چونڊ: Use the input buttons (e.g., CD, ڊي وي ڊي, ٽيونر) to select the desired audio/video source.
- حجم ڪنٽرول: استعمال ڪريو حجم + ۽ جلد - آواز جي سطح کي ترتيب ڏيڻ لاء بٽڻ.
- خاموش: کي دٻايو خاموش button to temporarily silence the audio. Press again to restore sound.
- نيويگيشن: هدايتي تير بٽڻ استعمال ڪريو (UP, هيٺ, کاٻو, ساڄو) ۽ داخل ڪريو button for menu navigation.
Advanced Functions (if applicable)
Some advanced functions, such as programming or specific receiver settings, may require referring to your Yamaha AV receiver's original manual for detailed instructions, as this replacement remote's functionality may vary slightly from the original.
Video: Demonstration of a similar Yamaha AV receiver remote control. This video illustrates the physical appearance and basic handling of the remote, including button presses and battery compartment access. While the video shows a RAV315 model, the general operation and battery installation steps are similar for the RAV325.
سار سنڀال
- صفائي: ريموٽ ڪنٽرول کي صاف ڪرڻ لاءِ نرم، سڪل ڪپڙو استعمال ڪريو. مائع صاف ڪندڙ يا رگڙيندڙ مواد استعمال نه ڪريو.
- اسٽوريج: ريموٽ ڪنٽرول کي ٿڌي، سڪل جاءِ تي محفوظ ڪريو سڌو سج جي روشني ۽ انتهائي گرمي پد کان پري.
- بيٽري مٽائڻ: Replace batteries when the remote's response becomes inconsistent or stops working.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ريموٽ جواب نه ڏئي رهيو آهي | بيٽريون ختم يا غلط طور تي نصب ٿيل آهن. ريموٽ ۽ رسيور جي وچ ۾ رڪاوٽ. ريموٽ حد کان ٻاهر. | Replace batteries, ensuring correct polarity. Remove any obstructions. Move closer to the receiver. |
| ڪجھ فنڪشن ڪم نه ڪري رهيا آهن | Remote is a replacement and may not have all original functions. Incorrect mode selected on receiver. | Refer to your AV receiver's manual for specific function compatibility. Ensure the receiver is in the correct operating mode. |
| Remote LED not lighting up | Batteries are completely dead or remote is faulty. | بيٽريون تبديل ڪريو. جيڪڏهن مسئلو برقرار رهي، ته ڪسٽمر سپورٽ سان رابطو ڪريو. |
وضاحتون
- ماڊل نمبر: RAV325
- برانڊ: ايزيٽري 123
- مواد: ABS پلاسٽڪ
- طاقت جو ذريعو: 2 x AA بيٽريون (شامل نه آھن)
- رنگ: ڪارو
- سپورٽ ٿيل ڊوائيسز جو وڌ ۾ وڌ تعداد: 1 (for direct control of the specified Yamaha AV receiver)
وارنٽي ۽ سپورٽ
For warranty information or technical support, please refer to the seller's policies or contact the seller directly through the platform where the product was purchased. This manual does not include specific warranty details as they may vary.
