1. تعارف
The Zoom B1X Four is a multi-effects processor specifically designed for electric bass. It features an integrated expression pedal for dynamic control over effects, a 30-second looper, and 68 built-in rhythm patterns. This pedal allows users to chain up to five effects simultaneously and save custom configurations in 50 user-preset patches. This bundle also includes Polsen HPC-A30 Monitor Headphones for accurate audio monitoring, a 9V AC Power Adapter for reliable power, and a durable 10ft Strukture Instrument Cable for connectivity.
2. ڇا شامل آهي
- Zoom B1X Four Bass Multi-Effects Pedal with Expression Pedal
- پولسن HPC-A30 بند ٿيل اسٽوڊيو مانيٽر هيڊفون
- آرٽ 9 وي اي سي پاور اڊاپٽر
- ساخت SC10R 10 فوٽ ساز گٽار ڪيبل
- 4 x AA Batteries (for portable use)
- 1/4" Adapter (for headphones)
3. پراڊڪٽ ختمview

Figure 1: Zoom B1X Four Bass Multi-Effects Pedal with Expression Pedal.

شڪل 2: مٿي view of the B1X Four, highlighting the control knobs, footswitches, and display.

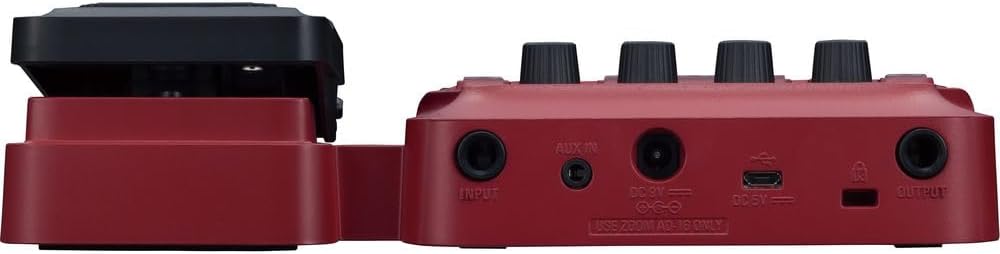

شڪل 3: پاسي view of the B1X Four, illustrating connectivity options.

Figure 4: Polsen HPC-A30 Closed-Back Studio Monitor Headphones.

Figure 5: ART 9V AC Power Adapter.

Figure 6: Strukture SC10R 10 Feet Instrument Guitar Cable.
4. سيٽ اپ
4.1 پاور ڪنيڪشن
- Connect the included 9V AC Power Adapter to the DC 9V input jack on the B1X Four.
- اڊاپٽر کي معياري AC آئوٽليٽ ۾ لڳايو.
- Alternatively, insert four AA batteries into the battery compartment for portable use.
4.2 Instrument and Ampوierيڪ ڪنيڪشن
- Connect your electric bass to the B1X Four's INPUT jack using the 10ft Instrument Cable.
- Connect the B1X Four's OUTPUT jack to your bass amplifier يا آڊيو انٽرفيس.
4.3 هيڊ فون ڪنيڪشن
- For silent practice, connect the Polsen HPC-A30 Monitor Headphones to the B1X Four's OUTPUT jack. Use the included 1/4" adapter if necessary.
5. آپريٽنگ هدايتون
5.1 پاور آن/آف
- To power on, ensure the power adapter is connected or batteries are inserted. The unit will power on automatically.
- To power off, disconnect the power adapter or remove the batteries.
5.2 نيويگيٽنگ پري سيٽس
- Use the footswitches to scroll through the 50 user-preset patches.
- The display screen will show the current patch number and name.
5.3 Using the Expression Pedal
- The expression pedal provides continuous, variable control over selected effects, such as wah, volume, or pitch.
- Refer to the on-screen menu to assign specific effects to the expression pedal.
5.4 لوپر فنڪشن
- Activate the 30-second looper function using the dedicated footswitch.
- Record, overdub, and play back your bass lines to create layered performances.
5.5 تال جا نمونا
- The B1X Four includes 68 built-in rhythm patterns for practice and performance.
- Select and adjust the tempo of rhythm patterns via the control knobs and display.
5.6 Chaining Effects and Saving Patches
- Up to five effects can be used simultaneously and arranged in any order.
- Adjust individual effect parameters using the control knobs.
- Save your customized effect chains as user-preset patches for quick recall.
6. سار سنڀال
- صفائي: Wipe the pedal and accessories with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- بيٽري مٽائڻ: If using batteries, replace all four AA batteries when the low battery indicator appears on the display. Ensure correct polarity.
- ڪيبل جي سنڀال: Store cables neatly to prevent kinks and damage. Avoid excessive bending or pulling.
- هيڊ فون جي سنڀال: Keep headphones clean and store them in a protective case to prevent damage to earcups and drivers.
7. مسئلا حل ڪرڻ
- آواز ناهي: سڀ ڪيبل ڪنيڪشن چيڪ ڪريو (اوزار، amplifier, headphones). Ensure the pedal is powered on and volume levels are appropriately set on both the pedal and your ampوierيڪ زنده
- مسخ ٿيل آواز: Verify input and output levels are not clipping. Adjust gain settings on the pedal and amplifier. Check for damaged cables.
- پيڊل جواب نه ڏئي رهيو آهي: Ensure the power supply is stable. If using batteries, replace them. If issues persist, perform a factory reset (refer to the full product manual for instructions).
- For further assistance, consult the official Zoom support webسائيٽ يا ڪسٽمر سروس سان رابطو ڪريو.
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| شيون ماڊل نمبر | Zoom B1X Four |
| اثر | Over 70 Bass Effects, 9 Amp ماڊلز |
| Simultaneous Effects | 5 |
| استعمال ڪندڙ پيچ | 50 |
| لوپر | 30- سيڪنڊ |
| تال جو نمونو | 68 |
| ايڪسپريس پيڊل | Built-in for variable control |
| جسماني مواد | ڌاتو |
| طاقت جو ذريعو | 9V AC Adapter (included), 4x AA Batteries |
| ڪنيڪٽر جو قسم | 1/4 انچ (6.35 ايم ايم) آڊيو جيڪ |
| شيءِ جو وزن | 4.53 پائونڊ |
| Polsen HPC-A30 Headphones | 50mm drivers, 18Hz-22kHz frequency response |
9. وارنٽي ۽ سپورٽ
The Zoom B1X Four Bass Multi-Effects Pedal, Polsen HPC-A30 Monitor Headphones, ART 9V AC Power Adapter, and Strukture SC10R Instrument Cable each come with a 1-Year Warranty. For detailed warranty information, technical support, or service inquiries, please visit the official Zoom website or the respective manufacturer's support pages.
