1. تعارف
Thank you for choosing the HBN Outdoor Wireless Remote Control Outlet. This device provides a simple and convenient way to control your electrical appliances, lights, and decorations from a distance. Designed for both indoor and outdoor use, it features a weatherproof construction and a reliable wireless signal.
2. حفاظت جي ڄاڻ
مھرباني ڪري ھن پراڊڪٽ کي استعمال ڪرڻ کان پھريان سڀ حفاظتي ھدايتون پڙھو ۽ سمجھو. انھن ھدايتن تي عمل ڪرڻ ۾ ناڪامي بجليءَ جو جھٽڪو، باهه، يا سنگين زخمي ٿي سگھي ٿي.
- For Outdoor Use: Ensure the outlet is plugged into a Ground Fault Circuit Interrupter (GFCI) protected receptacle.

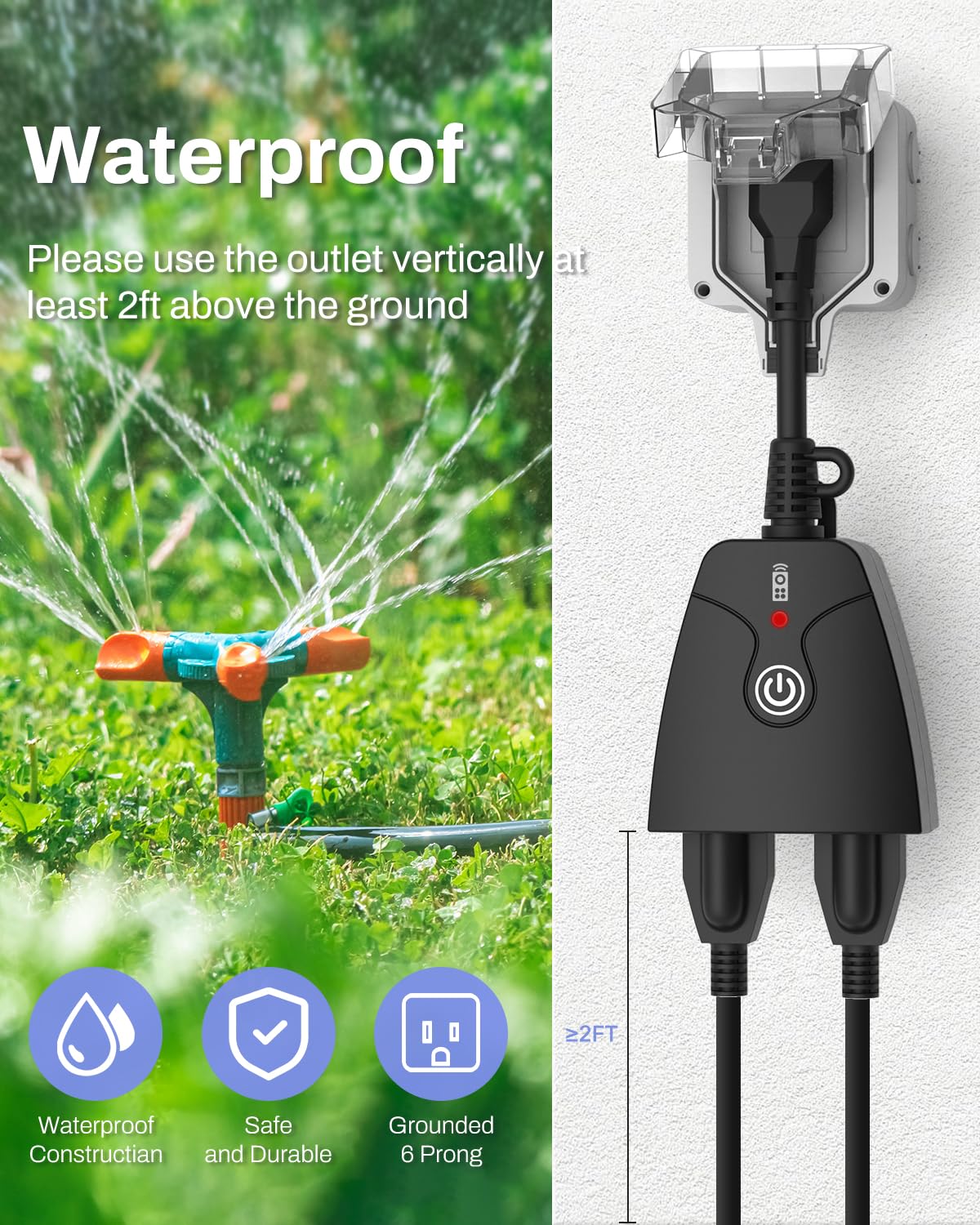

- چڙهڻ: When used outdoors, mount the outlet vertically with the receptacles facing downwards, at least 2 feet (0.6 meters) above ground level, to prevent water ingress.
- لوڊ گنجائش: Do not exceed the maximum electrical ratings: 125V, 15A/1875W resistive, 10A/1250W tungsten, 1/2HP.
- پاڻي جي نمائش: Do not immerse the product in water. Avoid direct water spray onto the outlets.
- ٻار: ٻارن جي پهچ کان پري رکو.
- نقصان: Do not use if the product or its cord is damaged.
- خارج ٿيڻ: Do not attempt to disassemble or repair the unit. Contact customer support for assistance.
3. پيڪيج مواد
- HBN Outdoor Wireless Remote Control Outlet Unit(s) (Quantity may vary based on pack purchased)
- Wireless Remote Control(s)
- 12V 23A Battery (for remote control)
4. پراڊڪٽ ختمview
The HBN remote control outlet system consists of a receiver unit (the outlet plug) and a transmitter unit (the remote control). The receiver unit features dual 3-prong outlets and a manual ON/OFF button. The remote control allows for convenient operation from up to 100 feet in line-of-sight.
5. سيٽ اپ جون هدايتون
5.1. ريموٽ ڪنٽرول بيٽري لڳائڻ
- ريموٽ ڪنٽر جي پوئين پاسي بيٽري جي دٻي جو coverڪ کوليو.
- Insert one 12V 23A battery, ensuring the correct polarity (+ and - signs).
- بيٽري جي ڪمري واري ڍڪ کي بند ڪريو.
5.2. Plugging in the Outlet Unit
- Plug the HBN Outdoor Wireless Remote Control Outlet into a standard 125V electrical receptacle.
- For outdoor use, ensure the receptacle is GFCI protected and the outlet unit is mounted vertically at least 2 feet above ground.
- The outlet is pre-programmed for immediate use.
6. آپريٽنگ هدايتون
6.1. بنيادي آن/آف آپريشن
- ريموٽ ڪنٽرول استعمال ڪندي: Press the "ON" button on the remote to turn on connected devices. Press the "OFF" button to turn them off. The remote can control the outlets from up to 100 feet in line-of-sight, even through walls and doors.
- Using the Manual Button: Each outlet unit has a manual power button. Press this button to toggle the power ON or OFF for the connected devices.
6.2. Pairing Receiver to Transmitter
If you need to pair a receiver outlet to a remote control, follow these steps:
- رسيور آئوٽليٽ کي پاور آئوٽليٽ ۾ پلگ ان ڪريو.
- Press and hold the ON/OFF button on the receiver outlet for 3 seconds. The LED indicator will start flashing slowly.
- Release the ON/OFF button on the receiver and press either the ON or OFF button on the transmitter (remote control) to pair the transmitter to the receiver.
Video: An official HBN video demonstrating the pairing process for the outdoor remote control outlet. It shows how to press and hold the button on the outlet unit and then use the remote to establish a connection.
6.3. Resetting an Outlet
If you wish to unpair an outlet receiver from the remote, or if your outlets are unresponsive, you can reset them:
- پاور ساکٽ مان آئوٽليٽ رسيور هٽايو.
- آئوٽليٽ رسيور تي آن / آف بٽڻ کي دٻايو ۽ رکو.
- While still holding the button, plug the outlet receiver back into a power socket and wait to see the indicator flash.
- جڏھن اشارو چمڪندو بند ٿي و ،ي ، توھان بٽڻ releaseڏائي سگھوٿا ، ۽ ري سيٽ ڪرڻ وارو عمل ھاڻي پورو ٿيو.
- You may program the outlet again after resetting.
7. سار سنڀال
- صفائي: Disconnect from power before cleaning. Wipe with a soft, damp ڪپڙو. استعمال نه ڪريو سخت ڪيميائي يا گھڻائي صاف ڪندڙ.
- اسٽوريج: هڪ ٿڌي، سڪل جڳهه ۾ ذخيرو ڪريو جڏهن استعمال ۾ نه هجي.
- بيٽري مٽائڻ: Replace the remote control battery when the signal weakens or the remote stops responding.
8. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Outlet not responding to remote. | Remote battery is dead or weak. | Replace the 12V 23A battery in the remote. |
| Outlet and remote are not paired. | Follow the "Pairing Receiver to Transmitter" instructions in Section 6.2. | |
| Distance between remote and outlet is too far or obstructed. | Reduce the distance or remove obstructions. The maximum range is 100ft line-of-sight. | |
| Outlet does not power on manually. | No power to the wall receptacle. | Check the circuit breaker or test the wall receptacle with another device. |
| اوورلوڊ يا شارٽ سرڪٽ. | Unplug devices, check for damage, and ensure total wattage 1875W کان وڌيڪ نه آهي. |
9. وضاحتون
- ماڊل نمبر: U151R-1-1
- بجلي جي درجه بندي 125V, 15A/1875W Resistive, 10A/1250W Tungsten, 1/2HP
- رابطي: ريڊيو فريڪوئنسي (RF)
- وائرليس رينج: Up to 100 feet (line-of-sight)
- آئوٽليٽ: Dual 3-Prong Grounded Outlets
- ڪنڊ ڊگھائي: 6 انچ
- سرٽيفڪيشن: ETL درج ٿيل
- طول و عرض: Approximately 3.11 x 2.95 x 1.57 inches (main unit)
- رنگ: ڪارو
10. وارنٽي ۽ سپورٽ
For warranty information or technical support, please contact HBN customer service. Refer to the product packaging or the official HBN webرابطي جي تفصيل لاءِ سائيٽ.
ٺاهيندڙ: ايڇ بي بي
