ALINCO DJ-VX50HE VHF/UHF FM Portable Transceiver User Manual

1. پراڊڪٽ ختمview

The ALINCO DJ-VX50HE is a robust VHF/UHF FM portable transceiver designed for reliable communication. It features a dual-band, semi-duplex operation with a screen and keypad offering three selectable colors for enhanced visibility. The device is IP67 compliant, providing dust and water resistance, making it suitable for various environments. With 200 memory channels, it supports any combination of VHF/UHF frequencies. Advanced features include VOX (Voice Operated Transmit), alphanumeric channel labels, and direct frequency input from the keypad. Professional-level signaling functions and a variety of wide and narrow FM scan modes are also integrated.

شڪل 1: اڳيان، پاسي، ۽ پوئتي views of the ALINCO DJ-VX50HE portable transceiver.

2. سيٽ اپ گائيڊ

2.1. بيٽري لڳائڻ

1. پڪ ڪريو ته ٽرانسيور بند آهي.
2. Align the battery pack with the battery compartment on the back of the transceiver.
3. Gently slide the battery pack into place until it clicks securely.

2.2. اينٽينا اٽيچمينٽ

1. Locate the antenna connector on the top of the transceiver.
2. Screw the provided antenna clockwise onto the connector until it is finger-tight. Do not overtighten.

2.3. بيلٽ ڪلپ اٽيچمينٽ

1. Identify the screw holes on the back of the transceiver, typically above the battery compartment.
2. Position the belt clip over these holes and secure it with the provided screws.

2.4. بيٽري کي چارج ڪرڻ

1. Connect the AC adapter to the charging cradle.
2. Place the transceiver (with battery installed) into the charging cradle.
3. Ensure the charging indicator light on the cradle illuminates, indicating proper charging.
4. A full charge typically takes several hours. Refer to the indicator light for charge status.

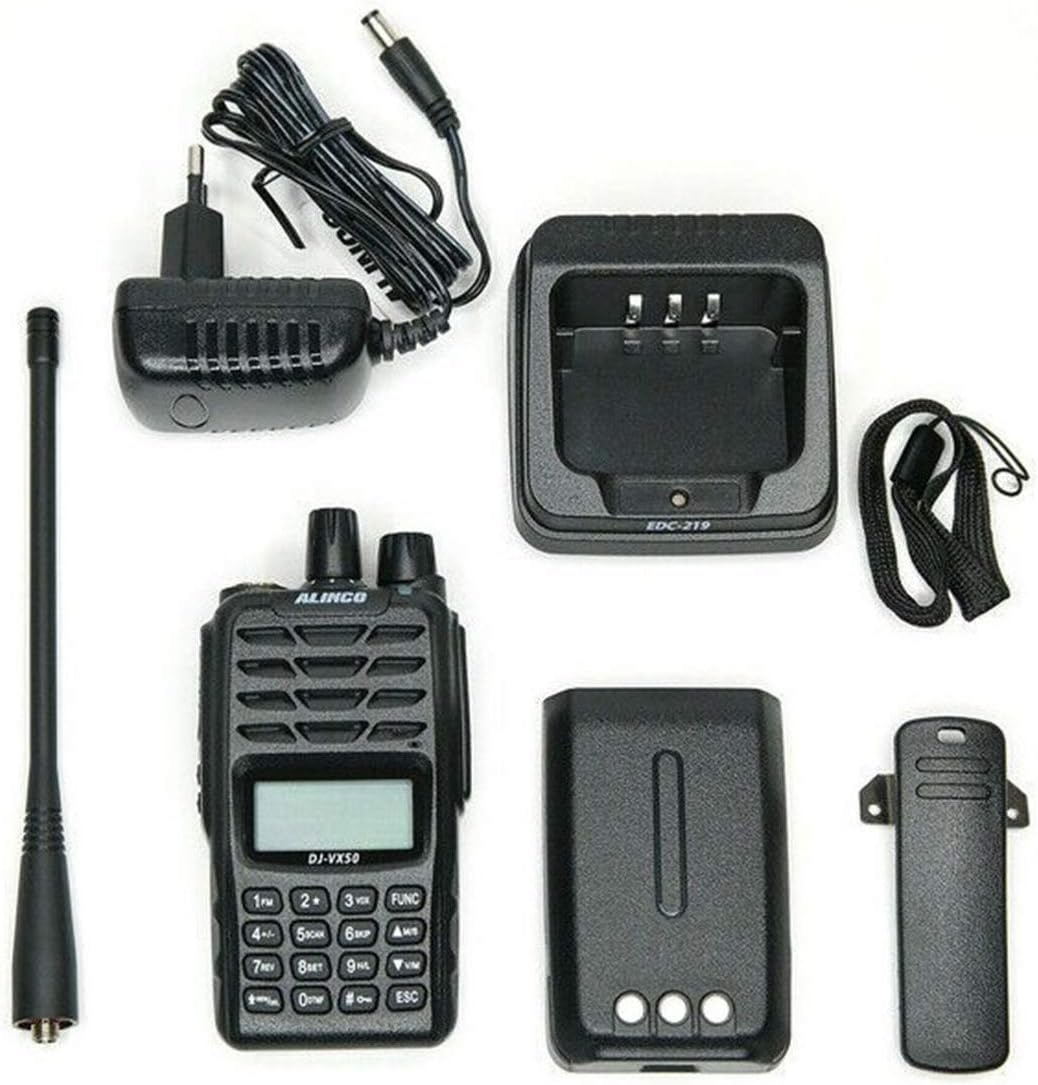

Figure 2: Included components: transceiver, battery, antenna, charging cradle, AC adapter, and belt clip.

3. آپريٽنگ هدايتون

3.1. پاور آن/آف ۽ واليوم ڪنٽرول

1. To power on, rotate the top-mounted power/volume knob clockwise until you hear a click and the display illuminates.
2. To adjust volume, continue rotating the same knob. Clockwise increases volume, counter-clockwise decreases it.
3. پاور آف ڪرڻ لاءِ، گھڙيال جي مخالف طرف نوب کي گھمايو جيستائين توهان کي ڪلڪ ٻڌڻ ۾ نه اچي.

3.2. فريڪوئنسي ۽ چينل جي چونڊ

1. Direct Frequency Input: Use the numeric keypad to enter desired frequencies directly.
2. چينل موڊ: Press the 'VFO/MR' button to switch between VFO (Variable Frequency Oscillator) mode for direct frequency input and Memory Recall (MR) mode for stored channels.
3. چينل نيويگيشن: In MR mode, use the UP/DOWN arrow keys to scroll through programmed memory channels.

3.3. Dual-Band Operation

The DJ-VX50HE supports dual-band operation (VHF/UHF). Use the 'BAND' button to switch between the VHF and UHF bands. The display will indicate the active band.

3.4. VOX Function (Voice Operated Transmit)

The VOX function allows for hands-free transmission. When activated, the transceiver will automatically transmit when it detects your voice. Refer to the menu settings to enable/disable VOX and adjust its sensitivity.

3.5. اسڪيننگ موڊس

The transceiver offers various scanning modes to monitor frequencies. These include wide and narrow FM TX/RX scanning. Consult the full manual for detailed instructions on activating and customizing scan parameters.

Figure 3: The ALINCO DJ-VX50HE features a multi-color selectable screen backlight for improved visibility in various conditions.

4. سار سنڀال

4.1. صفائي

Regularly clean the transceiver with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are dry before use, especially after exposure to water or dust.

4.2. بيٽري جي سنڀال

To prolong battery life, avoid overcharging or completely discharging the battery. Store the battery in a cool, dry place when not in use for extended periods. Replace the battery if you notice a significant decrease in operating time.

4.3. اينٽينا جي سنڀال

Ensure the antenna is securely attached but not overtightened. Avoid bending or stressing the antenna, as this can affect performance and cause damage.

5. مسئلا حل ڪرڻ

6. ٽيڪنيڪل وضاحتون

• Frequency Coverage RX FM: 136-174 MHz / 400-470 MHz
• Frequency Coverage RX WFM: 76-107.95 MHz
• Frequency Coverage RX AM: 118-135.99 MHz
• Frequency Coverage TX: 136-174 MHz / 400-470 MHz
• چينلن جو تعداد: 200
• ماڊليشن: F3E (16K0F3E/11K0F3E/RX only WFM/AM)
• چينل جي فاصلي: 2.5، 5، 6.25، 10، 12.5، 15، 20، 25، 30، 50 kHz
• بجلي جي گهرج: 7.4 V (Battery)
• موجوده واپرائڻ (تقريبن): 1500 mA TX / 300 mA Receive (max audio output) / 80 mA (squelched)
• تعدد استحڪام: 2.5 پي پي ايم
• Usable Temperature Range: -20 °C کان +60 °C
• Dimensions (with battery): 118 x 59 x 38 ملي ميٽر
• Weight (including battery and antenna): تقريبن 230 گ
• Receiver System: سڌي تبديلي
• Receiver Sensitivity (12 dB SINAD Wide/Narrow): Wide -12 dBu / Narrow 9 dBu
• ڀرسان چينل جي چونڊ: Wide > 65 dB / Narrow > 60 dB
• آڊيو آئوٽ پاور: 1 W (10% distortion)
• Transmitter Output Power (approx.): 5 W (VHF) / 4 W (UHF) / 2 W / 1 W
• فریکوئنسي انحراف: 5 kHz / 2.5 kHz
• گندو اخراج: Less than -27 dBm
• پاڻي جي مزاحمت جي سطح: Waterproof (IP67 compliant)

7. دٻي ۾ ڇا آهي

• ALINCO DJ-VX50HE Portable Transceiver
• لي-آئن بيٽري پيڪ
• اينٽينا
• چارج ڪرڻ وارو پينگلو
• AC اڊاپٽر
• بيلٽ ڪلپ

8. وارنٽي ۽ سپورٽ

The ALINCO DJ-VX50HE comes with a standard manufacturer's warranty. For specific warranty terms, duration, and conditions, please refer to the warranty card included with your product or visit the official ALINCO website. For technical support, service, or inquiries, please contact ALINCO customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
