مورفي رچرڊز 300300 ڪرسٽل ڪليئر اسٽيم آئرن يوزر مينوئل

1. تعارف

خريد ڪرڻ لاءِ مهربانيasing the Morphy Richards 300300 Crystal Clear Steam Iron. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and retain them for future reference.

2. حفاظت جي ڄاڻ

باهه، بجليءَ جي جھٽڪي، ۽ ذاتي زخمن جي خطري کي گهٽائڻ لاءِ بجليءَ جا سامان استعمال ڪرڻ وقت هميشه بنيادي حفاظتي احتياطن تي عمل ڪريو.

• حجم کي يقيني بڻايو وڃيtage rating on the product corresponds to your mains supply voltage.
• لوھ، بجلي جي تار، يا پلگ کي پاڻي يا ٻين مائعات ۾ نه ٻوڙيو.
• Always turn the iron off and unplug it from the outlet before filling or emptying the water tank, or when not in use.
• جڏهن لوهه آن هجي يا مين سپلاءِ سان ڳنڍيل هجي ته ان کي بي پرواهه نه ڇڏيو.
• لوھ ۽ ان جي تار کي ٻارن ۽ پالتو جانورن جي پهچ کان پري رکو جڏهن ان کي آن ڪيو وڃي يا ٿڌو ڪيو وڃي.
• The soleplate of the iron becomes very hot and can cause burns. Avoid direct contact.
• ڪنهن به اوزار کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو، يا ڊوائيس جي خراب ٿيڻ کان پوء يا ڪنهن به طريقي سان خراب ٿي وئي آهي.
• لوھ کي صرف ان جي گھربل مقصد لاءِ استعمال ڪريو.

3. پراڊڪٽ ختمview

The Morphy Richards 300300 Crystal Clear Steam Iron is designed for efficient and effective garment care. Key components and features include:

• شفاف پاڻي جي ٽانڪي: Allows for easy monitoring of water levels, reducing the chance of running out of steam unexpectedly.
• Ceramic Soleplate: Provides smooth gliding over various fabrics and ensures even heat distribution.
• گرمي پد ڪنٽرول ڊائل: مختلف قسمن جي ڪپڙي لاءِ گرمي جي سيٽنگن کي ترتيب ڏئي ٿو.
• Steam Output Control: Manages continuous steam flow (up to 30g/min).
• اسٽيم بوسٽ بٽڻ: Delivers a powerful burst of steam (100g) for stubborn creases.
• اسپري بٽڻ: Provides a fine mist of water to damp۽ ڪپڙا.
• Large Filling Cap: Facilitates easy and spill-free water refilling.
• Easy-Store Cable Clip: Helps keep the power cord tidy when the iron is not in use.
• Anti-scale and Self-Clean Functions: Designed to combat limescale buildup and maintain iron performance.

Image 3.1: The Morphy Richards 300300 Crystal Clear Steam Iron, showcasing its design and transparent water tank.

4. سيٽ اپ

4.1 کولڻ

Carefully remove the iron from its packaging. Remove any labels, protective films, or packaging materials from the soleplate or body of the iron before first use.

4.2 پهرين استعمال جي تياري

Before using the iron for the first time, it is recommended to iron an old piece of fabric (e.g., a cotton cloth) to ensure any manufacturing residues are removed from the soleplate. Some odor or light smoke may occur during the first heating; this is normal and will dissipate quickly.

4.3 پاڻي جي ٽانڪي ڀرڻ

1. پڪ ڪريو ته لوهه مين سپلاءِ کان ڌار ٿيل آهي.
2. Open the large filling cap located on the top of the iron.
3. Using a measuring cup, carefully pour tap water into the transparent water tank up to the 'MAX' fill line. Do not overfill.
4. Close the filling cap securely.

Image 4.1: A person filling the transparent water tank of the iron, demonstrating the easy view feature and large filling cap.

5. آپريٽنگ هدايتون

5.1 درجه حرارت جي چونڊ

Plug the iron into a suitable mains socket. Rotate the temperature control dial to select the appropriate heat setting for your fabric type. The indicator light will illuminate while the iron is heating and turn off when the desired temperature is reached. Always check garment care labels for recommended ironing temperatures.

5.2 خشڪ لوڻ

For dry ironing, ensure the steam control is set to the 'OFF' position. Select the desired temperature and wait for the indicator light to turn off. Iron the garment as needed.

5.3 ٻاڦ سان استري ڪرڻ

For steam ironing, ensure the water tank is filled. Select a temperature setting suitable for steam (typically indicated on the dial, usually from the '••' setting upwards). Once the indicator light turns off, adjust the steam control to the desired continuous steam level (up to 30g/min). The iron will produce steam as you iron.

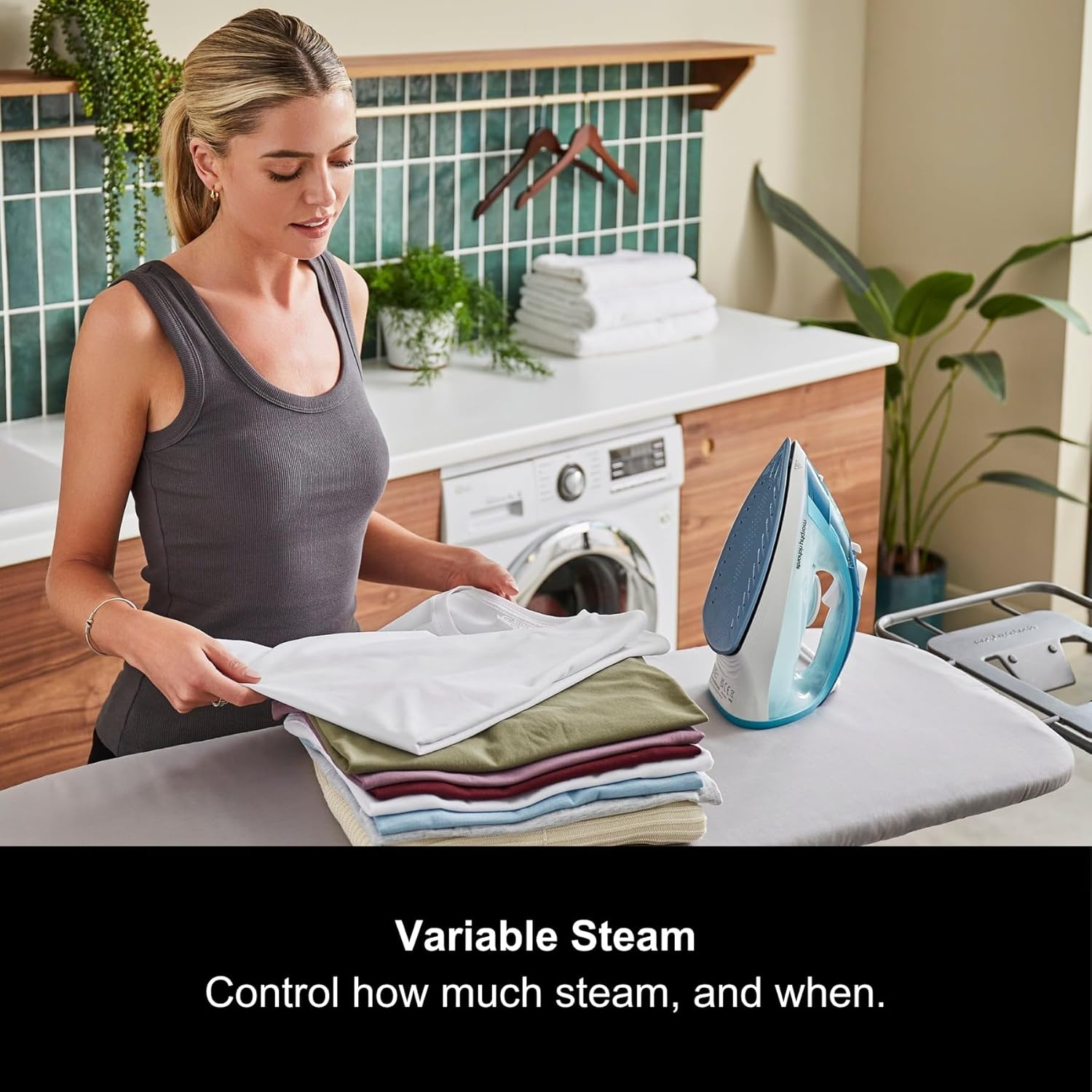

Image 5.1: A person ironing a garment, demonstrating the use of variable steam control for different fabric needs.

5.4 اسٽيم بوسٽ

For stubborn creases, press the steam boost button. This delivers a powerful 100g burst of steam. Allow a few seconds between bursts to ensure optimal steam generation. Use only when the iron is at a high temperature setting.

Image 5.2: A hand pressing the steam boost button, illustrating the activation of the 100g steam burst feature.

5.5 عمودي ٻاڦ

The iron can be used for vertical steaming of hanging garments or curtains. Hold the iron vertically, ensuring it is at a high temperature setting. Press the steam boost button to release steam onto the fabric. Do not allow the soleplate to touch the fabric directly during vertical steaming.

Image 5.3: The iron being used to vertically steam a hanging garment, demonstrating its versatility for different ironing tasks.

5.6 اسپري فنڪشن

Press the spray button to emit a fine mist of water. This is useful for dampening dry areas of fabric before ironing, helping to remove creases more effectively.

Image 5.4: A person ironing, highlighting the convenience of the iron's extra long cord length for flexible use.

6. سار سنڀال

باقاعده سار سنڀال بهترين ڪارڪردگي کي يقيني بڻائي ٿي ۽ توهان جي لوهه جي زندگي وڌائي ٿي.

6.1 هر استعمال کان پوءِ

1. لوھ کي بند ڪريو ۽ ان کي مڪمل طور تي ٿڌو ٿيڻ ڏيو.
2. ٽانڪي مان باقي پاڻي خالي ڪريو.
3. اشتهار سان سوليپليٽ کي صاف ڪريوamp ڪنهن به رهاڻ کي هٽائڻ لاءِ ڪپڙو.
4. Use the easy-store cable clip to secure the power cord.

6.2 Anti-scale and Self-Clean Functions

The iron is equipped with anti-scale and self-clean features to minimize limescale buildup. Refer to the full product manual for detailed instructions on how to activate and perform the self-clean cycle. Regular use of the self-clean function helps maintain steam performance.

تصوير 6.1: هڪ ويجهو تصوير view of the iron's soleplate, emphasizing its anti-scale and self-clean functions designed to prevent limescale buildup.

6.3 اسٽوريج

Store the cooled iron upright on its heel rest in a dry, safe place, out of reach of children.

7. مسئلا حل ڪرڻ

If you encounter issues with your iron, please consult the following common problems and solutions:

جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

8. وضاحتون

• برانڊ: مورفي رچرڊز
• ماڊل نمبر: 300300
• طاقت: 2400 واٽ
• جلدtage: 230 وولٽ
• مسلسل ٻاڦ ٻاڦ: 30 گرام / منٽ
• ٻاڦ وڌائڻ: 100 جي
• پيداوار جي ماپ (L x W x H): 28.6 x 12.5 x 14.6 سينٽي
• شيء جو وزن: 1.2 ڪلوگرام
• خاص خاصيتون: Transparent Water Tank, Large Filling Cap, Easy-Store Cable Clip, Anti-scale, Self-Clean, Vertical Steam

9. وارنٽي ۽ سپورٽ

Your Morphy Richards 300300 Crystal Clear Steam Iron comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical support, spare parts, or warranty claims, please contact Morphy Richards customer service. Contact details can typically be found on the official Morphy Richards webسائيٽ يا وارنٽي دستاويزن ۾.
