تعارف
The Browning Solar Battery Pack 12 Volt (Model BTC SBP12) is designed to provide supplemental power to your Browning Trail Camera, extending its operational life in the field. This unit features an integrated solar panel that recharges its internal batteries, which then supply power to your connected trail camera. It is compatible with all Browning Trail Camera models and includes six rechargeable batteries for immediate use.
حفاظت جي ڄاڻ
خبردار: اها پيداوار ڪيميائي ڪيليفورنيا جي رياستن کي ڪينسر ۽ پيدائشي نقصن يا ٻين توليدي نقصان جو سبب knownاڻيندي آهي.
- Do not expose the unit to extreme temperatures or direct flame.
- چارج ڪرڻ وقت مناسب وينٽيليشن کي يقيني بڻايو.
- يونٽ کي جدا ڪرڻ يا تبديل ڪرڻ جي ڪوشش نه ڪريو.
- ٻارن جي پهچ کان پري رکو.
پيڪيج مواد
- Browning Solar Battery Pack (BTC SBP12)
- 6 Rechargeable Batteries (pre-installed or separate)
- چڙهڻ واري پٽي
- Power Cable for connecting to trail camera
پيداوار ختمview
سيٽ اپ ڪريو
- بيٽرين کي انسٽال ڪريو. Open the battery compartment on the back of the solar panel unit (refer to Figure 2). Insert the six included rechargeable batteries, ensuring correct polarity. Close the compartment securely.
- چڙهڻ جو هنڌ: Select a location that receives maximum direct sunlight throughout the day. Avoid areas with heavy shade from trees or buildings.

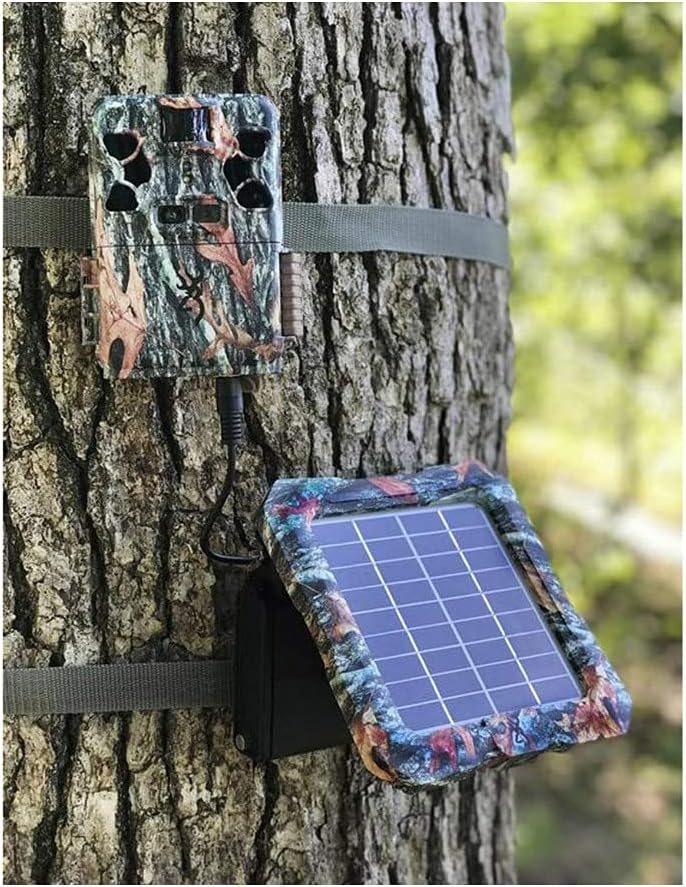

- Attach to Tree/Post: Use the provided mounting strap to securely attach the solar battery pack to a tree or post (refer to Figure 5). Ensure the unit is stable and will not shift in wind or adverse weather.
- سولر پينل جي زاويه کي ترتيب ڏيو: Utilize the adjustable mounting bracket to angle the solar panel directly towards the sun for optimal charging efficiency. The panel should be angled to capture the most sunlight during peak hours.
- Connect to Trail Camera: Connect the power cable from the solar battery pack to the external power input port on your Browning Trail Camera (refer to Figure 6). Ensure the connection is firm and secure.
Note: The solar battery pack is designed to provide supplemental power to your trail camera. It charges its own internal rechargeable batteries, which then power the camera. It does NOT directly recharge the batteries inside your trail camera. It is recommended to have batteries installed in your trail camera as a backup power source.
آپريٽنگ هدايتون
- پاور آن: Locate the ON/OFF switch on the side control panel (refer to Figure 4). Slide the switch to the 'ON' position.
- بيٽري جي حالت: The LED indicator lights on the control panel (Figure 4) will show the current charge level of the internal rechargeable batteries. Monitor these lights to ensure adequate power.
- شمسي چارج: Once powered on and exposed to sunlight, the solar panel will automatically begin charging its internal batteries. Ensure the panel is clean and unobstructed for optimal performance.
- ڪئميرا آپريشن: With the solar battery pack connected and powered on, your trail camera will draw power from the solar unit, preserving its internal batteries.
سار سنڀال
- صفائي: وقتي طور تي سولر پينل جي مٿاڇري کي نرم، ڊي سان صاف ڪريوamp cloth to remove dirt, dust, or debris that may hinder charging efficiency. Do not use abrasive cleaners.
- بيٽري چيڪ: While the internal batteries are rechargeable, their capacity may diminish over time. If you notice reduced performance, consider replacing the six internal rechargeable batteries.
- ڪيبل جي چڪاس: Regularly inspect the power cable and connectors for any signs of wear, damage, or corrosion. Replace if necessary to ensure a reliable connection.
- حفاظتي حفاظت: Check the mounting strap and bracket periodically to ensure the unit remains securely attached and properly angled.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Solar panel not charging internal batteries. | Insufficient sunlight; dirty solar panel; faulty internal batteries. | Relocate unit to a sunnier spot; clean solar panel surface; check/replace internal rechargeable batteries. |
| Trail camera not receiving power from solar unit. | Solar unit is off; power cable is loose/damaged; internal batteries are depleted; solar unit is faulty. | Ensure solar unit is ON; check cable connection; allow solar unit to charge in sunlight; test with fully charged internal batteries. |
| One or more included rechargeable batteries are dead. | Manufacturing defect or prolonged storage. | Replace the faulty battery/batteries with new rechargeable ones of the same type and capacity. |
| Confusion regarding camera battery charging. | Misunderstanding of product function. | The solar panel charges its پنهنجو internal batteries, which then power the camera. It does نه recharge batteries placed inside the trail camera itself. |
وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | برائوننگ |
| ماڊل نالو | BTC SBP12 |
| وصف | Solar Battery Pack 12 Volt |
| مواد | ٻيو |
| شيءِ جو وزن | 2.04 پائونڊ (0.93 ڪلوگرام) |
| ڪارڪردگي | اعلي ڪارڪردگي |
| ڪنيڪٽر جو قسم | ايم سي 4 |
| و Vol ۾ و Voltage | 12 وولٽ |
| شامل اجزاء | Trail Cam Solar Battery (with 6 rechargeable batteries) |
| شيون طول و عرض (LxWxH) | 3.5 x 9.5 x 11 انچ |
| رنگ | ڪيمو |
| يو پي سي | 855121008424 |
وارنٽي ۽ سپورٽ
For warranty information and technical support, please contact the manufacturer directly. The warranty description states: "Contact manufacturer".
It is recommended to visit the official Browning website or refer to the contact information provided with your purchase for the most up-to-date support details.
