تعارف
خريد ڪرڻ لاءِ مهربانيasing the Gdrasuya10 SYF-C008 23-inch Flush Mount Ceiling Fan with LED Light. This manual provides essential information for safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation or use, and retain this manual for future reference.
حفاظت جي ڄاڻ
To reduce the risk of electric shock, fire, or injury to persons, read and follow all instructions carefully.
- Always turn off the power supply at the main circuit breaker before installation or maintenance.
- Ensure all electrical connections comply with local codes and ordinances, and national electrical codes. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- چڙهڻ واري جوڙجڪ کي پنکڙي جي وزن (تقريبن 10.93 پائونڊ) کي سهارو ڏيڻ جي قابل هجڻ گهرجي.
- Do not touch the surface of the high-power patch LED by hand, as it may cause burns or damage.
- آپريشن دوران ٻارن کي پنکڙي کان پري رکو.
پيڪيج مواد
انسٽاليشن شروع ڪرڻ کان اڳ پڪ ڪريو ته سڀئي جزا موجود آهن:
- انٽيگريٽيڊ ايل اي ڊي لائيٽ سان گڏ ڇت جو پنکڙو يونٽ
- Remote Control (2 x 12V batteries included)
- وڌندڙ خط
- Installation Hardware (screws, anchors)
- استعمال ڪندڙ دستي
Image: Unboxing the Gdrasuya10 ceiling fan, showing the remote control, mounting hardware, and instruction manual.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | Gdrasuya10 |
| ماڊل نمبر | SYF-C008 |
| پيداوار جي ماپ | 23"ليٽر x 23"ڊبليو x 8.2"ايڇ (58.4 سينٽي ميٽر ايل x 58.4 سينٽي ميٽر ڊبليو x 20.8 سينٽي ميٽر ايڇ) |
| رنگ | ڀورو |
| روشني جو ذريعو قسم | SMD LED |
| واتtage | 48 واٽ |
| روشني | 4500 Lumens |
| رنگ جي درجه حرارت | 3000 ڪلو (گرم اڇو)، 4500 ڪلو (قدرتي اڇو)، 6000 ڪلو (ٿڌو اڇو) |
| ڊمبل رينج | 10%-100% |
| فين جي رفتار | 3 (گهٽ، وچولي، اعلي) |
| ڪنٽرول جو طريقو | ريموٽ ڪنٽرول |
| ٽائمنگ سيٽنگ | 1 ايڇ، 2 ايڇ |
| شور جي سطح | Ultra Quiet (<30db) |
| مواد | ايڪريلڪ، ڌاتو |
| انسٽاليشن جو قسم | سيمي فلش مائونٽ |

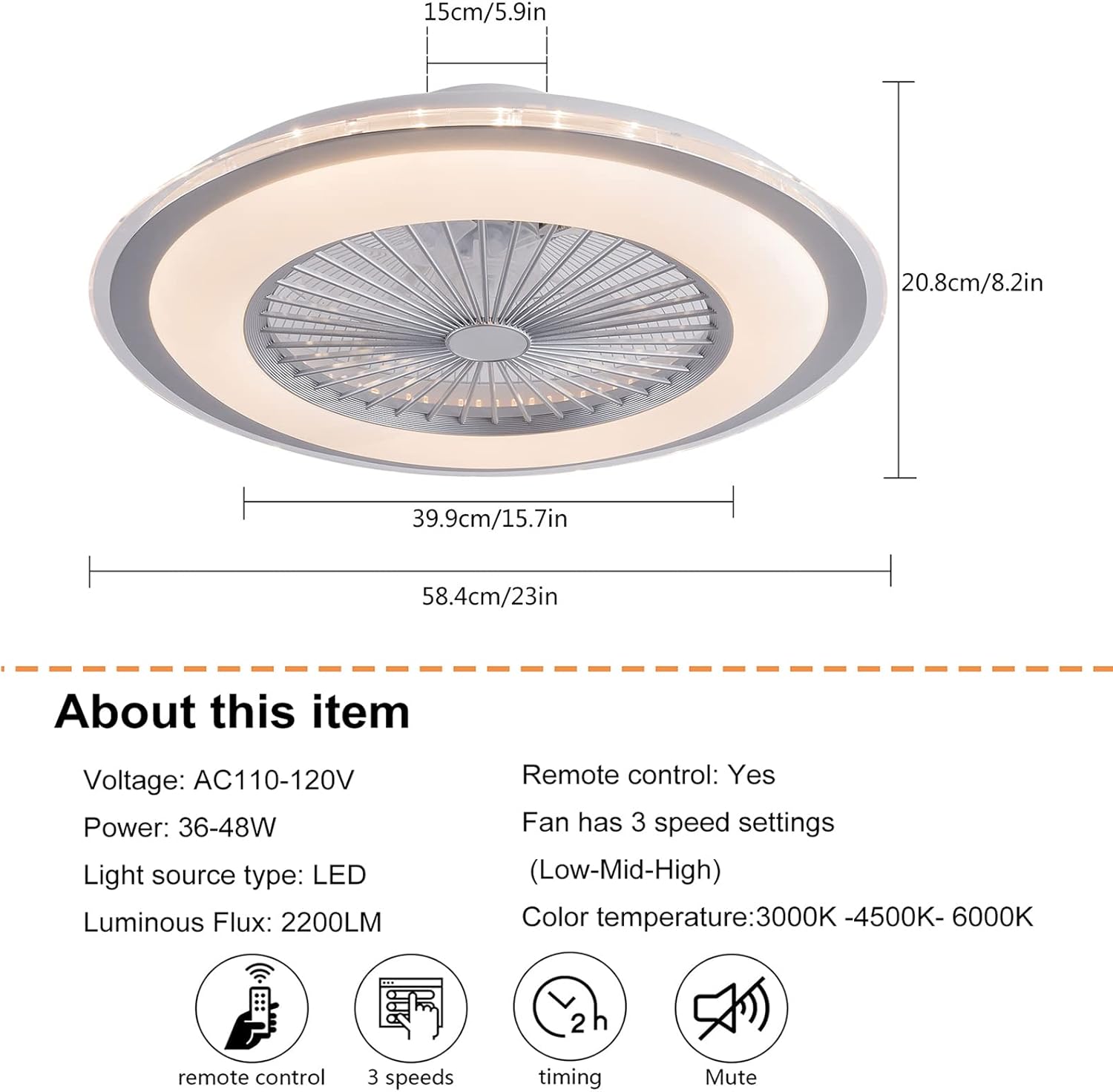

تصوير: پراڊڪٽ جي ماپ مٿيview.
Image: Detailed specifications and remote control functions.
تنصيب
Professional electricians are recommended for installation. Always ensure the power supply is disconnected before installation.
- ماؤنٽنگ بریکٹ تيار ڪريو: Remove the mounting bracket from the fan unit. Securely attach the mounting bracket to the ceiling junction box using appropriate screws and anchors. Ensure the bracket is firmly fixed and can support the fan's weight.
- وائرنگ ڪنيڪشن: Connect the fan's electrical wires to the household wiring. Typically, this involves connecting the live (black), neutral (white), and ground wires. Use wire nuts to secure connections.
- فين يونٽ لڳايو: Carefully lift the fan unit and align it with the installed mounting bracket. Secure the fan unit to the bracket using the provided screws. Ensure all screws are tightened to prevent the fan from falling.
- فائنل چيڪ: Once mounted, double-check all connections and ensure the fan is securely attached to the ceiling.
Video: Detailed installation guide for the 23-inch ceiling fan with light. This video demonstrates the steps for mounting the bracket, wiring, and securing the fan to the ceiling.
تصوير: تفصيلي view of fan components and installation suggestions.
آپريشن
The fan and light functions are controlled via the included remote control.
ريموٽ ڪنٽرول افعال:
- پاور آن / آف: فين ۽ لائيٽ کي آن يا آف ڪرڻ لاءِ پاور بٽڻ کي دٻايو.
- روشني آن / بند: روشني کي آزاديءَ سان ڪنٽرول ڪريو.
- رنگ جي درجه حرارت جي ترتيب: Cycle through 3000K (Warm White), 4500K (Natural White), and 6000K (Cool White) settings.
- روشني جي ترتيب: Dimmable from 10% to 100% for the LED light.
- فين اسپيڊ ڪنٽرول: Select from 3 fan speeds: Low, Medium, High.
- ٽائيمنگ فنڪشن: Set the fan to turn off automatically after 1 hour or 2 hours.
Image: Light On/Off comparison.
Image: Color temperature and fan speed settings.

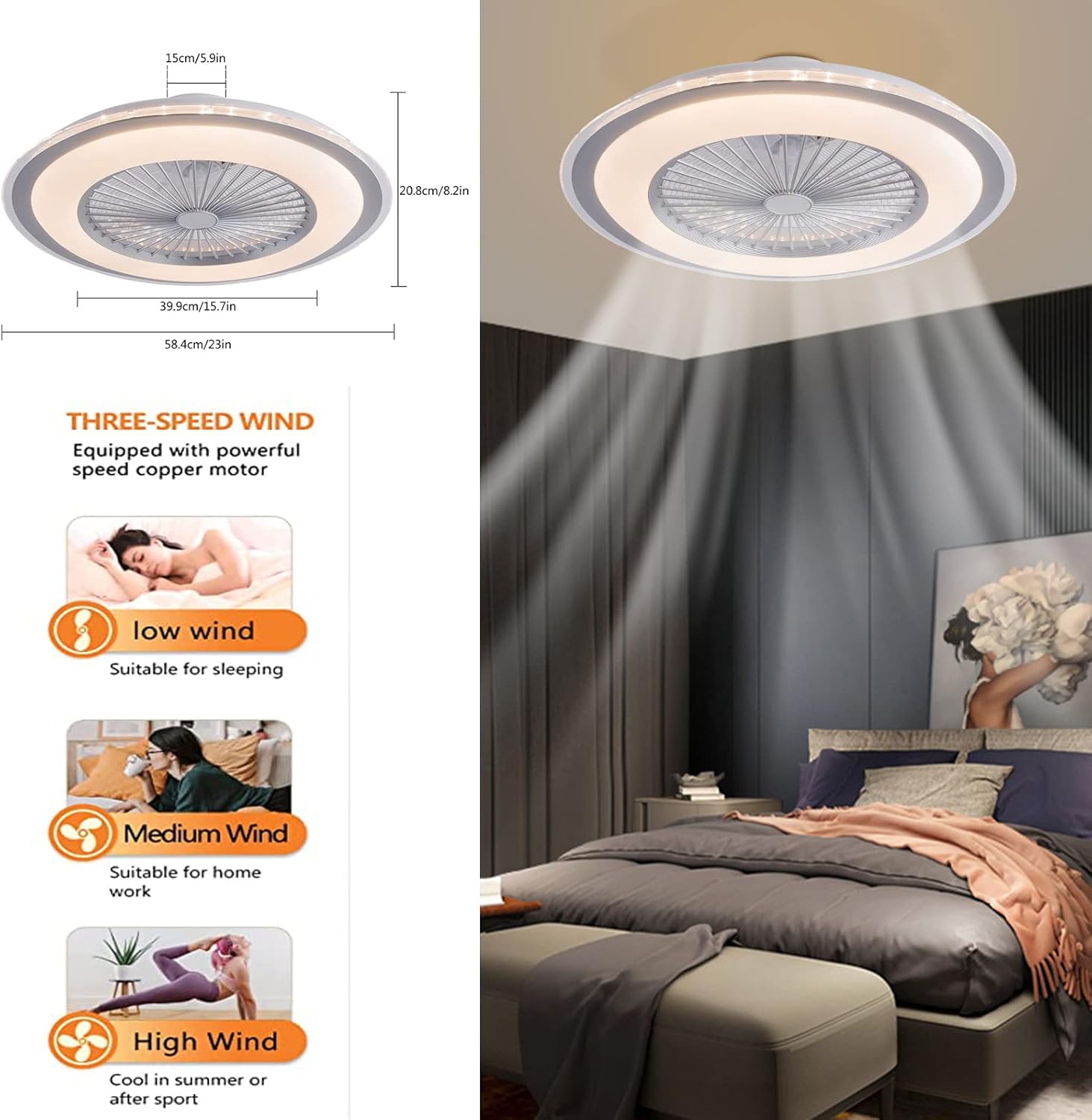

Image: Three-speed wind settings.

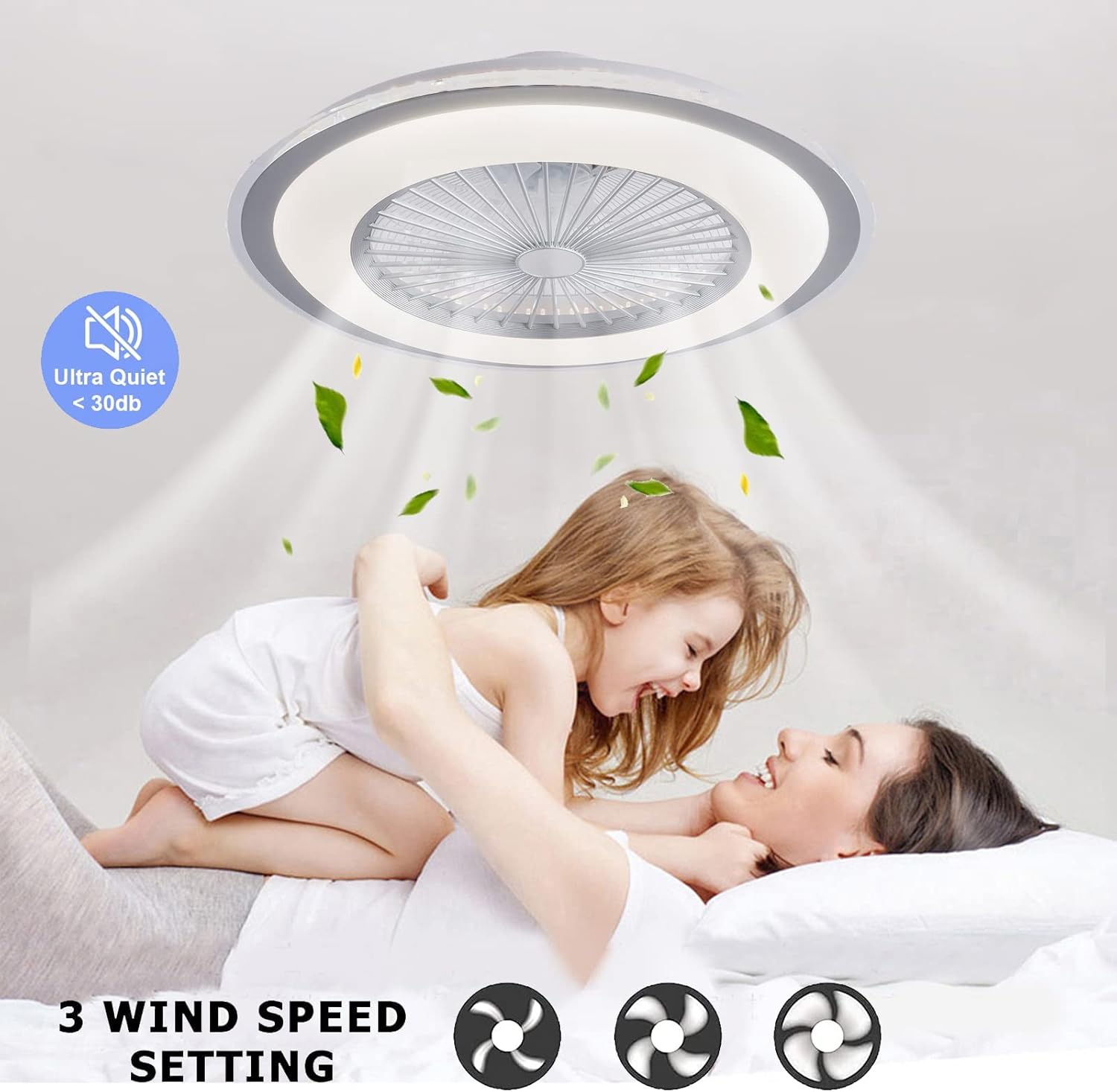

Image: Ultra-quiet operation and 3 wind speed settings.
سار سنڀال
باقاعده سار سنڀال توهان جي ڇت جي پنکڙي جي بهترين ڪارڪردگي ۽ ڊگهي عمر کي يقيني بڻائي ٿي.
- صفائي: To clean the unit, ensure the power is off at the circuit breaker. Use a soft, damp ٻاهرين سطحن کي صاف ڪرڻ لاءِ ڪپڙو. رگڙيندڙ صاف ڪندڙ يا محلول استعمال نه ڪريو.
- مٽي هٽائڻ: Periodically remove dust from the fan blades and light cover to maintain airflow and light output.
- چڪاس: Annually check all connections and mounting screws to ensure they are secure.
Note: To thoroughly clean the internal components, the unit may need to be removed from the ceiling. This should be done by a qualified professional.
مشڪلاتون
جيڪڏهن توهان کي پنهنجي فين سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| پنو نه ٿو هلي | No power, loose wiring, remote control battery dead | Check circuit breaker, ensure wiring is secure, replace remote control batteries. |
| روشني نه ٿيندي آهي | No power, loose wiring, LED module failure | Check circuit breaker, ensure wiring is secure. If LED module is faulty, contact customer support. |
| پنکھو تمام گهڻو شور ڪري ٿو | Loose mounting screws, unbalanced fan blades | Tighten all mounting screws. Ensure fan blades are clean and free from obstructions. |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي | بيٽريون ختم ٿي ويون، ريموٽ جوڙو نه آهي | Replace batteries. Refer to remote control pairing instructions (if applicable, usually involves turning power off/on and pressing a button on the remote). |
وارنٽي ۽ سپورٽ
For warranty information or technical support, please refer to the documentation included with your purchase or contact Gdrasuya10 customer service directly. Keep your purchase receipt as proof of purchase.
