1. تعارف
The BARTUN Pet GPS Tracker FP03 is a real-time tracking device designed to help you monitor the location of your small pets. Utilizing GPS, LBS, and AGPS technologies, it provides accurate positioning with unlimited range, ensuring you can always know where your pet is. This manual provides detailed instructions for setting up, operating, and maintaining your device.
پيڪيج مواد

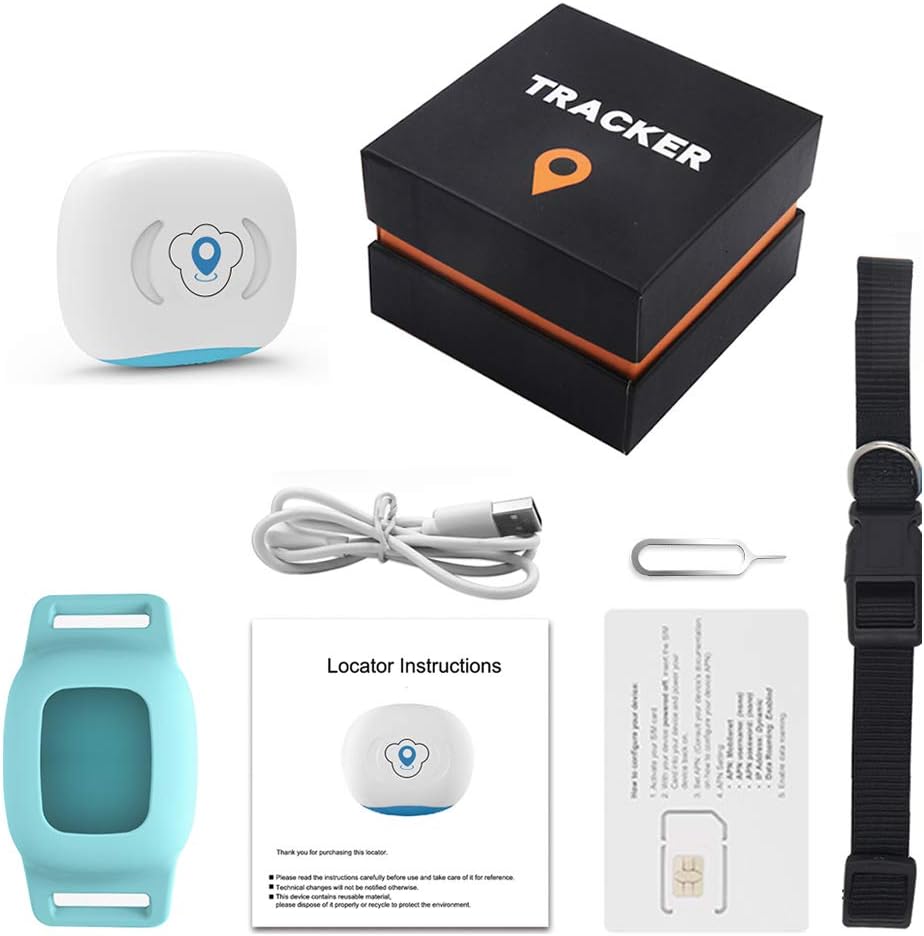

تصوير 1.1: The package includes the BARTUN Pet GPS Tracker unit, a standard pet collar, a USB charging cable, a SIM card, a SIM ejector tool, and a user manual.
- BARTUN Pet GPS Tracker Unit
- Standard Pet Collar
- USB چارجنگ ڪيبل
- سم ڪارڊ
- سم ڪjectڻ وارو اوزار
- استعمال ڪندڙ دستي
2. سيٽ اپ
2.1 سم ڪارڊ چالو ڪرڻ
The BARTUN Pet GPS Tracker requires a subscription plan for its SIM card to function. Upon receiving the SIM card, it must be activated. Two service choices are available:
- USA Network Services: Monthly fee of $4. Includes 50 minutes talk, 40 SMS, and 60 MB data.
- International Network Services: Monthly fee of $9. Includes 15 minutes talk, 40 SMS, and 60 MB data.
Choose the appropriate service during SIM card activation. Refer to the SIM card's instructions for the activation process.
2.2 ڊوائيس چارج ڪرڻ
Before initial use, fully charge the tracker using the provided USB charging cable. Connect the cable to the tracker and a standard USB power adapter (not included). The charging indicator will show the charging status.
2.3 Attaching to Pet Collar
The tracker is designed to attach to a pet collar. The standard collar included is suitable for animals weighing less than 28 lbs. If using your own collar, ensure its width is less than 0.8 inches (2 cm). The maximum collar size supported is 14 inches (35.5 cm), and the minimum is 9 inches (23 cm).
تصوير 2.1: The BARTUN Pet GPS Tracker attached to a dog's collar.
2.4 ايپ جي انسٽاليشن
Download the official "Future GPS" application from your device's app store (available for Android and iOS). For Android 10 and above, a new app version may be required. If you encounter issues, contact hlzwin8@yahoo.com هدايت لاء.
3. آپريٽنگ هدايتون
3.1 ريئل ٽائيم ٽريڪنگ
The tracker uses a combination of GPS, LBS (Location Based Service), and AGPS (Assisted GPS) to provide accurate real-time location data. This data is transmitted to the "Future GPS" app or web interface, allowing you to monitor your pet's location with an accuracy of up to 5 meters.
تصوير 3.1: Real-time GPS tracking displayed on the mobile application.
3.2 History Tracking
The "Future GPS" app allows you to review your pet's past movements. This feature provides a historical record of where your pet has been, which can be useful for understanding their routines or investigating lost pet situations.

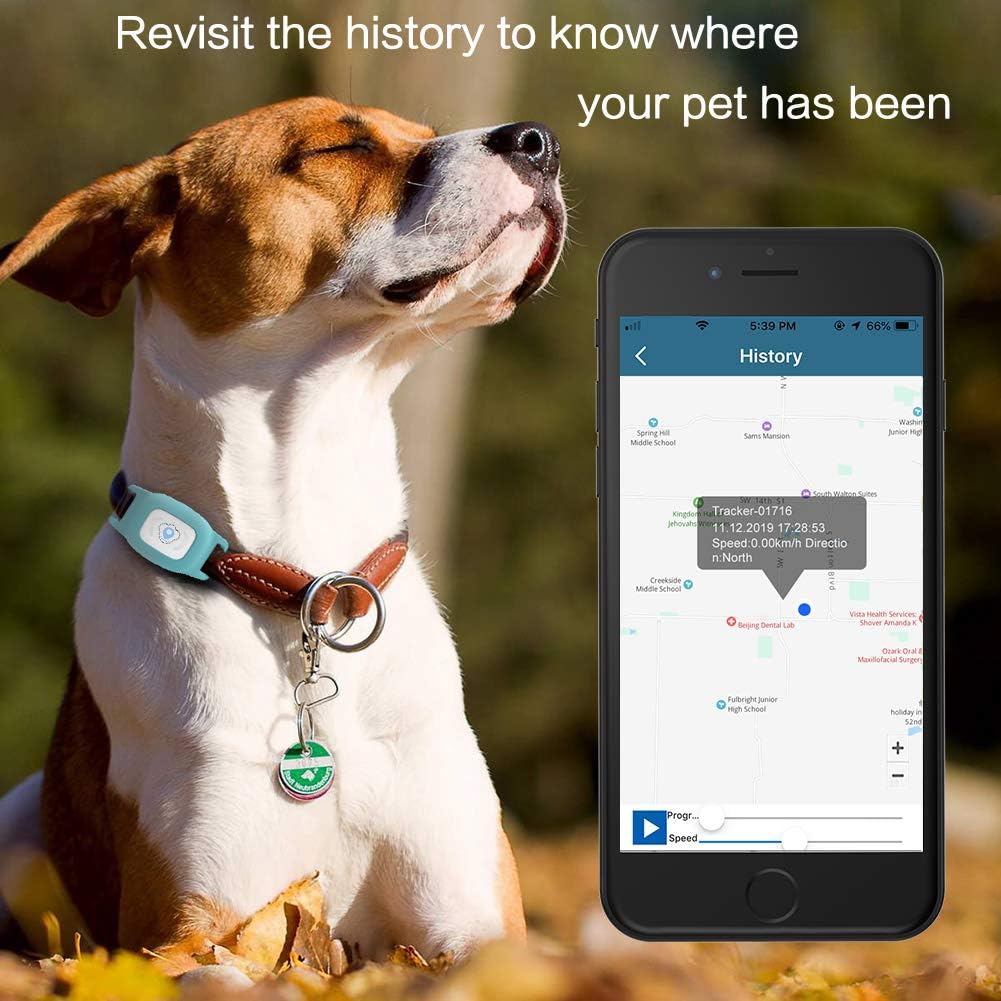

تصوير 3.2: Reviewing the pet's location history through the application.
3.3 Unlimited Range Tracking
The BARTUN Pet GPS Tracker operates without range limitations, allowing you to track your pet across over 150 countries, provided there is network coverage for the activated SIM card.
تصوير 3.3: Tracking your pet from any location using the mobile application.
4. سار سنڀال
4.1 چارج ڪرڻ
Regularly charge the device to ensure continuous tracking. Battery life varies based on usage and tracking frequency settings. Use only the provided charging cable.
4.2 صفائي
Clean the tracker periodically with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials that could damage the device.
4.3 پاڻي جي مزاحمت
The BARTUN Pet GPS Tracker is IP67 waterproof and shockproof. This means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. While it is robust for outdoor adventures, avoid prolonged submersion or high-pressure water exposure.
تصوير 4.1: The IP67 waterproof and shock-resistant design allows the tracker to withstand various outdoor conditions.
5. مسئلا حل ڪرڻ
- No Location Data: Ensure the SIM card is properly inserted and activated with an active subscription plan. Check for network coverage in your area.
- غلط جڳھ: GPS accuracy can be affected by dense urban areas, heavy tree cover, or indoor environments. The tracker will switch to LBS in such cases, which may have lower accuracy.
- App Issues (Android 10+): If you are using an Android device with version 10 or higher and experience app functionality issues, please contact hlzwin8@yahoo.com for assistance with the new app version.
- ڊوائيس تي طاقت نه آهي: پڪ ڪريو ته ڊوائيس مڪمل طور تي چارج ٿيل آهي. جيڪڏهن مسئلو برقرار رهي، ڪسٽمر سپورٽ سان رابطو ڪريو.
6. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل | FP03 |
| ٽريڪنگ ٽيڪنالاجي | GPS + LBS + AGPS |
| پوزيشن جي درستگي | Up to 5 meters (GPS) |
| پنروڪ درجه بندي | IP67 (Dust tight, immersion up to 1m for 30 min) |
| Collar Compatibility (Width) | Less than 0.8 inches (2 cm) |
| Collar Compatibility (Length) | 9 انچ (23 سينٽي ميٽر) کان 14 انچ (35.5 سينٽي ميٽر) |
| سپورٽ ٿيل علائقا | Over 150 countries (with active International SIM plan) |
7. وارنٽي ۽ سپورٽ
For warranty information and technical support, please refer to the documentation included with your product or visit the official BARTUN website. For specific app-related inquiries, especially concerning Android 10 and above, you may contact hlzwin8@yahoo.com.
