تعارف
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your NDS Sun Control 2 MPPT 12V-320W charge controller. Please read this manual carefully before using the device to ensure safe and efficient operation. This MPPT (Maximum Power Point Tracking) charge controller is designed to optimize the energy harvest from your solar panels and efficiently charge your 12V battery system.
پيداوار ختمview

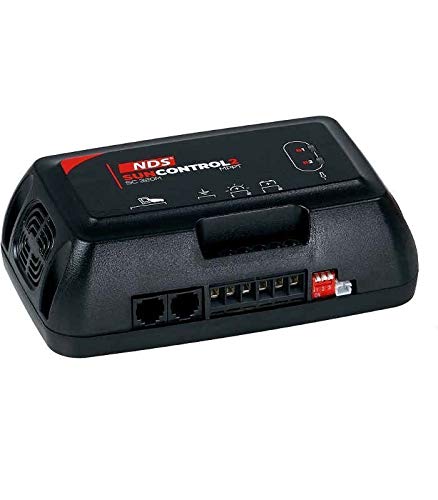

This image displays the NDS Sun Control 2 MPPT 12V-320W charge controller. It is a compact, black rectangular device with the 'NDS SUNCONTROL 2 MPPT' logo visible on the top surface. The front panel features various connection ports, including two RJ45 ports and several screw terminals for wiring. A small red and white switch is also visible on the right side. The device has a fan vent on the left side for cooling.
The NDS Sun Control 2 MPPT 12V-320W is an advanced solar charge controller that utilizes MPPT technology to maximize the power output from your solar array. It is suitable for 12V battery systems and can handle up to 320W of solar input. The controller features robust construction and is designed for reliable performance in various applications, including RVs, boats, and off-grid systems.
سيٽ اپ ۽ تنصيب
حفاظتي احتياط
- پڪ ڪريو ته انسٽاليشن کان پهريان سڀ طاقت جا ذريعا منقطع آهن.
- مناسب ذاتي حفاظتي سامان (پي پي اي) پائڻ، جنهن ۾ حفاظتي چشما ۽ دستانا شامل آهن.
- Use insulated tools to prevent short circuits.
- Verify correct polarity for all connections. Reverse polarity can damage the controller and battery.
- ڪنٽرولر کي سٺي هوادار علائقي ۾ نصب ڪريو، ٻرندڙ مواد ۽ سڌي سج جي روشني کان پري.
چڙهڻ
Mount the NDS Sun Control 2 MPPT controller vertically on a flat, non-flammable surface. Ensure there is adequate clearance around the unit for proper ventilation, especially around the fan vent. Use appropriate screws for secure mounting. Avoid mounting in areas exposed to moisture or extreme temperatures.
وائرنگ ڪنيڪشن
Follow these steps for wiring the charge controller. Refer to the labels on the device for specific terminal identification.
- بيٽري ڪنيڪشن: Connect the battery cables to the designated battery terminals on the controller. Ensure correct polarity (positive to positive, negative to negative). This connection must be made first.
- شمسي پينل ڪنيڪشن: Connect the solar panel cables to the designated PV input terminals. Ensure correct polarity. Do not exceed the maximum input voltage or current ratings of the controller.
- Load Connection (Optional): If your model supports a direct load output, connect your DC loads to the designated load terminals. Ensure the total load current does not exceed the controller's rating.
- Remote Display/Communication (Optional): Use the RJ45 ports for connecting compatible remote displays or communication modules, if applicable.
Once all connections are secure, double-check all wiring for correct polarity and tightness before applying power.
آپريٽنگ هدايتون
شروعاتي پاور اپ
After all connections are made, the controller will automatically power on. The LED indicators on the unit will illuminate to show the status of the battery, solar input, and charging process. Refer to the indicator legend on the device or in this manual for specific meanings.
نگراني
The NDS Sun Control 2 MPPT controller provides visual indicators for its operational status. These typically include:
- Solar Input Status: Indicates if solar power is being received.
- بيٽري چارج اسٽيٽس: Shows the current charging stage (e.g., bulk, absorption, float).
- بيٽري جي سطح: May indicate approximate battery charge level.
- غلطي جا اشارا: Alerts to potential issues such as over-voltagاي، اوور ڪرنٽ، يا شارٽ سرڪٽ.
For detailed monitoring and configuration, a compatible remote display or mobile application (if available for your model) can be connected via the communication ports.
چارج Stages
The MPPT controller employs a multi-stage charging algorithm to optimize battery health and lifespan:
- گهڻي چارج: Delivers maximum current to rapidly charge the battery to approximately 80% of its capacity.
- جذب چارج: بيٽري کي مسلسل وولٽ تي چارج ڪري ٿوtage to bring it to 100% charge, reducing current as the battery fills.
- فلوٽ چارج: Maintains the battery at a full charge by providing a small, constant voltage, compensating for self-discharge.
سار سنڀال
Regular maintenance ensures the longevity and optimal performance of your NDS Sun Control 2 MPPT charge controller:
- صفائي: Keep the controller clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
- وينٽيليشن: Ensure the ventilation openings and fan (if present) are not obstructed. Periodically check for dust buildup in the fan area and clean if necessary.
- ڪنيڪشن: Periodically check all wiring connections for tightness. Loose connections can cause overheating and poor performance.
- ماحول: پڪ ڪريو ته آپريٽنگ ماحول مخصوص درجه حرارت ۽ نمي جي حدن اندر رهي.
- بيٽري صحت: Monitor your battery's health regularly. A faulty battery can affect the controller's performance.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| No power/LEDs off | No battery connection or reverse polarity; Blown fuse; Faulty wiring. | Check battery connections and polarity; Check inline fuse on battery cable; Verify all wiring. |
| بيٽري چارج نه ٿي | No solar input; Solar panel disconnected or faulty; Overcast weather; Controller in fault mode. | Check solar panel connections; Verify solar panel output; Wait for better sunlight; Check controller error indicators. |
| Low charging current | Partial shading on solar panels; Dirty solar panels; Battery already near full charge. | Clear shading; Clean solar panels; This is normal behavior if battery is nearly full. |
| اوور- Voltage/Over-current error | شمسي پينل voltage/current too high; Short circuit. | Ensure solar panel specifications match controller limits; Check for short circuits in wiring. |
ٽيڪنيڪل وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل | ايس سي 320 ايم |
| برانڊ | اين ڊي ايس |
| سسٽم Voltage | 12 وولٽ (ڊي سي) |
| وڌ. شمسي ان پٽ پاور | 320W |
| آپريٽنگ جي درجه حرارت | Up to 60 ℃ |
| رنگ | ڪارو |
| ASIN | B08GG7GFDT |
وارنٽي ۽ سپورٽ
NDS products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official NDS website. In case of technical issues or questions not covered in this manual, please contact NDS customer support or your authorized dealer. When contacting support, please have your product model (SC320M) and purchase information ready.
For the latest information and support resources, please visit the official NDS webسائيٽ: www.ndsenergy.it
