MYPIN 1080P HDMI Extender Kit User Manual

1. تعارف

This manual provides detailed instructions for the installation, operation, and troubleshooting of your MYPIN 1080P HDMI Extender Kit. This device allows you to extend HDMI signals up to 131 feet (40 meters) over a single Cat6, Cat7, or Cat8 Ethernet cable, supporting full HD 1080p resolution at 60Hz. It is designed for reliable point-to-point connections, making it suitable for various applications requiring long-distance HDMI transmission.

2. پيڪيج مواد

مھرباني ڪري پيڪيج جي مواد کي احتياط سان چيڪ ڪريو. جيڪڏھن ڪا به شيءِ غائب يا خراب آھي، پنھنجي پرچون ڪندڙ سان رابطو ڪريو.

• 1x HDMI Extender Transmitter (TX Unit)
• 1x HDMI Extender Receiver (RX Unit)
• 2x USB پاور ڪيبل
• 1x استعمال ڪندڙ دستياب (هي دستاويز)

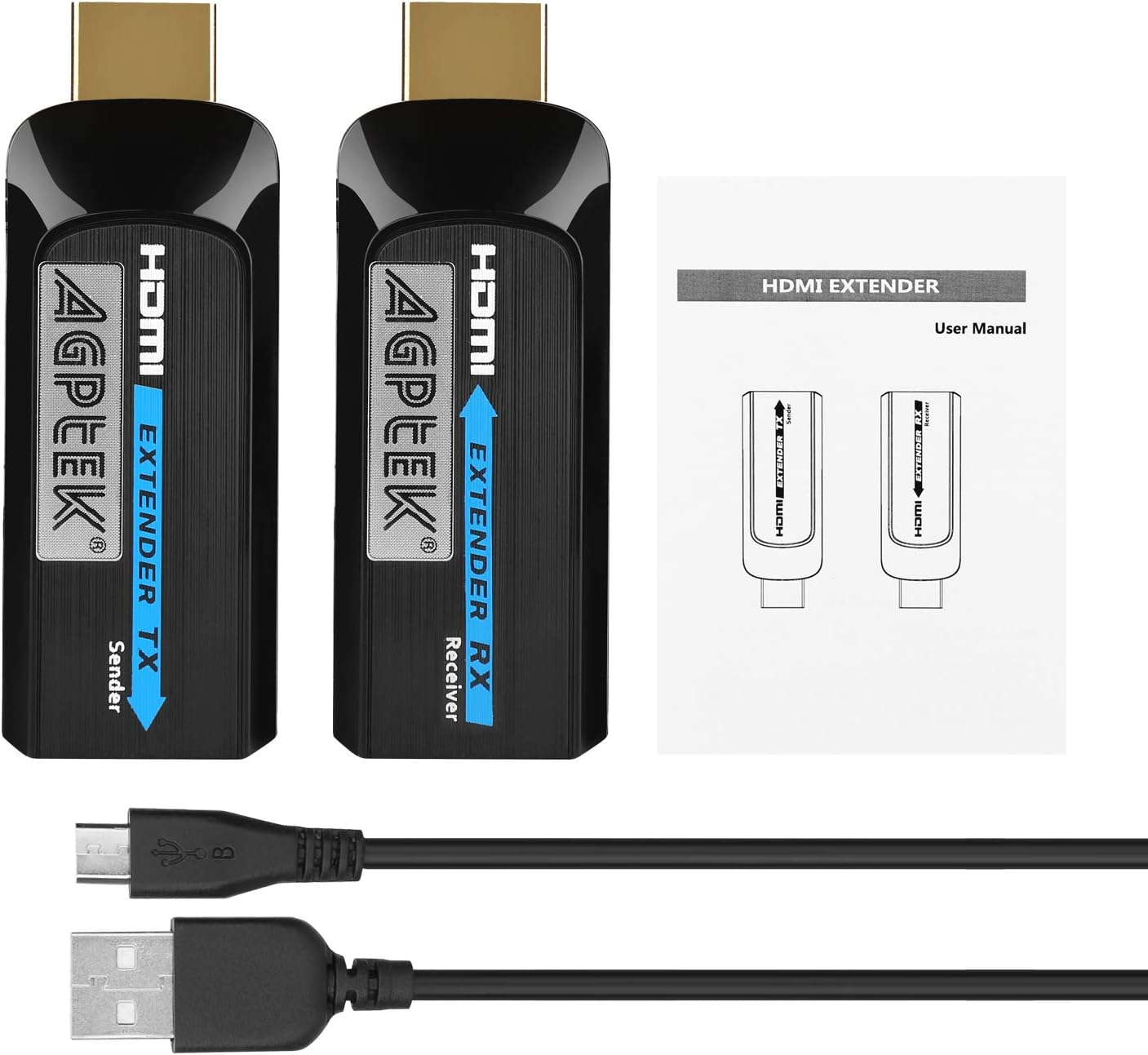

Image: Contents of the MYPIN HDMI Extender Kit, showing the transmitter and receiver units, two USB power cables, and the user manual.

3. مصنوعات جون خاصيتون

• وڌايل ٽرانسميشن: Extends HDMI signals up to 131 feet (40 meters) using a single Cat6, Cat7, or Cat8 Ethernet cable.
• Full HD 1080P Support: Supports resolutions including 1080P, 1080i, 720P, 576P, 576i, 480P, and 480i at 60Hz.
• 3D Video Support: 3D وڊيو فارميٽ سان مطابقت رکندڙ.
• خودڪار ترتيب: Automatically adjusts specifications for various cable lengths (1-40m) to optimize display quality.
• نقصان کان سواءِ آڊيو: Supports uncompressed audio formats such as LPCM.
• ميني ڊيزائن: Compact and portable design for easy integration.
• Power Over Cable (POC) Support: For Cat6 cables longer than 10m, the RX unit can be powered directly via the Ethernet cable, requiring only one USB power cable for the TX unit.
• وسيع مطابقت: Compatible with various HDMI source devices (e.g., computers, DVD players, gaming consoles) and HDMI display devices (e.g., HDTVs, projectors).

Image: The mini-sized design of the HDMI extender unit.

4. وضاحتون

5. سيٽ اپ جون هدايتون

Follow these steps to properly set up your HDMI Extender Kit:

1. Connect the TX (Transmitter) Unit: Plug the HDMI connector of the TX unit into the HDMI output port of your source device (e.g., laptop, PC, DVD player, gaming console).
2. Connect the RX (Receiver) Unit: Plug the HDMI connector of the RX unit into the HDMI input port of your display device (e.g., TV, projector).
3. ايٿرنيٽ ڪيبل ڳنڍيو: Connect a single Cat6, Cat7, or Cat8 Ethernet cable between the RJ45 port of the TX unit and the RJ45 port of the RX unit. Ensure the cable is wired according to the IEEE-568B standard for optimal performance. We recommend using high-performance pure Cat6/7/8 cables at least 1 meter in length.
4. Power the Units: Connect the provided USB power cables to the DC 5V ports on both the TX and RX units. Plug the other end of the USB cables into a 5V USB power source (e.g., USB port on your TV, computer, or a USB power adapter).

   Note on Power Over Cable (POC): If you are using a high-quality Cat6 cable longer than 10 meters, the RX unit may draw power directly from the Ethernet cable. In this scenario, only the TX unit requires a USB power connection.

5. پاور آن ڊوائيسز: Ensure all connected devices (source, display, and extender units) are powered on.
6. ان پٽ چونڊيو: پنھنجي ڊسپلي ڊوائيس تي صحيح HDMI ان پٽ چونڊيو.

Image: A visual guide demonstrating the simple plug-and-play connection of the HDMI extender between a source (laptop) and a display (TV) using a Cat6/7 cable.

Image: Cat6 network standard wiring diagram (IEEE-568B) showing the color sequence for proper cable termination.

تصوير: Example setup illustrating how MYPIN HDMI extenders facilitate longer connection distances for home entertainment or professional use.

6. آپريٽنگ هدايتون

Once all connections are made and devices are powered on, the HDMI extender will automatically detect the signal and adjust for optimal display. No additional software or drivers are required.

• خودڪار ترتيب: The extender is designed to automatically adjust video and audio specifications based on the length of the Ethernet cable (1-40 meters) to ensure the best possible display quality.
• Length Button (if applicable): Some models may feature a "Length button" for 12-level automatic and manual adjustment of gears. If your unit has this button, you can press it to fine-tune the signal for specific cable lengths if automatic adjustment does not yield desired results. Refer to the markings on your specific unit for its location and function.
• آڊيو ۽ وڊيو هم وقت سازي: The extender ensures synchronized transmission of both audio and video signals.

Image: The HDMI extender supporting 1080P@60Hz resolution, displayed on a television screen.

Image: Demonstration of audio and video synchronization transmission through the HDMI extender, showing a display with speakers.

7. سار سنڀال

To ensure the longevity and optimal performance of your HDMI Extender Kit, follow these simple maintenance guidelines:

• صفائي: يونٽن کي صاف ڪرڻ لاءِ نرم، سڪل ڪپڙو استعمال ڪريو. مائع صاف ڪندڙ يا ايروسول اسپري استعمال نه ڪريو.
• اسٽوريج: يونٽن کي سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري ٿڌي، سڪل جاءِ تي ذخيرو ڪريو.
• سنڀالڻ: Avoid dropping or subjecting the units to strong impacts. Do not attempt to disassemble the units, as this will void any warranty.
• ڪيبل جي سنڀال: Ensure Ethernet and HDMI cables are not bent sharply or pinched, which can damage the internal wires and affect signal quality.

8. مسئلا حل ڪرڻ

If you encounter issues with your HDMI Extender Kit, please refer to the following common problems and solutions:

9. وارنٽي ۽ سپورٽ

MYPIN products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official MYPIN website. If you require technical assistance or have questions not covered in this manual, please contact MYPIN customer support through their official channels.
