The Refoss Wireless Garage Door Keypad provides keyless entry for your garage, offering convenience and security. This keypad is designed to work specifically with garage door openers featuring a purple learn button, operating on a 315 MHz frequency. It supports control of up to three individual garage doors with unique PINs.
Image: Refoss Wireless Garage Door Keypad. This image displays the keypad with its protective cover lifted, revealing the numeric buttons and the specific compatibility label for purple learn buttons.
مطابقت
This Refoss Wireless Garage Door Keypad is only compatible with garage door openers that have a PURPLE learn button. It works with Security+ 315 MHz Chamberlain, LiftMaster, and Craftsman garage openers manufactured between 2006 and 2014. Please verify your garage door opener's learn button color before proceeding with installation or programming.

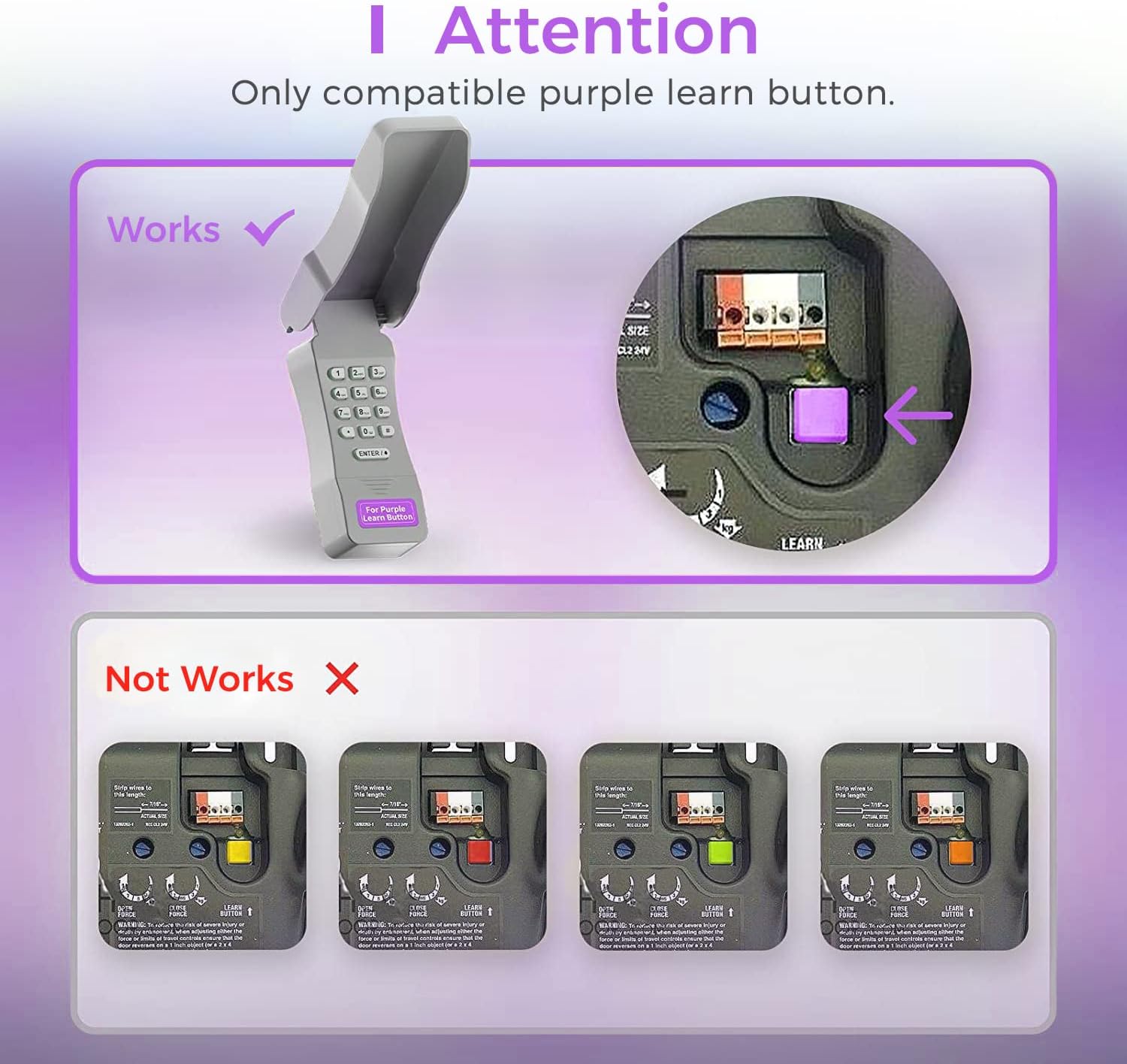

Image: Compatibility Diagram. This visual guide illustrates the correct purple learn button for compatibility and shows examples of incompatible learn button colors (red, orange, green, yellow).
پيڪيج مواد
انسٽاليشن شروع ڪرڻ کان اڳ، پڪ ڪريو ته سڀئي جزا پيڪيج ۾ موجود آهن:
- 1 x Refoss Wireless Keypad
- 1 x استعمال ڪندڙ دستياب (هي دستاويز)
- 4 x اسڪرو
- 4 x اسڪرو اينڪرز
- 4 x 3M ٻه طرفي ٽيپ
- 1 X 9V بيٽري
Image: Package Contents. This illustration details all items included in the product box, ensuring users can verify they have everything needed for installation.
سيٽ اپ ۽ پروگرامنگ
The Refoss Wireless Keypad is designed for easy, wireless programming. Follow these steps carefully to set up your keypad and program it to your garage door opener.
قدم 1: بيٽري انسٽال ڪريو
- Open the battery compartment on the back of the keypad.
- Insert the included 9V battery, ensuring correct polarity.
- بيٽري جي ڪمري کي محفوظ طور تي بند ڪريو.
قدم 2: ڪي پيڊ کي پروگرام ڪريو
This keypad can control up to three garage doors. Each door requires its own unique PIN.
- ڳوليو PURPLE Learn Button on your garage door opener motor unit. This button is typically found on the back or side panel of the motor.
- پريس ڪريو ۽ فوري طور تي ڇڏڻ PURPLE Learn Button. The learn indicator light on the opener will glow steadily for 30 seconds.
- Within 30 seconds, enter your desired 4-digit PIN on the Refoss keypad.
- کي دٻايو ۽ رکو ENTER / # ڪي پيڊ تي بٽڻ دٻايو جيستائين گيراج جي دروازي جي اوپنر لائيٽ چمڪي يا ٻه ڪلڪ ٻڌڻ ۾ نه اچن. هي ڪامياب پروگرامنگ جي نشاندهي ڪري ٿو.
- پنھنجو پن داخل ڪري ۽ دٻايو ڪي پيڊ کي جانچيو ENTER / #گيراج جو دروازو چالو ٿيڻ گهرجي.
To program additional garage doors (up to three), repeat Step 2 for each door, using a different 4-digit PIN for each.
آپريٽنگ هدايتون
Opening/Closing a Garage Door
- Enter your 4-digit PIN for the desired garage door.
- کي دٻايو ENTER / # بٽڻ
- The garage door will open or close.
Controlling Multiple Doors
The keypad supports individual PINs for up to three garage doors. Simply enter the specific PIN for the door you wish to operate.
Image: One Keypad for Three Doors. This image visually represents the keypad's capability to manage up to three distinct garage doors using individual access codes.
سار سنڀال
بيٽري مٽائڻ
The keypad uses one 9V alkaline battery. When the keypad backlight dims or the keypad becomes unresponsive, it is time to replace the battery.
- Open the battery compartment on the back of the keypad.
- Remove the old 9V battery.
- Insert a new 9V alkaline battery, ensuring correct polarity.
- بيٽري جي ڪمري کي محفوظ طور تي بند ڪريو.
صفائي
ڪي پيڊ جي مٿاڇري کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
موسم جي حفاظت
The keypad features a weatherproof protective cover designed to shield it from various weather conditions. Ensure the cover is properly closed when not in use to maximize its protective capabilities.
Image: Weatherproof and Fluorescent Features. This image demonstrates the keypad's durability against outdoor elements and its illuminated keys for visibility in low-light conditions.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڪي پيڊ جواب نٿو ڏئي. | مئل يا گهٽ بيٽري. | 9 وي جي بيٽري بدلايو. |
| Garage door does not open/close after entering PIN. | Keypad not programmed correctly or incompatible opener. |
|
| Keypad backlight is dim. | گھٽ بيٽري. | 9 وي جي بيٽري بدلايو. |
| Cannot program multiple doors. | Incorrect programming sequence for additional doors. | Ensure you are using a unique PIN for each door and repeating the programming steps for each. |
وضاحتون
- ماڊل: آر جي آر 545
- مطابقت: Chamberlain, LiftMaster, Craftsman garage door openers with PURPLE learn button (Security+ 315 MHz, manufactured 2006-2014)
- تعدد: 315 MHz
- Number of Doors Supported: 3 تائين
- طاقت جو ذريعو: 1 x 9V Alkaline Battery
- طول و عرض: تقريبن 2 x 6 x 1 انچ
- وزن: تقريبن 7.8 آونس
- خاص خاصيتون: Weatherproof, Fluorescent Keypad
وارنٽي ڄاڻ
This Refoss Wireless Garage Door Keypad comes with a 1 سال وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ مواد ۽ ڪاريگري ۾ خرابين کي ڍڪيندي آهي. اهو غلط استعمال، حادثي، غير مجاز ترميم، يا غلط انسٽاليشن جي ڪري ٿيندڙ نقصان کي ڍڪي نه ٿو.
مھرباني ڪري وارنٽي دعوائن لاءِ خريد ڪرڻ جو پنھنجو ثبوت رکو.
ڪسٽمر سپورٽ
For any questions, technical assistance, or support regarding your Refoss Wireless Garage Door Keypad, please contact our customer support team. We offer caring customer support 7 days a week.
Refer to the product packaging or the Refoss official webجديد ترين رابطي جي معلومات لاءِ سائيٽ.
