HAUSHOF ڪارڊ لیس گرم گلو گن HH20006AE استعمال ڪندڙ دستياب

1. تعارف

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your HAUSHOF Cordless Hot Glue Gun, model HH20006AE. Please read this manual thoroughly before first use and retain it for future reference.

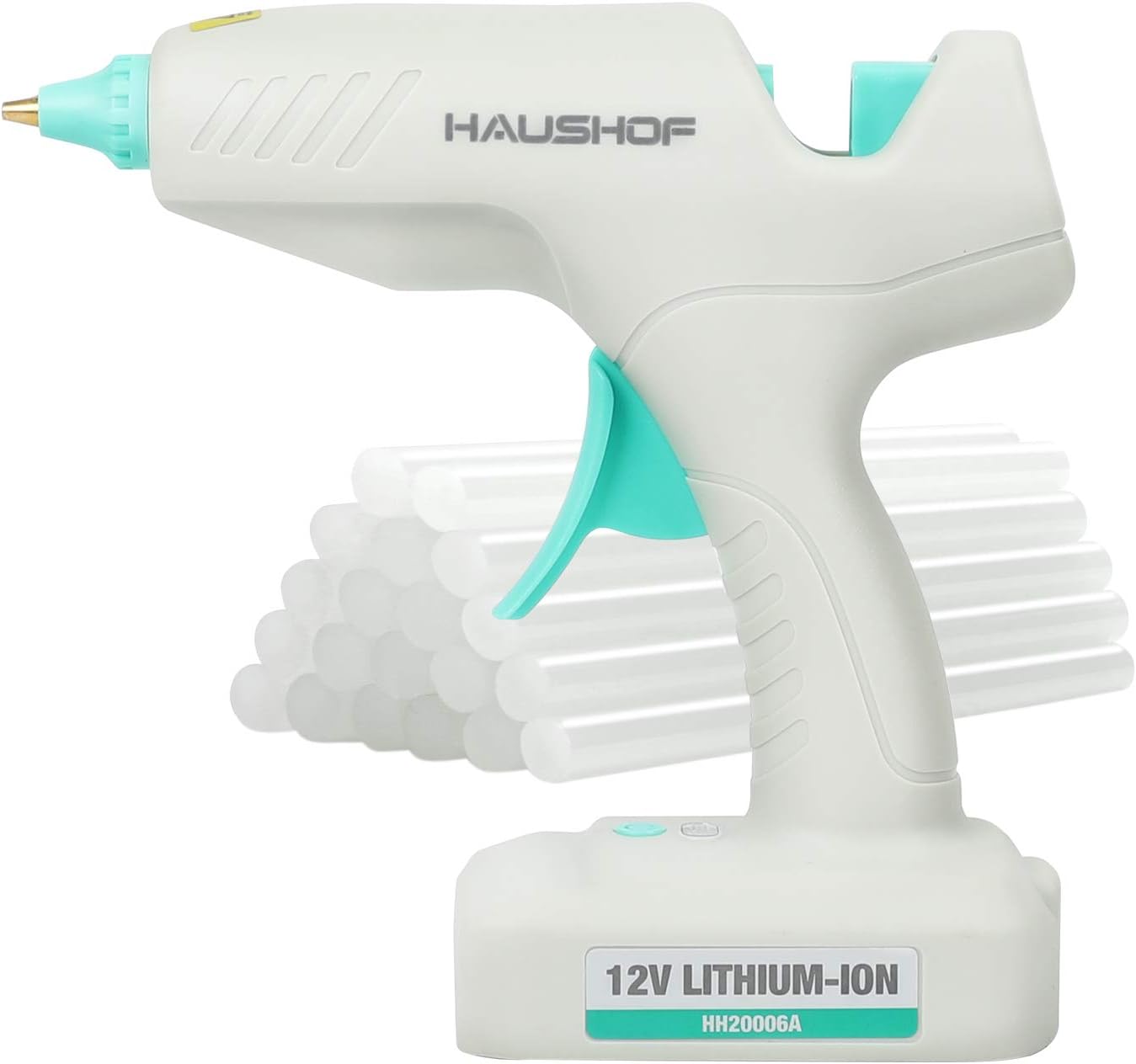

Image: The HAUSHOF Cordless Hot Glue Gun, model HH20006AE, shown with its detachable battery base and a bundle of full-size glue sticks. The gun is white with teal accents, featuring a comfortable grip and a precision nozzle.

2. اھم حفاظتي ھدايتون

پيداوار کي زخم يا نقصان کان بچڻ لاءِ هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو.

• Keep the glue gun away from children.
• Do not touch the nozzle or melted glue, as they reach high temperatures and can cause severe burns.
• Use only recommended glue sticks.
• Do not operate the glue gun in damp يا گندي حالتون.
• Ensure proper ventilation when using the glue gun.
• Never pull out a melting glue stick from the gun after use; allow it to cool and remain inside for the next use.
• Charge the battery in a power-off state for optimal battery life and safety.
• Do not use the glue gun while it is charging.
• بيٽري مڪمل طور تي چارج ٿيڻ کان پوء چارجر کي ختم ڪريو.

تصوير: هڪ ويجهو تصوير view highlighting the safety features of the HAUSHOF Cordless Hot Glue Gun, including the protective cover over the nozzle, the insulated nozzle itself, the anti-slip grip, the spill-proof design, and the safe trigger mechanism.

3. پراڊڪٽ ختمview

The HAUSHOF Cordless Hot Glue Gun HH20006AE is a versatile tool designed for various DIY projects, arts, crafts, quick repairs, and home use. It features a cordless design for portability and a fast preheating system.

اهم خاصيتون

• Cordless design with a built-in standing base.
• Fast preheating: 2-3 minutes warm-up time.
• 60W power for efficient melting.
• Uses full-size glue sticks (0.44" x 5-1/8").
• Protective cover and insulated nozzle for safety.
• Safe trigger for controlled glue flow.
• Drip-free nozzle to prevent spills.
• Powered by a 12V Lithium-Ion battery.

Image: The HAUSHOF Cordless Hot Glue Gun with text indicating "2-3 Minutes Fast Preheat," emphasizing its quick readiness for use.

Image: A diagram illustrating the dimensions of the full-size glue sticks (0.44" diameter, 5-1/8" length) and highlighting their super adhesive, eco-friendly, odor-free, and impurity-free qualities.

4. سيٽ اپ

4.1. بيٽري کي چارج ڪرڻ

1. Ensure the glue gun is powered off.
2. چارجر کي بيٽري پيڪ سان ڳنڍيو.
3. چارجر کي پاور آئوٽليٽ ۾ لڳايو.
4. Charge the 2.2Ah lithium-ion battery for approximately 1-1.5 hours. The indicator light will show charging status (refer to charger instructions for specific light indications).
5. چارجنگ مڪمل ٿيڻ کان پوءِ چارجر کي ان پلگ ڪريو.

Important: The glue gun will not heat when charging. Always charge the battery in the power-off state and use it without charging for optimal performance and battery longevity.

Image: A four-panel instructional image. Panel 1 shows the glue gun's battery being charged by connecting it to the AC adapter.

5. آپريٽنگ هدايتون

5.1. Inserting a Glue Stick

1. Ensure the glue gun is off and cool.
2. Insert a full-size glue stick (0.44" diameter) into the opening at the back of the glue gun. Push it firmly until it stops.

Image: A four-panel instructional image. Panel 2 shows a hand inserting a glue stick into the back of the HAUSHOF Cordless Hot Glue Gun.

5.2. Powering On and Preheating

1. Press and hold the power button for 3 seconds to turn on the glue gun. The indicator light will illuminate.
2. Allow the glue gun to preheat for 2-3 minutes. The indicator light may change color or stop blinking when ready (refer to specific model indications).

Image: A four-panel instructional image. Panel 3 shows a finger pressing and holding the power button on the base of the HAUSHOF Cordless Hot Glue Gun to turn it on.

5.3. گلو لڳائڻ

1. Once preheated, gently squeeze the trigger to dispense melted glue.
2. گهربل مٿاڇري تي گلو لڳايو.
3. گلوءَ جي وهڪري کي روڪڻ لاءِ ٽريڪ جاري ڪريو.
4. For continuous application, gently push the glue stick further into the gun as needed.

Image: A four-panel instructional image. Panel 4 shows the glue gun preheating for 2-3 minutes and then being used to apply glue, with a red 'X' indicating not to pull out the glue stick.

5.4. بجلي بند ڪرڻ

Press and hold the power button for 3 seconds to turn off the glue gun. Allow it to cool completely before storing.

Attention: Do not pull out the melting glue stick from the glue gun after finishing work. Keep it inside for next use to prevent damage and ensure proper function.

6. سار سنڀال

• صفائي: Ensure the glue gun is completely cool before cleaning. Wipe the exterior with a clean, damp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
• ذخيرو: Store the glue gun in a dry, cool place, out of reach of children. Ensure no glue sticks are partially pulled out.
• بيٽري جي سنڀال: To prolong battery life, avoid fully discharging the battery frequently. Recharge when the power is low. If storing for extended periods, charge the battery to approximately 50% every 3-6 months.

7. مسئلا حل ڪرڻ

8. وضاحتون

Image: A detailed infographic displaying the technical specifications of the HAUSHOF Cordless Hot Glue Gun, including power supply, battery type, capacity, charging time, battery life, wattagاي، ۽ طول و عرض.

Image: An image showcasing various applications and compatible materials for the glue gun, such as DIY projects, paper, glass, fabric, packing, and toys.

9. وارنٽي ۽ سپورٽ

For warranty information, technical support, or service inquiries, please contact HAUSHOF customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Manufacturer: HAUSHOF

Model Number: HH20006AE
