Gdrasuya10 PC Frame Test Bench Instruction Manual

تعارف

This manual provides detailed instructions for the assembly, installation, and maintenance of your Gdrasuya10 PC Frame Test Bench. Designed for enthusiasts and professionals, this open-air chassis supports ITX, ATX, and MATX motherboards, offering excellent heat dissipation and ease of component access. Please read these instructions carefully before beginning assembly to ensure proper setup and optimal performance.

پيداوار جون خاصيتون

• Motherboard مطابقت: Supports ITX, ATX, and MATX motherboards, providing ample space for high-performance components.
• کليل هوا ڊيزائن: Facilitates superior heat dissipation and easy access for component installation, testing, and maintenance.
• پائيدار تعمير: Crafted from high-quality 20x20 aluminum alloy for stability and durability.
• DIY دوستانه: Simple structure allows for easy assembly, enhancing the DIY experience.
• اسٽيڪبل ڊيزائن: Nude building blocks frame is lightweight and designed for convenient disassembly and stacking.
• پاور سپلائي سپورٽ: Compatible with standard ATX power supplies.

پيڪيج مواد

Before starting assembly, please verify that all components listed below are present in your package. Refer to the image for visual confirmation of parts.

Image: All components included in the Gdrasuya10 PC Frame Test Bench package. This includes aluminum profiles, various screws, nuts, brackets, a power button, and a transparent acrylic panel.

• ايلومينيم پروfiles (various lengths)
• Motherboard Set Screws
• P3 Set Screws
• HDD/PSU Set Screws
• SSD Set Screws
• B4 Set Screws
• B1 Set Screws
• B2/B3 Set Screws
• ايلومينيم پروfile سلاٽ نٽ
• Graphics Card Set Screws
• Fan Set Screws
• Radiator Set Screws
• Self-adhesive Non-slip Pads
• Power Button with Cable
• Acrylic Panels (Motherboard tray, GPU support, etc.)
• آلن رنچ

اسيمبليءَ جون هدايتون

Follow these steps carefully to assemble your PC Frame Test Bench. It is recommended to wear gloves during assembly to prevent fingerprints and scratches.

Step 1: Prepare the Base Frame

1. Identify the aluminum profiles and corner fittings. Use the provided Allen wrench to tighten the screws on the corner fittings.

   Video: Demonstrates the initial unboxing and assembly of the base frame components, including securing corner fittings to aluminum profiles.

2. Assemble the base frame using the aluminum profiles and corner fittings. Ensure all connections are secure.



   Image: The base frame of the test bench, showing the assembled aluminum profiles forming the foundation.

Step 2: Install Motherboard Tray and Side Panels

3. Attach the motherboard tray to the base frame. Ensure the grooves on the bottom plate face downwards. Then, attach the side panel, making sure its grooves also face downwards.

   وڊيو: هڪ مختصر پيشڪشview demonstrating the correct orientation and attachment of the motherboard tray and side panel to the base frame.

4. Secure the motherboard tray and side panel using the appropriate screws (e.g., Motherboard Set Screws, P3 Set Screws) and nuts. Refer to the included diagram for specific screw placement.



   Image: Close-up of the motherboard tray and side panel being secured with screws, highlighting the mounting points.

Step 3: Mount the Motherboard and GPU

5. Carefully place your motherboard onto the standoffs on the motherboard tray. Secure it with the Motherboard Set Screws. Ensure the motherboard is aligned correctly with the I/O shield opening.

   Video: Shows the process of installing an ITX motherboard onto the test bench frame and securing it with screws.

6. Install the graphics card onto the motherboard's PCIe slot. Use the Graphics Card Set Screws to secure the GPU bracket to the frame.



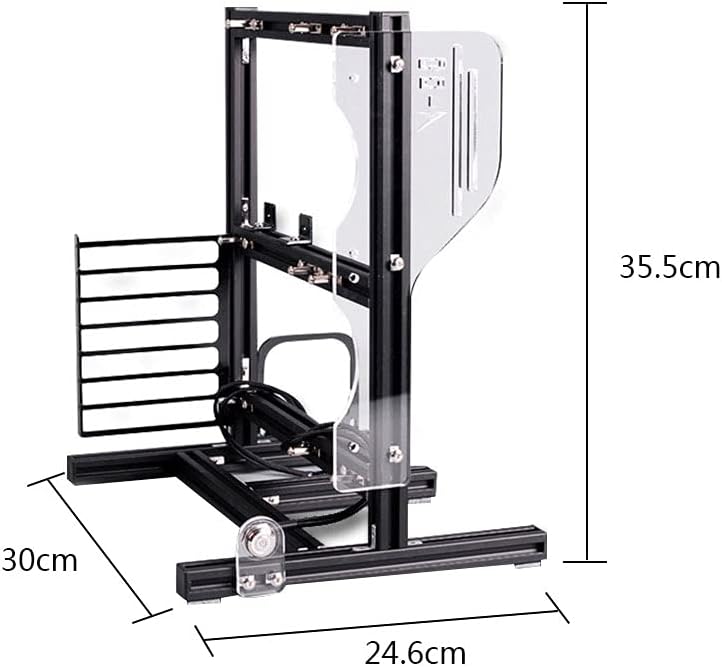

   Image: A graphics card is shown installed in the test bench, demonstrating how it fits into the frame.

Step 4: Power Supply and Storage Installation

7. Mount the power supply unit (PSU) using the HDD/PSU Set Screws and the designated bracket. Ensure the PSU is securely attached to the frame.



   Image: A power supply unit is mounted on the test bench, showing its position relative to the motherboard and GPU.

8. Install any SSDs or HDDs using the SSD Set Screws or HDD/PSU Set Screws and appropriate brackets. Connect all necessary power and data cables.

Step 5: Final Touches and Power-On

9. Attach the power button to the designated slot on the frame and connect its cables to the motherboard's front panel headers.



   Image: The power button is shown installed on the test bench frame, ready for connection to the motherboard.

10. Connect all remaining power cables (24-pin ATX, CPU, PCIe for GPU) and data cables (SATA, USB, etc.) to their respective components.

11. Once all components are securely installed and connected, plug in the power cable to the PSU and press the power button to initiate the system.

آپريٽنگ هدايتون

The Gdrasuya10 PC Frame Test Bench is designed for ease of use and accessibility. To operate your system:

• پاور آن / آف: Use the integrated power button to turn the system on or off.
• جزو رسائي: The open-air design allows for quick and easy swapping of components like GPUs, RAM, and storage drives without needing to open a traditional case.
• جاچ: Ideal for testing new hardware, overclocking, or troubleshooting, thanks to its accessible layout.

سار سنڀال

Regular maintenance ensures the longevity and optimal performance of your test bench:

• مٽي هٽائڻ: Due to its open design, dust accumulation can occur. Regularly use compressed air to clean components and the frame.
• ايڪريلڪ پينل جي سنڀال: Clean acrylic panels with a soft, damp cloth and mild soap. Avoid abrasive cleaners that can scratch the surface.
• اسڪرو جي سختي: وقتي طور تي سڀني پيچرن ۽ ڪنيڪشنن کي چيڪ ڪريو ته جيئن اهي تنگ ۽ محفوظ رهن.

مشڪلاتون

جيڪڏهن توهان کي مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلا حل ڪرڻ واري قدمن تي غور ڪريو:

• سسٽم آن نه ٿي رهيو آهي:
  • Check all power connections, especially the 24-pin ATX and CPU power cables to the motherboard, and the power cable to the PSU.
  • Ensure the power button is correctly connected to the motherboard's front panel headers.
  • Verify the PSU switch is in the "on" position.
• ڪابه ڊسپلي آئوٽ پٽ ناهي:
  • Ensure the graphics card is fully seated in its PCIe slot and any necessary PCIe power cables are connected.
  • Verify the monitor cable is securely connected to the graphics card (not the motherboard's integrated graphics ports, unless using integrated graphics).
• Component Instability:
  • Check that all components (motherboard, GPU, RAM, storage) are securely mounted and properly connected.
  • پڪ ڪريو ته سڀئي پيچ مناسب طور تي مضبوط ڪيا ويا آهن.

وضاحتون

وارنٽي ۽ سپورٽ

Gdrasuya10 is committed to providing quality products and customer satisfaction. For any issues or inquiries:

• 24 ڪلاڪ سروس: We provide 24-hour online service and email support.
• معيار ڪنٽرول: Every product undergoes strict quality control before sale.
• اسان سان رابطو ڪريو: If the product is defective or cannot be installed, please contact us first. We will endeavor to resolve your problem promptly.
