Ribao HCS-25 Coin Counter and Sorter User Manual

1. تعارف

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Ribao HCS-25 Coin Counter and Sorter. Please read this manual thoroughly before using the device to ensure proper function and longevity.

Figure 1.1: Ribao HCS-25 Coin Counter and Sorter

The Ribao HCS-25 is a high-speed, heavy-duty, compact, and portable coin counter and sorter designed for efficient handling of various coin denominations. It features a 2.8-inch TFT screen for clear display of counting data and error messages.

2. حفاظت جي ڄاڻ

• پڪ ڪريو ته ڊوائيس مخصوص وول اندر پاور سورس سان ڳنڍيل آهيtagاي رينج (100V-240V).
• ڊوائيس کي گلي هٿن سان يا ڊي ۾ نه هلايوamp ماحول.
• Keep fingers and loose clothing away from moving parts during operation.
• صفائي ڪرڻ يا ڪا به سار سنڀال ڪرڻ کان اڳ ڊوائيس کي ان پلگ ڪريو.
• پاڻ ڊوائيس کي ڌار ڪرڻ يا مرمت ڪرڻ جي ڪوشش نه ڪريو. مدد لاءِ قابل سروس اهلڪارن سان رابطو ڪريو.

3. پيڪيج مواد

پڪ ڪريو ته هيٺ ڏنل سڀئي شيون توهان جي پيڪيج ۾ شامل آهن:

• Ribao HCS-25 Coin Counter and Sorter Unit
• پاور ڪيبل
• صفائي برش
• استعمال ڪندڙ دستي
• Cotton Bag
• متبادل بيلٽ
• Coin Exit Funnel
• ڪپ کي رد ڪريو

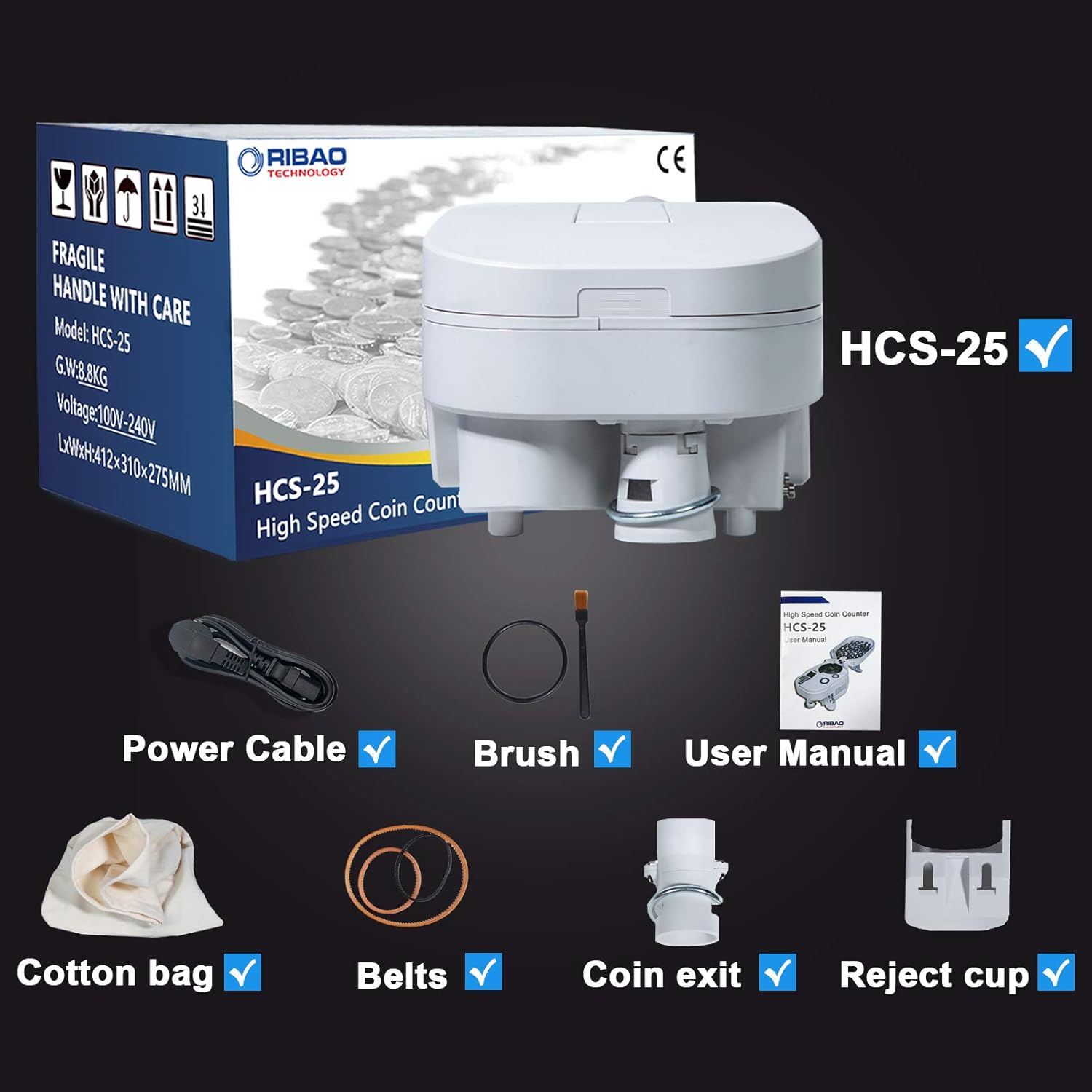

Figure 3.1: Included accessories and main unit

4. پراڊڪٽ ختمview

4.1 اهم خاصيتون

• ڳڻپ جي رفتار: Up to 3400 coins per minute.
• هاڪپر جي صلاحيت: 4000 coins (dimes).
• ڏيکاريو: 2.8-inch TFT color screen showing quantity, amount, and error messages.
• ڳڻپ جا طريقا: Piece count, Value count, Adding mode, Batching mode, Memory save.
• Coin Compatibility: Suitable for US, Canadian, Mexican, and most international round coins or tokens with diameters between 17-30 mm and thickness between 1.8-2.8 mm.
• ترتيب ڏيڻ جو ڪم: Smaller coins are off-sorted to a dedicated reject cup.
• جلدtage: ualٽي جلدtage support (100V-240V) for international use.
• ڊيزائن: Compact and portable with a fully openable side cover for easy maintenance.

4.2 اجزاء

Familiarize yourself with the main components of the HCS-25:

• ڇڪڻ وارو: Where coins are loaded for counting.
• ڪنٽرول پينل: Features a 2.8-inch TFT screen and durable silicone buttons for operation.
• Coin Dial: Adjustable dial for setting coin parameters (e.g., US/CAD).
• Reject Cup: Collects coins that do not match the selected denomination or are smaller.
• پاسي جو ڍڪ: Can be fully opened for access to internal mechanisms for cleaning.
• Power Switch/Port: Located at the rear for power connection and control.

Figure 4.1: HCS-25 with coins in the hopper

شڪل 4.2: تفصيلي view of the 2.8-inch TFT color screen and control buttons

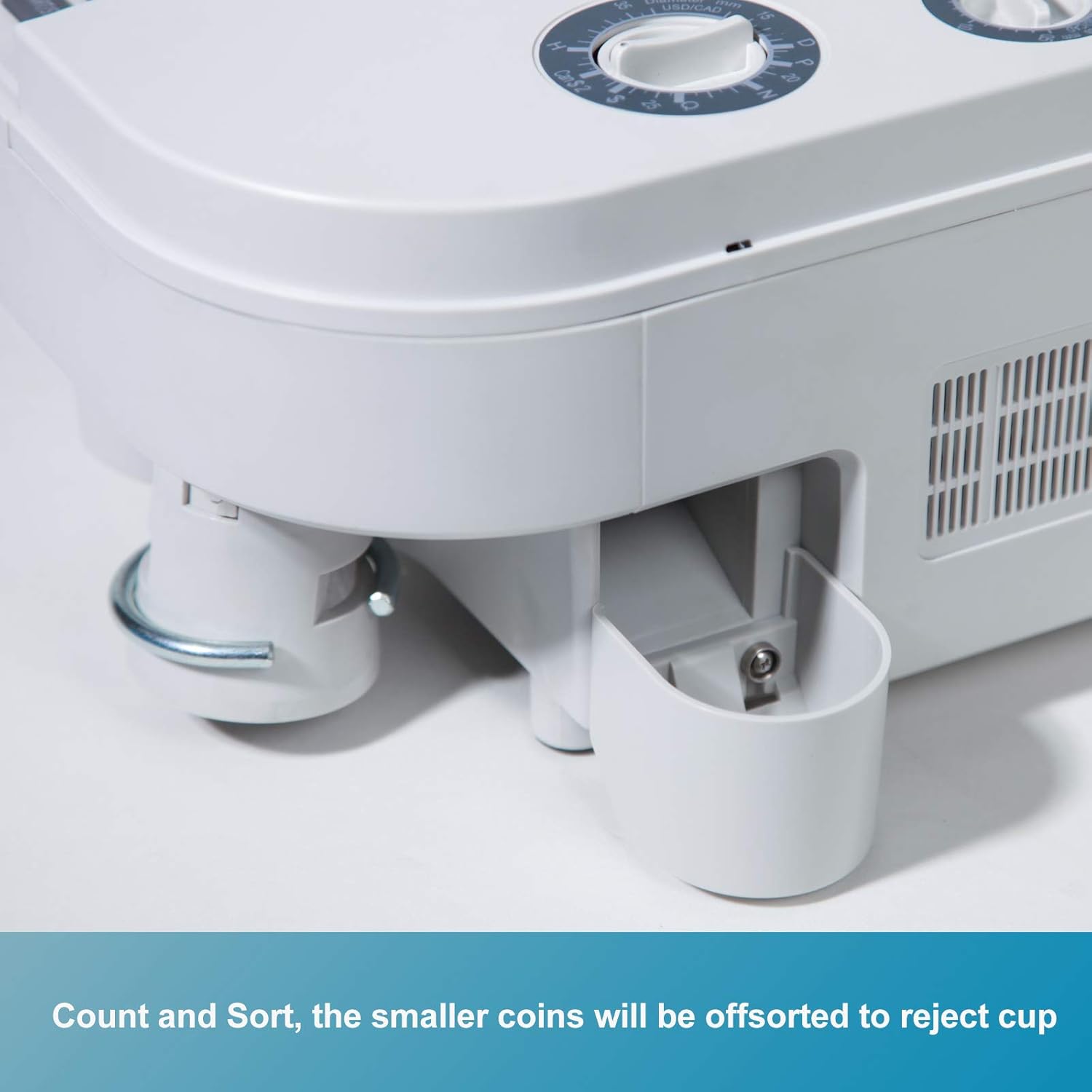

Figure 4.3: Location of the reject cup for off-sorted coins

5. سيٽ اپ

1. ڊوائيس کوليو: Carefully remove the HCS-25 and all accessories from the packaging.
2. لڳائڻ: Place the coin counter on a stable, flat surface. Ensure adequate space around the device for operation and maintenance.
3. پاور Connectنيو: Connect the provided power cable to the power port on the rear of the device and then to a suitable electrical outlet. The HCS-25 supports 100V-240V.
4. Install Reject Cup: Attach the reject cup to its designated slot on the side of the machine.
5. Adjust Coin Dial: Before counting, adjust the coin dial according to the specific coin type you intend to count (e.g., US or Canadian coins). The dial has markings to assist with this adjustment.

Figure 5.1: Power connection and wide voltage مطابقت

6. آپريٽنگ هدايتون

6.1 پاور آن/آف

Flip the power switch located at the rear of the device to the 'ON' position to power on. The TFT screen will illuminate. To power off, flip the switch to 'OFF'.

6.2 Loading Coins

Open the top cover and place the coins into the hopper. Ensure coins are not excessively stacked to prevent jams. Close the top cover before starting the count.

6.3 Counting Modes

The HCS-25 offers several counting modes:

• ٽڪرن جو تعداد: Counts the total number of coins.
• Value Count: If a denomination is selected, the machine calculates and displays the total monetary amount.
• شامل ڪرڻ جو طريقو: Accumulates counts from multiple batches.
• Batching Mode: Counts coins into pre-set quantities.
• Memory Save: Saves accumulated counts.

6.4 Selecting Denomination (Value Count)

To use Value Count mode, select the desired coin denomination using the control panel buttons. The screen will display the selected denomination.

6.5 Setting Batch Quantity

In Batching Mode, use the numeric keypad to enter the desired batch quantity. The machine will pause counting once the set quantity is reached.

6.6 Starting and Stopping Count

کي دٻايو START/STOP button to begin counting. Press it again to pause or stop the counting process.

6.7 Clearing Counts

کي دٻايو صاف ڪريو button to reset the current count on the display.

6.8 Sorting Function

The HCS-25 automatically sorts smaller coins into the reject cup. When counting mixed coins, it is recommended to count from larger denominations to smaller ones sequentially to optimize sorting accuracy.

Figure 6.1: Internal rotating disk mechanism for high-speed counting

7. سار سنڀال

7.1 باقاعده صفائي

To ensure optimal performance and prevent coin jams, regular cleaning is essential.

1. پاور آف ۽ انپلگ: Always turn off the device and unplug it from the power source before cleaning.
2. کليل پاسي وارو ڍڪ: The side cover of the HCS-25 can be fully opened to provide easy access to the internal mechanisms.
3. مٽي ۽ مٽي هٽايو: Use the provided cleaning brush or a soft, dry cloth to remove any dust, lint, or coin residue from the hopper, counting mechanism, and coin pathways.
4. صاف سينسر: Gently wipe any visible sensors to ensure accurate counting.
5. ڍڪ بند ڪريو: Once cleaning is complete, securely close the side cover.

Figure 7.1: Fully openable side cover for easy cleaning and maintenance

شڪل 7.2: View of the internal mechanism with the side cover open

8. مسئلا حل ڪرڻ

If you encounter issues with your HCS-25, refer to the following common problems and solutions:

جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

9. وضاحتون

Figure 9.1: Supported coin dimensions and currencies

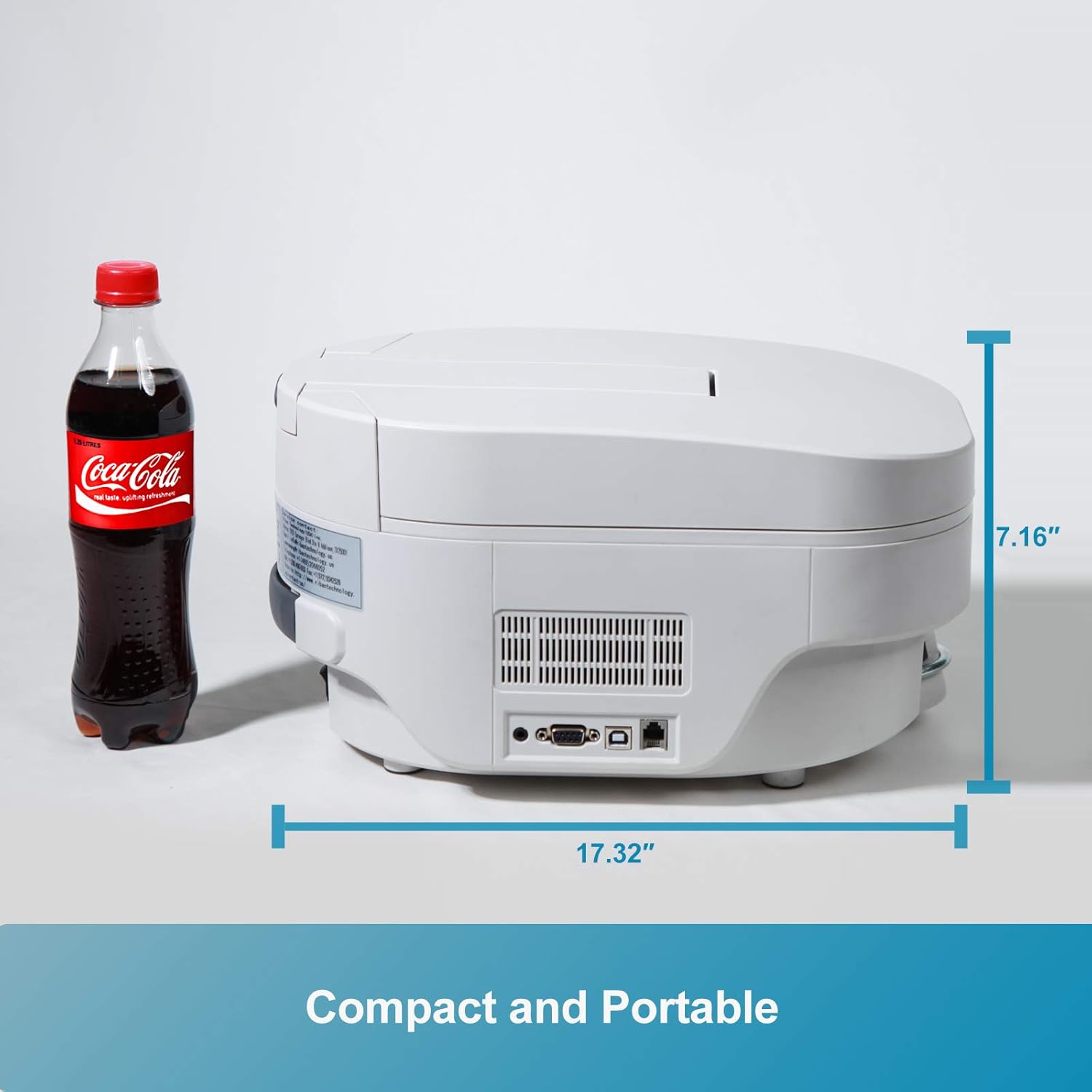

Figure 9.2: Compact dimensions of the HCS-25

10. وارنٽي ۽ سپورٽ

The Ribao HCS-25 Coin Counter and Sorter comes with a ٻن سالن جي وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ پيداوار جي خرابين ۽ خرابين کي ڍڪيندي آهي.

For technical support, warranty claims, or any operational questions, please contact RIBAO TECHNOLOGY customer service via email. We aim to respond to all inquiries within 12 hours.
