BLUETTI AC50S Portable Power Station User Manual

1. حفاظتي هدايتون

Please read all safety instructions carefully before operating the BLUETTI AC50S Portable Power Station.

يونٽ کي ڌار نه ڪريو، مرمت نه ڪريو، يا تبديل نه ڪريو. غلط ٻيهر گڏ ڪرڻ سان باهه يا بجلي جو جھٽڪو لڳي سگھي ٿو.
يونٽ کي باهه جي ويجهو نه رکو يا ان کي گرمي جي سامهون نه رکو. سڌي سج جي روشني کان پري رکو.
يونٽ کي غسل خاني ۾ يا پاڻي يا نمي جي سامهون واري علائقي ۾ چارج، استعمال يا ذخيرو نه ڪريو.
صرف مهيا ڪيل چارجر ۽ ڪيبل استعمال ڪريو. غير مجاز لوازمات استعمال ڪرڻ سان باهه، ڌماڪو، يا زخمي ٿي سگهي ٿو.
جيڪڏهن يونٽ خراب ٿي ويو آهي يا ڪري پيو آهي ته ان کي استعمال نه ڪريو.
ٻارن ۽ پالتو جانورن جي پهچ کان پري رکو.
استعمال ۽ چارجنگ دوران مناسب وينٽيليشن کي يقيني بڻايو وڃي ته جيئن وڌيڪ گرم ٿيڻ کان بچي سگهجي.

2. پراڊڪٽ ختمview

The BLUETTI AC50S is a versatile 500Wh/300W portable power station designed to provide reliable power for various devices, whether indoors or outdoors. It features multiple output ports and supports various charging methods, including solar.

اهم خاصيتون:

500Wh گنجائش: مهيا ڪري ٿو ampوڌايل استعمال لاء طاقت.
300W Pure Sine Wave AC Output: Two 120V AC outlets for sensitive electronics.
گھڻا ڊي سي آئوٽ پُٽ: Includes 12V/3A DC ports and a 12V/10A car port.
USB ڪنيڪشن: Features 4 USB-A ports (5V/3A) and 1 PD45W USB-C port.
10W وائرليس چارجنگ: Convenient charging for compatible smartphones.
مربوط ايم پي پي ٽي ڪنٽرولر: شمسي چارجنگ جي ڪارڪردگي کي بهتر بڻائي ٿو.
بلٽ ان LED لائيٽ: Offers strong, weak, and SOS modes for illumination.
پورٽبل ڊيزائن: Compact size (11.6"L x 7.5"W x 7.7"H) and lightweight (13.6 lbs) with a foldable handle.

پيداوار جو خاڪو:

BLUETTI AC50S showing all input and output ports — سامهون view of the BLUETTI AC50S Portable Power Station, highlighting its various output ports including AC, DC, USB-A, and USB-C, along with the display screen.

The image above illustrates the various input and output ports available on the AC50S, including the power button, DC and AC output buttons, LCD display, USB ports, AC outlets, DC ports, and the 12V car port. The top surface also features a wireless charging pad.

BLUETTI AC50S Portable Power Station with included solar panel — The BLUETTI AC50S Portable Power Station shown alongside its accompanying 120W foldable solar panel.

This image displays the complete bundle, including the AC50S unit and the 120W foldable solar panel, demonstrating the comprehensive portable power solution.

3. سيٽ اپ

شروعاتي چارج:

Before first use, it is recommended to fully charge the BLUETTI AC50S. The unit can be charged via AC wall outlet, car charger, or solar panel.

Diagram showing four charging modes for BLUETTI AC50S — Illustration of the four primary charging methods for the BLUETTI AC50S: Solar Panel, Wall Outlet, Car Outlet, and Generator, along with approximate charging times.

The diagram above illustrates the various charging methods and their approximate charging times:

Solar Panel (BLUETTI SP120): 5-6 ڪلاڪ
ڀت جي ٻاهران: 6 ڪلاڪ
Car Outlet (12V/24V): 5-5.5 ڪلاڪ
جنريٽر: 6 ڪلاڪ

شمسي پينل سان ڳنڍڻ:

120W سولر پينل کي کوليو ۽ ان کي سڌي سج جي روشني ۾ رکو.
Connect the solar panel's output cable to the DC input port on the BLUETTI AC50S.
Ensure the connection is secure. The LCD display will show the input wattagاي سولر پينل مان.

BLUETTI 120W solar panel set up outdoors — The BLUETTI 120W solar panel deployed outdoors, ready for charging the power station.

The 120W solar panel is designed for high efficiency (up to 23% cell efficiency) and features a durable ETFE lamination. It is foldable and includes kickstands for easy angle adjustment to maximize solar absorption.

4. آپريٽنگ هدايتون

پاور آن / آف:

کي دٻايو پاور يونٽ کي آن يا آف ڪرڻ لاءِ بٽڻ.
کي دٻايو DC button to enable/disable DC outputs.
کي دٻايو AC button to enable/disable AC outputs.

Using Output Ports:

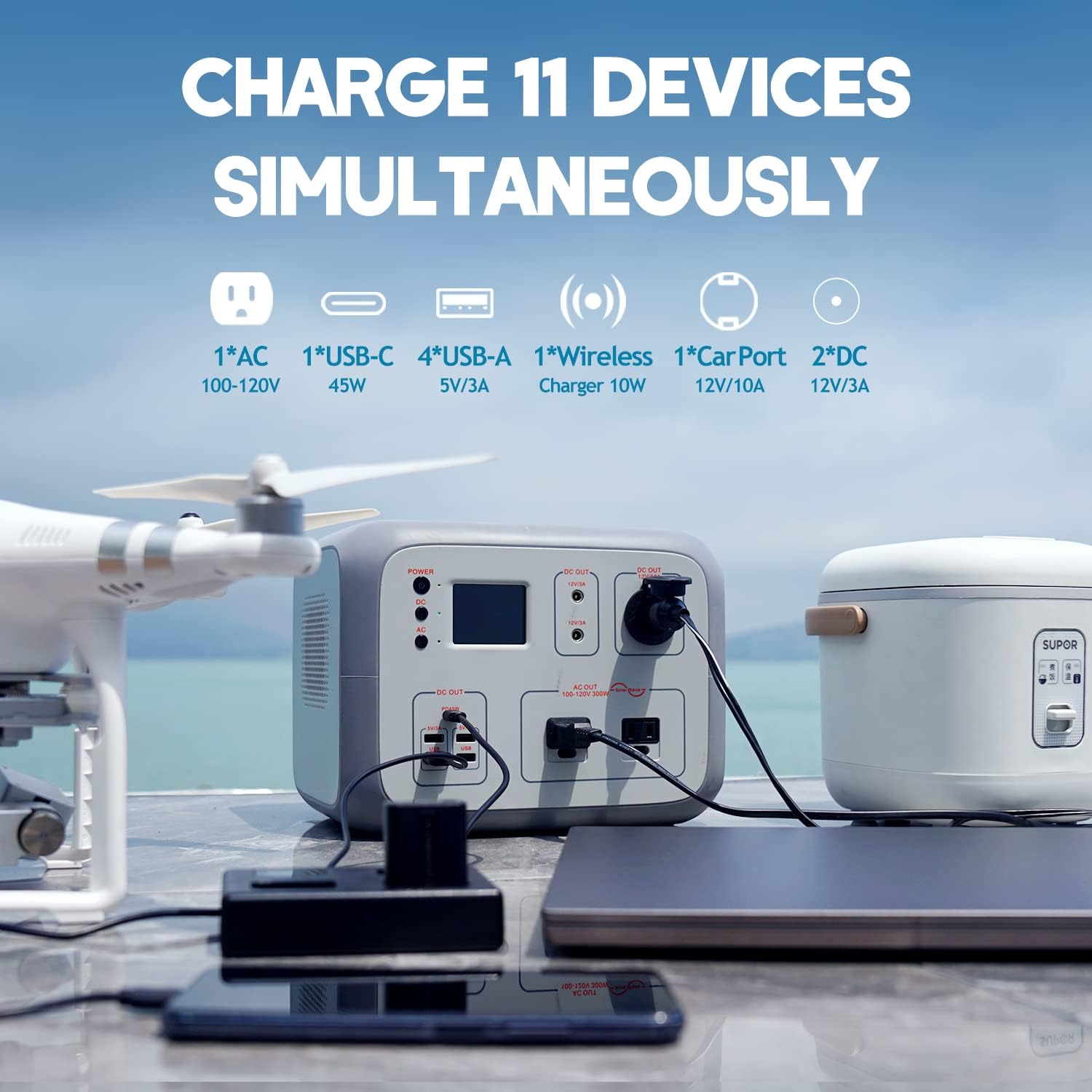

The BLUETTI AC50S can charge up to 11 devices simultaneously.

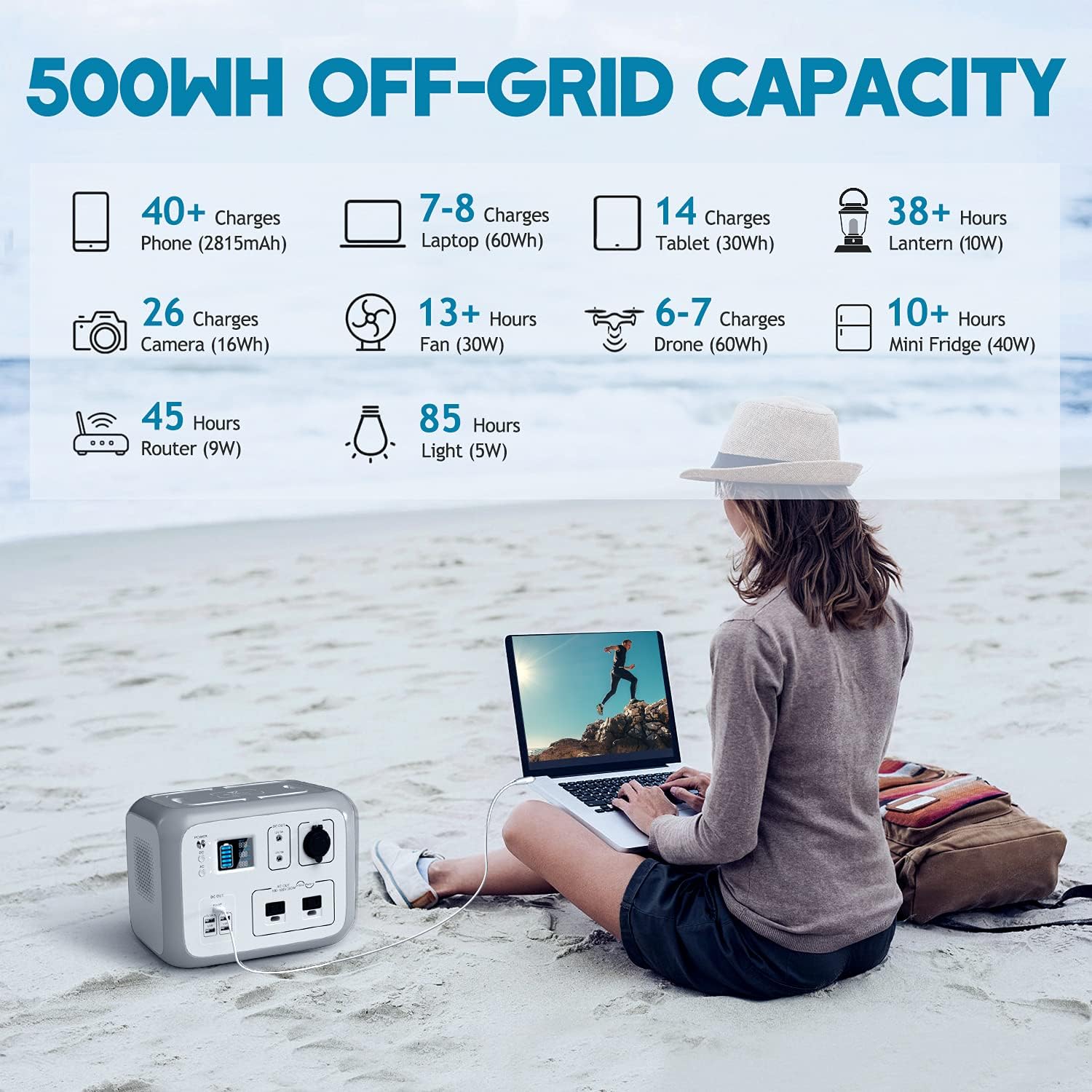

Infographic showing 500Wh off-grid capacity for various devices — An infographic detailing the 500Wh capacity and estimated charge times or runtimes for various electronic devices, such as phones, laptops, and mini-fridges.

The infographic above provides an estimate of how many times or for how long the AC50S can power common devices:

Phones (2815mAh): 40+ چارجز
Laptops (60Wh): 7-8 چارج
Tablets (30Wh): 14 چارجز
Lantern (10W): 38+ ڪلاڪ
Camera (16Wh): 26 چارجز
فين (30W): 13+ ڪلاڪ
Drone (60Wh): 6-7 چارج
ميني فرج (40W): 10+ ڪلاڪ
Router (9W): 45 ڪلاڪ
Light (5W): 85 ڪلاڪ

LED روشني:

The unit features an integrated LED light with multiple modes:

کي دٻايو روشني button once for Strong mode.
Press again for Weak mode.
Press a third time for SOS mode (flashing).
روشني بند ڪرڻ لاءِ چوٿين ڀيري دٻايو.

سرڪاري پراڊڪٽ وڊيو:

Watch this official video from BLUETTI for a visual guide on the AC50S features and usage:

Official BLUETTI video showcasing the AC50S 500Wh portable power station, demonstrating its features and portability.

5. سار سنڀال

صفائي:

سڪل، نرم ڪپڙي سان يونٽ کي صاف ڪريو.
استعمال نه ڪريو abrasive cleaners يا solvents.

اسٽوريج:

Store the unit in a cool, dry place, away from direct sunlight and heat sources.
For long-term storage, charge the unit to 50-80% every 3-6 months to preserve battery life.

بيٽري جي سنڀال:

The BLUETTI AC50S uses high-quality EV-grade 3C battery cells for longevity and stability. The Battery Management System (BMS) ensures safe operation. Avoid completely draining the battery frequently to prolong its lifespan.

6. مسئلا حل ڪرڻ

عام مسئلا ۽ حل:

يونٽ پاور آن نٿو ٿئي: پڪ ڪريو ته پاور بٽڻ مضبوطيءَ سان دٻايو ويو آهي. چيڪ ڪريو ته بيٽري مڪمل طور تي ختم ٿي وئي آهي ۽ ان کي چارج ڪرڻ جي ڪوشش ڪريو.
No output from AC/DC ports: Ensure the respective AC or DC output button is pressed and its indicator light is on. Check if the connected device's power consumption exceeds the unit's maximum output (300W for AC).
Slow charging via solar: Ensure the solar panel is in direct sunlight and free from obstructions. Adjust the panel's angle for optimal sun exposure. Verify cable connections. Charging efficiency can be affected by weather conditions and panel orientation.
وائرليس چارجنگ ڪم نه ڪري رهي آهي: Ensure the DC output is enabled. Reposition the device on the wireless charging pad to ensure proper alignment. Remove any thick phone cases that might interfere with charging.

If issues persist, please refer to the official BLUETTI support resources or contact customer service.

7. وضاحتون

خاصيت	تفصيل
ماڊل نالو	AC50S
بيٽري جي گنجائش	500 ايڇ
AC ٻاھر	2 x 120V AC, 300W (Pure Sine Wave)
ڊي سي اوٽ	2 x 12V/3A, 1 x 12V/10A (Car Port)
يو ايس بي آئوٽ	4 x USB-A (5V/3A), 1 x USB-C (PD45W)
وائرليس چارجنگ	10W
شمسي ان پٽ	14V-40V (Max 120W, 10A Max)
طول و عرض (L x W x H)	11.6" x 7.5" x 7.7"
وزن	13.6 پائونڊ
آپريٽنگ جي درجه حرارت	0-40 ℃

جسماني ماپون:

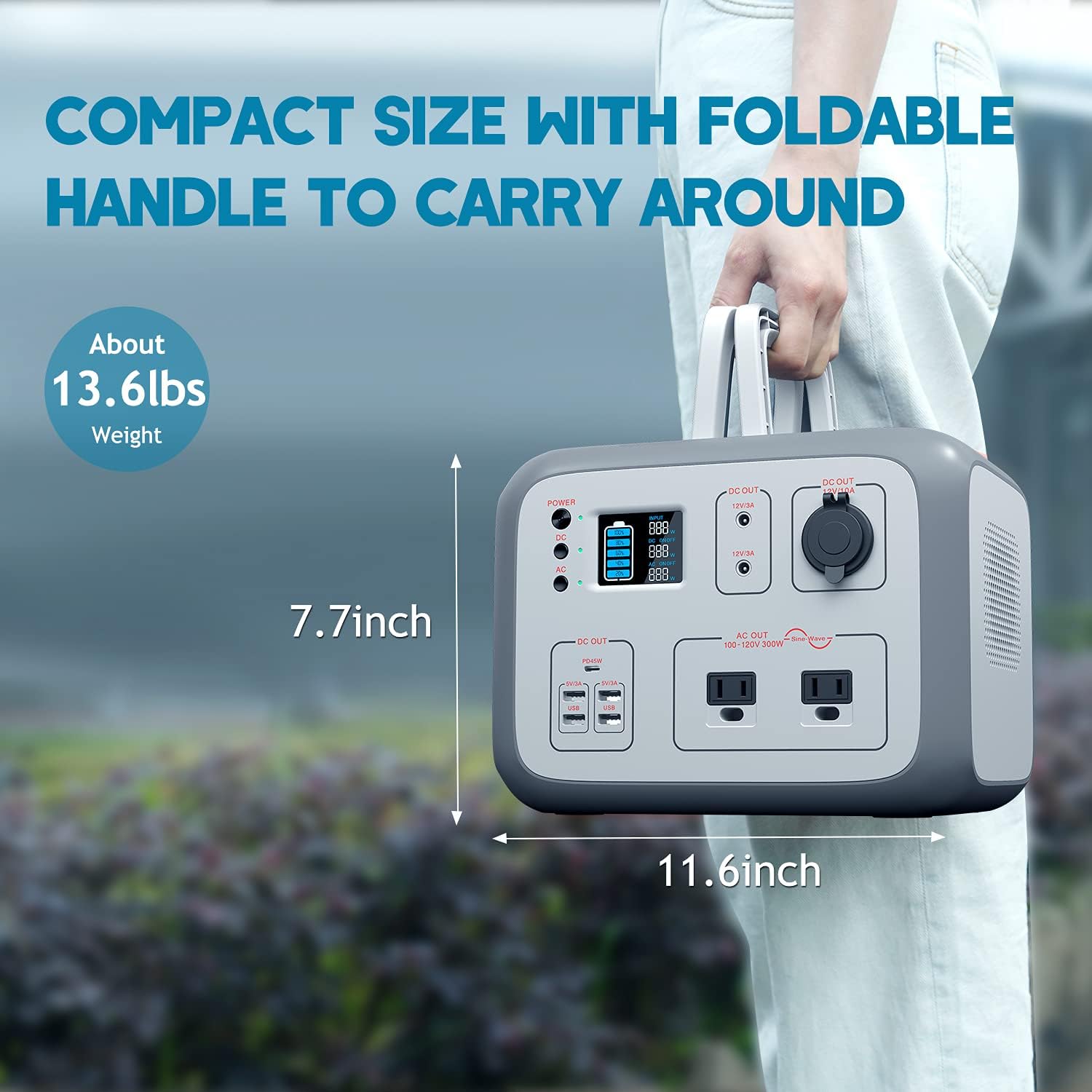

BLUETTI AC50S with dimensions labeled — The BLUETTI AC50S unit with its compact dimensions (11.6 inches length, 7.7 inches height) and weight (approximately 13.6 lbs) highlighted.

The image above visually represents the compact size and weight of the AC50S, emphasizing its portability with a foldable handle.

Solar Panel Specifications:

The accompanying 120W solar panel features monocrystalline silicon cells with 23% efficiency and ETFE lamination for durability. Its closed dimensions are approximately 16.3" x 16.1" and it weighs 9.48 lbs, making it highly portable.

8. وارنٽي ۽ سپورٽ

وارنٽي ڄاڻ:

The BLUETTI AC50S Portable Power Station typically comes with a standard manufacturer's warranty. Please refer to your purchase documentation or the official BLUETTI website for specific warranty terms and conditions, including duration and coverage details.

ڪسٽمر سپورٽ:

For technical assistance, troubleshooting, or any product-related inquiries, please contact BLUETTI customer support. You can often find contact information on the official BLUETTI webسائيٽ يا پرچون ڪندڙ ذريعي جتي توهان پراڊڪٽ خريد ڪيو آهي.

سرڪاري دورو ڪريو Amazon تي BLUETTI اسٽور وڌيڪ پراڊڪٽس ۽ سپورٽ وسيلن لاءِ.
