SINGER M1155 سلائي مشين استعمال ڪندڙ دستياب

اهم حفاظتي هدايتون

جڏهن هڪ برقي اوزار استعمال ڪندي، بنيادي حفاظتي احتياطن کي هميشه پيروي ڪرڻ گهرجي، جنهن ۾ هيٺيان شامل آهن:

• ھن سلائي مشين کي استعمال ڪرڻ کان پھريائين س instructionsئي هدايتون پڙھو.
• Keep these instructions in a suitable place near the machine.
• سڀني هلڻ وارن حصن کان آ fingersريون پري رکو. سلائي مشين سوئي جي چوڌاري خاص خيال رکڻ جي ضرورت آهي.
• Always use the correct needle plate. The wrong plate can cause the needle to break.
• مڙيل سوئي استعمال نه ڪريو.
• سلائي ڪرڻ وقت ڪپڙي کي نه ڇڪيو ۽ نه ئي ڌڪو ڏيو. اهو سوئي کي ڦيرائي سگهي ٿو، جنهن جي ڪري اهو ٽٽي سگهي ٿو.
• Switch the sewing machine off when making any adjustments in the needle area, such as threading the needle, changing the needle, threading the bobbin, or changing the presser foot.
• ھميشه سلائي مشين کي اليڪٽريڪل آئوٽليٽ مان ان پلگ ڪريو جڏھن ڪپڙا ھٽائڻ، لوبريڪيٽنگ ڪرڻ، يا ھدايت واري دستور ۾ ذڪر ڪيل ڪنھن ٻئي صارف جي سروسنگ ايڊجسٽمينٽ ڪرڻ وقت.
• ڪنهن به شئي کي ڪنهن به افتتاح ۾ نه اڇلايو يا داخل نه ڪريو.
• ٻاهر استعمال نه ڪريو.
• ڪم نه ڪريو جتي ايروسول (اسپري) مصنوعات استعمال ٿي رهيون آهن يا جتي آڪسيجن جو انتظام ڪيو پيو وڃي.

پيداوار ختمview

The SINGER M1155 is a versatile sewing machine designed for various sewing projects. It features a compact design and user-friendly controls.

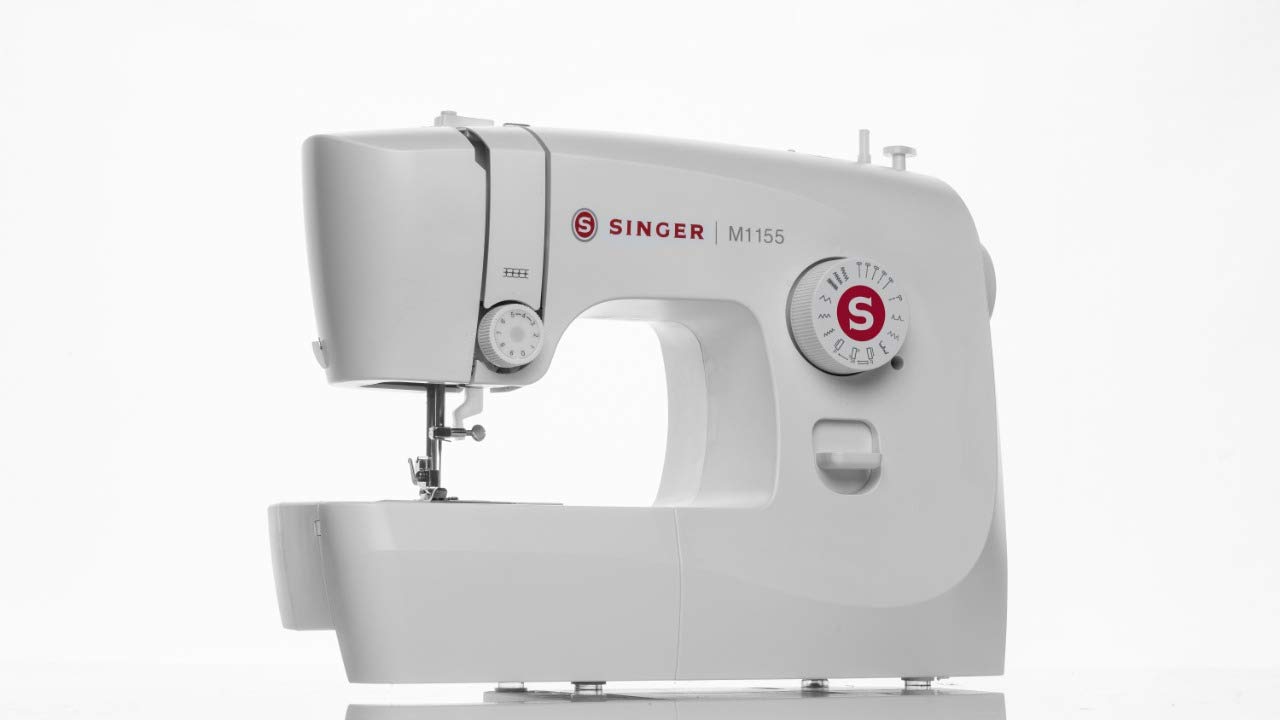

تصوير: سامهون view of the SINGER M1155 Sewing Machine, showcasing its compact design and main controls.

اهم اجزاء:

• اسٽِچ چونڊيندڙ ڊائل: Used to choose from 14 built-in stitches.
• ٽينشن ڊائل: Adjusts thread tension for different fabrics.
• سوئي پليٽ: Provides a flat surface for sewing.
• پريسر فوٽ: Holds fabric securely in place.
• LED لائيٽ: بهتر نمائش لاءِ سلائي واري علائقي کي روشن ڪري ٿو.
• هٿ جو ڦيٿو: سُئي کي دستي طور تي مٿي ۽ هيٺ ڪري ٿو.
• پاور سوئچ: مشين کي آن ۽ آف ڪري ٿو.
• Foot Pedal Connector: For connecting the foot control.

تصوير: پوئين پاسي view of the SINGER M1155 Sewing Machine, showing the power input and on/off switch.

سيٽ اپ ڪريو

1. Unpacking ۽ لڳائڻ

Carefully remove the machine from its packaging. Place the machine on a stable, flat surface. Ensure there is adequate space around the machine for comfortable operation.

2. پاور ڪنيڪشن

Connect the foot control to the machine's foot pedal connector. Plug the power cord into the machine's power input, then into a suitable electrical outlet. Use the power switch located at the back of the machine to turn it on.

3. بوبن وائنڊنگ

The SINGER M1155 features automatic bobbin winding. Follow the threading guides on the machine to wind thread onto an empty bobbin. Ensure the bobbin is wound evenly for smooth stitching.

4. مشين کي ٿريڊ ڪرڻ

The machine is designed for easy threading. Follow the numbered threading path for the upper thread, ensuring the thread passes through all guides and the tension discs correctly. The machine features a top drop-in bobbin system for convenient bobbin insertion.

5. سوئي لڳائڻ

Ensure the machine is turned off before changing the needle. Loosen the needle clamp screw, remove the old needle, and insert a new needle with the flat side facing the back of the machine. Tighten the needle clamp screw securely. The machine supports needle positions for left and center stitching.

تصوير: ويجهو تصوير view of the needle and presser foot area, illustrating the working space for threading and needle changes.

آپريٽنگ هدايتون

1. سلائي جي چونڊ

The SINGER M1155 offers 14 built-in stitches and 19 built-in functions, including a 4-step buttonhole. Turn the stitch selector dial to choose the desired stitch pattern. Refer to the stitch chart on the machine for available options.

Image: The stitch selection dial on the SINGER M1155, showing various stitch patterns and settings.

2. بنيادي سلائي

Place the fabric under the presser foot. Lower the presser foot lever. Gently press the foot control to start sewing. Guide the fabric smoothly without forcing it. The machine has a 5 MM stitch width capability.

3. ايل اي ڊي لائيٽ استعمال ڪرڻ

The integrated LED light illuminates your sewing area, providing clear visibility for detailed work and reducing eye strain. It activates automatically when the machine is powered on.

Image: The SINGER M1155 Sewing Machine with an arrow pointing to the LED light, indicating its position for illuminating the sewing area.

4. Accessory Storage

The machine includes an accessory storage compartment within its extension table. This provides convenient storage for your bobbins, needles, and other small sewing tools.

Image: The SINGER M1155 Sewing Machine with its accessory drawer pulled out, showing space for storing small sewing tools.

سار سنڀال

باقاعده سار سنڀال توهان جي سلائي مشين جي ڊگهي عمر ۽ بهترين ڪارڪردگي کي يقيني بڻائي ٿي.

1. صفائي

• لِنٽ هٽائڻ: Periodically remove the needle plate and clean out any lint or thread buildup from the bobbin case area and feed dogs using a small brush.
• مٿاڇري جي صفائي: مشين جي ٻاهرين حصي کي نرم، سڪل ڪپڙي سان صاف ڪريو. سخت ڪيميڪل يا رگڙيندڙ ڪلينر استعمال نه ڪريو.

2. لوڻ

Refer to the full service manual for specific lubrication points and frequency. Generally, modern sewing machines like the M1155 require minimal user lubrication.

مشڪلاتون

هتي عام مسئلن جا حل آهن جيڪي توهان کي منهن ڏئي سگهن ٿا:

• ڇڏيل سڪا: Ensure the needle is inserted correctly and is not bent. Use the appropriate needle type and size for your fabric and thread. Re-thread the machine completely.
• موضوع جي ڀڃڪڙي: Check for correct threading, proper thread tension, and ensure the needle is not bent or dull. Use quality thread.
• ڪپڙي جي ڇنڊڇاڻ: Adjust thread tension. Use a smaller stitch length. Ensure the correct presser foot is used for the fabric type.
• مشين شروع نه ٿي رهي آهي: Check if the power cord is securely plugged in and the power switch is on. Ensure the foot control is properly connected.
• شور وارو آپريشن: Clean the machine thoroughly, especially the bobbin area, to remove any lint or debris. Ensure all parts are correctly assembled.

وضاحتون

وارنٽي ۽ سپورٽ

Your SINGER M1155 Sewing Machine comes with a warranty. Please refer to the included Warranty Card for details regarding coverage and terms. Keep your purchase receipt as proof of purchase.

For technical assistance, service, or warranty claims, please contact Singer India Limited directly.

ٺاهيندڙ: سنگر انڊيا لميٽيڊ

ٽول فري نمبر: 18001033474
