رولينڊ ايف پي-30 ايڪس 88-ڪي ڊجيٽل پيانو يوزر مينوئل

1. تعارف

This manual provides essential information for the proper setup, operation, and maintenance of your Roland FP-30X 88-Key Digital Piano. Please read it thoroughly to ensure optimal performance and longevity of your instrument.

Figure 1: Roland FP-30X Digital Piano with included accessories.

2. دٻي ۾ ڇا آهي

Your Roland FP-30X package includes the following components:

• Roland FP-30X 88-Key Digital Piano
• KSC-70 Custom Stand
• KPD-70 Three Pedal Unit
• بينچ
• AC اڊاپٽر
• پاور ڪنڊ
• ميوزڪ آرام
• مالڪ جو دستور
• Leaflet "USING THE UNIT SAFELY"
• Online Lessons Access Card
• تعليمي ڊي وي ڊي
• Austin Bazaar Polishing Cloth

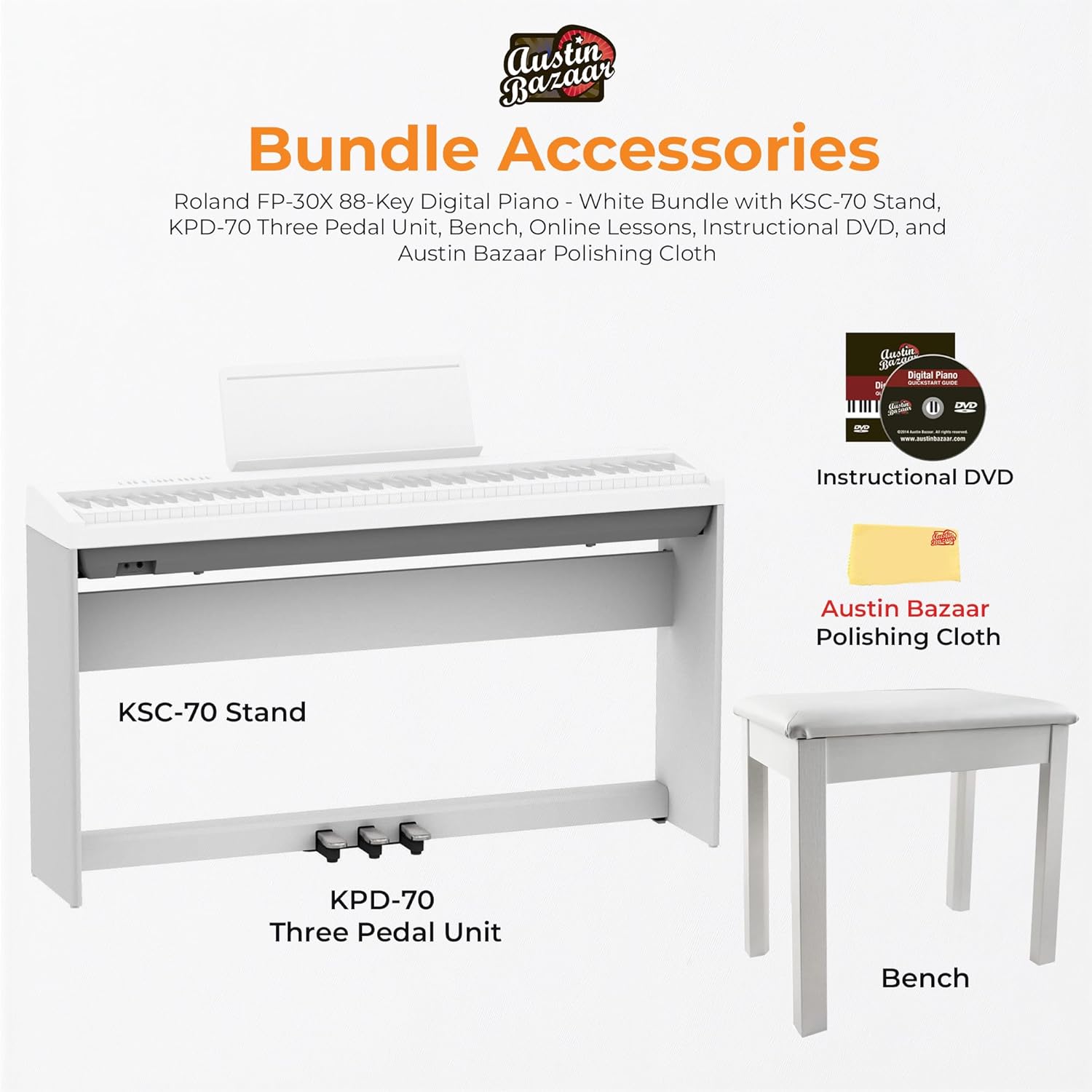

Figure 2: Included bundle accessories.

3. سيٽ اپ

3.1 اسيمبلي

Follow the instructions provided in the separate assembly guide for the KSC-70 Custom Stand and KPD-70 Three Pedal Unit. Ensure all screws are tightened securely for stability.

3.2 ڳنڍڻ واري طاقت

1. Connect the AC adaptor to the DC IN jack on the rear panel of the piano.
2. پاور ڪنڊ کي معياري AC آئوٽليٽ ۾ لڳايو.
3. کي دٻايو پاور button located on the left side of the piano to turn it on.

3.3 ڳنڍڻ جا لوازمات

The FP-30X offers various connectivity options:

• هيڊفون: هيڊفونز سان ڳنڍيو فونز jacks (1/4-inch or 1/8-inch stereo phone type) on the rear panel for private practice.
• ٻاهرين اسپيڪر/Ampزنده: استعمال ڪريو OUTPUT (L/MONO, R) jacks to connect to an external sound system for ampڀريل آواز.
• USB Computer: ڪمپيوٽر سان ڳنڍيو ذريعي يو ايس بي ڪمپيوٽر port (USB Type B) for MIDI communication.
• USB ياداشت: Connect a USB flash drive to the USB ميموري port (USB Type A) for recording and playback of audio/MIDI data.
• پيڊل: Connect the KPD-70 Three Pedal Unit to the پيڊل ڳنڍيندڙ.

Figure 3: Rear panel connectors.

4. آپريٽنگ هدايتون

4.1 بنيادي ڪنٽرول

The FP-30X features intuitive controls for easy operation:

• پاور بٽڻ: Located on the far left of the control panel.
• حجم سلائڊر: مجموعي آئوٽ حجم کي ترتيب ڏيو.
• Tone Buttons: Select between Piano, E. Piano, and Other tones.
• فنڪشن بٽڻ: جديد سيٽنگون ۽ خاصيتن تائين رسائي حاصل ڪريو.
• Split/Dual: Enable keyboard split or dual-tone modes.
• ميٽرونوم: Activate the built-in metronome for practice.
• Song Select: Choose from internal songs for playback or practice.

Figure 4: Control panel and key functions.

4.2 Sound Selection and Performance

The FP-30X utilizes Roland's SuperNATURAL Piano sound engine, offering a wide range of expressive tones. The PHA-4 Standard keyboard provides an authentic acoustic-style piano feel with responsive touch sensitivity.

• Piano Tones: کي دٻايو پيانو button to select various acoustic piano sounds.
• E. Piano Tones: کي دٻايو اي پيانو button for electric piano sounds.
• Other Tones: جي ٻيو button provides access to additional instrument sounds like strings, organs, and pads.
• بلوٽوت ڪنيڪشن: The FP-30X supports Bluetooth Ver 4.0, allowing wireless connection to mobile devices for app integration (e.g., Roland Piano Designer) and audio streaming.

4.3 Recording Features

The FP-30X includes built-in recording capabilities:

• Internal Recording: Record your performances directly to the piano's internal memory (up to 70,000 notes).
• USB Memory Recording: Save your recorded performances to a USB flash drive connected to the USB ميموري port for easy transfer and sharing.

4.4 Official Product Video: The Piano Essentials

Video Description: This video provides a comprehensive overview of the Roland FP-30X, demonstrating its key features, sound capabilities, and various functions for both beginners and experienced players. It covers aspects like sound engine, keyboard action, connectivity, and performance options.

5. سار سنڀال

To keep your Roland FP-30X in excellent condition:

• صفائي: پيانو جي مٿاڇري کي صاف ڪرڻ لاءِ نرم، سڪل ڪپڙو استعمال ڪريو. ضدي مٽيءَ لاءِ، ٿورو ڊيampen the cloth with water and a mild, non-abrasive cleaner, then wipe dry immediately. Avoid harsh chemicals.
• چاٻي جي صفائي: Gently wipe the keys with a soft cloth. For white keys, a slightly damp ڪپڙو استعمال ڪري سگھجي ٿو.
• اسٽوريج: When not in use, cover the piano with a dust cover to protect it from dust and debris. Avoid placing the piano in direct sunlight or near heat sources.
• پالش ڪرڻ: Use the provided Austin Bazaar polishing cloth for gentle cleaning and to maintain the finish.

6. مسئلا حل ڪرڻ

If you encounter issues with your FP-30X, refer to the following common problems and solutions:

For further assistance, please consult the full Owner's Manual or contact Roland customer support.

7. وضاحتون

• ماڊل: FP-30X
• ڪي بورڊ: 88 ڪنجيون (PHA-4 معياري ڪي بورڊ فرار ۽ آئيوري فيل سان)
• آواز انجڻ: مافوق الفطرت پيانو
• پوليفوني: 256 آواز
• ٽائون 56 Piano Tones, 321 E. Piano Tones, various Other Tones
• ڳالهائيندڙ: 12 cm (4-3/4 inches) x 2, 11 W x 2
• رابطي: Bluetooth Ver 4.0, USB Computer (Type B), USB Memory (Type A), Phones jacks (1/4-inch, 1/8-inch), Output jacks (L/MONO, R), Pedal connector
• طول و عرض (W x D x H): 1300 mm x 284 mm x 151 mm (51-3/16 inches x 11-3/16 inches x 5-9/16 inches)
• وزن: 14.8 ڪلوگرام (32 پائونڊ 10 اوز)

شڪل 5: پيداوار جا طول و عرض.

8. وارنٽي ۽ سپورٽ

Your Roland FP-30X Digital Piano comes with a manufacturer's warranty. Please refer to the warranty card included in your package for detailed terms and conditions.

For product support, technical assistance, or service inquiries, please visit the official Roland website or contact their customer service department. Online resources, FAQs, and driver downloads are also available on the Roland support page.

You can register your piano on the Roland website to unlock access to valuable online piano lessons in collaboration with Pianote.
