پيداوار ختمview
The Browning Strike Force HD Max Plus is a high-performance trail camera designed for outdoor surveillance and game monitoring. It captures high-resolution images and videos, featuring advanced detection and flash capabilities for both day and night use.

شڪل 1: سامهون view of the Browning Strike Force HD Max Plus Trail Camera, showcasing its camouflage design and lens array.
سيٽ اپ ۽ تنصيب
پنهنجي ڪئميرا کي استعمال لاءِ تيار ڪرڻ لاءِ انهن قدمن تي عمل ڪريو:
- بيٽري لڳائڻ: The camera requires 6 AA batteries. Locate the battery compartment, typically at the bottom or rear of the unit. Ensure correct polarity when inserting batteries.
- SD ڪارڊ داخل ڪرڻ: Insert a compatible SD card (up to 512 GB SDXC) into the designated SD card slot. Ensure it clicks securely into place.
- پاور آن: Flip the power switch to the "ON" position. The internal display will illuminate, indicating the camera is ready for configuration.
- چڙهڻ: Use the included camera strap to securely attach the camera to a tree or post. Position the camera to capture the desired area, ensuring it is stable and level.

شڪل 2: اندروني view of the camera with the front panel open, revealing the SD card slot, control buttons, and LCD screen.

Figure 3: Demonstrates the process of setting up the trail camera in an outdoor setting, showing how it can be mounted.
آپريٽنگ هدايتون
The Strike Force HD Max Plus camera offers various settings to optimize performance:
- ٽرڪ جي رفتار: Adjustable from 0.135 to 0.7 seconds to capture fast-moving subjects.
- بحالي جو وقت: Features a rapid 0.5-second recovery time between captures, minimizing missed events.
- Infrared Flash: Select between Long Range, Fast Motion, or Economy modes for optimal night illumination up to 100 feet. Illuma-Smart technology automatically adjusts IR flash.
- Smart IR Video: This feature allows the camera to continue recording video during the day when motion is detected, maximizing capture efficiency.
- ڳولڻ جي حد: The camera has an 80-foot detection range, ensuring a wide area of coverage.
- Image and Video Quality: Captures 20 MP still images and 1600 x 900p HD+ video clips with sound, providing clear and detailed recordings.

Figure 4: Highlights key camera features such as adjustable IR flash, programmable picture delay, and multi-shot options.

شڪل 5: هڪ سابقample of a daytime image captured by the camera, demonstrating its clarity and detail.
سار سنڀال
Proper maintenance ensures the longevity and optimal performance of your trail camera:
- ايس ڊي ڪارڊ انتظام: Regularly check and manage your SD card. Delete old files or replace the card to ensure sufficient storage space for new captures.
- بيٽري مٽائڻ: Monitor battery levels and replace all 6 AA batteries when indicated to prevent interruption of operation. The camera can operate for up to 1 year on a single set of batteries under optimal conditions.
- صفائي: Periodically clean the camera lens and IR sensors with a soft, lint-free cloth to ensure clear images and proper sensor function. Keep the camera housing free of dirt and debris.
- ماحولياتي تحفظ: The camera has an IP65 rating, indicating protection against dust and low-pressure water jets. While durable, avoid submerging the camera in water. Ensure the side lock is securely fastened to protect internal components from elements.
مشڪلاتون
If you encounter issues with your camera, consider the following:
- ڪئميرا آن نه آهي:
- پڪ ڪريو ته بيٽريون صحيح طور تي صحيح پولارٽي سان داخل ڪيون ويون آهن.
- پراڻيون يا ختم ٿيل بيٽريون تازين سان تبديل ڪريو.
- ڪابه تصوير/ وڊيوز نه ورتي وئي آهي:
- Verify the SD card is properly inserted and not full.
- Check camera settings for proper trigger delay and operating mode.
- Ensure the detection range is clear of obstructions.
- خراب تصوير/وڊيو معيار:
- ڪئميرا لينس ۽ IR سينسر کي صاف ڪريو.
- Adjust IR flash settings for night captures.
- Ensure the camera is stable and not subject to movement.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نالو | STRIKE FORCE HD MAX PLUS |
| حصو نمبر | BTC-5HD-MXP |
| اڃا به مؤثر حل | 20 ايم پي |
| وڊيو ڪيپچر ريزوليوشن | 1600x900p HD+ |
| ٽرگر جي رفتار | 0.135 - 0.7 Seconds (Adjustable) |
| بحالي وقت | 0.5 سيڪنڊ |
| ڳولڻ جي حد | 80 فوٽ |
| Infrared Flash Range | 100 فوٽ |
| طاقت جو ذريعو | 6 AA Batteries (up to 1 year battery life) |
| SD Card Capacity (Max) | 512 GB SDXC |
| ڪنيڪشن پروٽوڪول | وائي فائي |
| بين الاقوامي تحفظ جي درجه بندي | IP65 |
| طول و عرض (L x W x H) | 2.5 x 3 x 4.5 انچ |
| رنگ | ڪيمو |

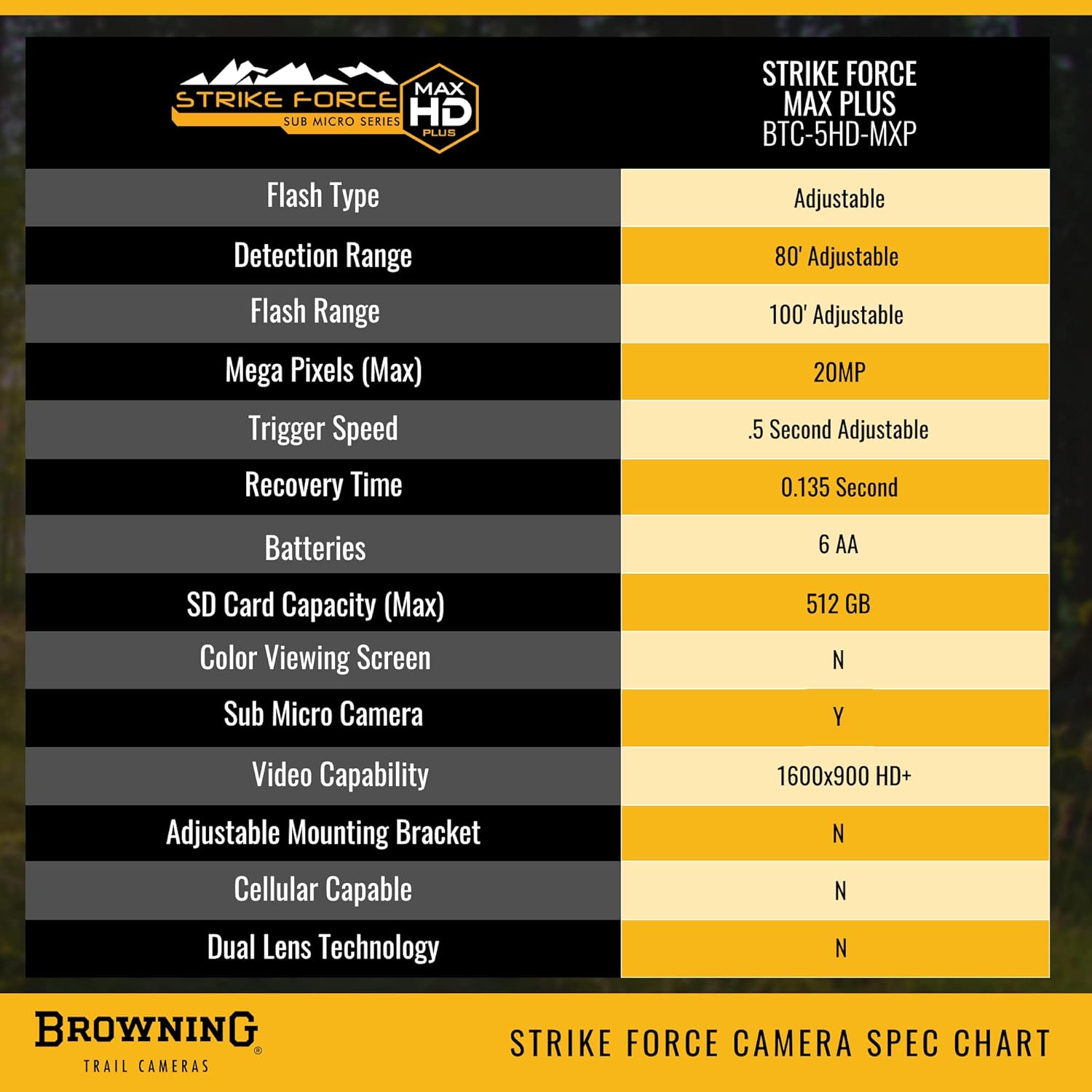

Figure 6: A detailed chart outlining the technical specifications of the Strike Force HD Max Plus camera.
وارنٽي ڄاڻ
The Browning Strike Force HD Max Plus Trail Camera comes with a هڪ سال جي ٺاهيندڙ وارنٽي against defects. For warranty claims or detailed terms and conditions, please refer to the official Browning webسائيٽ يا ڪسٽمر سپورٽ سان رابطو ڪريو.
حمايت
For further assistance, technical support, or to explore other Browning products, please visit the official Browning store or contact their customer service department.
