ANVIZ VF30 PRO رسائي ڪنٽرول ٽرمينل يوزر مينوئل

1. تعارف

The ANVIZ VF30 PRO is a new generation standalone access control reader designed for robust and efficient security management. It features a Linux-based 1Ghz processor, a 2.4" TFT LCD screen, and flexible communication options including Power over Ethernet (PoE) and Wi-Fi. The VF30 PRO also supports web server functionality for easy self-management and professional standalone access control interfaces. An standard EM card reader is integrated into the device.

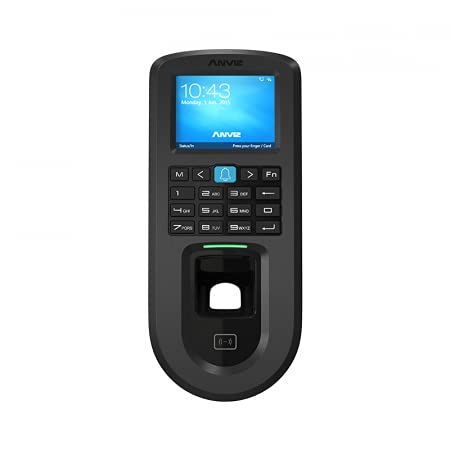

شڪل 1: سامهون view of the ANVIZ VF30 PRO Access Control Terminal.

2. وضاحتون

3. سيٽ اپ ۽ تنصيب

Proper installation is crucial for the optimal performance of your ANVIZ VF30 PRO. This section provides general guidelines. For detailed wiring diagrams and specific installation scenarios, please refer to the included video tutorial.

3.1 جسماني تنصيب

The VF30 PRO is designed for wall mounting. Ensure the mounting surface is stable and provides adequate space for wiring. Consider the optimal height for user access to the fingerprint sensor and keypad.

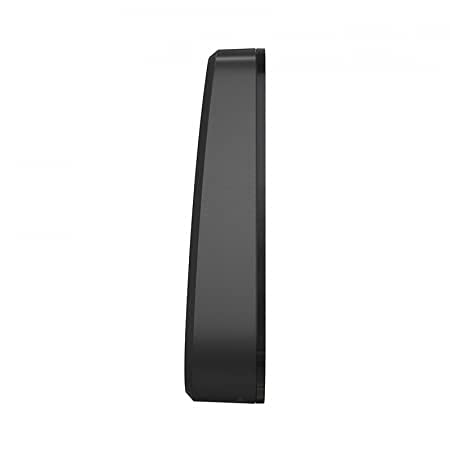

شڪل 2: پاسي view of the ANVIZ VF30 PRO, showing its slim profile.

شڪل 3: اندروني view of the ANVIZ VF30 PRO, showing the circuit board and components.

3.2 وائرنگ ۽ ڪنيڪشن

The VF30 PRO supports various connection types including TCP/IP, RS485, PoE, and optional Wi-Fi. It also provides relay outputs for door locks and inputs for door sensors and exit buttons.

Figure 4: Connection diagram illustrating how the ANVIZ VF30 PRO integrates with door locks, sensors, and network infrastructure.

شڪل 5: پوئتي view of the ANVIZ VF30 PRO, showing the wiring terminals for power and external devices.

3.3 Electrical Lock Connection Tutorial

For a visual guide on connecting the ANVIZ VF30 PRO to an electrical lock, please watch the following tutorial video. This video demonstrates the wiring process for seamless integration with your access control system.

4. آپريٽنگ هدايتون

The ANVIZ VF30 PRO offers multiple identification modes for access control: fingerprint, password, and card. The device features a user-friendly interface on its 2.4" TFT LCD screen.

4.1 User Enrollment

To enroll new users, navigate to the 'User Management' menu on the device. You can add fingerprints, assign unique passwords, and register RFID cards. Ensure each user's data is securely stored.

4.2 Access Control Modes

• فنگر پرنٽ: Place your registered finger on the optical sensor for quick and secure access. The identification speed is less than 0.5 seconds.
• پاسورڊ: Enter your assigned password using the keypad on the device.
• ڪارڊ: Present your registered EM or Mifare card to the integrated card reader. The reading distance is 1-5cm for 125KHz cards and >2cm for 13.56MHz cards.

4.3 Time Attendance Features

The VF30 PRO includes comprehensive time attendance functionalities. It supports 8 groups for time attendance mode and 16 groups with 32 time zones for flexible scheduling. Users can also input 6-digit work codes.

5. سار سنڀال

Regular maintenance ensures the longevity and reliable operation of your ANVIZ VF30 PRO. Follow these guidelines:

• صفائي: Use a soft, dry cloth to clean the device's exterior and the fingerprint sensor. Avoid abrasive cleaners or solvents.
• فرم ويئر اپڊيٽس: Periodically check the ANVIZ official webبهترين ڪارڪردگي ۽ سيڪيورٽي کي يقيني بڻائڻ لاءِ فرم ويئر اپڊيٽس لاءِ سائيٽ.
• ڊيٽا بيڪ اپ: Regularly back up user data and access logs to prevent data loss.
• ماحولياتي حالتون: Ensure the device operates within the specified working temperature (-30℃ to 60℃) and humidity (20% to 90%) ranges.

6. مسئلا حل ڪرڻ

This section addresses common issues you might encounter with the ANVIZ VF30 PRO.

• ڊوائيس تي طاقت نه آهي:
  • Check the power supply connection (DC12V 1A or PoE).
  • پڪ ڪريو ته پاور آئوٽ فنڪشنل آهي.
• Fingerprint Recognition Failure:
  • پڪ ڪريو ته توهان جي آڱر صاف ۽ سڪل آهي.
  • Place your finger flat on the sensor, covering the entire scanning area (22x18mm).
  • Re-enroll your fingerprint if the issue persists.
• Card Not Reading:
  • Ensure you are using a registered EM or Mifare card.
  • Hold the card within the specified reading distance.
  • Check for any obstructions between the card and the reader.
• دروازو نه کُلي رهيو آهي:
  • Verify the wiring connections between the VF30 PRO and the electric lock.
  • Check the lock's power supply.
  • Ensure the user has appropriate access permissions.
• نيٽ ورڪ ڪنيڪٽيويٽي جا مسئلا:
  • For TCP/IP, check the network cable and IP settings.
  • For Wi-Fi, ensure the device is within range of the Wi-Fi network and the credentials are correct.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact ANVIZ customer support.

7. وارنٽي ۽ سپورٽ

ANVIZ products are covered by a limited warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official ANVIZ webسائيٽ.

For technical support, product inquiries, or service requests, please contact ANVIZ customer support through the following channels:

• Webسائيٽ: www.anviz.com
• اي ميل: support@anviz.com

Please have your product model (VF30 PRO) and serial number ready when contacting support.
