Concept OPP1250SS Under-Cabinet Range Hood User Manual

1. تعارف ۽ اوورview

This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Concept OPP1250SS Under-Cabinet Range Hood. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Concept OPP1250SS is an ultra-slim 50cm under-cabinet range hood designed to effectively remove cooking odors and steam from your kitchen. It features LED lighting for improved visibility and push-button controls for ease of use.

شڪل 1: سامهون view of the Concept OPP1250SS Under-Cabinet Range Hood.

2. حفاظت جي ڄاڻ

عام حفاظت:

• پڪ ڪريو ته اوزار صحيح طرح سان ڪنهن قابل شخص طرفان نصب ڪيو ويو آهي.
• Do not operate the range hood if it is damaged.
• آپريشن دوران ٻارن کي اوزار کان پري رکو.
• Regularly clean the filters to prevent grease buildup, which can be a fire hazard.
• جڏهن رينج هوڊ کي گئس يا ٻين ايندھن ساڙڻ وارن سامان سان گڏ استعمال ڪيو وڃي ته ڪمري ۾ مناسب وينٽيليشن کي يقيني بڻايو وڃي.

برقي حفاظت:

• Before cleaning or maintenance, always disconnect the appliance from the power supply.
• اوزار کي ان پلگ ڪرڻ لاءِ پاور ڪنڊ تي نه ڇڪيو.
• جيڪڏهن پاور هارڊ خراب ٿئي ٿي، ان کي ٺاهيندڙ، ان جي سروس ايجنٽ، يا ساڳئي طرح قابل ماڻهن طرفان تبديل ڪيو وڃي ته جيئن خطري کان بچڻ لاء.

3. دٻي ۾ ڇا آهي

پيڪنگ کولڻ تي، مھرباني ڪري تصديق ڪريو ته سڀئي جزا موجود آھن ۽ خراب نه ٿيا آھن:

• 1x Concept OPP1250SS Under-Cabinet Range Hood
• 1x LED light bulb (6500 K) (pre-installed or separate)
• 2x Metallic anti-particulate filters (pre-installed)
• استعمال ڪندڙ جو دستياب (ھي دستاويز)
• Mounting hardware (screws, wall plugs, etc. - check packaging for specifics)

4. سيٽ اپ ۽ تنصيب

جڳهه جي گهرج:

• The minimum distance above an electric hob is 65 cm.
• The minimum distance above a gas hob is 70 cm.
• Ensure the installation area allows for proper air circulation, especially if using the recirculation option.

تنصيب جا مرحلا:

1. Carefully unpack the range hood and check for any damage.
2. Determine the desired mounting location under the cabinet, adhering to the minimum distance requirements from the hob.
3. Mark the drilling points for mounting the hood. Refer to the included mounting template (if provided) for precise measurements.
4. Drill the necessary holes and insert wall plugs.
5. Secure the range hood to the cabinet using the provided screws.
6. Connect the power supply. Ensure the power is off at the main circuit breaker before making any electrical connections.
7. If using the ducted extraction option, connect the 120mm diameter extraction duct to the outlet.
8. If using the recirculation option, ensure the carbon filters are installed (sold separately for some models) and the air outlet is clear for filtered air to return to the kitchen.

Figure 2: Dimensions of the Concept OPP1250SS Under-Cabinet Range Hood (Height: 82mm).

5. آپريٽنگ هدايتون

The Concept OPP1250SS features intuitive push-button controls located on the front panel.

Figure 3: Control panel of the range hood.

پاور آن / آف:

• Press the power button (usually marked with a circle and a vertical line) to turn the hood on or off.

فين جي رفتار جي چونڊ:

• The hood offers 3 power levels. Press the corresponding fan speed buttons (often marked with I, II, III or fan symbols) to adjust the extraction power according to your cooking needs.
• Use lower speeds for light cooking and higher speeds for heavy frying or grilling.

LED روشني:

• Press the light button (usually marked with a light bulb symbol) to turn the LED illumination on or off. The LED light provides bright, energy-efficient lighting for your cooking surface.

6. سار سنڀال

باقاعده سار سنڀال توهان جي رينج هوڊ جي بهترين ڪارڪردگي ۽ ڊگهي عمر کي يقيني بڻائي ٿي.

Cleaning the Metallic Anti-Particulate Filters:

• The metallic filters capture grease and should be cleaned regularly (approximately every 2-4 weeks, depending on usage).
• To remove the filters, locate the release latches or handles and gently pull them down or slide them out.
• Clean the filters by hand using warm soapy water or in a dishwasher. Ensure they are completely dry before re-installing.
• Do not bend the filters during cleaning or re-installation.

Replacing Carbon Filters (for Recirculation Mode):

• If your hood is operating in recirculation mode, carbon filters (not included with all models) are used to remove odors. These filters cannot be washed and must be replaced every 3-6 months, depending on usage.
• Refer to the specific instructions provided with your carbon filters for replacement procedures.

Cleaning the Hood Exterior:

• Wipe the exterior surfaces of the hood with a soft cloth dampنرم صابن سان ڀريل.
• Do not use abrasive cleaners, corrosive detergents, or harsh brushes, as these can damage the finish.

Replacing the LED Bulb:

• Ensure the appliance is disconnected from the power supply before attempting to replace the bulb.
• Carefully remove the old LED bulb.
• Install a new LED bulb of the same type and wattage (1x LED lamp, 6500 K).

7. مسئلا حل ڪرڻ

If you encounter issues with your range hood, consult the following common troubleshooting tips:

• Hood not turning on: چيڪ ڪريو ته ڇا پاور ڪنڊ محفوظ طور تي آئوٽ ليٽ ۾ لڳل آهي ۽ ڇا سرڪٽ بريڪر ٽرپ ٿي ويو آهي.
• گھٽ سکشن پاور: Ensure the metallic filters are clean and not clogged. If using recirculation, check if the carbon filters need replacement. Verify that the ducting (if applicable) is not obstructed.
• وڌيڪ شور Check for loose components or obstructions in the fan. Ensure the hood is securely mounted.
• بتيون ڪم نه ٿيون ڪن: Check if the LED bulb needs replacement. Ensure the light button is pressed.

جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

8. وضاحتون

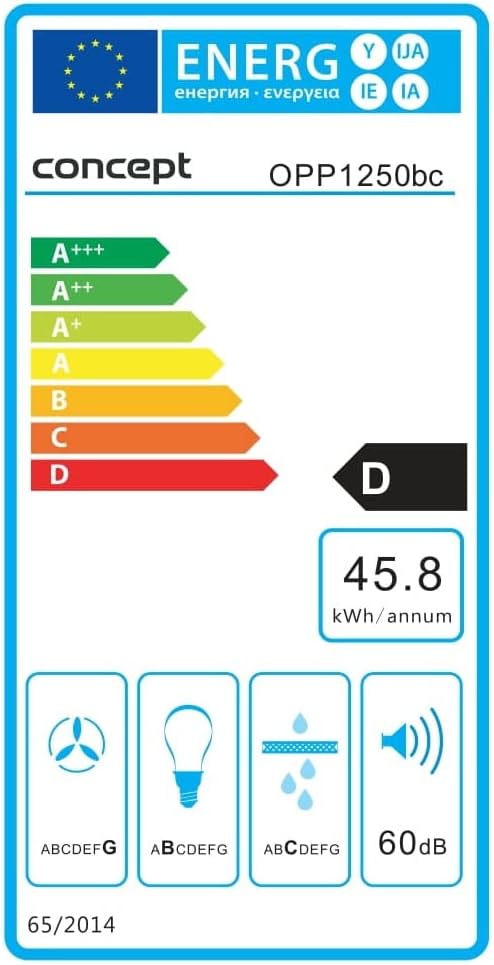

Figure 4: Energy Efficiency Label for the Concept OPP1250BC.

9. وارنٽي ۽ سپورٽ

Your Concept OPP1250SS Under-Cabinet Range Hood comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty duration and coverage details.

For technical support, spare parts, or warranty claims, please contact the Concept customer service department. Contact information can typically be found on the manufacturer's webسائيٽ يا پيداوار جي پيڪنگنگ ۾.
