User Manual for Easytry123 Replacement Remote Control

1. تعارف

This document provides instructions for the Easytry123 Replacement Remote Control, designed to operate various Sanyo Air Conditioner models. Please note that as a replacement unit, some advanced or specific functions present on your original remote may not be supported or may operate differently. This remote is intended to provide essential control over your air conditioning unit.

2. پيڪيج مواد

• 1 x Easytry123 Replacement Remote Control

بيٽريون شامل نه آهن ۽ الڳ الڳ خريد ڪرڻ گهرجن.

3. پراڊڪٽ ختمview

Familiarize yourself with the layout and functions of your new remote control.

تصوير 1: سامهون View of Remote Control. This image displays the front of the white remote control, showing its various buttons and the LCD screen. Key buttons visible include ON-I/OFF-O, TEMP ▲/▼, MODE, FAN SPEED, 1HR, ON TIMER OFF, ECONOMY, QUIET, LED CLEAN, and FLAP.

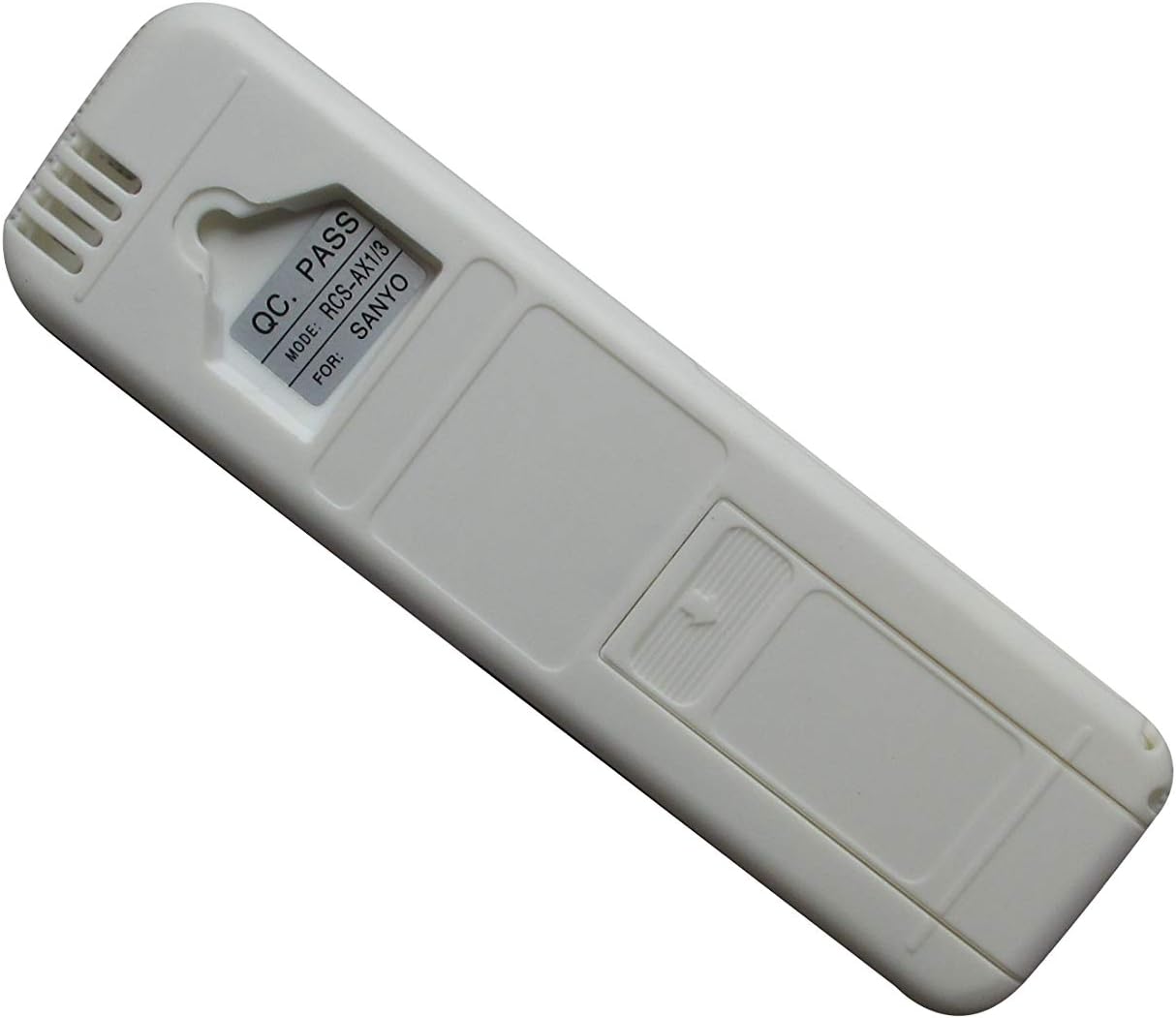

تصوير 2: پوئتي View of Remote Control. This image shows the rear side of the remote control. A label is visible near the top, indicating "QC PASS" and "MODE: RCS-AX1/3 FOR: SANYO", confirming the remote's model and intended brand compatibility.

4. سيٽ اپ

4.1 بيٽري لڳائڻ

1. ريموٽ ڪنٽرول جي پٺي تي بيٽري جي خاني کي ڳوليو.
2. بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي هيٺئين طرف سلائڊ ڪريو ۽ ان کي هٽايو.
3. ٻہ (2) AAA بيٽريون داخل ڪريو، پڪ ڪريو ته مثبت (+) ۽ منفي (-) ٽرمينل صحيح طرح سان ڪمري اندر نشانن سان ترتيب ڏين.
4. بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي واپس جاءِ تي سلائڊ ڪندي تبديل ڪريو جيستائين اهو محفوظ طور تي ڪلڪ نه ڪري.

Image 3: Battery Compartment Open. This image shows the back of the remote control with the battery cover removed, revealing the empty battery slots where two AAA batteries are to be inserted.

4.2 شروعاتي استعمال

This remote control uses infrared (IR) technology and typically does not require pairing. Once batteries are installed, point the remote directly at your Sanyo Air Conditioner unit and press a button to test its functionality.

5. آپريٽنگ هدايتون

Below are the functions of the primary buttons on your remote control:

• ON-I/OFF-O Button: Press to turn the air conditioner unit ON or OFF.
• TEMP ▲ / ▼ Buttons: دٻايو ▲ to increase the temperature setting, and ▼ ان کي گهٽائڻ لاء.
• موڊ بٽڻ: Cycles through the available operating modes (e.g., Cool, Heat, Fan, Dry, Auto). The active mode will typically be displayed on the remote's LCD screen.
• فين اسپيڊ بٽڻ: فين جي رفتار کي ترتيب ڏئي ٿو (مثال طور، گهٽ، وچولي، تيز، آٽو).
• 1HR Button: Activates a 1-hour timer function. Consult your air conditioner's original manual for specific timer behaviors.
• ON TIMER OFF Button: Used to set or cancel the ON/OFF timer for the air conditioner.
• ECONOMY Button: Activates the energy-saving or economy mode, which may adjust temperature settings for reduced power consumption.
• خاموش بٽڻ: Engages a quiet operation mode, typically reducing fan speed and noise output.
• LED CLEAN Button: May activate a self-cleaning function for the indoor unit or control the display LED. Refer to your AC unit's manual for exact functionality.
• فلپ بٽڻ: Controls the direction or swing of the air flaps/louvers.

6. سار سنڀال

6.1 صفائي

ريموٽ ڪنٽرول کي نرم، سڪل ڪپڙي سان صاف ڪريو. مائع صاف ڪندڙ يا رگڙيندڙ مواد استعمال نه ڪريو، ڇاڪاڻ ته اهي مٿاڇري يا اندروني حصن کي نقصان پهچائي سگهن ٿا.

6.2 بيٽري مٽائڻ

Replace batteries when the remote's response becomes sluggish or the display fades. Always replace both batteries at the same time with new AAA batteries. Remove batteries if the remote will not be used for an extended period to prevent leakage.

6.3 اسٽوريج

ريموٽ ڪنٽرول کي ٿڌي، سڪل جاءِ تي محفوظ ڪريو سڌو سج جي روشني ۽ انتهائي گرمي پد کان پري.

7. مسئلا حل ڪرڻ

• ريموٽ جواب نه ڏئي رهيو آهي:
  • چيڪ ڪريو ته بيٽريون صحيح طرح سان لڳايون ويون آهن ۽ ختم نه ٿيون آهن. جيڪڏهن ضروري هجي ته تبديل ڪريو.
  • Ensure there is a clear line of sight between the remote's infrared emitter and the air conditioner's receiver. Obstructions can block the signal.
  • پڪ ڪريو ته توهان ايئر ڪنڊيشنر جي IR رسيور جي اثرائتي آپريٽنگ رينج اندر آهيو.
• Not all functions work as expected:
  • As a replacement remote, it may not support all specific or advanced functions of your original air conditioner remote. This is common for universal or replacement remotes.
  • تصديق ڪريو ته توهان جو ايئر ڪنڊيشنر ماڊل مطابقت رکندڙ طور تي درج ٿيل آهي.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

As a replacement product, specific warranty details may vary. Please refer to the seller or your purchase documentation for any warranty information or support inquiries. For technical assistance or questions regarding compatibility, it is recommended to contact the seller directly.
