ILM بالغن جي سائيڪل هيلمٽ USB ريچارج ايبل LED فرنٽ ۽ بيڪ لائيٽ هدايت نامي سان

1. تعارف

Thank you for choosing the ILM Adult Bike Helmet. This manual provides essential information for the safe and effective use of your helmet, designed for urban commuting, cycling, and skateboarding. Please read this manual thoroughly before first use and retain it for future reference.

2. حفاظت جي ڄاڻ

Your safety is paramount. This helmet is certified by ASTM, CPSC, CE، ۽ EN1078, ensuring it meets rigorous safety standards. The one-piece structure, combining EPS (Expanded Polystyrene) and PC (Polycarbonate) shells, provides enhanced shock absorption for superior protection.

Always wear your helmet correctly to ensure maximum protection. Ensure the helmet fits snugly and the chin strap is securely fastened.

Image: The ILM helmet meets multiple safety certifications including ASTM, CPSC, CE, and EN1078, indicating its suitability for various cycling and skateboarding activities.

3. مصنوعات جون خاصيتون

• Excellent Safety Protection: Certified by ASTM, CPSC, CE, and EN1078. Features a one-piece structure with EPS and PC shells for superior shock absorption.
• Highly Visible LED Lights: Equipped with USB rechargeable front (white) and rear (red) LED lights for enhanced visibility, especially in low-light conditions.
• Cool Riding with Vents: Features 10 strategically placed vents to promote airflow, reducing overheating and keeping you cool during long rides.
• Size Adjustment System: Includes a detachable tinted lens that blocks UV rays, dust, and sand. The helmet is eyeglass-friendly and features an adjustable dial-retention system for a customized fit.
• Removable & Washable Lining: The inner lining is made of breathable mesh fabric for comfort and can be removed for washing.

تصوير: سامهون view of the ILM Adult Bike Helmet, showcasing the integrated front LED light and the tinted visor.

4. سيٽ اپ

4.1. Sizing and Fit Adjustment

To ensure optimal safety and comfort, proper helmet fit is crucial. Refer to the sizing chart below and the wearing instructions.

Image: Detailed sizing chart in CM and Inches, along with visual instructions on how to properly wear and adjust the helmet for a secure fit.

• پنهنجي مٿي جي ماپ ڪريو: Use a measuring tape to find the circumference of your head, just above your eyebrows.
• سائيز چونڊيو: Choose the helmet size that corresponds to your measurement from the chart.
• Adjust Dial-Retention System: The helmet features an adjustable dial at the back. Turn the dial clockwise to tighten and counter-clockwise to loosen, ensuring a snug fit without excessive pressure.
• Adjust Chin Straps: Ensure the chin straps form a 'V' shape just below your ears. The buckle should be centered under your chin. The strap includes cushioning for comfort.
• چڪاس ڪريو: The helmet should not move freely when you shake your head. It should feel secure and comfortable.

تصوير: اندروني view of the helmet highlighting the replaceable and washable liner, impact-absorbing EPS foam, adjustable dial-retention system, and quick-release safety buckle.

4.2. Visor Installation/Adjustment

The helmet comes with a large tinted lens that is detachable and has 3 rotational points for easy adjustment.

• منسلڪ: Align the rotational points on the visor with the corresponding slots on the helmet and press firmly until it clicks into place.
• ترتيب ڏيڻ: The visor can be rotated up or down to suit lighting conditions and user preference. It effectively blocks UV rays, wind, sand, and light rain.

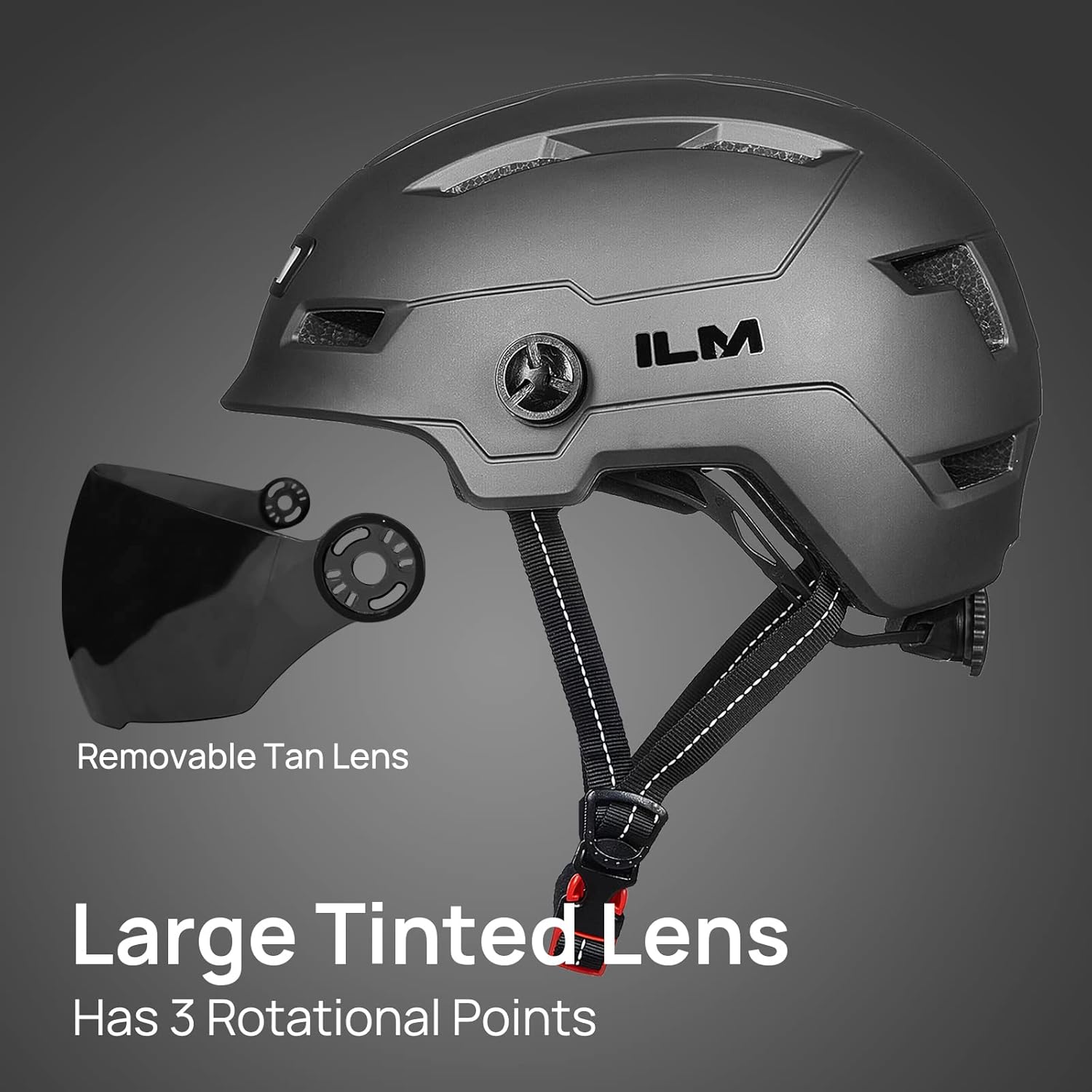

تصوير: پاسي view of the ILM helmet showing the removable tinted lens and its three rotational points for flexible positioning.

4.3. Charging LED Lights

The integrated front and rear LED lights are USB rechargeable.

• Locate the USB charging port, typically at the rear of the helmet near the power button.
• Connect the provided USB cable to the helmet and a compatible USB power source (e.g., computer, wall adapter).
• Allow the lights to charge fully before first use. Charging indicators (if present) will show charging status.

5. آپريٽنگ هدايتون

5.1. LED Light Operation

The helmet's LED lights offer four distinct lighting modes for enhanced visibility and safety.

تصوير: ويجهو تصوير view of the helmet's rear LED light and a diagram illustrating the four lighting modes: Front Always On White Light, Front & Back Always On Red Light, Front & Back Slow Flashing Red Light, and Front & Back Flashing Red Light.

• پاور آن / آف: Press and hold the power button located at the rear of the helmet to turn the lights on or off.
• موڊ تبديل ڪريو: Short press the power button to cycle through the 4 lighting modes:
  • Mode 1: Front: Always On White Light
  • Mode 2: Front & Back: Always On Red Light
  • Mode 3: Front & Back: Slow Flashing Red Light
  • Mode 4: Front & Back: Flashing Red Light

5.2. Visor Usage

The tinted visor can be adjusted to protect your eyes from sun, wind, and debris.

• Lower Visor: Gently pull the visor down until it covers your eyes.
• Raise Visor: Push the visor up until it rests securely above the helmet.

6. سار سنڀال

• Cleaning the Helmet Shell: نرم ڪپڙو استعمال ڪريو ڊيampened with mild soap and water. Avoid abrasive cleaners or solvents that could damage the helmet's finish or materials.
• Cleaning the Lining: The inner lining is removable and washable. Hand wash with mild soap and water, then air dry completely before reinserting.
• Visor Care: Clean the tinted visor with a soft, lint-free cloth and a gentle lens cleaner. Avoid scratching the surface.
• بيٽري جي سنڀال: Recharge the LED lights regularly, even if not used frequently, to maintain battery health. Store the helmet in a cool, dry place.

Image: Close-up of the removable and washable inner padding of the helmet, designed for easy cleaning and hygiene.

7. مسئلا حل ڪرڻ

• LED لائٽون ڪم نه ڪري رهيون آهن:
  • پڪ ڪريو ته بيٽري مڪمل طور تي چارج ٿيل آھي.
  • Check the charging cable and port for any damage.
  • If the issue persists, please refer to the Warranty & Support section for assistance.
• Helmet Feels Loose/Tight:
  • Adjust the dial-retention system at the back of the helmet.
  • Re-adjust the chin straps to ensure a secure and comfortable fit.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

ILM stands behind the quality of its products. While electronic components are designed for durability, if there is any problem with the integrated LED lights or any other part of your helmet, please contact ILM customer support directly. We are committed to providing a proper solution for any issues you may encounter.

For support, please visit the official ILM store on Amazon or contact the seller directly through your purchase platform.

Thank you for choosing ILM. Ride safely!
