1. تعارف
خريد ڪرڻ لاءِ مهربانيasing the beFree Sound BFS-855 5.1 Channel Surround Sound Bluetooth Speaker System. This manual provides essential information for the safe and efficient operation of your new audio system. Please read these instructions thoroughly before use and retain them for future reference.
2. حفاظتي هدايتون
- طاقت جو ذريعو: بجلي جي فراهمي کي يقيني بڻائيtage matches the requirements specified on the unit (110V/60Hz).
- وينٽيليشن: ڪنهن به وينٽيليشن جي سوراخن کي نه روڪيو. مناسب هوا جي وهڪري لاءِ يونٽ جي چوڌاري مناسب جاءِ برقرار رکو.
- پاڻي ۽ نمي: يونٽ کي مينهن، نمي، يا ٽِپڻ/ڇڏڻ واري مائع جي سامهون نه رکو. يونٽ تي مائع سان ڀريل شيون، جهڙوڪ گلدان، نه رکو.
- گرمي: يونٽ کي گرمي جي ذريعن جهڙوڪ ريڊيئيٽر، گرمي رجسٽر، اسٽو، يا ٻين سامان کان پري رکو (بشمول ampلائفائرز) جيڪي گرمي پيدا ڪن ٿا.
- صفائي: Unplug the unit from the power outlet before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.
- خدمت ڪرڻ: ھن پراڊڪٽ کي پنھنجي خدمت ڪرڻ جي ڪوشش نه ڪريو. س servني خدمتن جو حوالو ڏيو قابل سروس اهلڪارن کي.
3. پيڪيج مواد
پڪ ڪريو ته هيٺ ڏنل سڀئي شيون توهان جي پيڪيج ۾ شامل آهن:
- 1 x Subwoofer
- 5 x سيٽلائيٽ اسپيڪر
- 4 x Audio Cables
- 1 x ايف ايم اينٽيننا
- 1 x ريموٽ ڪنٽرول
- 1 x استعمال ڪندڙ دستياب (هي دستاويز)
Image: Various audio cables and an FM antenna included with the system.
4. پراڊڪٽ ختمview
Familiarize yourself with the components of your beFree Sound BFS-855 system.
4.1. Subwoofer Unit
تصوير: اڳيان ۽ پاسي view of the main subwoofer unit, featuring the beFree logo and a sleek black finish.
تصوير: پاسي view of the subwoofer, showing the USB port, SD card slot, and auxiliary input jacks.
Image: Rear panel of the subwoofer, detailing the optical input, coaxial input, AUX audio input, FM antenna port, DVD audio input, LED power, audio output for satellite speakers, and power switch.
4.2. Satellite Speakers
The system includes five satellite speakers: a center speaker, two front speakers, and two rear speakers.
Image: A compact satellite speaker, typically used for front or rear channels.
Image: The horizontal center channel speaker, designed for clear dialogue.
4.3. ريموٽ ڪنٽرول
Image: The remote control unit, featuring buttons for input selection, volume, channel tuning, and various audio adjustments.
5. سيٽ اپ
5.1. اسپيڪر لڳائڻ
- ذيلي آواز: Place the subwoofer on the floor, preferably near the front of your listening area.
- سينٽر اسپيڪر: Position the center speaker directly above or below your television/monitor.
- سامهون ڳالهائيندڙ: Place the front left and right speakers equidistant from your listening position, to the left and right of your television/monitor.
- پوئتي اسپيڪر: Position the rear left and right speakers behind your listening position, facing towards you.
5.2. اسپيڪرز کي ڳنڍڻ
Connect the satellite speakers to the corresponding output jacks on the rear panel of the subwoofer. Ensure correct polarity (red to red, black to black) for optimal sound quality.
5.3. آڊيو ذريعن کي ڳنڍڻ
Your system supports multiple audio input options:
- بلوٽوٿ: For wireless connection from compatible devices.
- AUX ان پٽ: Use the provided audio cables to connect devices with a 3.5mm or RCA audio output.
- بصري ان پٽ: For high-quality digital audio from TVs, game consoles, or DVD/Blu-ray players.
- Coaxial ان پٽ: Another option for digital audio connection.
- USB/SD ڪارڊ: Insert a USB drive or SD card into the designated slots on the subwoofer for direct media playback.
- ايف ايم انٽنا: Connect the included FM antenna to the FM ANT port for radio reception.
5.4. پاور ڪنيڪشن
After all audio connections are made, connect the power cord to the subwoofer and then plug it into a standard 110V/60Hz electrical outlet. Turn on the power switch located on the rear panel of the subwoofer.
6. آپريٽنگ هدايتون
6.1. پاور آن/آف
Press the 'POWER' button on the remote control or the power switch on the rear of the subwoofer to turn the system on or off.
6.2. انٽ چونڊ
Press the 'INPUT' button on the remote control to cycle through available input sources: Bluetooth, AUX, Optical, Coaxial, USB, SD, FM.
6.3. حجم ڪنٽرول
Use the 'VOL+' and 'VOL-' buttons on the remote control to adjust the master volume. Individual channel volumes (FL, FR, CEN, SL, SR, SW) can also be adjusted using their respective buttons on the remote.
6.4. بلوٽوٽ جوئر
- Select 'Bluetooth' as the input source. The display will indicate 'BT'.
- پنهنجي موبائل ڊوائس يا ڪمپيوٽر تي بلوٽوٿ کي فعال ڪريو.
- ڳولھيو 'BFS-855' in the list of available devices.
- Select 'BFS-855' to pair. Once connected, a confirmation sound will play.
6.5. ايف ايم ريڊيو آپريشن
- Select 'FM' as the input source.
- Press the 'AUTO' button on the remote to automatically scan and save available FM stations.
- Use 'CH+' and 'CH-' buttons to navigate through saved stations.
- Use 'TUNE+' and 'TUNE-' buttons for manual frequency adjustment.
6.6. USB/SD ڪارڊ پلے بیک
- Insert a USB drive or SD card into the corresponding slot.
- The system will automatically switch to USB/SD input and begin playback. If not, select 'USB' or 'SD' input manually.
- Use the 'PLAY/PAUSE', 'PREV', and 'NEXT' buttons on the remote for media control.
7. سار سنڀال
پنهنجي اسپيڪر سسٽم جي ڊگهي عمر ۽ بهترين ڪارڪردگي کي يقيني بڻائڻ لاءِ، انهن سار سنڀال جي هدايتن تي عمل ڪريو:
- صفائي: Regularly wipe the surfaces of the speakers and subwoofer with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, waxes, or solvents.
- مٽي: Keep the ventilation openings free from dust accumulation. Use a soft brush or vacuum cleaner with a brush attachment to gently remove dust.
- اسٽوريج: If storing the system for an extended period, unplug it from the power outlet and store it in a cool, dry place, away from direct sunlight and extreme temperatures.
8. مسئلا حل ڪرڻ
If you encounter issues with your speaker system, refer to the following common problems and solutions:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| طاقت نه آهي | Power cord not connected; Power switch off; Outlet malfunction | Ensure power cord is securely plugged in; Turn on power switch; Test outlet with another device. |
| آواز ڪونهي | Incorrect input selected; Volume too low; Speaker cables loose; Mute function active | Select correct input source; Increase master volume; Check all speaker connections; Press 'MUTE' on remote. |
| بلوٽوٿ ڳنڍي نه ٿو | Speaker not in Bluetooth mode; Device not discoverable; Already connected to another device | Ensure 'BT' input is selected; Make sure device Bluetooth is on and searching; Disconnect from other devices. |
| ناقص ايف ايم استقبال | FM antenna not connected or poorly positioned | Connect FM antenna securely; Adjust antenna position for better signal. |
9. وضاحتون
- ماڊل نالو: BFS-855
- اسپيڪر جو قسم: چوڌاري آواز سسٽم
- چوڌاري آواز چينل جي جوڙجڪ: 5.1
- ٻاھر نڪرڻ جي طاقت: 50W (Subwoofer) + 15W x 5 (Satellites) = 125 Watts Total
- Subwoofer قطر: 8 انچ
- سيٽلائيٽ اسپيڪر سائيز: 3.5 انچ (x5)
- تعدد جواب: 40 هز - 20 ڪلو هرٽز
- جدائي: >50dB
- S/N تناسب: >75dB
- طاقت جو ذريعو: Corded Electric (110V/60Hz)
- رابطي ٽيڪنالاجي: Bluetooth, USB, SD Card, Optical, Coaxial, AUX (RCA)
- ڪنٽرول جو طريقو: ريموٽ ڪنٽرول
- Product Dimensions (Subwoofer): 21"ڊي x 11"ڊي x 21"ايڇ
- شيء جو وزن: 33 پائونڊ

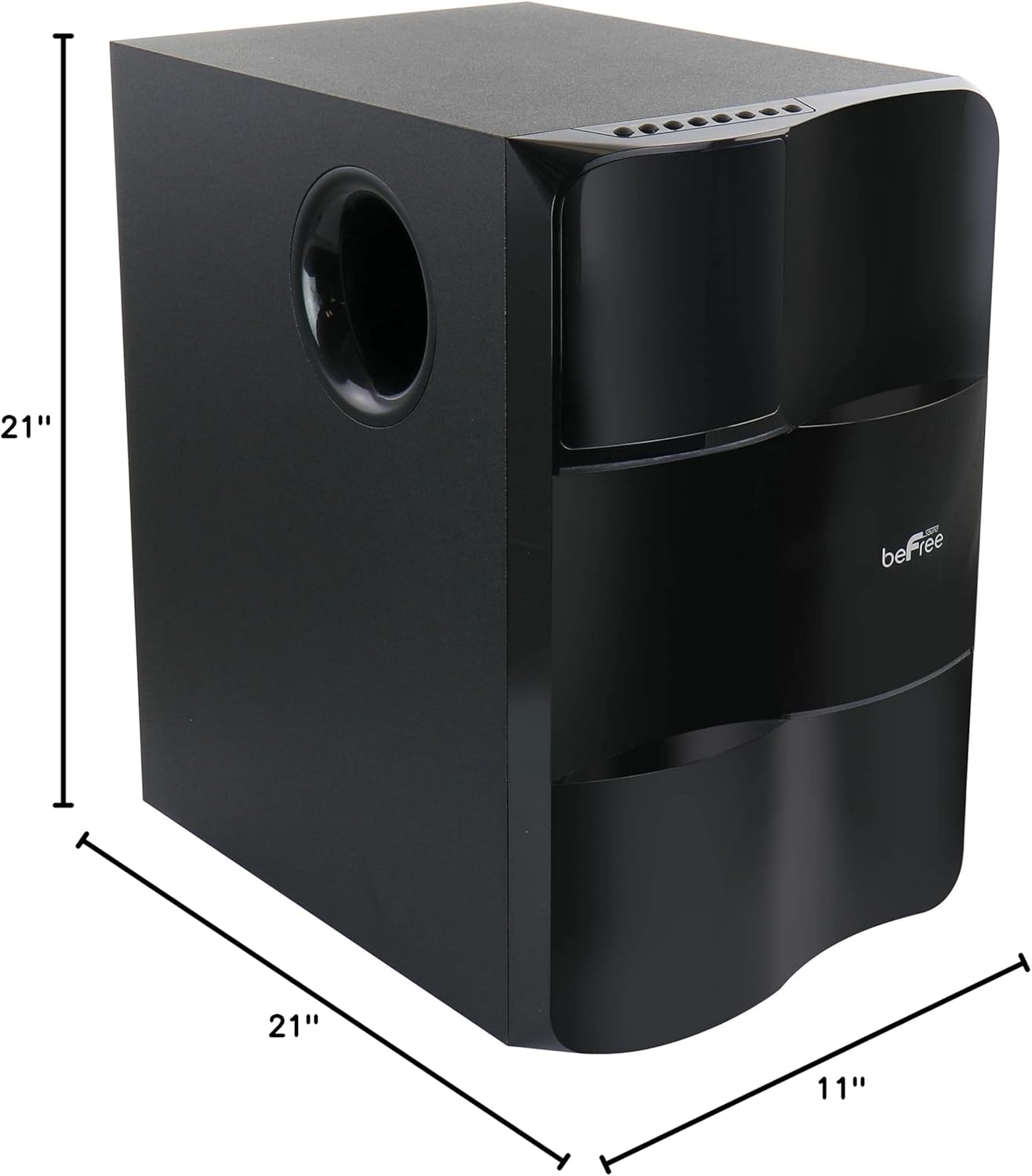

Image: Diagram illustrating the dimensions of the subwoofer unit (21"D x 11"W x 21"H).
10. وارنٽي ۽ سپورٽ
This product comes with a limited warranty. For specific details regarding warranty coverage and duration, please refer to the warranty card included in your package or contact your retailer. For technical support or service inquiries, please reach out to the point of purchase or the manufacturer's customer service channels.
