1. تعارف ۽ اوورview
This manual provides comprehensive instructions for the safe and effective operation of your FBT X-Lite 112A Professional 12-inch Active Speaker. The FBT X-Lite 112A is a lightweight, bi-amplified system featuring an integrated 3-channel mixer and Bluetooth 5.0 connectivity, designed for high-fidelity audio reproduction in various applications.
شڪل 1.1: سامهون view of the FBT X-Lite 112A Professional Active Speaker. This image shows the speaker's front grille and the FBT logo at the bottom.
شڪل 1.2: زاويه view of the FBT X-Lite 112A Professional Active Speaker, highlighting its polypropylene molded enclosure and side handle for portability.
2. دٻي ۾ ڇا آهي
Upon unpacking your FBT X-Lite 112A, please ensure all components are present and in good condition:
- FBT X-Lite 112A 12-inch Active Speaker with Integrated 3-Channels Mixer
- پاور ڪنڊ
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
If any items are missing or damaged, please contact your retailer or FBT customer support immediately.
3. خاصيتون ۽ نمايان شيون
The FBT X-Lite 112A is engineered with advanced features for superior audio performance and versatility:
- بي-Amplified System: Features a 1200W low frequency amplifier and a 300W high frequency amplifier for optimal power distribution.
- Integrated 3-Channel Mixer: Allows for direct connection of multiple audio sources.
- بلوٽوت 5.0 ڪنيڪشن: Enables wireless audio streaming from compatible devices.
- ڊي ايس پي اڳواٽ: Four selectable Digital Signal Processing presets to optimize sound for various applications.
- Lightweight Polypropylene Enclosure: Rugged yet lightweight construction for easy transport and durability.
- ورسٽائل چڙهڻ جا اختيار: Includes a standard 1.38-inch speaker stand socket and M10 rigging points for fixed installations or use as a floor monitor.
- Switch Mode Power Supply: Universal 100-240 VAC power supply for global compatibility.
4. سيٽ اپ
Follow these steps to set up your FBT X-Lite 112A speaker:
- لڳائڻ: Position the speaker on a stable, flat surface, a speaker stand, or suspend it using appropriate rigging hardware. The asymmetrical design allows for use as a floor monitor.
- پاور ڪنيڪشن: Connect the provided power cord to the speaker's power input and then to a suitable electrical outlet (100-240 VAC). Ensure the power switch is in the "OFF" position before connecting.
- آڊيو ڪنيڪشن:
- Channel 1 & 2 (Micro-Line/XLR): Connect microphones or line-level devices using XLR or 1/4" TRS/TS cables. Use the corresponding MIC/LINE selector switch to match the input signal level.
- Channel 3 (Stereo/Bluetooth): Connect stereo line-level devices via RCA or 1/4" TRS inputs. This channel also supports Bluetooth audio streaming.
- آئوٽ پُٽ ڪنيڪشن (اختياري): If linking multiple speakers, connect the XLR output from the first speaker to the input of the next speaker. Use the CH1 or MIX LINK selector to determine the output signal.
- پاور آن: Once all connections are secure, switch the power button to the "ON" position. The power indicator LED will illuminate.
5. آپريٽنگ هدايتون
Understanding the control panel is key to operating your FBT X-Lite 112A speaker effectively.

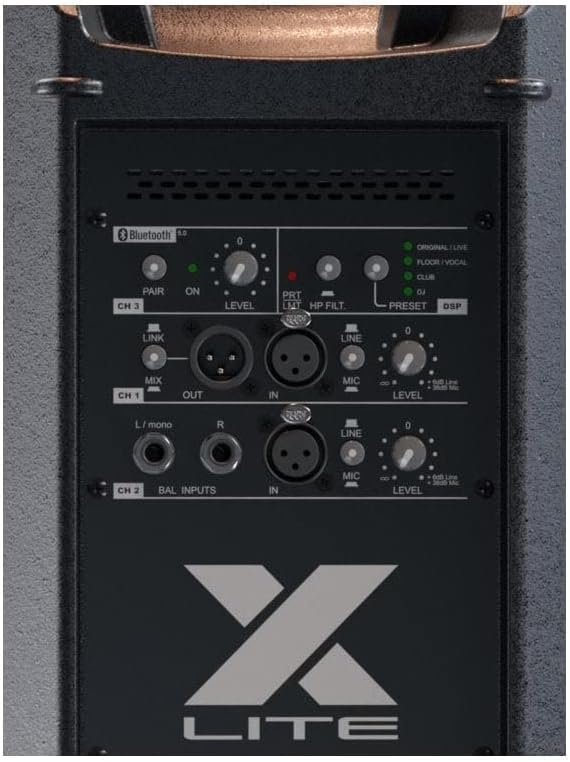

شڪل 5.1: تفصيلي view of the FBT X-Lite 112A control panel, showing inputs, outputs, level controls, DSP presets, and Bluetooth pairing button.
5.1. Mixer Controls
- CH 1 & CH 2 LEVEL: Adjusts the input gain for Channel 1 and Channel 2.
- MIC/LINE Selector: Switches the input sensitivity between microphone level and line level for Channels 1 and 2. Ensure this matches your connected device to prevent distortion or low signal.
- HP فلٽر: Activates a high-pass filter to cut low frequencies, useful for vocal applications to reduce rumble.
- PRT/LIMIT LED: Illuminates to indicate signal clipping (PRT) or limiter activation (LIMIT). Adjust input levels to avoid constant illumination.
- CH 3 LEVEL: Adjusts the input gain for Channel 3 (Stereo/Bluetooth).
- MIX OUT / CH1 LINK: Selects whether the XLR output carries a mix of all channels or only the signal from Channel 1.
5.2. DSP Presets
The FBT X-Lite 112A features four DSP presets to optimize the speaker's sound for different applications:
- اصل / لائيو: Standard flat response for general live sound reinforcement.
- فرش / آواز: Optimized for use as a floor monitor or for vocal clarity.
- ڪلب: Enhanced bass and treble for music playback in club environments.
- ڊي جي: Specific EQ curve for DJ applications, often with boosted lows and highs.
استعمال ڪريو PRESET DSP button to cycle through these options. The corresponding LED will indicate the active preset.
5.3. بلوٽوٽ جوئر
To connect a Bluetooth device to your FBT X-Lite 112A:
- پڪ ڪريو ته اسپيڪر پاور آهي.
- کي دٻايو جوڙو button on the control panel. The Bluetooth LED will flash, indicating it is in pairing mode.
- پنهنجي بلوٽوٿ-فعال ڊوائيس تي (مثال طور، اسمارٽ فون، ٽيبليٽ)، دستياب بلوٽوٿ ڊوائيسز جي ڳولا ڪريو.
- Select "FBT X-Lite 112A" from the list.
- Once paired, the Bluetooth LED on the speaker will illuminate steadily. You can now stream audio wirelessly to the speaker.
The Bluetooth 5.0 technology provides a reliable connection up to 10 meters (33 feet).
6. سار سنڀال
Proper maintenance ensures the longevity and optimal performance of your FBT X-Lite 112A speaker:
- صفائي: Use a soft, dry cloth to clean the exterior of the speaker. For stubborn dirt, a slightly damp cloth with mild soap can be used, ensuring no liquid enters the speaker grilles or control panel. Do not use abrasive cleaners or solvents.
- اسٽوريج: When not in use for extended periods, store the speaker in a cool, dry environment, away from direct sunlight and extreme temperatures.
- وينٽيليشن: چوڌاري مناسب هوا جي وهڪري کي يقيني بڻايو وڃي amplifier section to prevent overheating. Do not block ventilation openings.
- ڪيبل جو انتظام: Regularly inspect power and audio cables for any signs of wear or damage. Replace damaged cables immediately.
7. مسئلا حل ڪرڻ
If you encounter issues with your FBT X-Lite 112A, refer to the following common troubleshooting steps:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڪابه طاقت | Power cord disconnected; Power outlet faulty; Speaker power switch off. | Ensure power cord is securely connected. Test the power outlet. Turn the speaker power switch to "ON". |
| ڪوبه آواز آئوٽ | Input level too low; Incorrect input selected; Damaged audio cable; Source device issues; DSP preset issue. | Increase channel level. Verify correct input connection. Test with a different audio cable. Check source device output. Try a different DSP preset. |
| بگڙيل آواز | Input level too high (clipping); MIC/LINE switch incorrect; Damaged speaker component. | Reduce input level until PRT/LIMIT LED no longer illuminates constantly. Ensure MIC/LINE switch matches input source. If distortion persists, contact support. |
| بلوٽوٿ جوڙڻ ۾ ناڪامي | اسپيڪر پيئرنگ موڊ ۾ نه آهي؛ ڊوائيس تمام پري آهي؛ مداخلت؛ ڊوائيس اڳ ۾ ئي ٻئي اسپيڪر سان پيئر ٿيل آهي. | Press PAIR button on speaker. Move device closer to speaker. Reduce interference sources. Disconnect device from other Bluetooth speakers. |
If the problem persists after attempting these solutions, please contact FBT customer support for further assistance.
8. وضاحتون
Detailed technical specifications for the FBT X-Lite 112A Professional Active Speaker:
شڪل 8.1: Dimensions of the FBT X-Lite 112A speaker: 17"D x 28"W x 17"H.
| خاصيت | تفصيل |
|---|---|
| ماڊل نالو | X-Lite 112A |
| اسپيڪر جو قسم | ووفر |
| خاص خصوصيت | هلڪو وزن |
| تجويز ڪيل استعمال | چوڌاري آواز سسٽم لاء |
| مطابقت رکندڙ ڊوائيسز | اسمارٽ فون |
| ووفر قطر | 12 انچ |
| HF Compression Driver | 1" throat / 1.4" voice coil |
| يونٽ شمار | 1.0 شمار |
| چوڌاري آواز چينل جي جوڙجڪ | 2.0 |
| رنگ | ڪارو |
| پيداوار جا طول و عرض (ڊي x ڊبليو x ايڇ) | 17"ڊي x 28"ڊي x 17"ايڇ |
| پنروڪ آهي | ڪوڙو |
| وارنٽي جو قسم | محدود |
| شين جو تعداد | 1 |
| ڪنٽرول جو طريقو | ڇڪڻ |
| وائرليس ڪميونيڪيشن ٽيڪنالاجي | بلوٽوٿ |
| اسپيڪر سائيز | 12 انچ |
| طاقت جو ذريعو | تار ٿيل برقي |
| پاڻي جي مزاحمت جي سطح | نه پاڻي مزاحمتي |
| آڊيو ڊرائيور جو قسم | متحرڪ ڊرائيور |
| بلوٽوٿ رينج | 10 ميٽر (33 فوٽ) |
| آڊيو ڊرائيور جي ماپ | 12 انچ |
| ڪنيڪشن پروٽوڪول | بلوٽوٿ |
| MP3 پليئر شامل آهي؟ | نه |
| سرڪٽ جو تعداد | 1 |
| ٺاهيندڙ | ايف بي ٽي |
| شيءِ جو وزن | 41 پائونڊ |
| ASIN | B09JKSS3JW |
| شيون ماڊل نمبر | X-Lite 112A |
| تاريخ پهرين دستياب | جنوري 1، 2024 |
| برانڊ | ايف بي ٽي |
| اسپيڪر وڌ ۾ وڌ آئوٽ پاور | 1500 واٽ |
| رابطي ٽيڪنالاجي | بلوٽوت، XLR |
| آڊيو آئوٽ پٽ موڊ | اسٽيريو |
| چڙهڻ جو قسم | فرش جي اسٽوري |
| تعدد جي حد | 50 هز - 20 ڪلو هرٽز |
| وڌ ۾ وڌ SPL | 129 ڊي بي |
| Horn Directivity | 90°H x 60°V |
| Monitor Taper | 30° / 45° |
9. وارنٽي ۽ سپورٽ
The FBT X-Lite 112A Professional Active Speaker comes with a محدود وارنٽي. For specific terms and conditions of the warranty, please refer to the warranty card included with your product or visit the official FBT webسائيٽ.
For technical support, service, or warranty claims, please contact FBT customer service through their official webسائيٽ يا مجاز سروس سينٽرن تي. وارنٽي جي تصديق لاءِ خريداري جو ثبوت رکو.
FBT Official Webسائيٽ: www.fbt.it
