1. تعارف
Welcome to the OKAI Neon Electric Scooter user manual. This guide provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

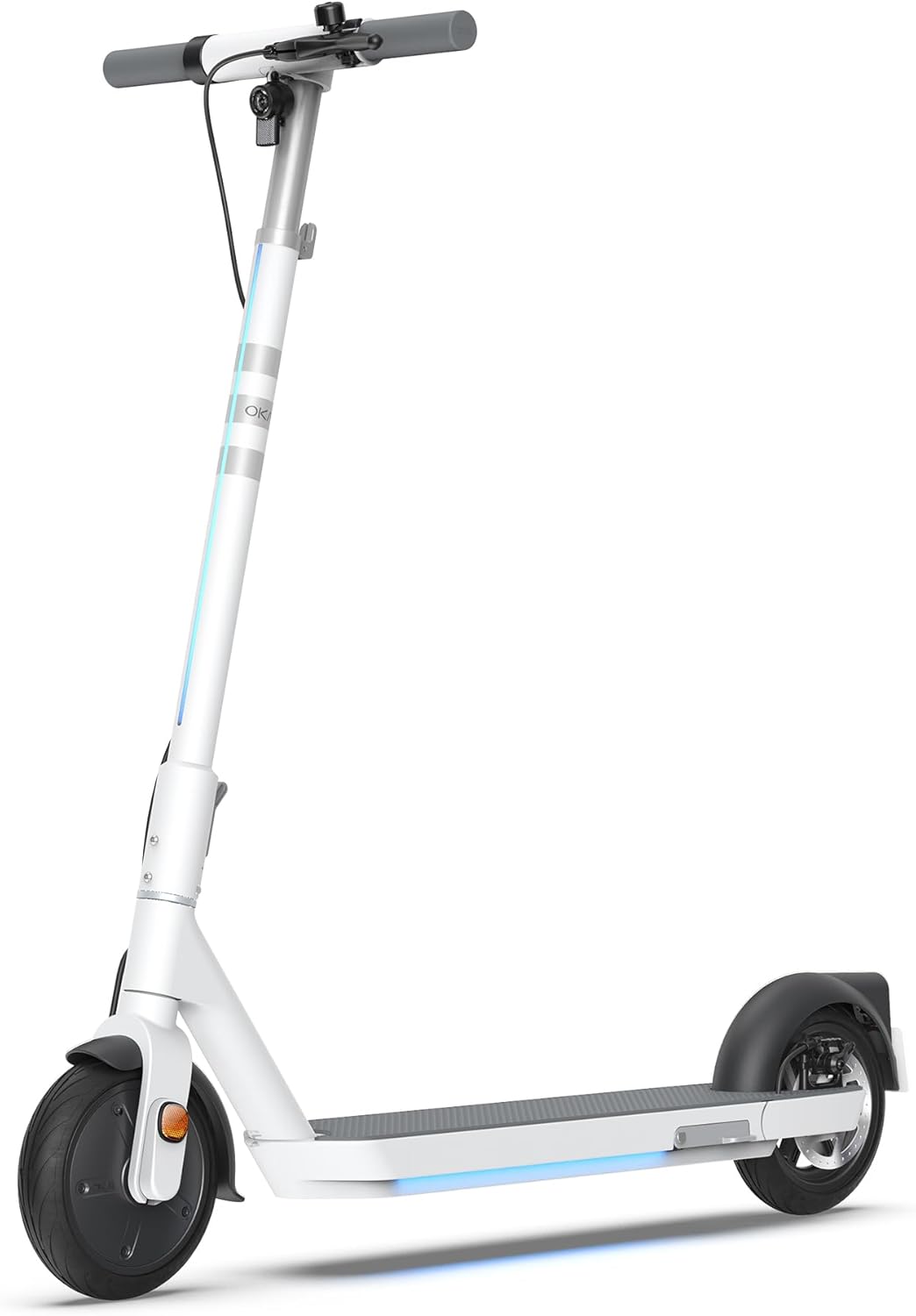

Figure 1: The OKAI Neon Electric Scooter, showcasing its sleek white design and integrated lighting.
2. حفاظت جي ڄاڻ
Riding an electric scooter carries inherent risks. To minimize these risks, always adhere to the following safety guidelines:
- سواري دوران هميشه هيلمٽ ۽ مناسب حفاظتي سامان (گوڏن جا پيڊ، ڪُلهي جا پيڊ) پائڻ.
- پڪ ڪريو ته هر سواري کان اڳ سڀئي حصا محفوظ طور تي مضبوط آهن.
- گندي حالتن ۾، تيز مينهن ۾، يا تلاءَ ۾ سواري نه ڪريو.
- Adhere to local traffic laws and regulations.
- Maintain a safe speed and distance from other vehicles and pedestrians.
- شراب يا منشيات جي اثر هيٺ سوار ٿيڻ کان پاسو ڪريو.
- The maximum weight limit for this scooter is 220 pounds (100 kg). Do not exceed this limit.
- This scooter is designed for adult use.
3. پيڪيج مواد
انباڪسنگ ڪرڻ وقت پڪ ڪريو ته سڀئي شيون موجود آهن ۽ سٺي حالت ۾ آهن:
- OKAI Neon Electric Scooter
- چارجنگ اڊاپٽر
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
- اسيمبلي جا اوزار (جيڪڏهن گهربل هجي)
- NFC اهم ڪارڊ
4. سيٽ اپ ۽ شروعاتي چارج
4.1 انباڪسنگ ۽ اسيمبلي
Carefully remove the scooter and all accessories from the packaging. The OKAI Neon Electric Scooter typically comes pre-assembled with minimal setup required. Follow these steps:
- Lift the handlebar stem until it clicks into place. Ensure the folding mechanism is securely locked.
- Attach the handlebars to the stem, ensuring all cables are properly connected and not pinched. Tighten any screws as instructed in the quick start guide (if provided separately).
4.2 شروعاتي چارجنگ
Before your first ride, fully charge the scooter's battery. This helps prolong battery life.
- اسڪوٽر تي چارجنگ پورٽ ڳولھيو.
- Connect the charging adapter to the scooter's charging port, then plug the adapter into a standard wall outlet.
- The scooter's display will indicate charging status. A full charge typically takes approximately 5.5 hours.
- مڪمل طور تي چارج ٿيڻ کان پوء، چارجر کي ختم ڪريو.
5. آپريٽنگ هدايتون
5.1 پاور آن/آف
- To power on: Press and hold the power button on the handlebar until the display illuminates.
- پاور آف ڪرڻ لاءِ: پاور بٽڻ کي دٻايو ۽ رکو جيستائين ڊسپلي بند نه ٿئي.
5.2 Riding Basics
To begin riding, place one foot on the deck and push off with the other foot to gain some initial momentum. Once moving, gently press the accelerator lever to engage the motor. For braking, use the hand levers for the electric brake (front) and disc brake (rear).
Figure 2: Key features including the smart display, disc brake, 300W power motor, and hidden rear suspension.
5.3 اسپيڊ موڊس
The OKAI Neon Electric Scooter features multiple speed modes to suit different riding conditions and rider preferences. Refer to the scooter's display or the OKAI app to switch between modes. The maximum speed is approximately 15.5 MPH (25 km/h).
5.4 فولڊنگ ميڪانيزم
The scooter features a one-click folding design for easy storage and transport. To fold, locate the folding latch near the base of the handlebar stem, release it, and carefully fold the stem down until it locks into place with the rear fender.
5.5 App Connectivity and Customization
Enhance your riding experience by connecting your OKAI Neon Electric Scooter to the OKAI app. The app allows for:
- Adjusting ambient light settings.
- Monitoring real-time ride updates and battery status.
- Customizing dashboard settings.
- Locking/unlocking the scooter (using the NFC key card or app).
Download the official OKAI app from your device's app store and follow the in-app instructions to pair your scooter.
6. سار سنڀال
Regular maintenance ensures the longevity and safe operation of your OKAI Neon Electric Scooter.
6.1 بيٽري جي سنڀال
- پهرين استعمال کان پهريان بيٽري مڪمل طور تي چارج ڪريو.
- Avoid completely draining the battery. Recharge after each use, or at least once a month if not used regularly.
- اسڪوٽر کي ٿڌي، سڪل جاءِ تي، سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري رکو.
- Use only the official OKAI charging adapter.
6.2 ٽائر پريشر
The front tire is pneumatic, and maintaining correct tire pressure is crucial for ride comfort, range, and safety. Check tire pressure regularly. While specific recommended PSI is not provided in this manual, generally, electric scooters require tire pressure between 30-50 PSI. Consult a professional if unsure or if you experience frequent deflation.
6.3 صفائي ۽ اسٽوريج
- اشتھار سان اسڪوٽر صاف ڪريوamp ڪپڙو. هاءِ پريشر واٽر جيٽ يا corrosive ڪلينر استعمال نه ڪريو.
- پڪ ڪريو ته چارجنگ پورٽ ڍڪ کي صاف ڪرڻ کان اڳ محفوظ طور تي بند ڪيو ويو آهي.
- استعمال ۾ نه هجڻ جي صورت ۾ اسڪوٽر کي سڪل ماحول ۾ گهر اندر رکو.
6.4 Brake Inspection
Regularly inspect the front electric brake and rear disc brake for proper function. Ensure brake levers are responsive and brake pads are not excessively worn. Adjust or replace components as needed, or seek professional assistance.
7. مسئلا حل ڪرڻ
This section addresses common issues you might encounter with your OKAI Neon Electric Scooter.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| اسڪوٽر تي بجلي نٿي هلي. | گهٽ بيٽري؛ ڍلو ڪنيڪشن؛ پاور بٽڻ جو مسئلو. | Charge the battery fully. Check all visible cable connections. Ensure the power button is not stuck. |
| Motor not engaging. | Low battery; kick-start not performed; faulty accelerator. | Ensure battery is charged. Push off to gain initial speed before pressing accelerator. Contact support if issue persists. |
| گھٽيل حد يا رفتار. | گهٽ ٽائر پريشر؛ ڳرو بار؛ مٿي چڙهڻ؛ ٿڌي موسم؛ بيٽري جي خراب ٿيڻ. | Check and inflate tires to recommended pressure. Reduce load. Battery performance can be affected by temperature. |
| بريڪ ڪمزور يا غير جوابده محسوس ٿين ٿا. | Worn brake pads; loose brake cable; air in hydraulic system (disc brake). | Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. For hydraulic issues, seek professional service. |
| Error codes on display (e.g., E3). | Sensor malfunction; motor issue; controller issue. | Refer to the OKAI app or contact customer support with the specific error code for diagnosis. |
If you encounter an issue not listed here or if the suggested solutions do not resolve the problem, please contact OKAI customer support.
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | OKAI |
| ماڊل نالو | Neon Series (ES20) |
| رنگ | اڇو |
| وڌ ۾ وڌ رفتار | 15.5 ميل في ڪلاڪ تائين (25 ڪلوميٽر في ڪلاڪ) |
| وڌ جي حد | 25 ميل (40 ڪلوميٽر) تائين |
| وزن جي حد | 220 پائونڊ (100 ڪلوگرام) |
| چارج ڪرڻ وقت | لڳ ڀڳ. 5.5 ڪلاڪ |
| پيداوار جي ماپ (L x W x H) | 45" x 17.7" x 44.5" (114.3 سينٽي ميٽر x 44.9 سينٽي ميٽر x 113 سينٽي ميٽر) |
| شيءِ جو وزن | 35.2 پائونڊ (16 ڪلوگرام) |
| فريم مواد | المونيم |
| ڦيٿي جي ماپ | 9 انچ |
| بريڪ انداز | Front: Electric Brake, Rear: Disc Brake |
| معطلي جو قسم | پوئتي معطل |
| خاص خاصيتون | Dual Braking System, Cruise Control, Wide Platform, Lockable, Foldable, Ambient Light |
Figure 3: Dimensions of the OKAI Neon Electric Scooter.
9. وارنٽي ۽ ڪسٽمر سپورٽ
9.1 وارنٽي ڄاڻ
The OKAI Neon Electric Scooter comes with a 1 Year Limited Warranty. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the official OKAI webسائيٽ يا ڪسٽمر سپورٽ سان رابطو ڪريو.
9.2 ڪسٽمر سپورٽ
For technical assistance, warranty claims, or any other inquiries, please contact OKAI customer support. You can find contact information on the official OKAI website or through the OKAI app. OKAI offers 100% local customer support.
