Link2Home 30W LED Work Light EM-WL-1030A Instruction Manual

1. تعارف ۽ اوورview

This manual provides essential information for the safe and effective use of your Link2Home 30W LED Work Light, Model EM-WL-1030A. This versatile work light is designed to provide high-intensity illumination for various indoor and outdoor tasks, featuring adjustable brightness, multiple mounting options, and a durable, weatherproof construction.

شڪل 1: سامهون view of the Link2Home 30W LED Work Light.

2. مصنوعات جون خاصيتون

• High-Intensity LED Illumination: Provides 2400 lumens (30W) for precise lighting in various work environments.
• توانائي-موثر ڊيزائن: Consumes 30W, offering significant energy savings compared to traditional halogen bulbs. Suitable for both indoor and outdoor applications.
• ترتيب ڏيڻ واري روشني: Features two settings: High (2400 lumens) and Low (1200 lumens).
• Flexible Light Positioning: The triangular ergonomic shape allows for 300° rotation and 11 orientation notches, enabling precise direction of light.
• ورسٽائل چڙهڻ جا اختيار: Can be carried by hand, positioned freestanding, mounted to a wall, or hung using the integrated rotatable hook.
• پاور بئنڪ خصوصيت: Includes a portable charging port for mobile devices, allowing you to recharge while using the work light.
• Durable and Weatherproof: Constructed with an impact-resistant glass lens and an IP54 waterproof rating, designed to withstand tough job site conditions.
• تصديق ٿيل حفاظت: ETL and FCC certified for quality and safety standards.

Figure 2: Key features of the work light, including soft grip handle, 300° rotation, ON/OFF switch, and 6ft cable.

Figure 3: Demonstrates the wall-mounted and hooking system capabilities of the work light.

3. سيٽ اپ

The Link2Home 30W LED Work Light offers multiple setup configurations to suit your needs:

1. آزادي: Place the work light on any flat, stable surface. The triangular design provides stability, and the light head can be rotated to direct illumination.
2. لٽڪائڻ: Utilize the integrated rotatable hook located on the top of the unit. Extend the hook and hang the light from a suitable support structure.
3. ڀت لڳائڻ: The back of the unit features wall mount holes. Securely fasten the light to a wall using appropriate hardware (not included) that is suitable for your wall material.
4. Tripod/Clamp چڙهڻ (اختياري): For extended height and precise positioning, the work light is compatible with separately sold tripods and clamps. Attach the light to the tripod using the female screw thread on the base or a compatible clamp.

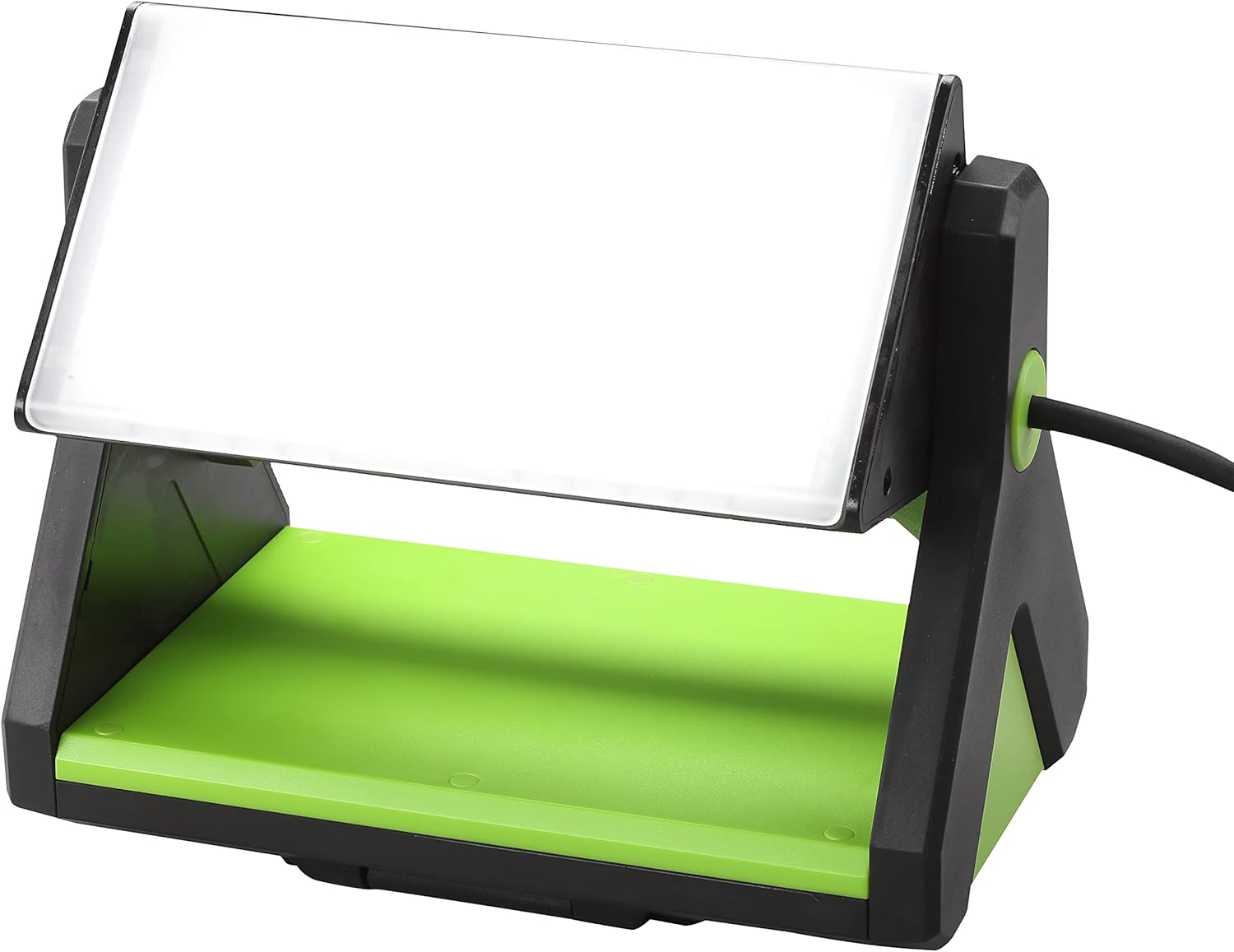

Figure 4: The work light positioned freestanding on a surface.

4. آپريٽنگ هدايتون

Follow these steps to operate your Link2Home 30W LED Work Light:

1. پاور سان ڳنڍيو: Plug the 6ft power cord into a standard electrical outlet.
2. پاور آن / آف: Locate the ON/OFF switch on the unit. Press the switch to turn the light on or off.
3. روشني کي ترتيب ڏيو: The light features two brightness settings. Press the ON/OFF switch to cycle between High (2400 lumens) and Low (1200 lumens).
4. روشني جي هدايت کي ترتيب ڏيو: Rotate the light head up to 300° and utilize the 11 orientation notches to direct the light precisely where needed.
5. پاور بينڪ طور استعمال ڪريو: To charge mobile devices, locate the portable charging port. Connect your device's USB cable to the port. The work light must be powered on for this feature to function.

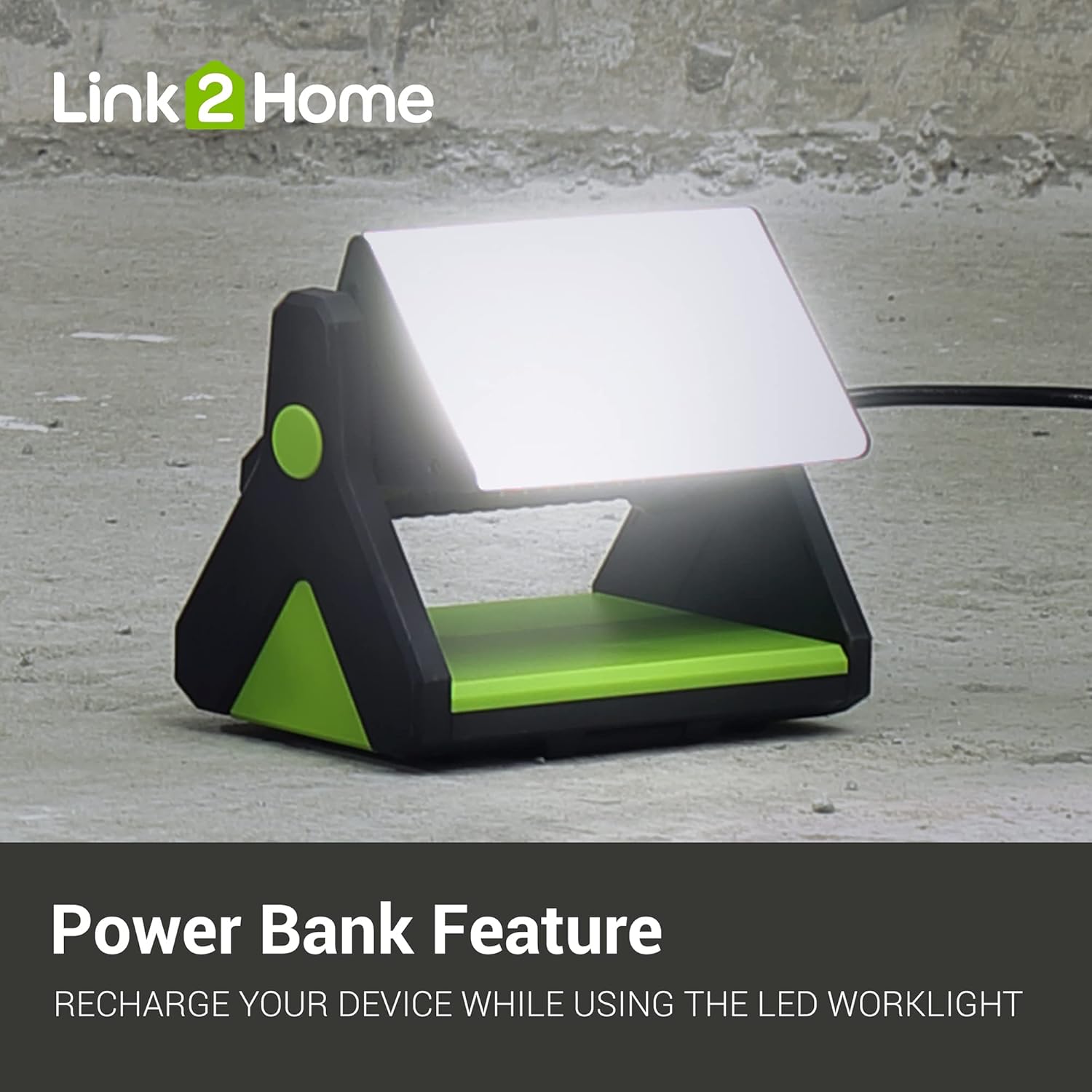

Figure 5: The work light's power bank feature in use, charging a mobile device.

Figure 6: Illustration of the 300° rotation system for directing light.

5. سار سنڀال

To ensure the longevity and optimal performance of your Link2Home 30W LED Work Light, follow these maintenance guidelines:

• صفائي: Disconnect the power before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Avoid abrasive cleaners or solvents that could damage the finish or lens.
• اسٽوريج: When not in use, store the work light in a cool, dry place away from direct sunlight and extreme temperatures.
• چڪاس: Periodically inspect the power cord for any signs of damage, fraying, or wear. If damage is found, discontinue use and contact customer support.
• لينس جي سنڀال: The impact-resistant glass lens should be kept clean for maximum light output. Clean gently with a soft cloth.

6. مسئلا حل ڪرڻ

If you encounter issues with your Link2Home 30W LED Work Light, please refer to the following common troubleshooting steps:

• روشني نه ٿي جلي:
  • پڪ ڪريو ته بجلي جي تار محفوظ طور تي هڪ فعال برقي آئوٽليٽ ۾ لڳل آهي.
  • Verify that the ON/OFF switch is in the 'ON' position.
  • Check the power outlet with another device to confirm it is supplying power.
• Light Output is Low:
  • Confirm the brightness setting is on 'High' if maximum illumination is desired.
  • Ensure the lens is clean and free from dirt or obstructions.
• Device Not Charging via Power Bank:
  • Ensure the work light is powered on.
  • Verify that your device's USB cable is properly connected to the charging port.
  • Check if your device is compatible with the charging output of the work light.

If these steps do not resolve the issue, please contact Link2Home customer support for further assistance.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

For detailed warranty information, please refer to the documentation included with your product or visit the official Link2Home website. If you require technical assistance, have questions about product operation, or need to report an issue, please contact Link2Home customer support directly.

You can find contact information on the Link2Home webسائيٽ تي يا پنهنجي پرچون ڪندڙ ذريعي.
