Browning Spec Ops Elite HP5 Trail Camera User Manual

تعارف

The Browning Spec Ops Elite HP5 is a high-performance trail camera designed for capturing wildlife images and videos, as well as for security surveillance. It features advanced imaging capabilities, robust construction, and user-friendly controls to ensure reliable operation in various outdoor conditions. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your camera.

تصوير: سامهون view of the Browning Spec Ops Elite HP5 Trail Camera, showcasing its camouflage design and lens.

اهم خاصيتون

• هاء ريزوليوشن تصويري: Captures 24MP still images for exceptional detail.
• مڪمل HD وڊيو: Records 1920 x 1080p HD+ videos with sound.
• تيز ٽرگر اسپيڊ: Adjustable 0.1-0.7 second trigger speed to capture fast-moving subjects.
• وڌايل نائيٽ ويزن: Invisible infrared (IR) illumination reaches up to 100 feet, ideal for discreet night surveillance.
• Illuma-Smart Technology: Automatically adjusts IR flash for optimal night photos.
• Long Detection Range: Features an 80ft detection range.
• Programmable Delay: Customizable picture delay from 1 second to 60 minutes.
• Multi-Shot & Rapid-Fire: Options for capturing multiple images per trigger or rapid-fire sequences.
• رنگ Viewاسڪريننگ: Built-in 2-inch color screen for easy setup and playback.
• SDXC Card Support: 512GB تائين ميموري ڪارڊ کي سپورٽ ڪري ٿو.
• پائيدار ڊيزائن: Rugged and water-resistant construction (IP54 rated) for outdoor use.

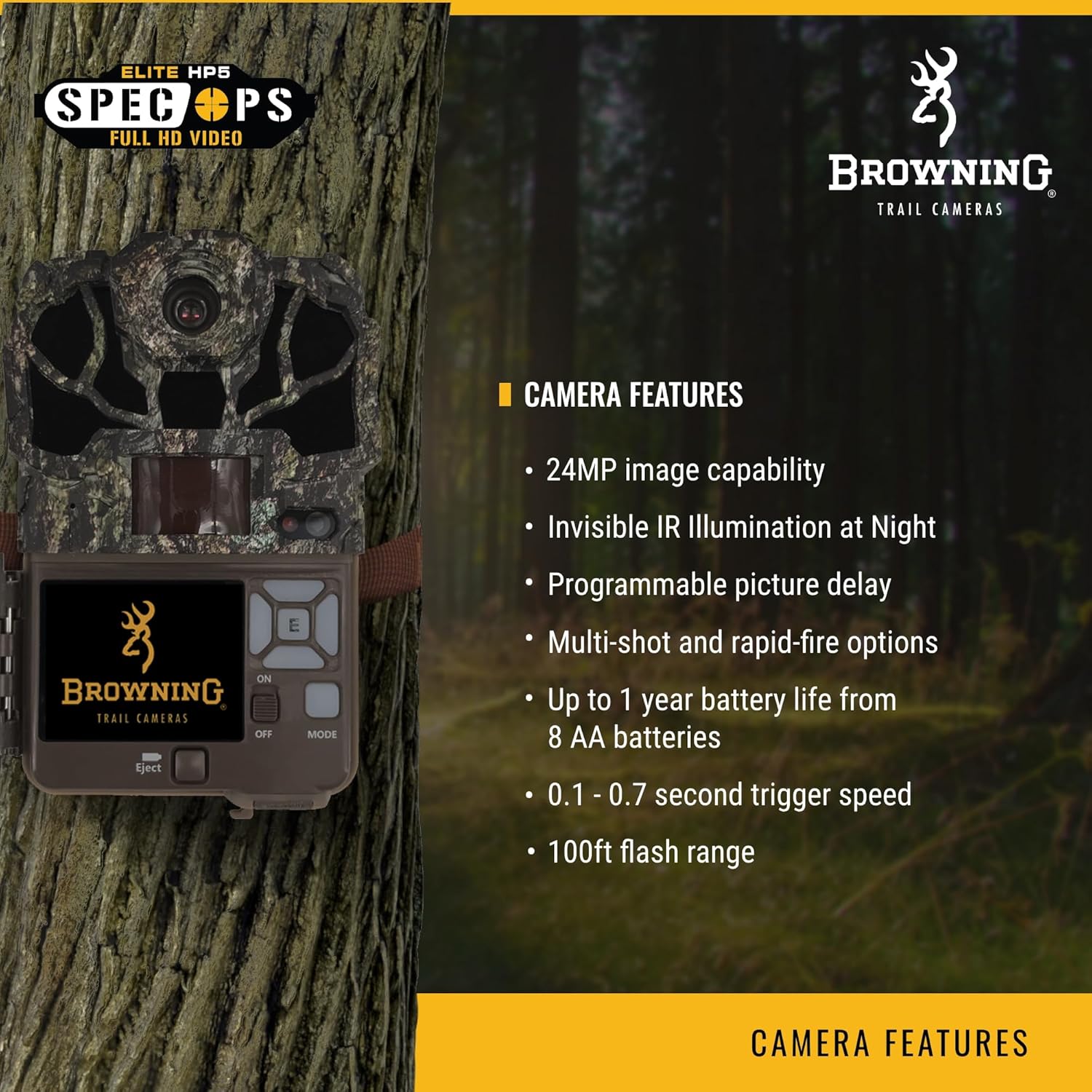

Image: A visual representation of the camera highlighting its key features like 24MP capability and invisible IR illumination.

تصوير: ٻيو view emphasizing advanced features such as 1080p Full HD videos and the 2-inch color view اسڪرين.

سيٽ اپ ڪريو

1. بيٽري لڳائڻ

1. Open the camera housing by releasing the latches on the side.
2. Locate the battery compartment. The Spec Ops Elite HP5 requires 8 AA batteries.
3. بيٽريون داخل ڪريو، صحيح پولارٽي (+/-) کي يقيني بڻائي جيئن ڪمري اندر ڏيکاريل آهي.
4. بيٽري جي ڪمري کي محفوظ طور تي بند ڪريو.

2. ايس ڊي ڪارڊ داخل ڪرڻ

1. ڪئميرا هائوسنگ کليل هجڻ سان، ايس ڊي ڪارڊ سلاٽ ڳوليو.
2. Insert a compatible SDXC memory card (up to 512GB) into the slot until it clicks into place. Ensure the card is inserted with the label facing the correct direction.
3. To remove the SD card, gently push it in until it clicks, then release, and it will eject.

Image: The camera with its side compartment open, showing the battery and SD card slots, and the internal display screen.

3. ڪئميرا لڳائڻ

The camera can be mounted using the rear housing bracket or the bottom standard 1/4"-20 thread. Use the included strap or a compatible mounting accessory to secure the camera to a tree or post. Ensure the camera is stable and pointed towards the desired area of surveillance.

Image: Two individuals setting up the Browning Spec Ops Elite HP5 trail camera in an outdoor environment, demonstrating typical mounting.

ڪئميرا هلائڻ

1. Powering On and Initial Settings

1. After installing batteries and SD card, slide the power switch to the 'ON' position.
2. The 2-inch color viewing screen will activate.
3. Navigate the menu using the directional buttons and 'OK' button to set the date, time, and other initial preferences.

2. آپريشن موڊ چونڊڻ

The camera offers various operation modes:

• Trail Cam (Photo Mode): Captures still images when motion is detected.
• وڊيو موڊ: Records video clips when motion is detected.
• Time Lapse Plus: Captures images at set intervals over a period, in addition to motion-triggered images.

Access the 'Operation Mode' setting in the menu to select your desired mode. For optimal wildlife monitoring, 'Video Mode' is often preferred for capturing animal behavior with sound.

3. سيٽنگون ترتيب ڏيڻ

Within the menu, you can customize various settings:

• فوٽو جو معيار Select image resolution (e.g., 24MP).
• وڊيو قرارداد: Choose video quality (e.g., 1080p).
• ٽرڪ جي رفتار: Adjust the speed at which the camera reacts to motion.
• دير جو پتو لڳائڻ: Set the time interval between consecutive captures.
• فليش موڊ: Configure night vision settings.
• ڪئميرا جي سڃاڻپ: Assign a unique ID for easier organization if using multiple cameras.

4. Viewing Captured Media

Use the 'Playback' option in the menu to review photos and videos directly on the camera's screen. You can also remove the SD card and view media on a computer or compatible device.

Image: A high-quality image of a deer captured by the Browning Spec Ops Elite HP5, demonstrating the camera's performance in the field.

سار سنڀال

• صفائي: Regularly wipe the camera lens and IR sensors with a soft, lint-free cloth to ensure clear images. Avoid abrasive materials or harsh chemicals.
• بيٽري مٽائڻ: Replace all 8 AA batteries when the low battery indicator appears or when performance degrades. Use high-quality alkaline or lithium batteries for best results.
• ايس ڊي ڪارڊ انتظام: Periodically format your SD card using the camera's menu option to maintain optimal performance and prevent data corruption. Back up important media before formatting.
• اسٽوريج: When not in use, store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.
• موسم جي حفاظت: Although water-resistant, avoid submerging the camera in water. Ensure all latches are securely closed during outdoor deployment to protect internal components from moisture.

مشڪلاتون

وضاحتون

Image: A detailed specification chart for the Spec Ops Elite HP5, outlining technical data.

وارنٽي ۽ سپورٽ

The Browning Spec Ops Elite HP5 Trail Camera comes with a 1 سالن جي محدود وارنٽي. This warranty covers defects in workmanship and materials under normal conditions of use. Browning will repair or replace the unit with a new or refurbished unit as needed.

For technical support, warranty claims, or additional product information, please visit the official Browning webسائيٽ تي وڃو يا انهن جي ڪسٽمر سروس ڊپارٽمينٽ سان رابطو ڪريو. توهان پڻ دورو ڪري سگهو ٿا Browning Store on Amazon وڌيڪ شين ۽ وسيلن لاءِ.
