1. تعارف
This manual provides instructions for the YAOHUIMI replacement remote control, designed for use with various Fujitsu wall-mounted inverter air conditioner models. This remote control offers essential functions for operating your air conditioning unit.
Compatible Fujitsu Air Conditioner Models include:
- ASTA09LCC, ASTA12LCC, ASTA09LFC, ASTA12LFC
- ASTA24LFC, ASTA30LFC, ASTA24LCC, ASTA30LCC
- And other compatible Fujitsu models as specified by the manufacturer.
Please verify your air conditioner's model number for compatibility before use. While this remote may appear different from your original, it is designed to provide full functionality for the listed models.

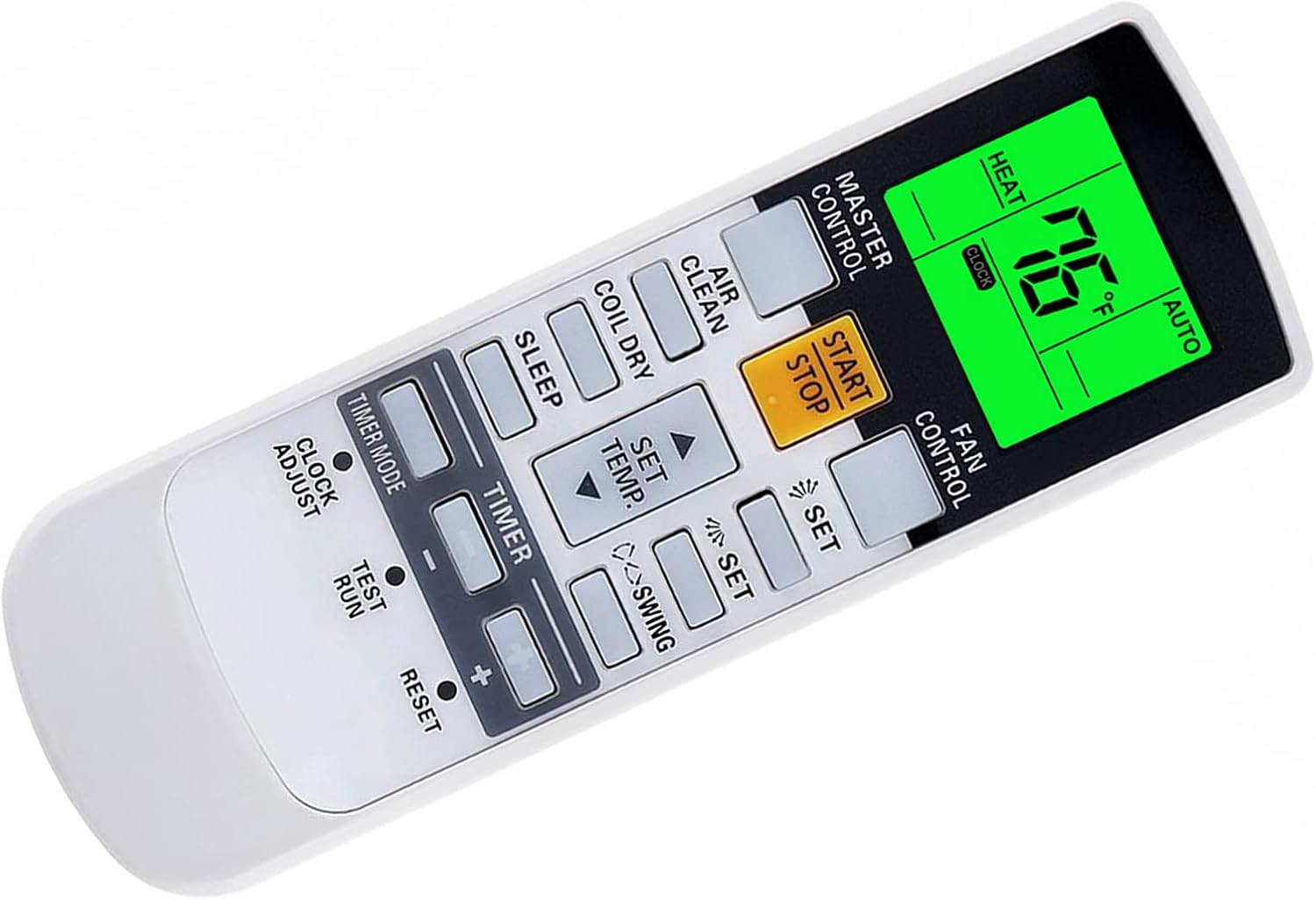

هڪ زاويه وارو view of the YAOHUIMI replacement remote control, displaying its buttons and the green backlit LCD screen showing 'HEAT' mode and '78°F'.
2. سيٽ اپ
2.1. بيٽري لڳائڻ
- ريموٽ ڪنٽرول جي پٺي تي بيٽري جي خاني کي ڳوليو.
- Slide the battery compartment cover downwards or press the 'OPEN' tab and lift to remove it.
- Insert two new AAA batteries (not included), ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- بيٽري جي ڪمپارٽمينٽ جي ڍڪ کي تبديل ڪريو، پڪ ڪريو ته اهو محفوظ طور تي جاءِ تي ڪلڪ ڪري.
هڪ صاف view of the back of the remote control, with an 'OPEN' indicator for the battery compartment cover.
2.2. شروعاتي استعمال
Upon successful battery installation, the remote control is ready for immediate use. No programming or pairing is typically required for this replacement unit.
3. آپريٽنگ هدايتون
ڪم ڪرڻ وقت ريموٽ ڪنٽرول کي سڌو سنئون ايئر ڪنڊيشنر جي رسيور ڏانهن اشارو ڪريو.
3.1. بنيادي ڪم
- START/STOP بٽڻ: ايئر ڪنڊيشنر کي آن يا آف ڪرڻ لاءِ دٻايو.
- SET TEMP. Buttons (Up/Down Arrows): گهربل درجه حرارت کي ترتيب ڏيو.
- FAN CONTROL Button: Cycles through fan speed settings (e.g., Auto, Low, Medium, High).
- MASTER CONTROL Button: Selects the operating mode (e.g., Auto, Cool, Dry, Heat, Fan).
- SWING Buttons: Adjusts the louver swing direction.
3.2. خاص خاصيتون
- Fahrenheit and Celsius Display: The remote control can display temperature in both Fahrenheit (°F) and Celsius (°C). The display unit can be toggled as needed.
- سائي پٺڀرائي: The LCD screen features a green backlight for improved visibility and convenient operation in low-light conditions.
- ٽائمر موڊ: Use the TIMER buttons to set on/off timers for the air conditioner. Refer to your air conditioner's main manual for detailed timer programming.
- سمهڻ جو طريقو: Activates a quiet operation mode, often with gradual temperature adjustments for comfort during sleep.
- AIR CLEAN / COIL DRY: These functions, if supported by your AC unit, activate specific cleaning or drying cycles.
Two images of the remote control side-by-side. The left shows the display in Fahrenheit (76°F), and the right shows it in Celsius (16°C). An arrow points to the temperature display, and text highlights the 'GREEN BACKLIGHT' feature and '°C ⇌ °F' conversion.
3.3. Advanced Heat Functions (If Applicable)
Certain Fujitsu models may support advanced heat functions such as 10 ° سي گرمي, 50 ° F گرمي, MINI.HEAT، يا اقتصاديات. These functions are only available if your original air conditioner remote control also featured them.
To activate these functions, press and hold the relevant button (e.g., a specific mode button or a combination) for approximately 4 seconds. The remote's display will indicate activation if successful.
An image of the remote control with text overlays explaining how to activate '10°C HEAT', '50°F HEAT', 'MINI.HEAT', or 'ECONOMY' functions by pressing and holding a button for 4 seconds. It notes these functions are available only if the original remote had them.
4. سار سنڀال
4.1. صفائي
Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the surface or internal components.
4.2. بيٽري مٽائڻ
Replace batteries when the remote control's range decreases, the display becomes dim, or it stops responding. Always replace both batteries simultaneously with new AAA batteries. Remove batteries if the remote will not be used for an extended period to prevent leakage.
5. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ريموٽ جواب نه ڏئي رهيو آهي | بيٽريون ختم ٿيل يا غلط طور تي داخل ڪيون ويون آهن. ريموٽ ۽ اي سي يونٽ جي وچ ۾ رڪاوٽ. | صحيح پولارٽي کي يقيني بڻائيندي، بيٽريون تبديل ڪريو. ڪنهن به رڪاوٽ کي هٽايو. پڪ ڪريو ته ريموٽ سڌو سنئون AC يونٽ ڏانهن اشارو ڪيو ويو آهي. |
| ڊسپلي ٿلهي يا خالي آهي | گھٽ بيٽري طاقت. | بيٽرين کي تبديل ڪريو. |
| AC unit does not respond to specific functions | فنڪشن توهان جي مخصوص AC ماڊل پاران سپورٽ نه ڪيو ويو آهي. | Verify your AC unit's manual for supported functions. This replacement remote provides functions common to many compatible models. |
6. وضاحتون
- برانڊ: YAOHUIMI
- ماڊل نمبر: A420220331-BEIGUANG-50
- مطابقت رکندڙ ڊوائيسز: Fujitsu Air Conditioners (ASTA09LCC, ASTA09LFC, ASTA12LCC, ASTA12LFC, ASTA24LCC, ASTA24LFC, ASTA30LCC, ASTA30LFC, and others)
- ڪنٽرولر جو قسم: بٽڻ ڪنٽرول
- خاص خصوصيت: ايرگونومڪ ڊيزائن، سائي بيڪ لائيٽ، فارنهائيٽ/سيلسيئس ڊسپلي
- طاقت جو ذريعو: 2 x AAA بيٽريون (شامل نه آهن)
7. وارنٽي ڄاڻ
Please refer to the seller's or manufacturer's terms of sale for specific warranty details regarding this product. Typically, replacement remote controls come with a limited warranty covering manufacturing defects.
8. سپورٽ
For further assistance or inquiries regarding your YAOHUIMI replacement remote control, please contact the seller directly through the platform where the purchase was made. Provide your order number and product model for efficient support.
