تعارف
The Fuzion TRI Digital Grams Scale is designed for high-precision weighing of small objects. Its compact size and multiple unit options make it suitable for various applications, including measuring coins, jewelry, coffee, herbs, and powders. This manual provides detailed instructions for proper setup, operation, and maintenance to ensure accurate and reliable performance.
اهم خاصيتون:
- اعلي سڌائي: Weighs objects up to 200g with 0.01g readability (accurate to ±0.03g).
- گھڻن يونٽ: Supports 6 different weight modes: g, oz, dwt, gn, ct, ozt.
- عملي ڊيزائن: Features a 1.65in×0.79in orange LCD screen, stainless steel weighing pan, and a protective flip cover with magnetic attraction.
- ٽائر فنڪشن: Allows zeroing of container weight for net measurements.
- سمارٽ افعال: Includes low battery and overload indicators, and adjustable auto-off time for power saving.
سيٽ اپ ڪريو
1. بيٽري لڳائڻ
The scale requires 2 AAA batteries (included). To install:
- اسڪيل جي هيٺئين پاسي بيٽري جي خاني کي ڳوليو.
- بيٽري جو ڍڪ کوليو.
- 2 AAA بيٽريون داخل ڪريو، صحيح پولارٽي (+/-) کي يقيني بڻائي.
- بيٽري جي ڍڪ کي محفوظ طور تي بند ڪريو.
نوٽ: The scale comes with a protective card under the platform. Please remove it before first use.
Figure 1: Fuzion TRI Digital Grams Scale with included accessories.
Figure 2: Detail of battery installation and various weighing units.
2. شروعاتي جڳهه
Place the scale on a hard, flat, and stable surface to ensure accurate readings. Avoid placing it on soft or uneven surfaces, or near sources of vibration or air currents.
آپريشن
1. پاور آن/آف
- چالو ڪرڻ لاءِ: دٻايو آن/بند button. The LCD display will light up and show "0.00" when ready.
- بند ڪرڻ لاءِ: دٻايو ۽ رکو آن/بند button for approximately 3 seconds. The scale will also auto-off after a period of inactivity (adjustable).
2. يونٽ جي تبديلي
The scale supports multiple weighing units. To change the unit:
- کي دٻايو موڊ button repeatedly to cycle through the available units: grams (g), ounces (oz), troy ounces (ozt), pennyweights (dwt), grains (gn), and carats (ct).
- چونڊيل يونٽ LCD اسڪرين تي ڏيکاريو ويندو.
3. ٽائر فنڪشن
The Tare function allows you to subtract the weight of a container, so only the net weight of the item is measured.
- وزني پين تي خالي ڪنٽينر رکو.
- کي دٻايو تارو button. The display will reset to "0.00".
- وزن ڪرڻ لاءِ شيون ڪنٽينر ۾ شامل ڪريو. ڊسپلي شين جو خالص وزن ڏيکاريندو.
Figure 3: Step-by-step illustration of using the Tare function.
4. حساب ڪتاب
For optimal accuracy, periodic calibration is recommended. The scale includes a 50g calibration weight.
- Turn the scale on and wait for "0.00" to display.
- کي دٻايو ۽ رکو موڊ بٽڻ دٻايو جيستائين ڊسپلي "CAL" نه ڏيکاري، پوءِ ڇڏي ڏيو.
- کي دٻايو موڊ button again. The display will flash the required calibration weight (e.g., "50.00").
- Place the 50g calibration weight gently on the center of the weighing pan.
- ڊسپلي "PASS" ڏيکاريندو ۽ پوءِ عام وزن واري موڊ ڏانهن موٽندو، جيڪو ڪامياب ڪيليبريشن کي ظاهر ڪندو.
Figure 4: Calibration process with the 50g weight.
5. پراڊڪٽ ختمview وڊيو
وڊيو 1: هڪ اوورview of the Fuzion TRI Digital Grams Scale, demonstrating its compact size, battery installation, and basic weighing functions. This video highlights the scale's portability and ease of use for various small items.
6. Digital Pocket Scale Demonstration
Video 2: A demonstration of a digital pocket scale, showcasing its unit conversion capabilities and how it can be used to weigh items like coffee beans, jewelry, coins, and even a feather, emphasizing its precision for very light objects.
سار سنڀال
1. صفائي
ماپ کي صاف ڪرڻ لاء، ان کي ٿوري ڊي سان مسح ڪريوamp cloth. Do not immerse the scale in water or use abrasive cleaners, as this may damage the electronic components.
2. اسٽوريج
When not in use, keep the protective flip cover closed to shield the weighing pan and display from dust and damage. Store the scale in a dry, stable environment.
مشڪلاتون
- "Lo" or Low Battery Indicator: If the display shows "Lo" or the readings become inconsistent, replace the batteries.
- "O-Ld" or Overload Indicator: If the display shows "O-Ld", the scale is overloaded. Remove the item immediately to prevent damage. The maximum capacity is 200g.
- غلط پڙھڻ: Ensure the scale is on a flat, stable surface. Recalibrate the scale using the provided 50g weight. Avoid strong electromagnetic interference.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| پيداوار جي ماپ | 5.47 x 3.27 x 0.98 انچ |
| شيءِ جو وزن | 8.82 آونس (تقريبن 250 گرام) |
| شيون ماڊل نمبر | TRI-RD |
| ظرف | 200 جي |
| پڙهڻ جي صلاحيت | 0.01 جي |
| درستگي | ±0.03 گرام |
| وزني يونٽ | g, oz, dwt, gn, ct, ozt |
| ڊسپلي جو قسم | LCD (Orange Backlit) |
| طاقت جو ذريعو | 2 x AAA بيٽريون (شامل) |
| خاص خصوصيت | Auto Shut Off, Tare Function |
وارنٽي ۽ سپورٽ
This Fuzion TRI Digital Grams Scale comes with a 2-year warranty. For any questions or support needs, please contact Fuzion customer service. We are committed to providing 100% satisfaction and are always ready to assist you.
اضافي پيداوار Views

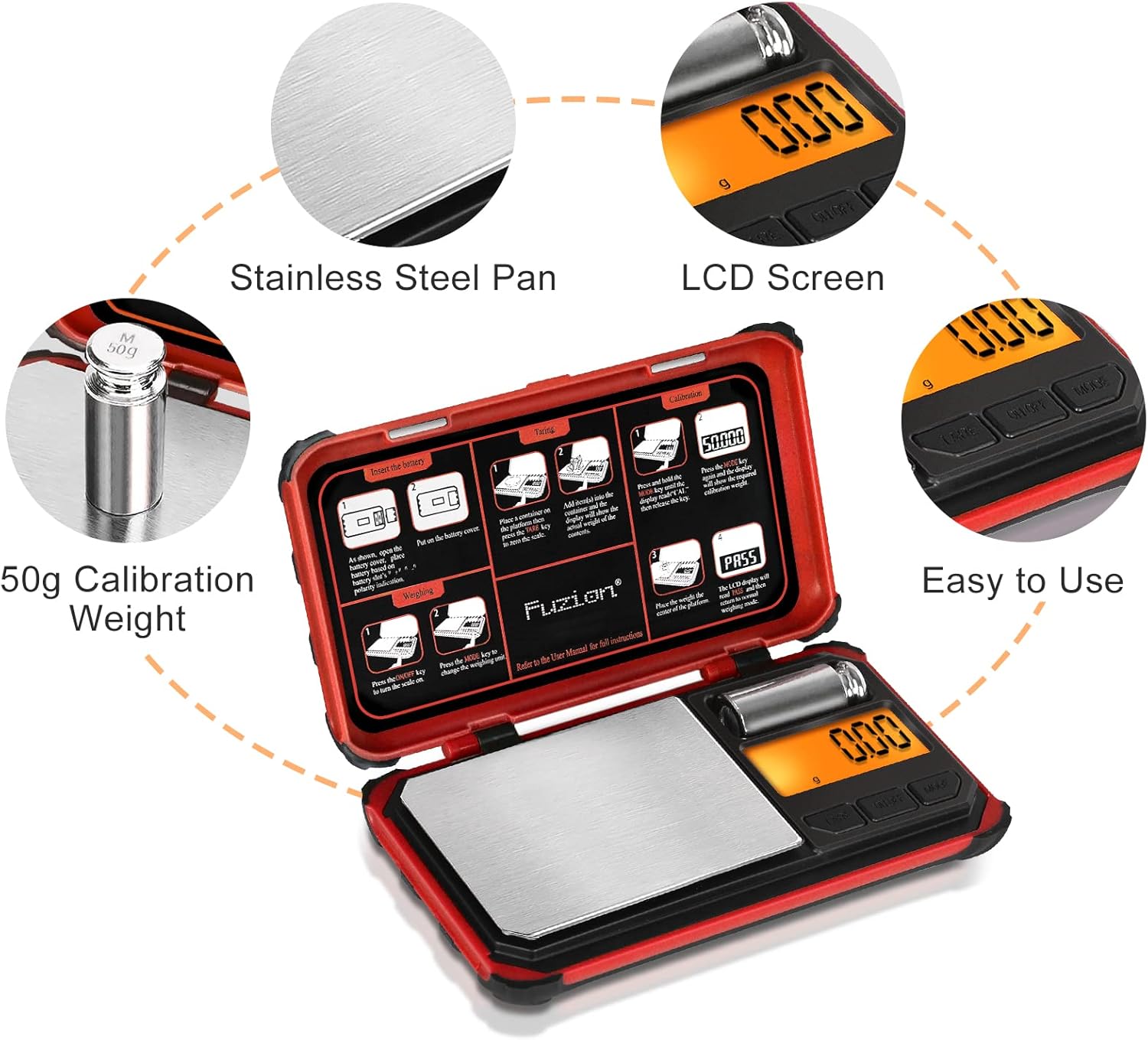

Figure 5: High precision weighing for various small objects.
شڪل 6: آسان کڻڻ لاءِ ڪمپيڪٽ ۽ پورٽيبل ڊيزائن.
Figure 7: Durable stainless steel weighing pan and clear LCD screen.
