آپٽيمس انسٽنٽ واٽر هيٽر OI-05 B گيس ايل پي يوزر مينوئل

تعارف

This manual provides essential information for the safe and efficient operation of your Optimus Instant Water Heater, Model OI-05 B Gas L.P. This appliance is designed to provide continuous hot water on demand, offering efficiency and convenience for a single service point. Please read these instructions thoroughly before installation and use, and retain them for future reference.

Key features include continuous hot water flow, automatic ignition upon hot water demand, and compatibility with both high and low water pressure systems.

حفاظت جي ڄاڻ

اھم حفاظتي ھدايتون:

• تنصيب سڀني مقامي ضابطن ۽ ضابطن جي مطابق هڪ قابل پيشه ور طرفان ڪئي وڃي.
• Ensure adequate ventilation for the appliance to prevent carbon monoxide buildup.
• پاڻي جي هيٽر جي ويجهو ٻرندڙ مواد ذخيرو نه ڪريو.
• Regularly inspect gas connections for leaks. Use a soapy water solution, never an open flame.
• ايگزاسٽ وينٽ کي بلاڪ نه ڪريو.
• آپريشن دوران ٻارن ۽ پالتو جانورن کي اوزار کان پري رکو.
• In case of gas odor, immediately shut off the gas supply, open windows, and contact a qualified technician.

پيداوار ختمview

The Optimus OI-05 B is an instant water heater designed for indoor installation, providing hot water for one service point. It operates on LP (Liquid Propane) gas and features a compact design for wall mounting.

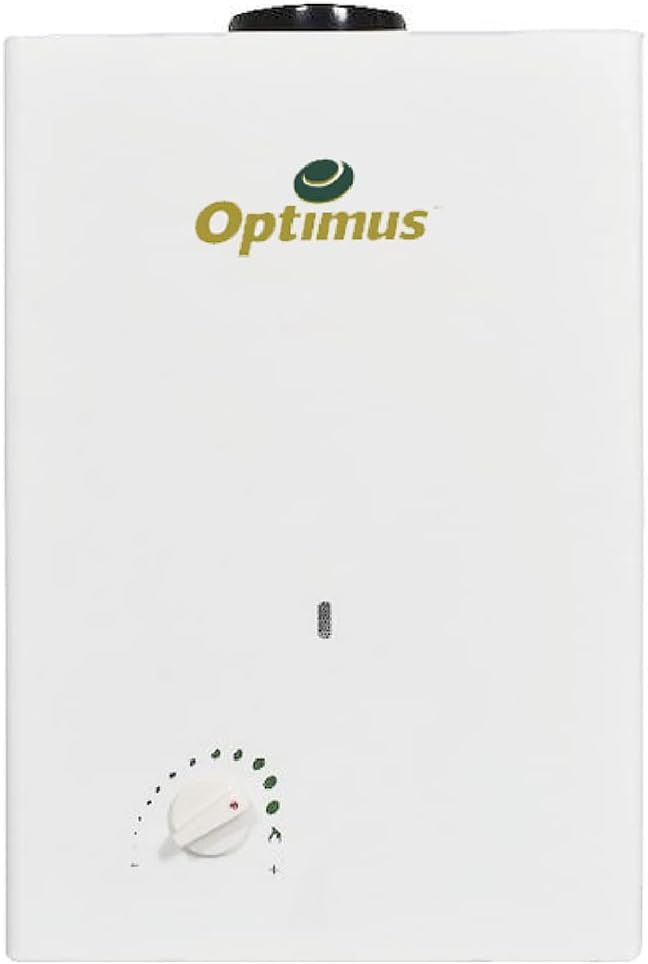

تصوير: سامهون view of the Optimus Instant Water Heater, Model OI-05 B. The unit is white with the Optimus logo at the top and a control knob at the bottom.

تصوير: زاويه view of the Optimus Instant Water Heater, showing the side vents and the compact design. The unit is white with the Optimus logo at the top and a control knob at the bottom.

The unit's dimensions are approximately 30 cm (length) x 13.5 cm (width) x 48.8 cm (height), making it suitable for various indoor spaces.

تصوير: Diagram illustrating the dimensions of the Optimus Instant Water Heater. The height is 48.8 cm, length is 30 cm, and width is 13.5 cm.

سيٽ اپ ۽ تنصيب

The Optimus OI-05 B water heater is designed for indoor wall-mounted installation. Due to the nature of gas and water connections, professional installation is strongly recommended حفاظت ۽ مناسب ڪارڪردگي کي يقيني بڻائڻ لاء.

انسٽاليشن جا مرحلا (مٿي)view):

1. جڳھ جي چونڊ: Choose a well-ventilated indoor location, away from flammable materials, with easy access to water and gas lines. The unit is designed for wall mounting.
2. چڙهڻ: Securely mount the water heater to a sturdy wall using appropriate hardware. Ensure it is level.
3. پاڻي ڪنيڪشن: Connect the cold water inlet and hot water outlet pipes. Ensure all connections are tight and leak-free.
4. گيس ڪنيڪشن: Connect the LP gas supply line to the water heater. Use appropriate gas-rated fittings and ensure a leak-free connection. Perform a leak test with soapy water.
5. وينٽيليشن: Ensure the exhaust vent is properly installed and unobstructed, directing combustion gases safely outdoors.
6. شروعاتي شروعات: After all connections are secure and checked, slowly open the gas supply valve. Open a hot water faucet to allow water to flow through the unit and purge air from the system.

تصوير: The Optimus Instant Water Heater mounted on a brick wall, demonstrating a typical indoor installation. The unit is white and blends with the wall.

Refer to the detailed installation guide provided with the product packaging for specific diagrams and instructions.

آپريٽنگ هدايتون

The Optimus OI-05 B water heater features automatic ignition, simplifying its operation.

بنيادي آپريشن:

1. Ensure Gas Supply: Verify that the LP gas supply valve is open.
2. پاڻي جو وهڪرو: Open any hot water faucet in your home. The water heater will detect the flow and automatically ignite to heat the water.
3. درجه حرارت جي ترتيب: Use the control knob on the front of the unit to adjust the desired water temperature. Turning the knob towards the '+' symbol increases the temperature, and towards the '-' symbol decreases it.
4. بند ڪر: When the hot water faucet is closed, the water heater will automatically turn off.

The unit is designed to work effectively with both high and low water pressure, ensuring consistent performance.

سار سنڀال

Regular maintenance ensures the longevity and efficient operation of your Optimus Instant Water Heater. It is recommended to have the unit inspected by a qualified technician annually.

معمول جي چڪاس:

• وينٽيليشن: Ensure the area around the water heater is clear and the exhaust vent is free from obstructions.
• گئس ڪنيڪشن: Periodically check gas connections for any signs of leaks (e.g., using a soapy water solution).
• پاڻي جا رستا: Inspect water pipes and connections for any drips or leaks.
• صفائي: Keep the exterior of the unit clean. Do not use abrasive cleaners.

For any internal maintenance or repairs, always contact a certified service professional.

مشڪلاتون

This section addresses common issues you might encounter with your water heater.

If troubleshooting steps do not resolve the issue, contact customer support or a certified technician.

وضاحتون

وارنٽي ۽ سپورٽ

For warranty information, technical support, or service requests, please refer to the documentation included with your product or contact Optimus customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

ٺاهيندڙ: Optimus

وڌيڪ مدد لاء، دورو ڪريو جي Optimus Brand Store.
