Grinding Dust Extractor Instruction Manual

1. پراڊڪٽ ختمview

The BIHUI Grinding Dust Extractor is an essential accessory designed to significantly reduce dust during grinding operations. This attachment is compatible with 4.5-inch to 5-inch cup wheels and integrates seamlessly with most angle grinders, providing a cleaner and safer working environment. It includes a set of universal connectors and a dedicated rubber adapter for vacuum cleaner attachment.

• Works with 4-1/2″ and 5″ cup wheels.
• Features universal connectors for a wide range of angle grinders.
• Equipped with a quick-release lock for easy attachment and removal.
• Includes a rubber adapter for direct connection to a vacuum cleaner.

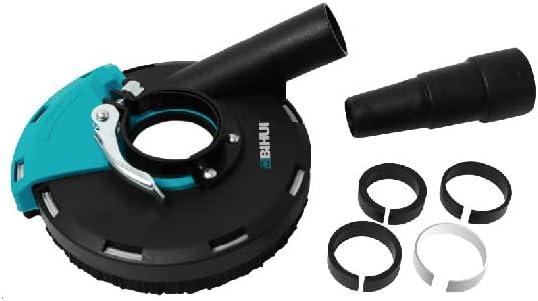

Figure 1.1: The BIHUI Grinding Dust Extractor, including the main unit, four universal connectors, and a vacuum hose adapter.

2. حفاظت جي ڄاڻ

Always prioritize safety when operating power tools and accessories. Failure to follow these instructions may result in serious injury or property damage.

• دستورالعمل پڙهو: Always read and understand the instruction manual for your angle grinder before attaching or using the dust extractor.
• ذاتي حفاظتي سامان (PPE): Always wear appropriate PPE, including safety glasses, hearing protection, and a dust mask or respirator, especially when grinding.
• وينٽيليشن: Ensure adequate ventilation in your work area. Even with a dust extractor, some fine particles may become airborne.
• محفوظ منسلڪ: Ensure the dust extractor is securely attached to the angle grinder and the vacuum hose is firmly connected before operation.
• پاور ڪنيڪشن: Disconnect the angle grinder from the power source before making any adjustments, changing accessories, or performing maintenance.
• سامان جي چڪاس ڪريو: Before each use, inspect the dust extractor and angle grinder for any damage, loose parts, or wear. Do not use damaged equipment.
• مناسب استعمال: Use the dust extractor only for its intended purpose: dust collection during angle grinding with compatible cup wheels.

3. پيڪيج مواد

پيڪيج کولڻ وقت پڪ ڪريو ته سڀئي شيون موجود آهن ۽ انهن کي ڪو نقصان نه پهتو آهي:

• 1 x BIHUI Grinding Dust Extractor Unit
• 4 x Universal Connectors (various sizes)
• 1 x Rubber Vacuum Adapter

Figure 3.1: All components included in the BIHUI Grinding Dust Extractor package.

4. سيٽ اپ ۽ اسيمبلي

Follow these steps to properly attach the dust extractor to your angle grinder and connect it to a vacuum system.

1. Prepare Angle Grinder: Ensure your angle grinder is unplugged. Remove any existing guards or accessories from the grinder's spindle.
2. Select Universal Connector: Choose the universal connector that best fits the collar of your angle grinder. The kit includes various sizes to ensure compatibility.
3. Install Connector: Place the selected universal connector onto the angle grinder's collar.
4. Attach Dust Extractor: Slide the BIHUI Grinding Dust Extractor onto the universal connector. Secure it in place using the quick-release lock mechanism. Ensure it is firmly seated and does not wobble.
5. Connect Vacuum Adapter: Insert the rubber vacuum adapter into the dust port of the extractor.
6. ويڪيوم هوز ڳنڍيو: Attach your vacuum cleaner hose to the rubber vacuum adapter. Ensure a tight seal for optimal dust collection.

Figure 4.1: The dust extractor securely attached to an angle grinder, ready for vacuum connection.

Figure 4.2: Detail showing the easy connection of a vacuum cleaner hose to the dust extractor's port.

5. آپريشن

Once the dust extractor is properly assembled and connected, you can begin your grinding task with significantly reduced dust.

1. Power On Vacuum: Before starting the angle grinder, turn on your vacuum cleaner to ensure immediate dust extraction.
2. Begin Grinding: Power on your angle grinder and proceed with your grinding work as usual. The dust extractor's brush base will contain the dust, directing it into the vacuum system.
3. Edge Grinding: The dust extractor features a movable guard that can be adjusted to allow grinding closer to edges and walls. Carefully adjust this guard as needed for specific tasks.
4. مٽي گڏ ڪرڻ جي نگراني ڪريو: Periodically check your vacuum cleaner's dust bag or canister and empty it as necessary to maintain optimal suction.
5. ڪم ختم ڪريو: Once grinding is complete, turn off the angle grinder first, then allow the vacuum to run for a few more seconds to clear any remaining dust from the hose and extractor.

Figure 5.1: Illustration of grinding without a dust extractor, highlighting the amount of airborne dust generated.

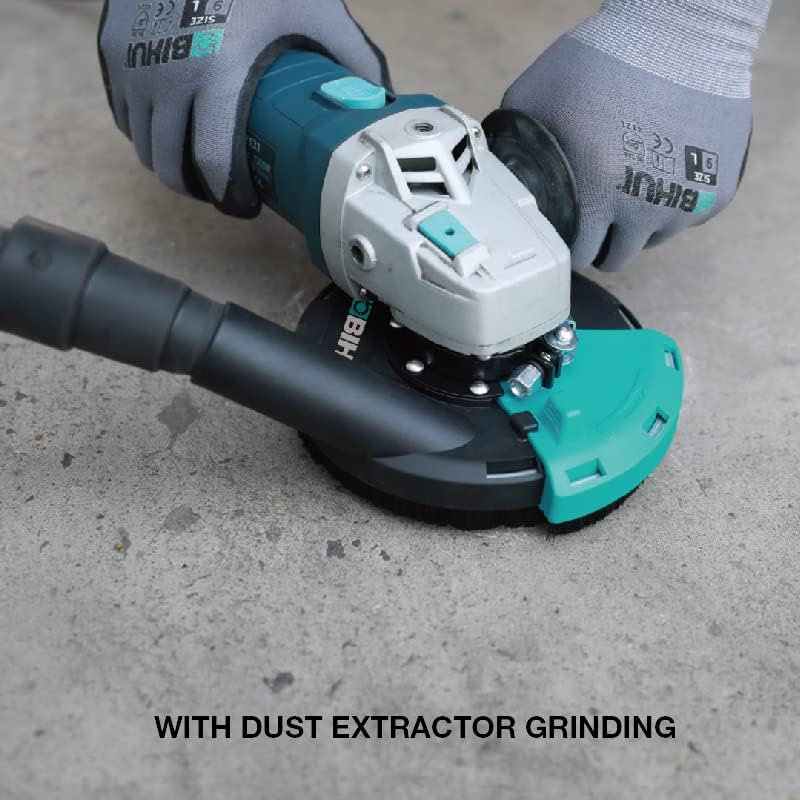

Figure 5.2: Grinding with the BIHUI dust extractor, demonstrating effective dust containment and a cleaner work area.

Figure 5.3: The brush base of the dust extractor provides stable support and helps contain dust during operation.

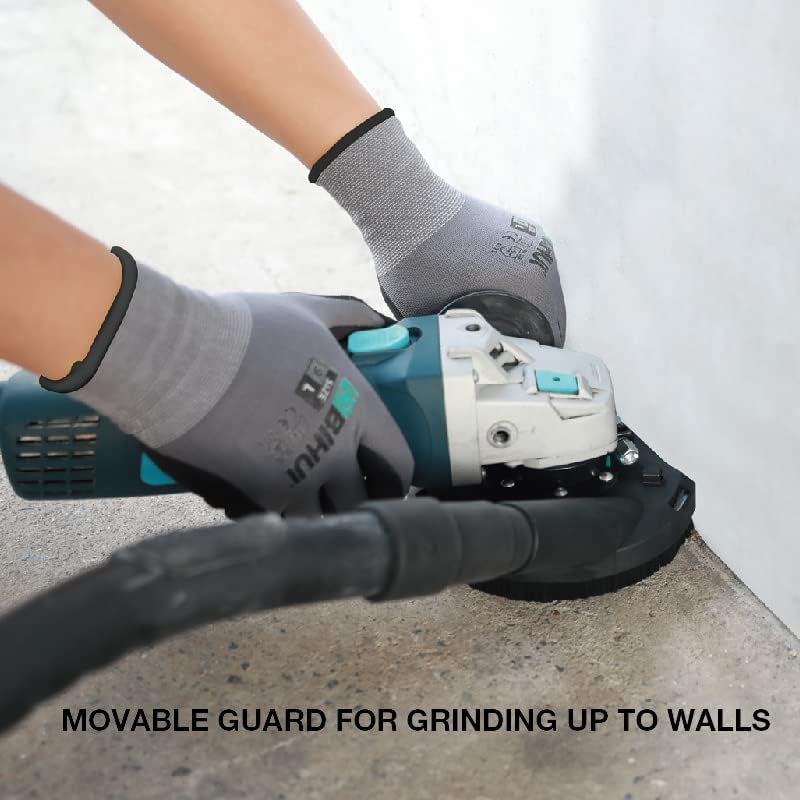

Figure 5.4: The movable guard allows for efficient grinding up to walls and edges, maximizing dust collection in tight spaces.

6. سار سنڀال

Regular maintenance ensures the longevity and optimal performance of your dust extractor.

• صفائي: After each use, disconnect the dust extractor from the angle grinder and vacuum. Use a brush or compressed air to remove any accumulated dust from the interior and exterior surfaces, especially around the brush skirt and dust port.
• برش جو معائنو ڪريو: Periodically inspect the brush skirt for wear or damage. Worn brushes can reduce dust collection efficiency. Replace if necessary.
• ڪنيڪٽر چيڪ ڪريو: Ensure the universal connectors and rubber vacuum adapter are free from debris and maintain a snug fit. Clean if necessary.
• اسٽوريج: Store the dust extractor in a clean, dry place away from direct sunlight and extreme temperatures.

7. مسئلا حل ڪرڻ

If you encounter issues with your dust extractor, refer to the following common problems and solutions:

8. وضاحتون

Key technical specifications for the BIHUI Grinding Dust Extractor (Model: DCWDE5).

شڪل 8.1: طول و عرضview of the BIHUI Grinding Dust Extractor, indicating key measurements for compatibility.

9. وارنٽي ۽ سپورٽ

For information regarding product warranty, returns, or technical support, please refer to the manufacturer's official website or contact the retailer from whom the product was purchased. Keep your proof of purchase for any warranty claims.

ٺاهيندڙ: Bihui

For further assistance, please visit the BIHUI official webسائيٽ يا انهن جي ڪسٽمر سروس کاتي سان رابطو ڪريو.
