اوهنيئو 21 انچ فلش ماؤنٽ سيلنگ فين لائيٽس ۽ ريموٽ سان (ماڊل JF2HG) هدايت نامو

1. تعارف

Thank you for choosing the Ohniyou 21-inch Flush Mount Ceiling Fan with Lights and Remote. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference.

2. حفاظت جي ڄاڻ

اھم حفاظتي ھدايتون:

• انسٽاليشن يا سروسنگ کان اڳ هميشه مين سرڪٽ بريڪر تي بجلي بند ڪريو.
• سڀئي وائرنگ قومي ۽ مقامي اليڪٽريڪل ڪوڊس جي مطابق هجڻ گهرجن. جيڪڏهن توهان وائرنگ کان ناواقف آهيو، ته هڪ قابل اليڪٽريشن سان صلاح ڪريو.
• Ensure the installation location can support the weight of the fan.
• Do not bend the fan blades during installation or cleaning.
• آپريشن دوران ٻارن کي پنکڙي کان پري رکو.
• هي پرستار صرف اندروني استعمال لاء ٺهيل آهي.

3. پيڪيج مواد

انسٽاليشن شروع ڪرڻ کان اڳ پڪ ڪريو ته سڀئي جزا موجود آهن:

• Ceiling Fan Unit (with integrated LED light)
• ريموٽ ڪنٽرول
• ريموٽ ڪنٽرول رسيور
• ماؤنٽنگ هارڊويئر (اسڪرو، تار نٽ، وغيره)
• ھدايت وارو دستور

Image: The Ohniyou 21-inch flush mount ceiling fan, remote control, and smartphone app interface.

4. مصنوعات جون خاصيتون

• ڪمپيڪٽ ڊيزائن: 21-inch flush mount design suitable for small rooms.
• طاقتور هوا جو وهڪرو: Angled propeller metal fan blades provide effective air circulation.
• خاموش ڊي سي موٽر: Operates at less than 30dB for minimal noise.
• ڊمبل ايل اي ڊي لائيٽ: Stepless dimming from 10% to 100% brightness.
• 3 رنگ جي درجه حرارت: Adjustable light color (3000K warm, 4000K neutral, 6500K cool).
• ريورسيبل ڊي سي موٽر: Supports downdraft (summer) and updraft (winter) modes.
• Remote & APP Control: Convenient control via included remote or smartphone application.
• ميموري فنڪشن: Retains last light setting when controlled by remote or app.
• ٽائيمنگ فنڪشن: 2-hour timer setting.
• رات جو هلڪو موڊ: Dedicated setting for low-light conditions.

Image: Diagram showing the 21-inch dimensions of the fan and a comparison of its airflow with a traditional 42-inch fan, highlighting its efficiency.

5. سيٽ اپ ۽ تنصيب

انسٽاليشن کان اڳ:

• سرڪٽ برڪر تي بجلي بند ڪريو.
• Ensure you have all necessary tools (screwdriver, wire strippers, ladder, etc.).

تنصيب جا مرحلا:

1. ماؤنٽنگ بریکٹ تيار ڪريو:

   Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure the bracket is firmly attached and can support the fan's weight.
2. Locate Remote Receiver:

   The remote control receiver is typically located within the fan's housing. You may need to remove two screws and twist the hanging plate to access it.



   Image: Four-panel illustration showing how to remove screws, twist the hanging plate, and locate the remote receiver and remote control within the fan unit.

3. وائرنگ ڪنيڪشن:

   Connect the fan's electrical wires to your household wiring according to the wiring diagram in the full manual. Use wire nuts to secure connections. Ensure proper grounding.
4. فين کي ماؤنٽنگ بریکٹ سان ڳنڍيو:

   Carefully lift the fan unit and attach it to the mounting bracket, ensuring all wires are tucked safely inside the canopy.

5. محفوظ فين بليڊ:

   Attach the fan blades to the motor housing. Ensure they are securely fastened.

6. لائيٽ ڪٽ انسٽال ڪريو:

   Connect the light kit wiring and secure the light cover to the fan unit.

6. آپريٽنگ هدايتون

6.1 ريموٽ ڪنٽرول آپريشن

The included remote control allows for full functionality of your ceiling fan. Ensure 2x AAA batteries (not included) are installed correctly.

Image: Illustration of the remote control and smartphone app interface, detailing functions like dimming, memory, timing, and night mode.

• Light On/Off, Fan & Light All Off: Press the dedicated buttons to control light and fan power.
• روشني سيٽنگ: Adjust color temperature (warm, neutral, cool) and brightness (10%-100%).
• Pair Code: Used for pairing the remote with the fan.
• اڳتي / ريورس: Switches between downdraft (summer) and updraft (winter) modes.
• قدرتي هوا جو طريقو: Simulates a natural breeze.
• پرستار بند: پنن کي بند ڪري ٿو.
• 6 فين اسپيڊ: Adjust fan speed from 1 (low) to 6 (high).
• ٽائمر: Sets a 2-hour timer for fan operation.
• رات جو موڊ: Activates a low-light, quiet operation mode.

6.2 APP Control Operation

Control your fan using the dedicated smartphone application. The app provides additional convenience and features.

1. ايپ ڊائون لوڊ ڪريو: هيٺ ڏنل QR ڪوڊ اسڪين ڪريو يا دورو ڪريو http://www.jasonghost.com/fanlamppro/index-en.html to download and install the "FanLamp Pro" app.
2. بلوٽوت کي فعال ڪريو: Open the app and turn on your phone's Bluetooth.
3. Power Cycle Fan: Disconnect the power of the fanlight, then reconnect it.
4. جوڙڻ: Hit the pair button within the app to connect to your fan.

Image: Screenshot of the FanLamp Pro app interface, showing options for scanning QR codes, managing rooms, and controlling fan and light settings.

6.3 Light Functions

• dimmable: Adjust light brightness from 10% to 100% using the remote or app.
• رنگ جي درجه حرارت: Cycle through warm (3000K), neutral (4000K), and cool (6500K) light settings.
• ميموري فنڪشن: The fanlight will remember the last brightness and color temperature setting when turned off and on via remote or app. This function does not apply when using a wall switch.

Image: Visual representation of the fan's customizable light, showing stepless dimming from 10% to 100% and three color temperature options (3000K, 4000K, 6500K).

6.4 Fan Functions

• فين جي رفتار: Select from 6 different fan speeds to achieve desired airflow.
• موٽائي سگهڻ واري موٽر:
  • Summer Downdraft Mode: Air circulates downward to create a cooling effect.
  • Winter Updraft Mode: Air circulates upward to enhance warm air distribution.

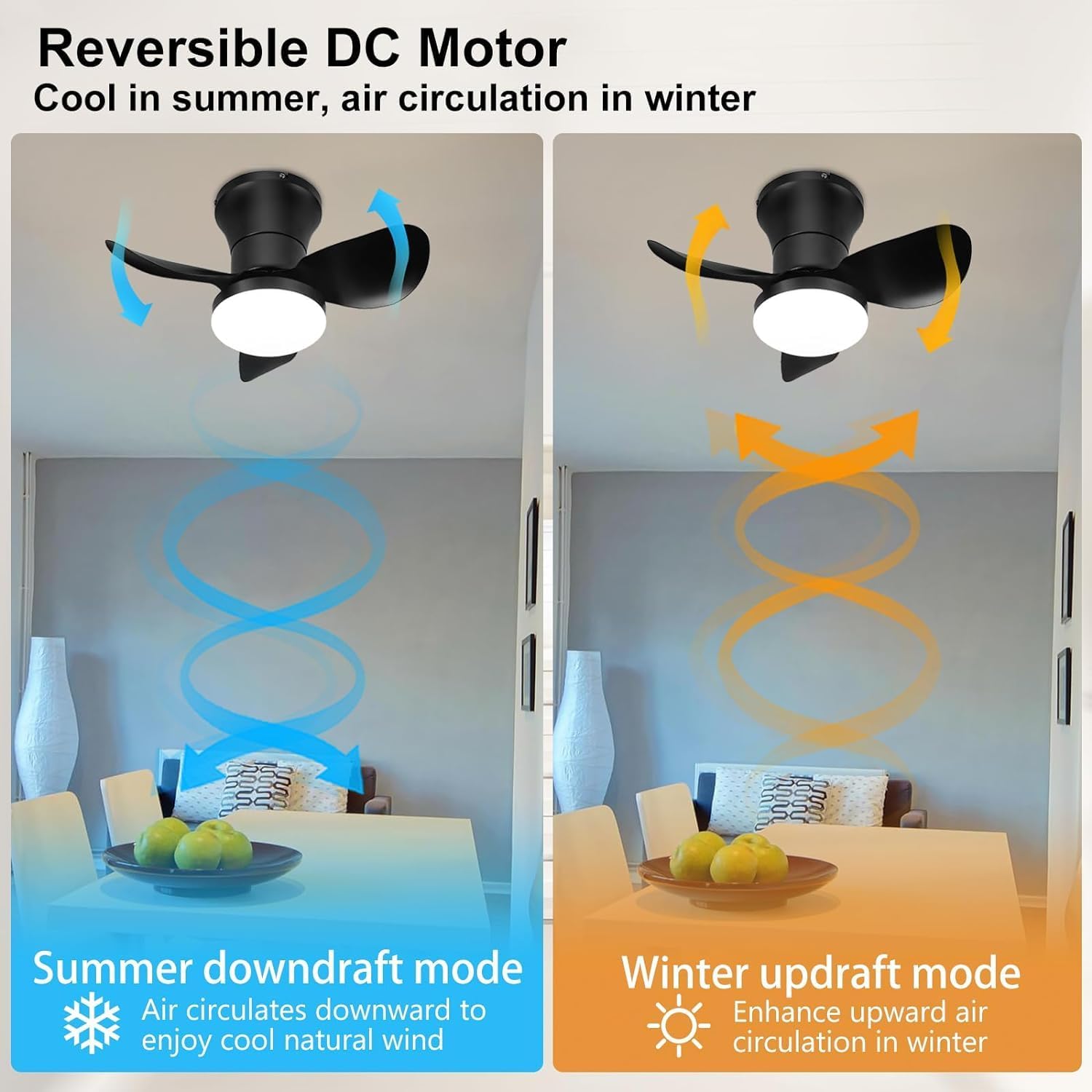

  Image: Diagram illustrating the reversible DC motor's downdraft mode for summer cooling and updraft mode for winter air circulation.

• ٽائمر: Use the 2-hour timer function for automatic fan shutdown.
• رات جو موڊ: Engages a quiet, low-speed fan operation suitable for sleeping environments.

Image: Icons representing ultra-quiet operation (<30dB), 2-hour timer, and night mode, with a sleeping child in the background.

7. سار سنڀال

باقاعده سار سنڀال توهان جي ڇت جي پنکڙي جي بهترين ڪارڪردگي ۽ ڊگهي عمر کي يقيني بڻائي ٿي.

• صفائي: نرم استعمال ڪريو، ڊيamp فين بليڊ ۽ موٽر هائوسنگ صاف ڪرڻ لاءِ ڪپڙو. رگڙيندڙ ڪلينر يا سالوينٽس استعمال نه ڪريو.
• روشني کٽ: The integrated LED light panel is replaceable. For replacement, please contact customer support.
• بندن کي مضبوط ڪريو: Periodically check and tighten all screws and fasteners to ensure secure operation.

Image: Diagram showing the replaceable LED light panel within the fan, composed of yellow and white light components.

8. مسئلا حل ڪرڻ

جيڪڏهن توهان کي پنهنجي پرستار سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:

9. وضاحتون

10. وارنٽي ۽ سپورٽ

وارنٽي: All Ohniyou products purchased come with a 365-day warranty as standard.

For technical support, warranty claims, or any questions regarding your Ohniyou ceiling fan, please refer to the contact information provided with your purchase or visit the official Ohniyou webسائيٽ.
