سمال ريگ سپر ڪلamp بال هيڊ ميجڪ آرم گوپرو اڊاپٽر سان (ماڊل 3757B) هدايت نامو

1. تعارف

خريد ڪرڻ لاءِ مهربانيasing the SmallRig Super Clamp Ball Head Magic Arm with GoPro Adapter, Model 3757B. This versatile mounting solution is designed to securely attach various camera accessories to a wide range of surfaces. Please read this manual carefully to ensure proper installation and operation.

Figure 1.1: SmallRig Super Clamp Ball Head Magic Arm with GoPro Adapter (Model 3757B)

1.1 پيڪيج مواد

• Crab-type Clamp x 1
• Ball Head Magic Arm x 1
• ايڪشن ڪئميرا اڊاپٽر x 1

2. مصنوعات جون خاصيتون

• Removable Action Camera Adapter: ڪلamp includes a dedicated adapter for action cameras, compatible with models like GoPro Hero 12/11/10/9 Black and DJI Osmo Action 3 camera cages.
• وسيع مطابقت: Equipped with 1/4"-20 and 3/8"-16 screw holes, allowing quick and secure attachment of various accessories such as action cameras, monitors, LED lights, and microphones.
• پائيدار تعمير: Manufactured from aerospace-grade aluminum alloy and stainless steel, with CNC machining for enhanced robustness and durability.
• حفاظتي ڊيزائن: Features a built-in anti-slip cushion to protect mounted camera accessories and improve overall clamp استحڪام.
• وڏي لوڊ گنجائش: Supports a maximum load of 3.5 kg (7.7 pounds), suitable for most camera accessories.
• Adjustable Clamp حد: ڪلamp can securely grip rods with diameters from 14mm to 60mm and flat surfaces with a maximum thickness of 65mm. This allows attachment to round pipes, tables, handlebars, tripods, and stabilizer handheld rings.
• Anti-twist Ball Head: The ball head features a hexagonal hole at its base for reinforced tightening with a hex wrench. Its 360-degree adjustable design incorporates a helical structure for enhanced stability.

شڪل 2.1: تفصيلي view of product features including removable adapter, anti-slip pads, and adjustment knob.

3. تنصيب ۽ سيٽ اپ

3.1 Attaching the Clamp

1. Identify the desired mounting surface (e.g., rod, table edge, tripod leg).
2. cl کوليوamp by rotating the large thumb screw counter-clockwise.
3. پوزيشن clamp jaws around the surface. Ensure the anti-slip pads make full contact.
4. Rotate the large thumb screw clockwise to tighten the clamp securely. Verify that the clamp is firmly attached and does not move.

شڪل 3.1: ڪلamp supports objects from 14mm diameter to 65mm thickness.

3.2 چڙهڻ جو سامان

1. The magic arm features a 1/4"-20 screw at the top. Attach your camera, monitor, or LED light by screwing it onto this thread.
2. For action cameras, attach the included action camera adapter to the 1/4"-20 screw on the magic arm. Then, mount your action camera to the adapter.
3. Utilize the additional 1/4"-20 and 3/8"-16 screw holes on the clamp body for mounting other accessories directly, if needed.

شڪل 3.2: ڪلamp offers multiple mounting points including 1/4"-20 and 3/8"-16 screw holes, and an action camera mount.

4. آپريشن

4.1 Adjusting the Ball Head

1. Loosen the thumb lever on the magic arm to adjust the angle of the attached accessory.
2. The ball head allows for 360-degree rotation, providing flexibility in positioning.
3. Once the desired angle is achieved, tighten the thumb lever firmly to lock the ball head in place.

Figure 4.1: The 360-degree adjustable ball head allows for flexible positioning of accessories.

4.2 Load Capacity Considerations

The maximum load capacity for this product is 3.5 kg (7.7 pounds). Ensure that the total weight of your mounted equipment does not exceed this limit to maintain stability and prevent damage.

شڪل 4.2: ڪلamp can support devices up to 3.5 kg, including cameras, monitors, and LED lights.

5. سار سنڀال

To ensure the longevity and optimal performance of your SmallRig Super Clamp، انهن سار سنڀال جي هدايتن تي عمل ڪريو:

• Regularly inspect all screws and connections for tightness. Use a hex wrench to tighten any loose screws, especially those on the ball head.
• cl رکوamp clean by wiping it with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• ڪل اسٽور ڪريوamp in a dry environment when not in use.
• Do not disassemble the original small screws on the ball head magic arm. Disassembly or replacement of these screws may compromise the product's integrity and stability.

6. مسئلا حل ڪرڻ

6.1 ڪلamp or Ball Head Loosening

جيڪڏهن clamp or ball head becomes loose during use, especially under vibration or heavy loads:

• Immediately re-tighten the main thumb screw on the clamp and the thumb lever on the ball head.
• For the ball head, use a hex wrench to ensure the internal hexagonal screw is securely fastened.
• Always verify the stability of the setup before and during operation, particularly when mounting valuable equipment.
• Ensure the mounted surface is within the specified diameter/thickness range (14-60mm for rods, up to 65mm for flat surfaces) for optimal grip.

7. وضاحتون

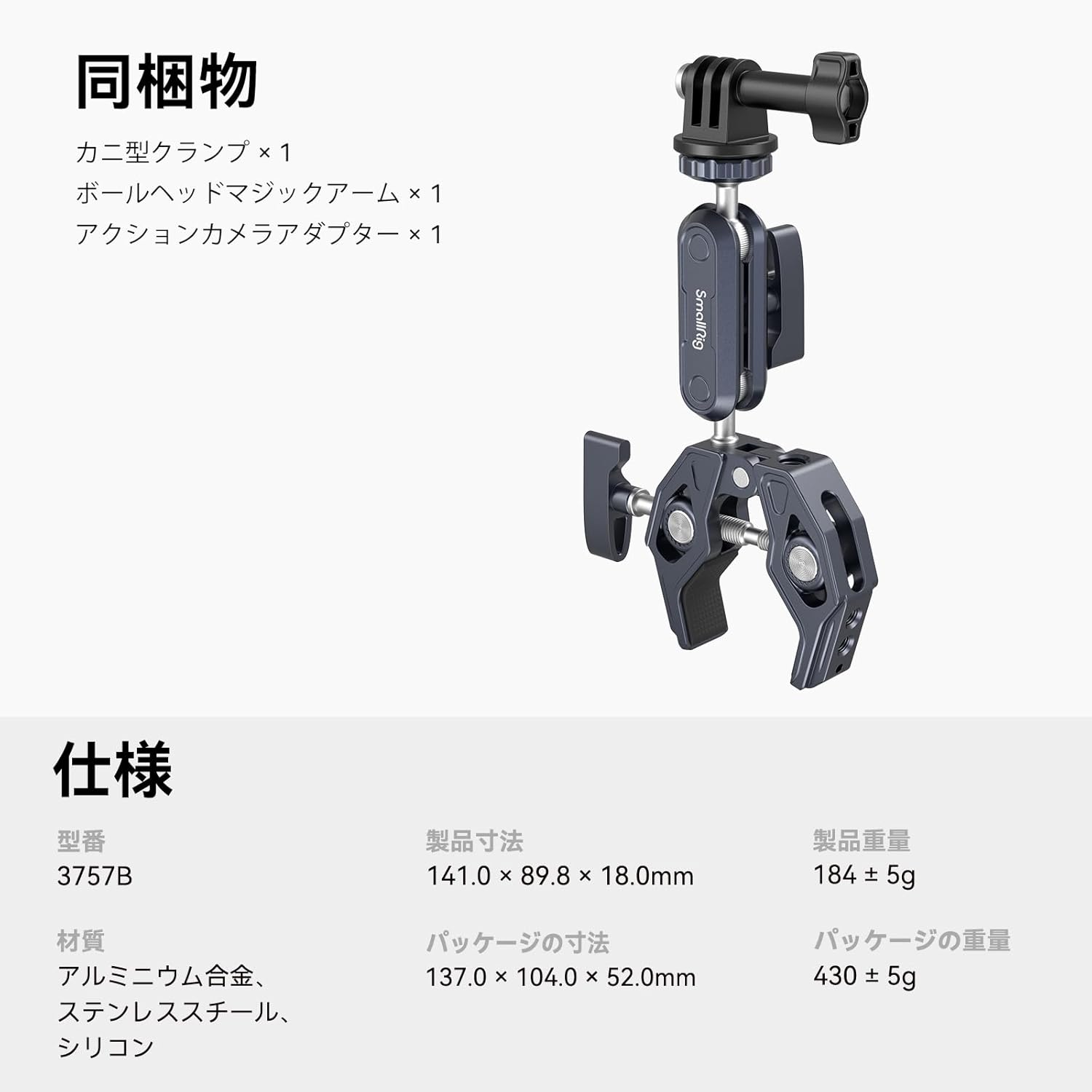

Figure 7.1: Product specifications and package contents.

8. وارنٽي ۽ سپورٽ

SmallRig products are manufactured to high-quality standards. For warranty information or technical support, please refer to the official SmallRig webسائيٽ تي وڃو يا پنهنجي مقامي ورهائيندڙ سان رابطو ڪريو. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
