Lauben 1200BC Kitchen Robot Instruction Manual

1. تعارف

Thank you for choosing the Lauben 1200BC Kitchen Robot. This appliance is designed to assist you with a variety of kitchen tasks, including mixing, kneading, blending, grinding, and more. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and keep it for future reference.

2. اھم حفاظتي ھدايتون

بجليءَ جا سامان استعمال ڪرڻ وقت، باهه، بجليءَ جي جھٽڪي ۽ زخم جي خطري کي گهٽائڻ لاءِ هميشه بنيادي حفاظتي احتياطن تي عمل ڪرڻ گهرجي.

• اوزار هلائڻ کان پهريان سڀ هدايتون پڙهو.
• موٽر يونٽ کي پاڻي يا ٻين مائع ۾ نه ٻوڙيو. اشتهار سان صاف ڪريو.amp رڳو ڪپڙو.
• گڏ ڪرڻ، ڌار ڪرڻ، صاف ڪرڻ، يا استعمال ۾ نه هجڻ کان اڳ هميشه ڊوائيس کي پاور آئوٽليٽ مان ان پلگ ڪريو.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from moving parts during operation to prevent injury.
• ڪنهن به اوزار کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو، يا اوزار جي خراب ٿيڻ کان پوء يا ڪنهن به طريقي سان خراب يا خراب ٿي ويو آهي.
• بند نگراني ضروري آهي جڏهن ڪو به اوزار استعمال ڪيو وڃي يا ٻارن جي ويجهو.
• Ensure the bowl is correctly seated and locked before operation. The appliance features a safety interlock system that prevents operation if not properly closed.
• ٺاهيندڙ طرفان سفارش ڪيل صرف منسلڪ ۽ لوازمات استعمال ڪريو.
• ٻاهران اوزار استعمال نه ڪريو.

Image: The bowl seating indicator illuminates to confirm correct bowl placement, ensuring safe operation.

Image: The mixing arm can be lifted for easy attachment and removal of accessories and the mixing bowl.

3. پراڊڪٽ ختمview ۽ اجزاء

Your Lauben 1200BC Kitchen Robot comes with various components and attachments to facilitate diverse culinary tasks.

مکيه يونٽ:

• موٽر يونٽ: The main body housing the 1200W copper motor and control knob.
• ملائي بازو: The movable arm where mixing attachments are connected.
• رفتار ڪنٽرول نوب: For selecting 8 speeds and PULSE function.
• Bowl Seating Indicator: Illuminates if the bowl is not correctly placed.

شامل لوازمات:

• 5.5L Stainless Steel Mixing Bowl: مختلف تيارين لاءِ وڏي گنجائش وارو پيالو.
• Transparent Bowl Lid with Filling Opening: Prevents splashes and allows adding ingredients during operation.
• ٿلهو ٿلهو: For kneading heavy doughs like bread or pizza.
• ڌڪ: For medium to heavy mixtures such as cake batter, cookies, or mashed potatoes.
• Balloon Whisk: وِپنگ ڪريم، انڊيءَ جي اڇي حصي ۽ هلڪي بيٽر لاءِ.
• 1.5L Tempered Glass Blender: سمودي، سوپ ۽ ساس لاءِ.
• گوشت جي پيسڻ واري حصي جو ڳنڍڻو: For grinding various types of meat.
• Sausage Making Attachment: گهر ۾ ٺهيل ساسي تيار ڪرڻ لاءِ.
• Kebab Making Attachment: For forming kebabs.
• ترڪيب ڪتاب: توهان کي شروع ڪرڻ لاءِ ترڪيبن جو هڪ مجموعو.

Image: The Lauben Kitchen Robot main unit shown with its complete set of accessories, including the mixing bowl, blender, meat grinder, and various mixing tools.

Image: A closer look at the included mixing attachments: the dough hook for heavy doughs, the whisk for general mixing, and the balloon whisk for aerating ingredients.

4. اسيمبلي ۽ سيٽ اپ

1. پيڪنگ کولڻ: پيڪنگ مان سڀني حصن کي احتياط سان هٽايو. اسٽوريج يا مستقبل جي ٽرانسپورٽ لاءِ پيڪنگ کي برقرار رکو.
2. صفائي: Before first use, clean all detachable parts (mixing bowl, attachments, blender jar, meat grinder parts) with warm soapy water. Rinse thoroughly and dry. Wipe the main motor unit with a damp ڪپڙو.
3. لڳائڻ: Place the kitchen robot on a stable, flat, and dry surface. Ensure there is adequate ventilation around the appliance.
4. مڪسنگ باؤل ڳنڍڻ: Place the stainless steel mixing bowl onto the base of the main unit. Rotate it clockwise until it locks securely into place. The bowl seating indicator should not be red.
5. ملائڻ جا اوزار ڳنڍڻ: Lift the mixing arm by pressing the release button. Select the desired attachment (dough hook, whisk, or balloon whisk) and insert it into the attachment shaft. Rotate until it clicks into place. Lower the mixing arm until it locks.
6. Attaching the Blender: Remove the cover from the top attachment point on the main unit. Place the blender jar onto this opening and twist to secure. Ensure the blender lid is also securely in place.
7. Attaching the Meat Grinder: Remove the cover from the front attachment point. Insert the meat grinder assembly and secure it according to the instructions provided with the attachment.

5. آپريٽنگ هدايتون

The Lauben 1200BC Kitchen Robot features 8 precisely calibrated speeds and a PULSE function for optimal control over your preparations.

جنرل آپريشن:

• Ensure the appliance is properly assembled and plugged into a suitable power outlet (220V).
• Add ingredients to the appropriate bowl or container.
• Turn the speed control knob to the desired setting (1-8).
• For short bursts of maximum power, turn the knob to the 'PULSE' (P) setting and hold. Release to stop.
• To stop operation, turn the knob to the 'OFF' position.

Image: The speed control dial allows selection from 8 speeds and a pulse function for precise control.

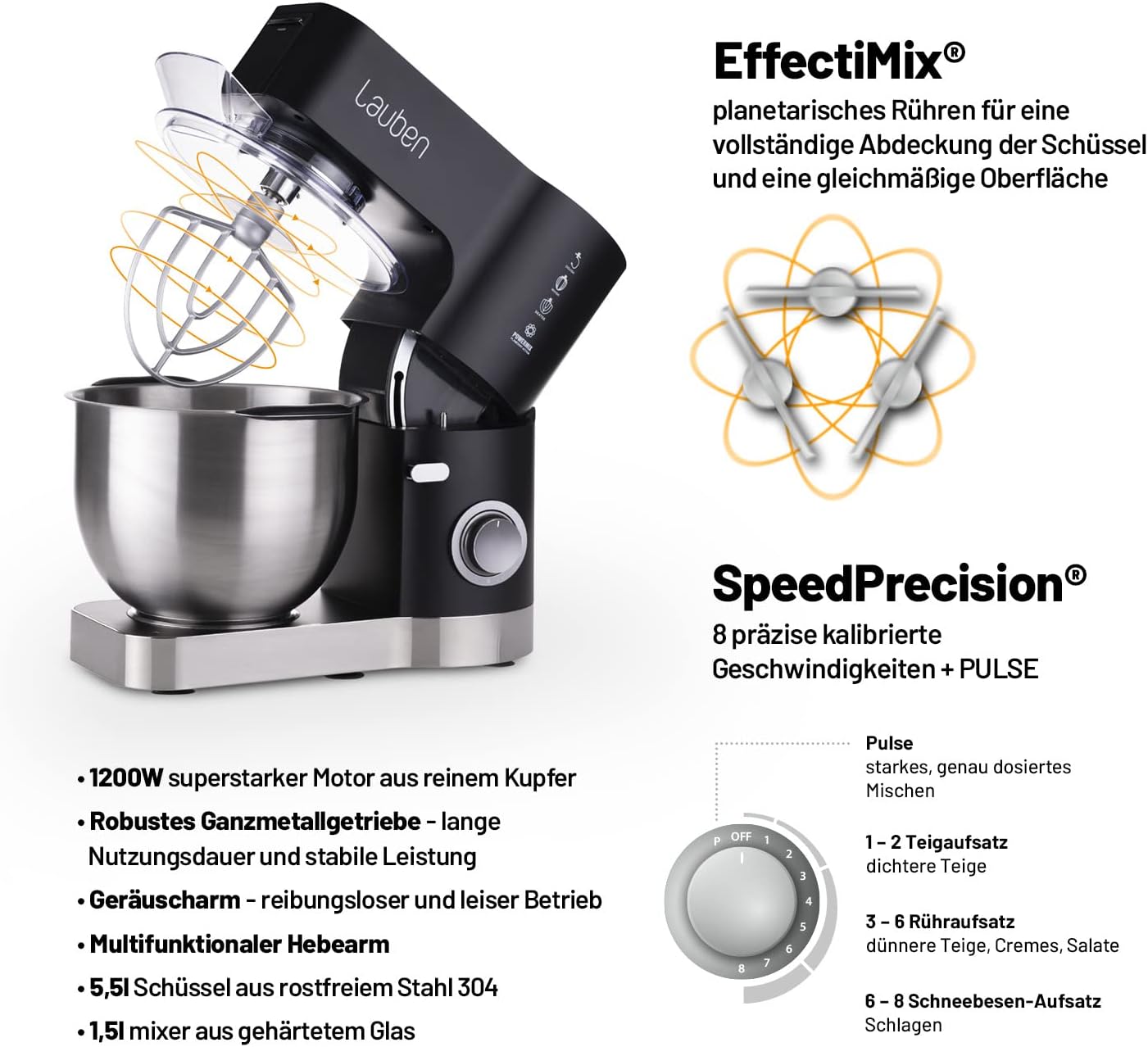

Image: The 3D planetary mixing motion ensures thorough ingredient incorporation, while the speed dial offers versatile control.

Using the Mixing Bowl (Dough Hook, Whisk, Balloon Whisk):

• ڊف ٿلهو (رفتار 1-2): Ideal for heavy doughs like bread or pizza. Start at speed 1 and gradually increase to speed 2. Do not overload the bowl.
• وِسڪ (رفتار 3-6): Suitable for medium to heavy mixtures such as cake batter, cookie dough, or mashed potatoes. Start at a lower speed and increase as needed.
• Balloon Whisk (Speeds 6-8): Best for whipping egg whites, cream, and light batters. Begin at a lower speed and gradually increase to prevent splashing.
• Use the transparent lid with the filling opening to add ingredients during mixing without stopping the machine.

Blender استعمال ڪندي:

• Ensure the blender jar is securely attached to the top port and the lid is closed.
• Add liquids and solid ingredients to the blender jar. Do not exceed the MAX fill line.
• Select a speed (typically 4-8) or use the PULSE function for controlled blending.
• For hot liquids, allow them to cool slightly before blending and ensure the lid is vented to release steam.

Image: The Lauben Kitchen Robot with the 1.5L tempered glass blender securely attached, ready for blending tasks.

گوشت جي گرائينڊر جو استعمال:

• Assemble the meat grinder attachment according to its specific instructions.
• گوشت کي ننڍڙن ٽڪرن ۾ ڪٽيو جيڪي فيڊنگ ٽيوب ۾ فٽ ٿين.
• Turn the appliance to a low to medium speed (typically 1-3).
• Use the food pusher to guide meat into the grinder. Never use your fingers.
• For sausage or kebab making, attach the appropriate accessories after grinding.

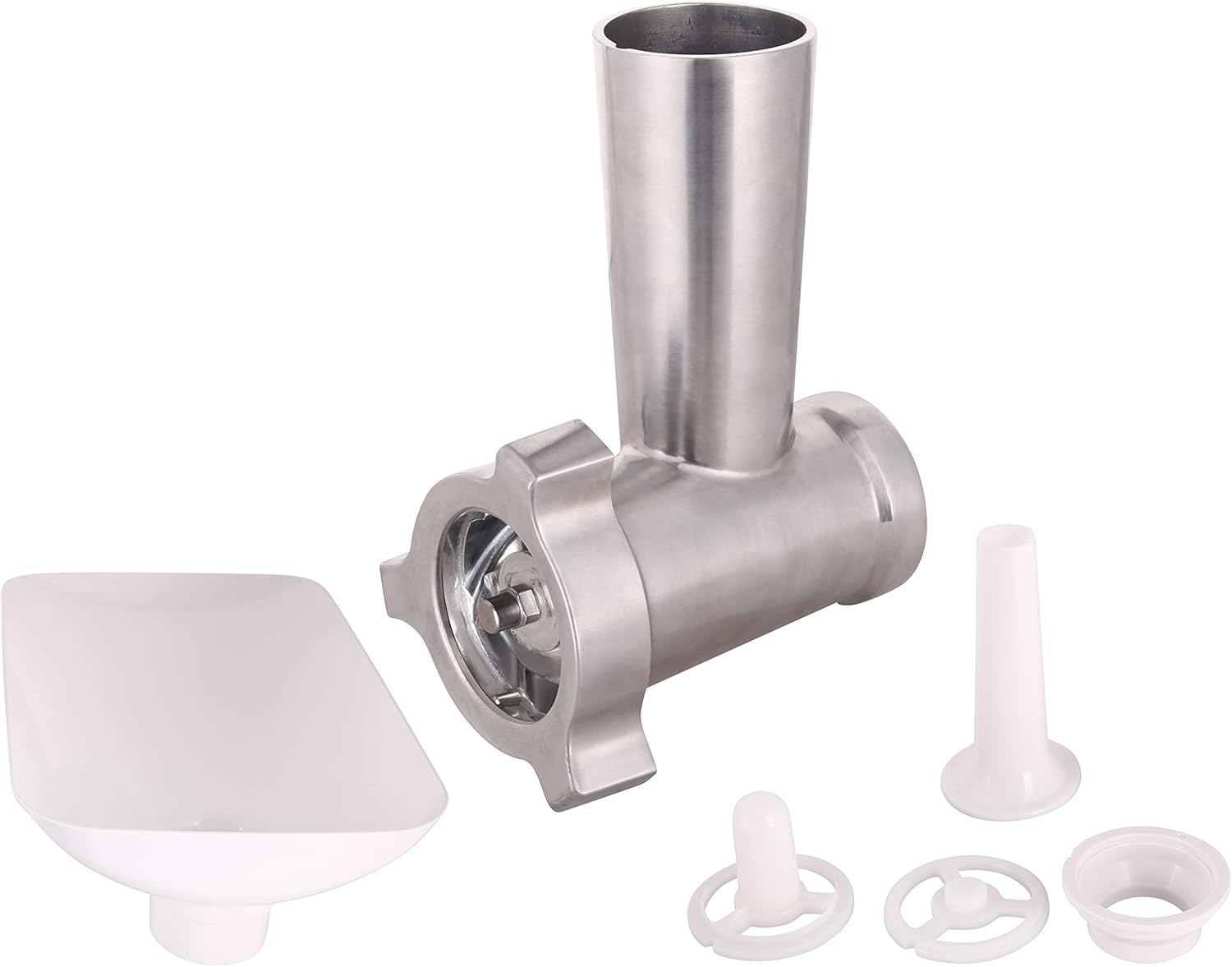

Image: The meat grinder attachment, including the main body, various grinding plates, and sausage/kebab nozzles.

6. صفائي ۽ سار سنڀال

Proper cleaning and maintenance will extend the life of your Lauben Kitchen Robot.

• هميشه صاف ڪرڻ کان پهريان اوزار کي انپلگ ڪريو.
• موٽر يونٽ: مکيه موٽر يونٽ کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. ان کي ڪڏهن به پاڻي يا ٻين مائع ۾ نه ٻوڙيو.
• ملائي پيالو ۽ اٽيچمينٽ: The stainless steel mixing bowl and most mixing attachments (dough hook, whisk, balloon whisk) are dishwasher safe. For best results, hand wash with warm soapy water and dry thoroughly.
• بلندر جار: The tempered glass blender jar is dishwasher safe. Ensure all parts are disassembled before placing in the dishwasher.
• گوشت گرائنڊر: Disassemble all parts of the meat grinder immediately after use. Wash with warm soapy water and a brush to remove any food residue. Dry thoroughly to prevent rust.
• Do not use abrasive cleaners, scouring pads, or harsh chemicals on any part of the appliance.
• اوزار ۽ ان جي لوازمات کي صاف، سڪل جاءِ تي رکو.

7. مسئلا حل ڪرڻ

If you encounter issues with your Lauben Kitchen Robot, refer to the following common problems and solutions:

جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

8. ٽيڪنيڪل وضاحتون

• برانڊ: لابن
• ماڊل نمبر: LBNKM1200BC
• رنگ: ڪارو
• طاقت: 1200 واٽ
• جلدtage: 220 وولٽ
• رفتار جو تعداد: 8 + نبض جو ڪم
• ملائي باؤل جي گنجائش: 5.5 ليٽر (اسٽينلیس اسٽيل)
• بلينڊر جي گنجائش: 1.5 Liters (Tempered Glass)
• مواد: اسٽينلیس اسٽيل ، گلاس
• پيداوار جي ماپ (L x W x H): 28 x 37 x 34.5 سينٽي
• شيء جو وزن: 8.1 ڪلوگرام
• سنڀال جون هدايتون: Dishwasher safe (bowl and containers)
• خاص خاصيتون: EffectiMix® Planetary Mixing, All-Copper Motor, All-Metal Gear System, SpeedPrecision® 8 Speeds, Safety Interlock, Bowl Seating Indicator.

1200W پاور

All-Metal Gear

Planetary Mixing

8 رفتار + نبض

حفاظتي تالا

5.5L پيالو

شيشي بلينڈر

Dishwasher محفوظ حصا

9. وارنٽي ۽ ڪسٽمر سپورٽ

For warranty information, please refer to the warranty card included with your product or contact your retailer. If you have any questions, require technical assistance, or need to order spare parts, please contact Lauben customer support. Information regarding spare parts availability is currently unavailable through this manual.
