Humanscale eFloat Go Electric Height-Adjustable Desk User Manual

1. تعارف ۽ اوورview

The Humanscale eFloat Go is an electric height-adjustable desk designed for both home and commercial office environments. It features innovative anti-collision technology, quiet motors, and a programmable hand switch, allowing users to seamlessly adjust their working position throughout the day.

اهم خاصيتون شامل آهن:

• Electric Height-Adjustable Table for dynamic work postures.
• Programmable hand switch to store and recall preferred height settings.
• Spacious 30" Depth by 60" Width top (for this specific model).
• جلدي ۽ آسان سيٽ اپ لاءِ ٺهيل.

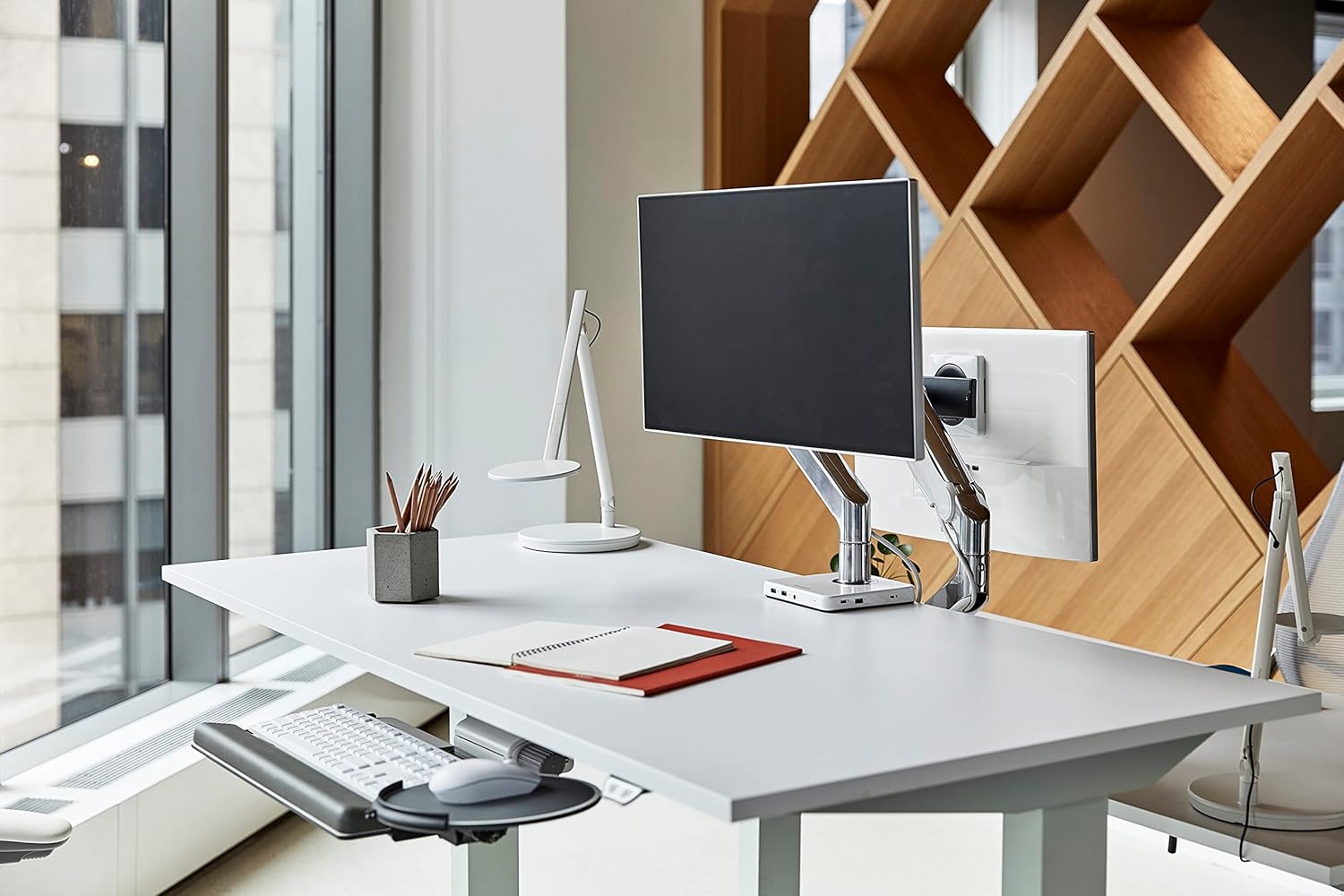

Image 1.1: The Humanscale eFloat Go desk in a modern office environment, showcasing its design and functionality with a monitor and accessories.

2. حفاظت جي ڄاڻ

Please read and understand all safety instructions before operating the eFloat Go desk. Failure to follow these instructions may result in injury or damage to the product.

• Always keep hands and objects clear of all moving parts during height adjustments.
• وڌ ۾ وڌ وزن جي سفارش کان وڌيڪ نه ڪريو 250 پائونڊ (113 ڪلوگرام) on the desk surface to ensure stability and safe operation.
• Ensure the power cord is properly routed to prevent tripping hazards or damage.
• ٻارن کي بالغن جي نگراني کان سواءِ ڊيسڪ هلائڻ جي اجازت نه ڏيو.
• مناسب ڪوسٽر يا تحفظ کان سواءِ مائع کي سڌو سنئون ڊيسڪ جي مٿاڇري تي رکڻ کان پاسو ڪريو.

3. سيٽ اپ ۽ اسيمبلي

The Humanscale eFloat Go desk is designed for straightforward assembly, typically taking under 5 minutes with the recommended tools. Assembly requires at least one person.

3.1 گهربل اوزار

• اسڪرو ڊرائيور (شامل نه آهي)

3.2 اسيمبليءَ جا مرحلا

1. انپيڪ اجزاء: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all components are present according to the packing list.
2. Attach Legs to Top: Position the desk top upside down. Align the desk legs with the pre-drilled holes on the underside of the desk top. Secure the legs using the provided screws and a screwdriver.
3. Connect Control Box and Hand Switch: Locate the control box and connect the motor cables from each leg. Connect the hand switch cable to the designated port on the control box.
4. رستا ڪيبل: Use the included cable management clips to neatly route all cables, ensuring they do not interfere with the desk's movement.
5. پاور Connectنيو: Plug the power cord into the control box, then into a standard electrical outlet.
6. Initial Power-On and Reset: After connecting power, the desk may require an initial reset. Refer to Section 4.1 for first-time use and reset procedures.

Image 3.1: Dimensional diagram of the eFloat Go desk, illustrating its 29" depth, 58" width, and 26.5" height.

4. آپريٽنگ هدايتون

The eFloat Go desk features an intuitive programmable hand switch for easy height adjustment and memory settings.

4.1 First-Time Use and Reset

Upon initial power-on or after a power interruption, the desk may need to be reset:

1. کي دٻايو ۽ رکو هيٺ arrow button until the desk reaches its lowest position and then slightly rises. Release the button.
2. The desk is now calibrated and ready for use.

4.2 ڊيسڪ جي اوچائي کي ترتيب ڏيڻ

• To raise the desk, press and hold the UP تير بٽڻ.
• To lower the desk, press and hold the هيٺ تير بٽڻ.
• Release the button at your desired height.

4.3 Programming Memory Presets

The hand switch allows you to save up to three preferred height settings:

1. Adjust the desk to your desired height using the UP/DOWN arrow buttons.
2. کي دٻايو M (Memory) button. The display will show 'S-'.
3. Within 3 seconds, press one of the numbered preset buttons (1, 2، يا 3). ڊسپلي 'S-1'، 'S-2'، يا 'S-3' ڏيکاريندو ته جيئن سيٽنگ محفوظ ٿي وڃي.
4. Repeat for other desired height settings.

4.4 ميموري پري سيٽ استعمال ڪندي

To move the desk to a saved height:

• بس لاڳاپيل نمبر واري پري سيٽ بٽڻ کي دٻايو (1, 2، يا 3). ڊيسڪ خودڪار طريقي سان محفوظ ڪيل اوچائي ڏانهن منتقل ٿي ويندو.

4.5 ٽڪراءُ مخالف ٽيڪنالاجي

The eFloat Go desk is equipped with anti-collision technology. If the desk encounters an obstruction during height adjustment, it will automatically stop and reverse slightly to prevent damage. Clear any obstructions before resuming adjustment.

تصوير 4.1: هڪ ويجهو تصوير view of the programmable hand switch, showing the up/down arrows, memory button (M), and three preset buttons (1, 2, 3).

5. سار سنڀال

Proper care will ensure the longevity and optimal performance of your Humanscale eFloat Go desk.

• صفائي: Wipe the desk surface and frame with a dry, soft cloth. For stubborn marks, a slightly damp cloth with mild soap can be used, followed by drying thoroughly. Avoid abrasive cleaners or harsh chemicals.
• ماحولياتي حالتون: Avoid direct sunlight exposure for extended periods, as this may affect the laminate finish.
• وزن جي تقسيم: Do not place heavy objects exclusively on the edges of the desk. Distribute weight evenly across the surface.
• ڪيبل جو انتظام: Periodically check that all cables are securely routed and not pinched or damaged.

6. مسئلا حل ڪرڻ

If you encounter issues with your eFloat Go desk, refer to the following common troubleshooting steps:

6.1 Desk Not Moving

• طاقت چيڪ ڪريو: Ensure the power cord is securely plugged into both the desk's control box and a functioning wall outlet.
• ري سيٽ ڪرڻ جو طريقو: Perform the reset procedure described in Section 4.1.
• اوور لوڊ تحفظ: If the desk has been overloaded (exceeding 250 lbs), the motor may have temporarily shut off. Remove excess weight and wait a few minutes before attempting to operate again.

6.2 Uneven Movement or Noise

• رڪاوٽون چيڪ ڪريو: Ensure there are no objects impeding the legs or frame during movement.
• سطح سطح: Verify the desk is placed on a level floor. Adjust the leveling feet if necessary.
• اسڪرو کي ٻيهر مضبوط ڪريو: Over time, some assembly screws may loosen. Carefully re-tighten all assembly screws.

6.3 Anti-Collision System Triggering Frequently

• صاف رستو: Ensure the desk's path of movement is completely clear of any objects, cables, or walls.
• حساسيت: If the issue persists without clear obstructions, contact Humanscale support for potential sensitivity adjustments or further diagnostics.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

Humanscale stands behind the quality of its products.

8.1 وارنٽي ڄاڻ

The Humanscale eFloat Go desk is covered by a 10-Year, 24/7 Humanscale Warranty. This comprehensive warranty covers parts and labor for manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

8.2 ڪسٽمر سپورٽ

For technical assistance, warranty claims, or further inquiries, please contact Humanscale customer support. You can find more information and contact details by visiting the official Humanscale store:
