تعارف
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your SocketScan S720 Entry-Level 1D/2D Barcode Scanner. The S720 is a lightweight, ergonomically designed Bluetooth barcode scanner capable of reading both 1D and 2D barcodes from various surfaces, including paper and digital screens. It offers intuitive notifications for battery level, Bluetooth connection, and scanning status, ensuring ease of use for general-purpose scanning tasks.
پيڪيج مواد
اڳتي وڌڻ کان اڳ، مھرباني ڪري تصديق ڪريو ته سڀئي شيون توھان جي پيڪيج ۾ موجود آھن:
- SocketScan S720 Barcode Scanner
- USB چارجنگ ڪيبل
- کلائي پٽي
- تڪڙي شروعات جي ھدايت (ھن ڊجيٽل دستور ۾ شامل نه آھي)
Image: SocketScan S720 Barcode Scanner. This image shows the black scanner from an angled perspective, highlighting its ergonomic design and the Socket Mobile logo.
تصوير: مٿي کان هيٺ تائين view of the SocketScan S720. This perspective clearly shows the main scan button, indicator lights for battery and Bluetooth, and the Socket Mobile branding.
Image: USB Charging Cable. This image displays the black USB-A connector on one end and a barrel connector on the other, used for charging the scanner.

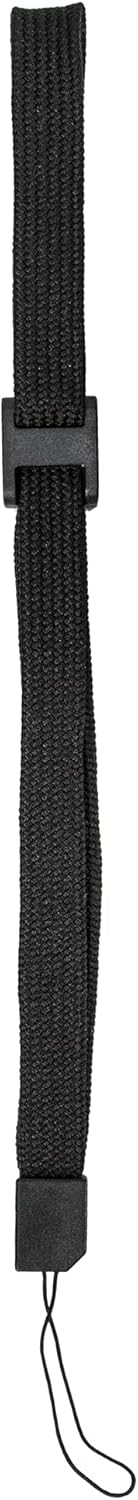

Image: Wrist Strap. A black woven wrist strap with plastic adjusters, designed to secure the scanner to the user's wrist.
سيٽ اپ ڪريو
1. اسڪينر کي چارج ڪرڻ
Before initial use, fully charge your SocketScan S720. Connect the small end of the provided USB charging cable to the charging port on the scanner and the USB-A end to a compatible USB power adapter or computer USB port. The battery indicator light will show charging status.
2. پاور آن/آف
- پاور آن ڪرڻ: Press and hold the small power button located on the scanner until the indicator lights illuminate.
- پاور آف ڪرڻ: پاور بٽڻ کي دٻايو ۽ رکو جيستائين اشاري جون بتيون بند نه ٿين.
3. بلوٽوٽ جوئر
The SocketScan S720 connects wirelessly via Bluetooth. Follow these steps to pair it with your host device (e.g., smartphone, tablet, computer):
- پڪ ڪريو ته اسڪينر آن آهي.
- On your host device, navigate to the Bluetooth settings and ensure Bluetooth is enabled.
- The scanner should appear in the list of available devices, typically as "Socket S720" or similar. Select it to initiate pairing.
- Once paired, the Bluetooth indicator light on the scanner will turn solid blue, indicating a successful connection.
Note: For optimal performance and compatibility, it is recommended to use the Socket Mobile Companion App or SDK for advanced configuration and management.
آپريٽنگ هدايتون
1. اسڪيننگ بارڪوڊس
The S720 is designed for easy and efficient barcode scanning:
- اسڪينر جي ونڊو کي ان بارڪوڊ ڏانهن اشارو ڪريو جيڪو توهان اسڪين ڪرڻ چاهيو ٿا.
- Press and hold the large scan button. A red aiming beam will appear.
- بارڪوڊ مٿان مقصد واري بيم کي مرڪز ڪريو.
- Upon a successful scan, the scanner will emit a beep, and the data will be transmitted to your connected host device.
The S720 supports both 1D and 2D barcodes, including popular formats like PDF417, QR Codes, and Data Matrix.
2. اشارو بتيون
The scanner features several indicator lights to provide status information:
- بيٽري جو اشارو: Shows the current battery level (e.g., green for full, amber for medium, red for low).
- بلوٽوٿ اشارو: Indicates Bluetooth connection status (e.g., blinking for pairing mode, solid for connected).
- Scan Status Indicator: Provides feedback on scan operations (e.g., successful scan, error).
سار سنڀال
Proper maintenance ensures the longevity and optimal performance of your SocketScan S720:
- صفائي: نرم، لِنٽ کان خالي ڪپڙو استعمال ڪريو ٿورڙو ڊيampened with water or a mild cleaning solution to wipe the scanner's exterior. Do not use abrasive cleaners or immerse the device in liquid.
- اسٽوريج: اسڪينر کي سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري ٿڌي، سڪل جاءِ تي رکو.
- بيٽري جي سنڀال: To preserve battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to about 50% before storage.
- فرم ويئر اپڊيٽس: وقتي طور تي ساکٽ موبائل چيڪ ڪريو website for firmware updates to ensure your scanner has the latest features and bug fixes.
مشڪلاتون
جيڪڏهن توهان کي پنهنجي SocketScan S720 سان مسئلا درپيش اچن ٿا، ته پوءِ هيٺ ڏنل عام مسئلا حل ڪرڻ جا قدم ڏسو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| اسڪينر آن نٿو ٿئي. | گھٽ يا ختم ٿيل بيٽري. | Charge the scanner using the provided USB cable. |
| بلوٽوٿ ذريعي جوڙي نه ٿو سگهجي. | Scanner not in pairing mode; Bluetooth off on host device; interference. | Ensure scanner is in pairing mode. Check host device Bluetooth settings. Move closer to the host device. |
| اسڪينر بارڪوڊ نه پڙهي رهيو آهي. | Barcode damaged or poorly printed; incorrect aiming; scanner not configured for barcode type. | Ensure barcode is clear. Aim the red beam directly over the barcode. Check scanner configuration via Socket Mobile tools. |
| Scanned data not appearing on host device. | Bluetooth connection lost; host application not ready to receive input. | Verify Bluetooth connection. Ensure cursor is in a text field on the host device. |
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | CX3972-3029 |
| اسڪيننگ جي صلاحيت | 1D and 2D Barcodes (PDF417, QR Codes, Data Matrix, etc.) |
| رابطي | بلوٽوٿ |
| مطابقت رکندڙ ڊوائيسز | Desktop, Laptop, Smartphone |
| طاقت جو ذريعو | بيٽري سان هلندڙ (1 ليتيم پوليمر بيٽري گھربل) |
| پيداوار جي ماپ | 19.69 x 19.69 x 11.02 انچ |
| شيءِ جو وزن | 8.3 اونس |
| ٺاهيندڙ | ساکٽ موبائل |
| پهرين دستياب | 8 جولاءِ 2022ع |
وارنٽي ۽ سپورٽ
تفصيلي وارنٽي معلومات ۽ ٽيڪنيڪل سپورٽ لاءِ، مھرباني ڪري سرڪاري ساکٽ موبائل جو حوالو ڏيو. website or contact their customer service. Warranty terms and conditions may vary by region and purchase date.
ٺاهيندڙ: ساکٽ موبائل
Webسائيٽ: www.socketmobile.com
